NanoVNA Plus, It is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After multiple upgrades, NanoVNA Plus is currently the highest performing version, with a measurement frequency range upgraded to 50KHz-2.7GHz and better performance than the previous 1.5GHz old version

NanoVNA Plus Product Parameters:

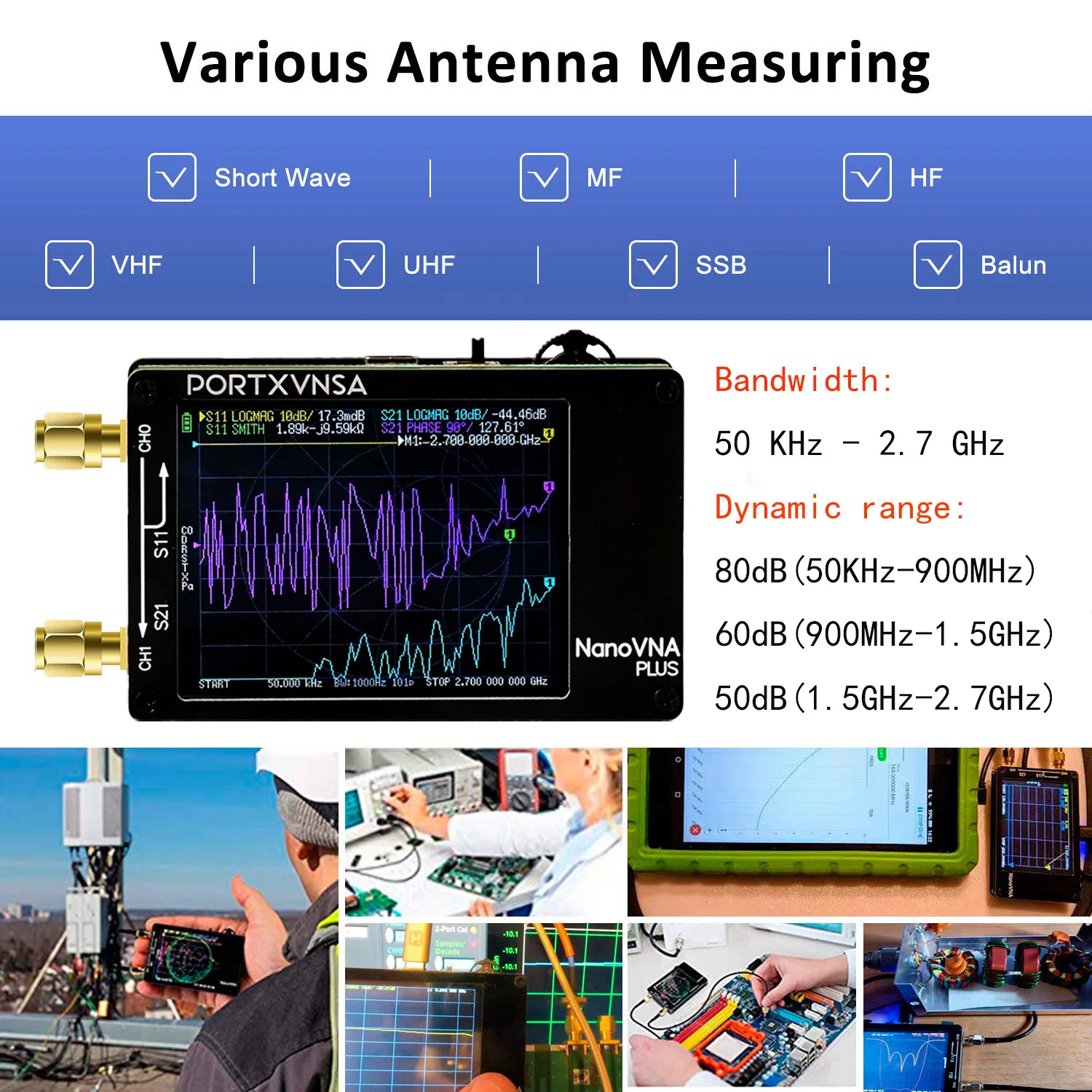

Bandwidth: 50KHz-2.7GHz

Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)

Reflection coefficient: SWR:<1.1

Frequency accuracy:<0.5 ppm

Frequency stability:<2.5 ppm

Scanning points: 101

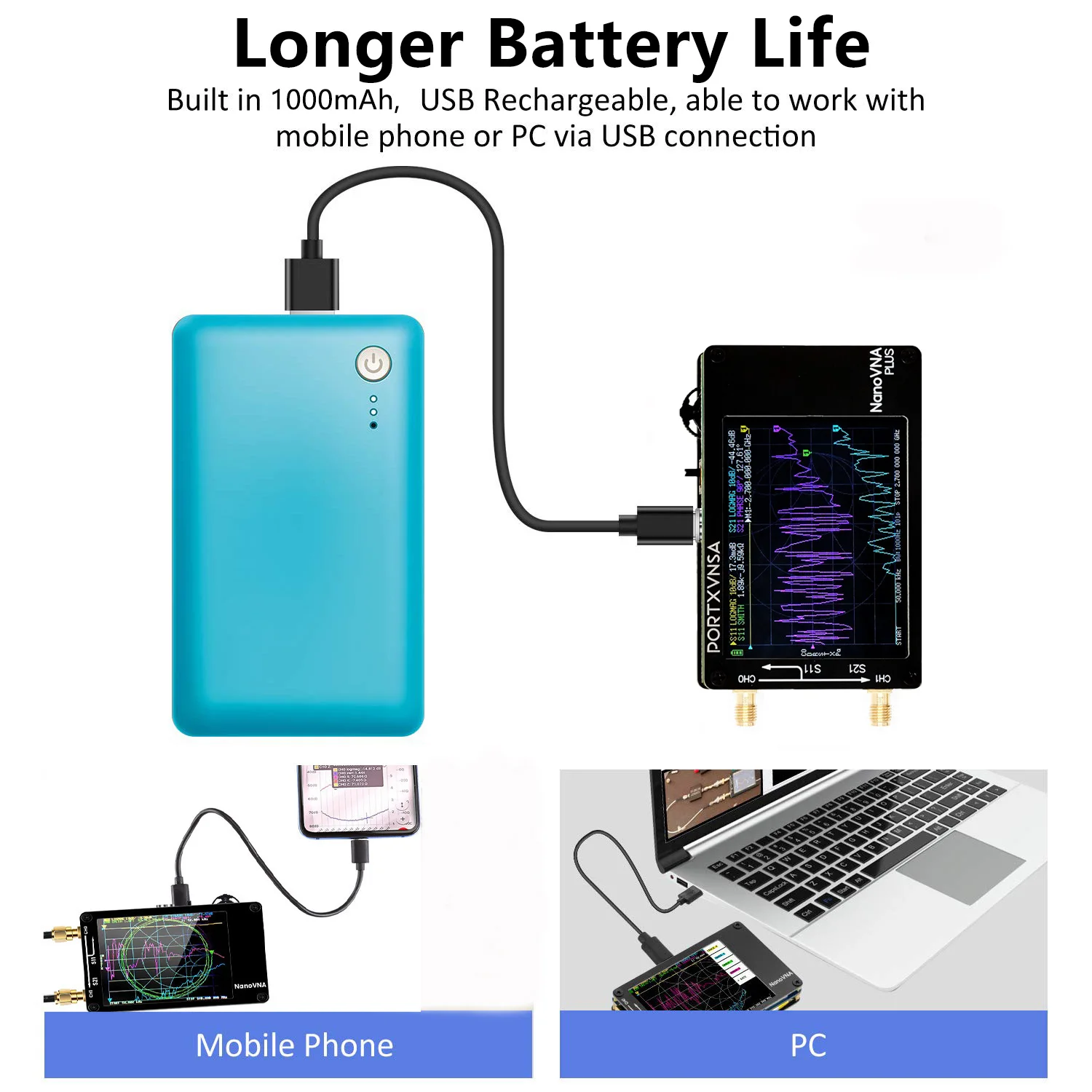

Built in 1000mAh battery

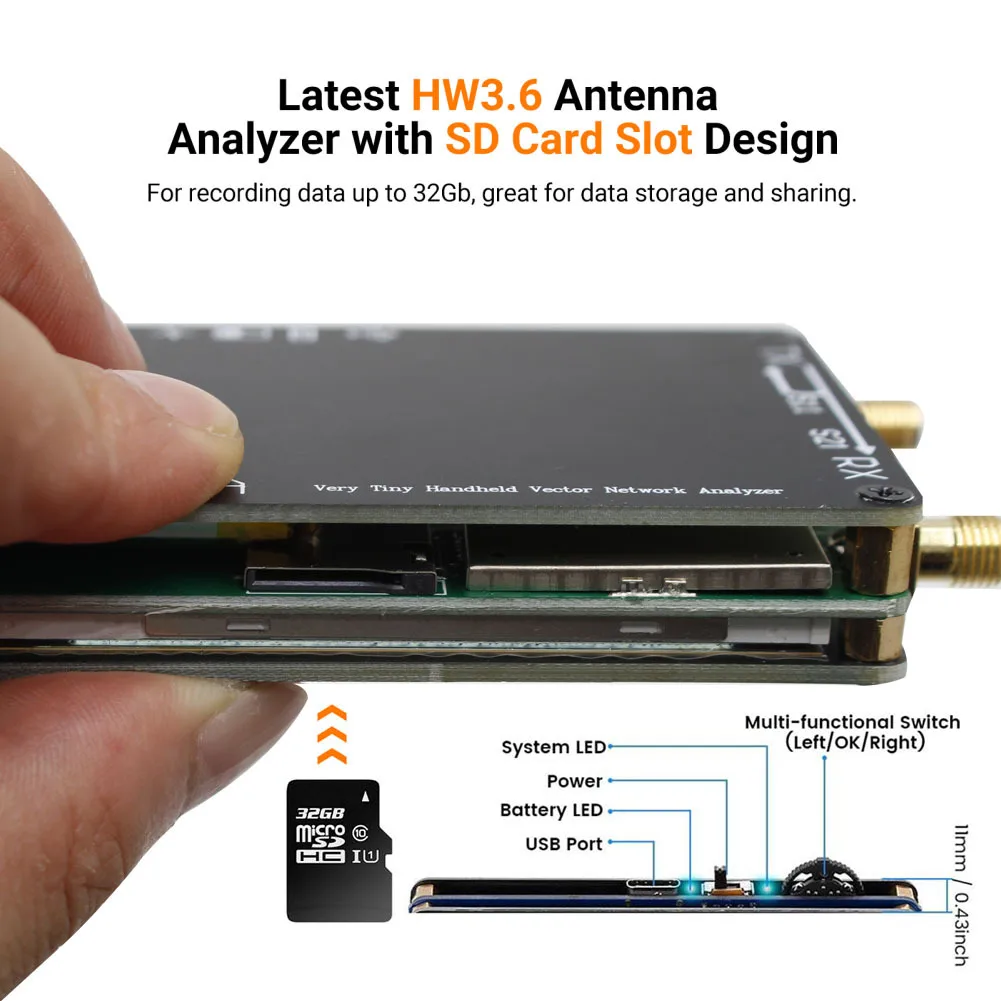

MicroSD supports a maximum of 32GB and only supports SPI mode.

Add RTC support;

Change the port names to Port1 and Port2

Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart;

Packing List:

1. NanoVNA host * 1 (including 2.8-inch touch screen, 1000mAh battery)

2. 20cm SMA male to male RG174 RF cable * 2

3. Type-C to Type-C connection cable

4. USB Type-C data cable * 1

5. Simplified manual * 1

6. Touchpen * 1

7. Paddle * 1

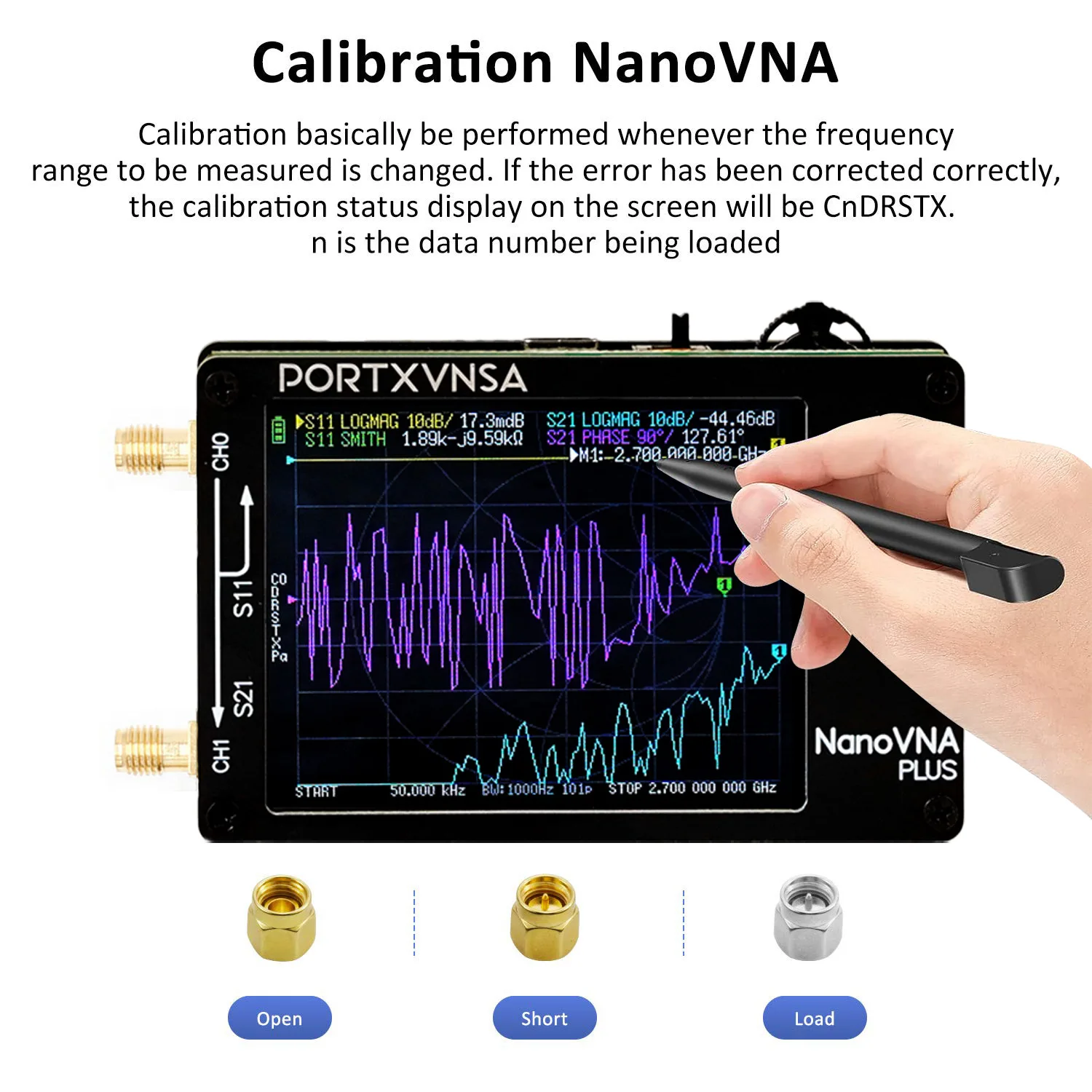

8. SMA simple calibration kit LOAD * 1

9. SMA Easy Calibration Kit OPEN * 1

10. SMA Easy Calibration Kit SHORT * 1

11. SMA female to female connector * 1

12. SD card( set 1 without SD card)
