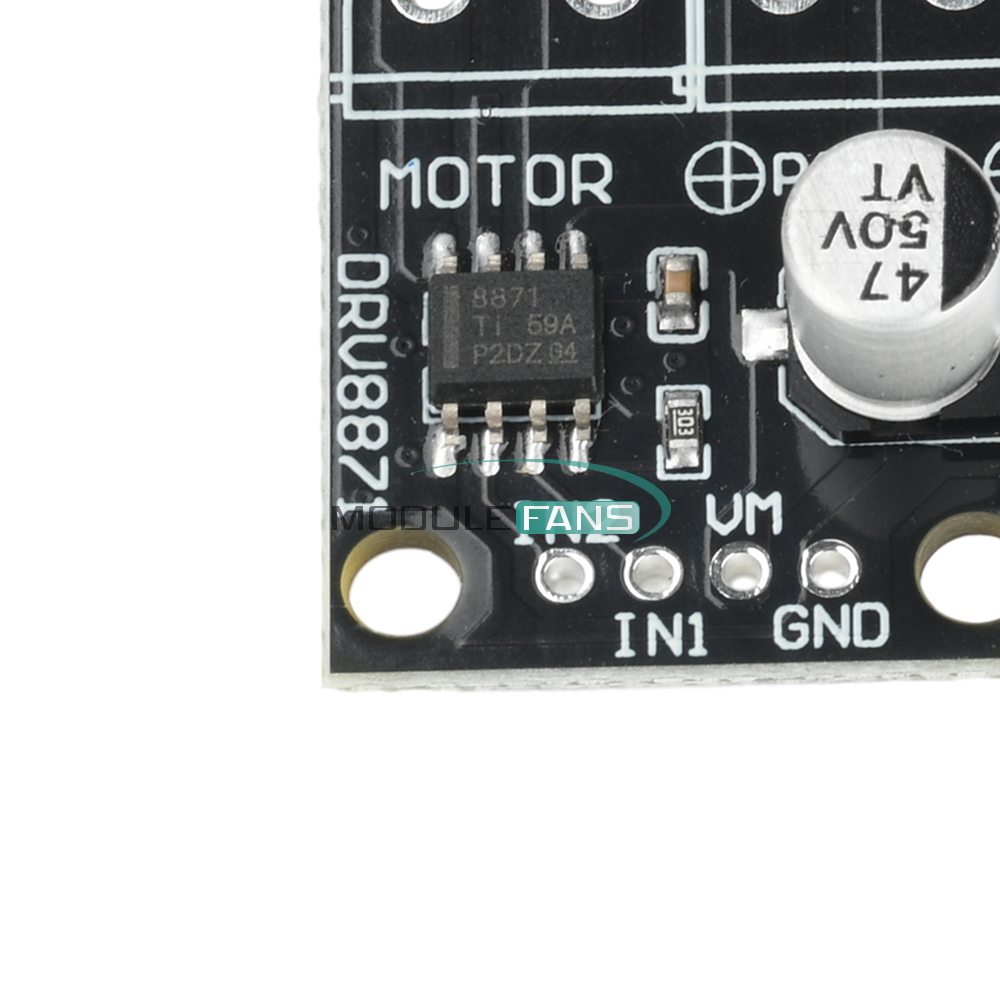

DRV8871 6.5-45V DC H-bridge Motor Driver Module 3.6A Brushed PWM Control Module
Features:
1. PWM Control: Supports pulse width modulation interface for precise speed and power control
2. Wide Application: Can be used in printers, industrial equipment, and mechatronic systems
3. Sensorless Current Regulation: Current can be adjusted without external resistors, simplifying design and enhancing stability
4. Multiple Protections: Built-in overcurrent, short-circuit, undervoltage, and overheat protection ensure safe and stable operation of the equipment
5. Multi-Functional Drive: Suitable for DC motors, stepper motor windings, and other loads, meeting diverse application requirements
Parameter:
Operating voltage: DC 6.5-45V
Control level: 3.3/5V
Single H-bridge output peak current: 3.6A (default current threshold 2A)
Typical RDS(on) (HS+LS): 565 mΩ
Product dimensions: 25.2 x 21.7 x 10 mm
Module interface: 2.54 mm pitch solder holes
Precautions:
1. Do not reverse the power supply, otherwise there is a risk of burning out the chip.
2. After receiving the module, please test that it is functioning properly before soldering.
Package include:
Module*1
Pin header*1
Terminal*2
