Please note

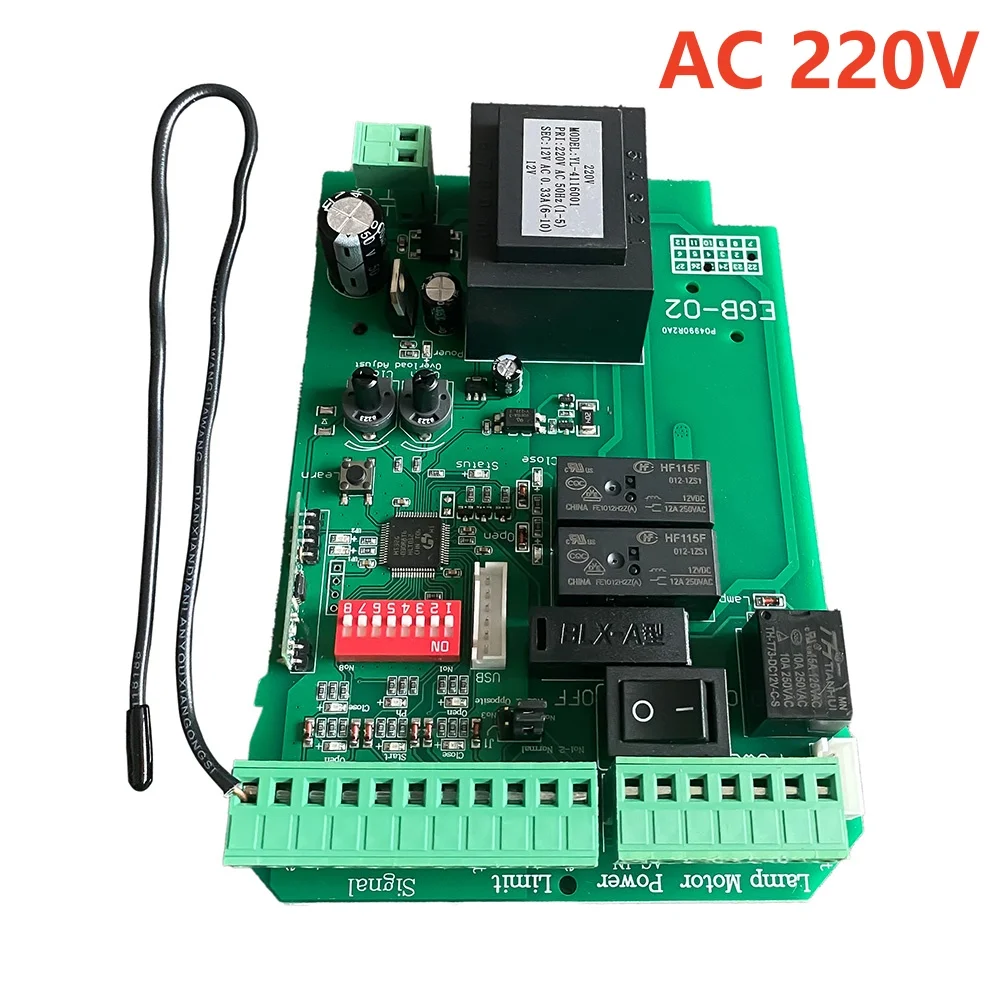

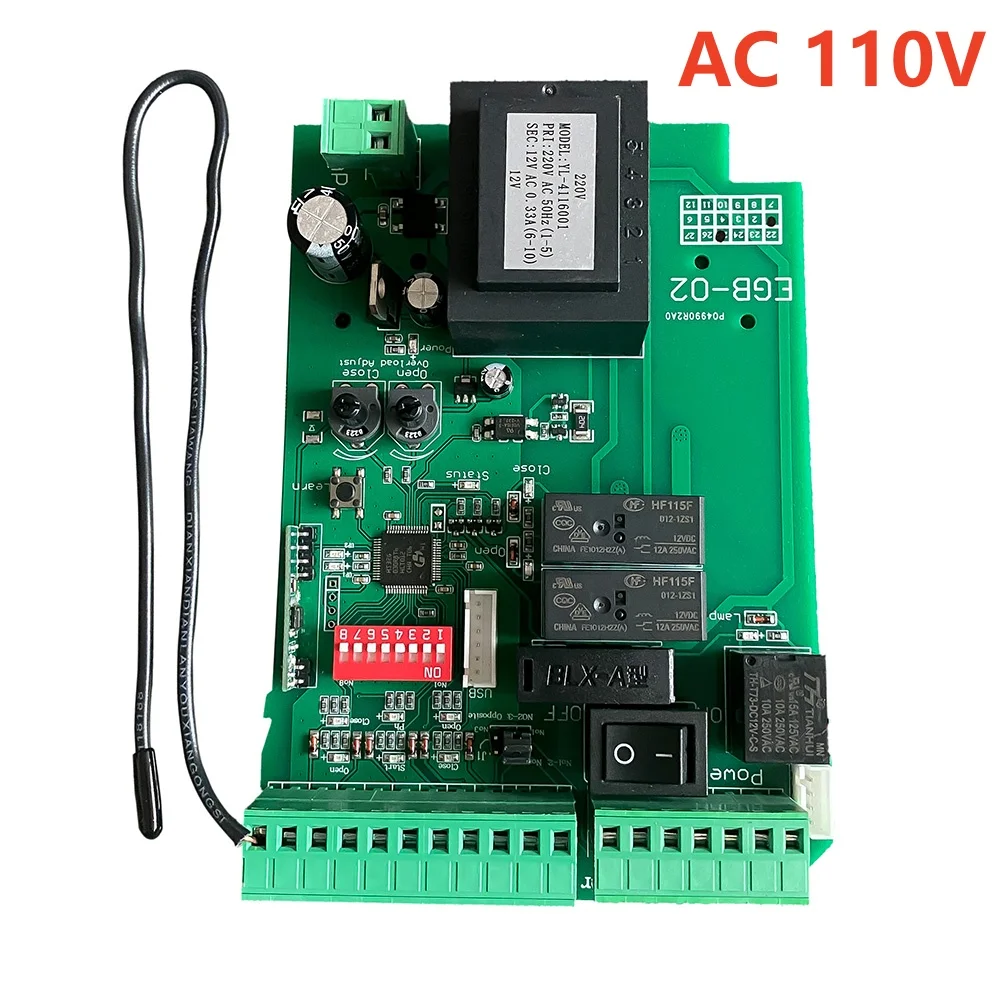

This PCB control board can only use the remote control in our photo, it cannot be used with other remote controls

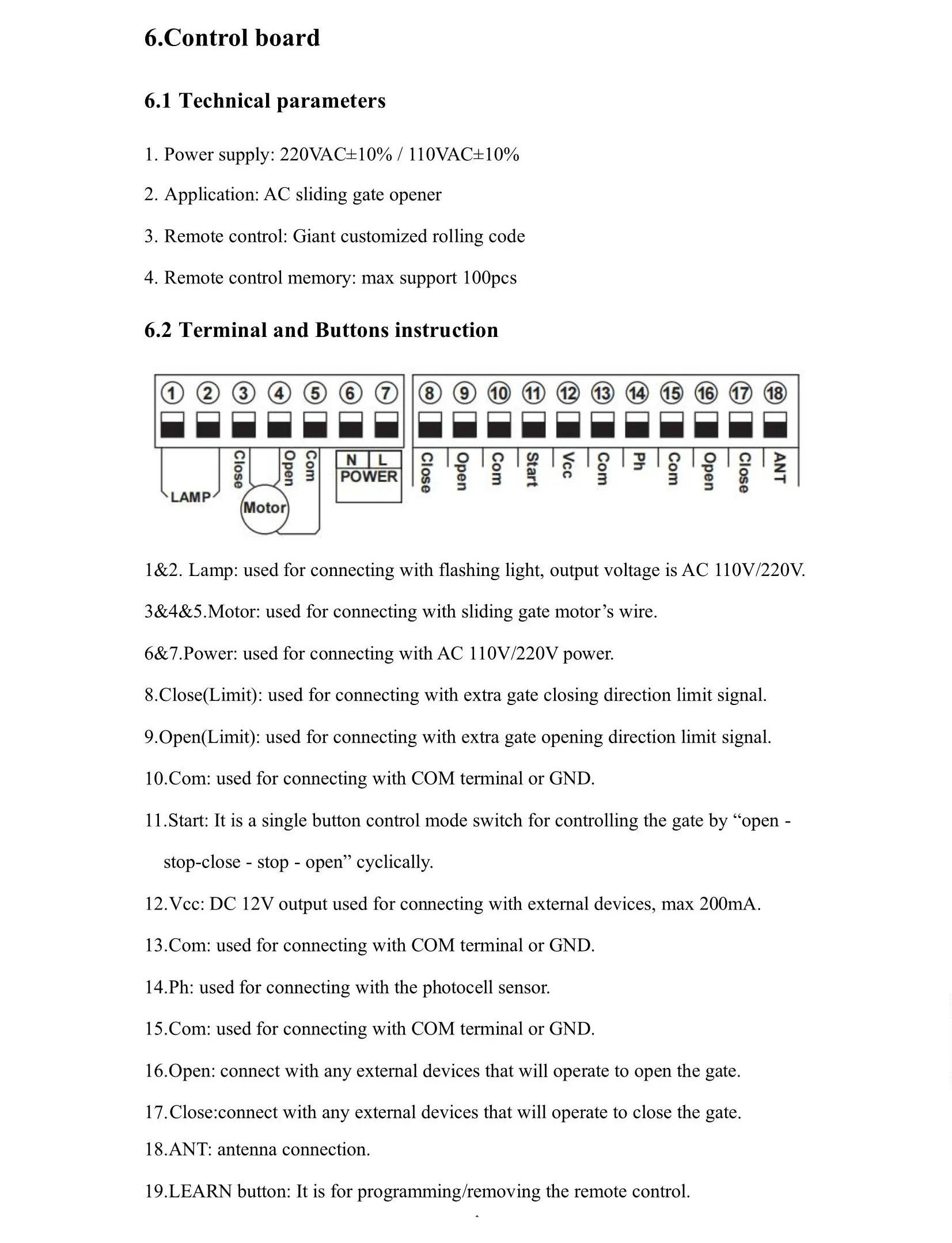

1.Power supply: 220VAC±10% / 110VAC±10%
2.Application: AC sliding gate opener
3.Remote control: Giant customized rolling code
4.Remote control memory: max support 100pcs

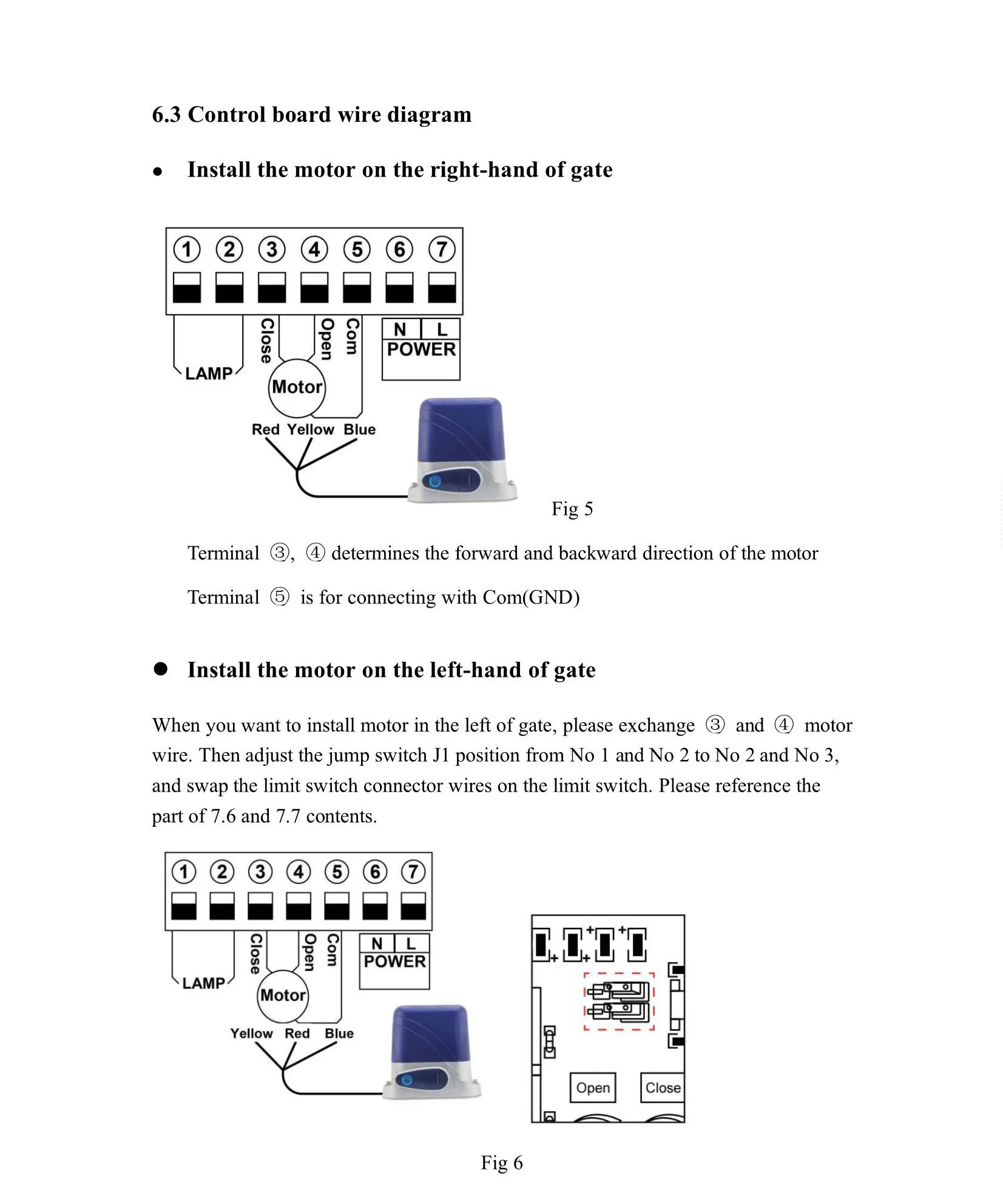

Control board wire diagram

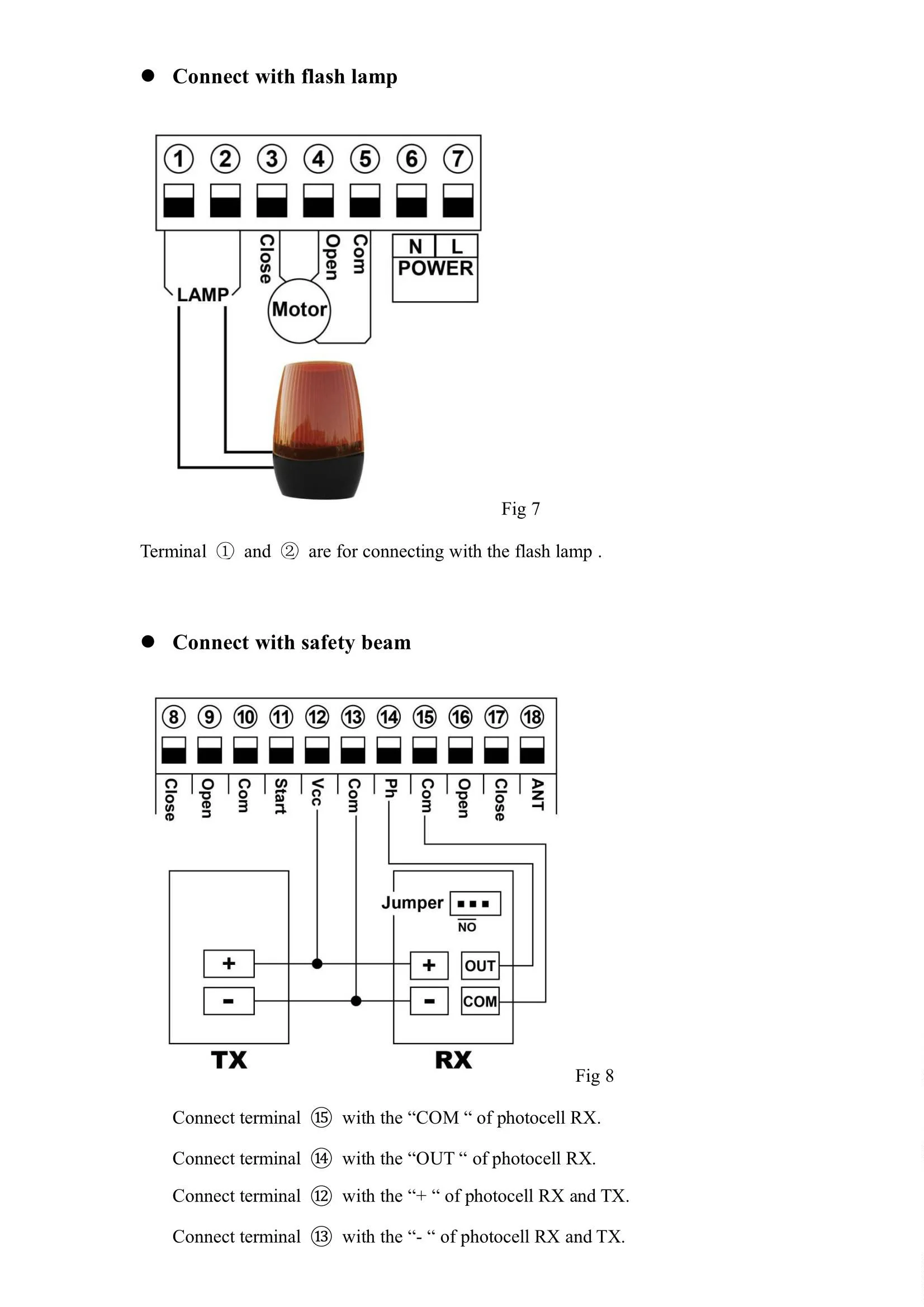

Connect with flash lamp

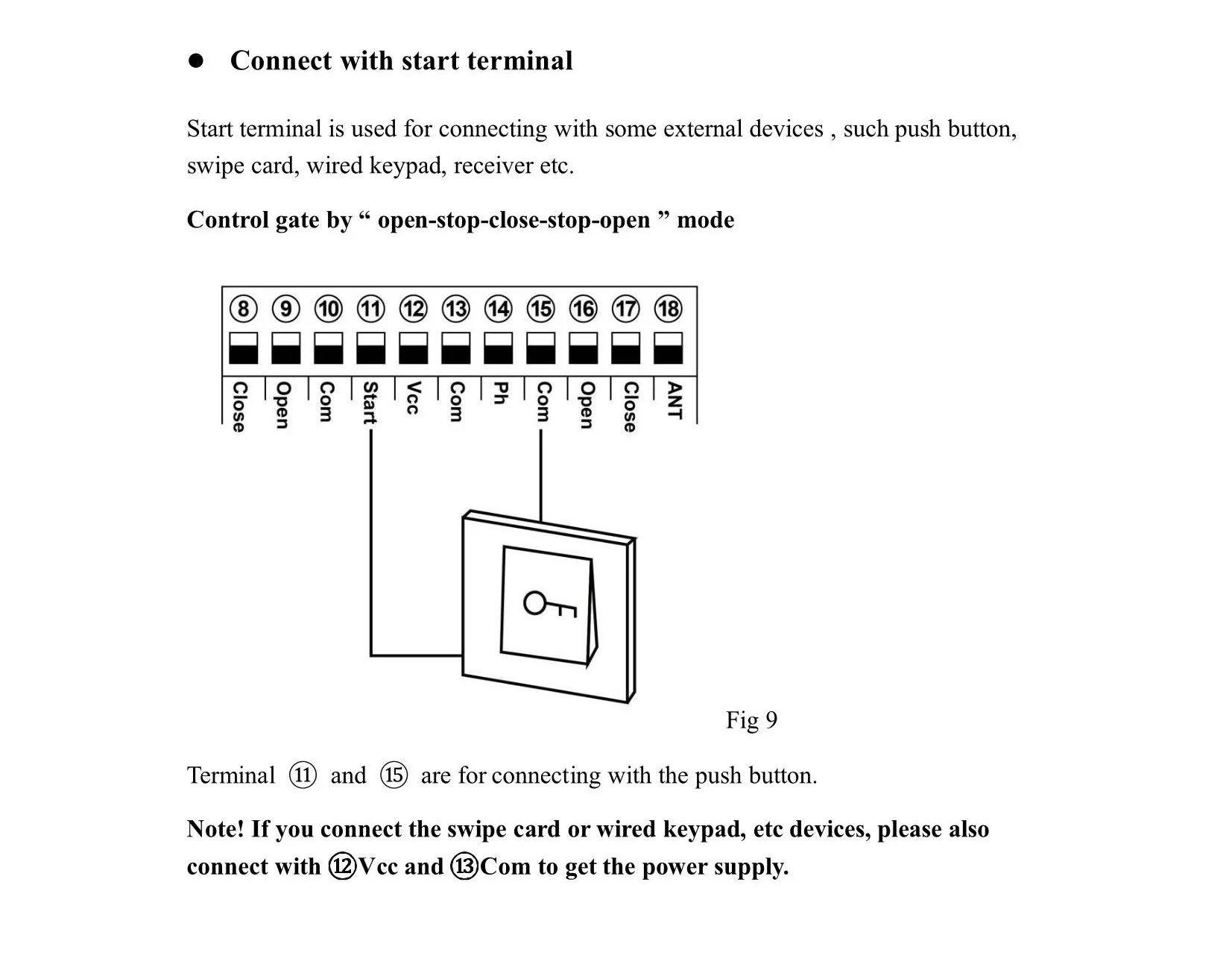

Connect with start terminal

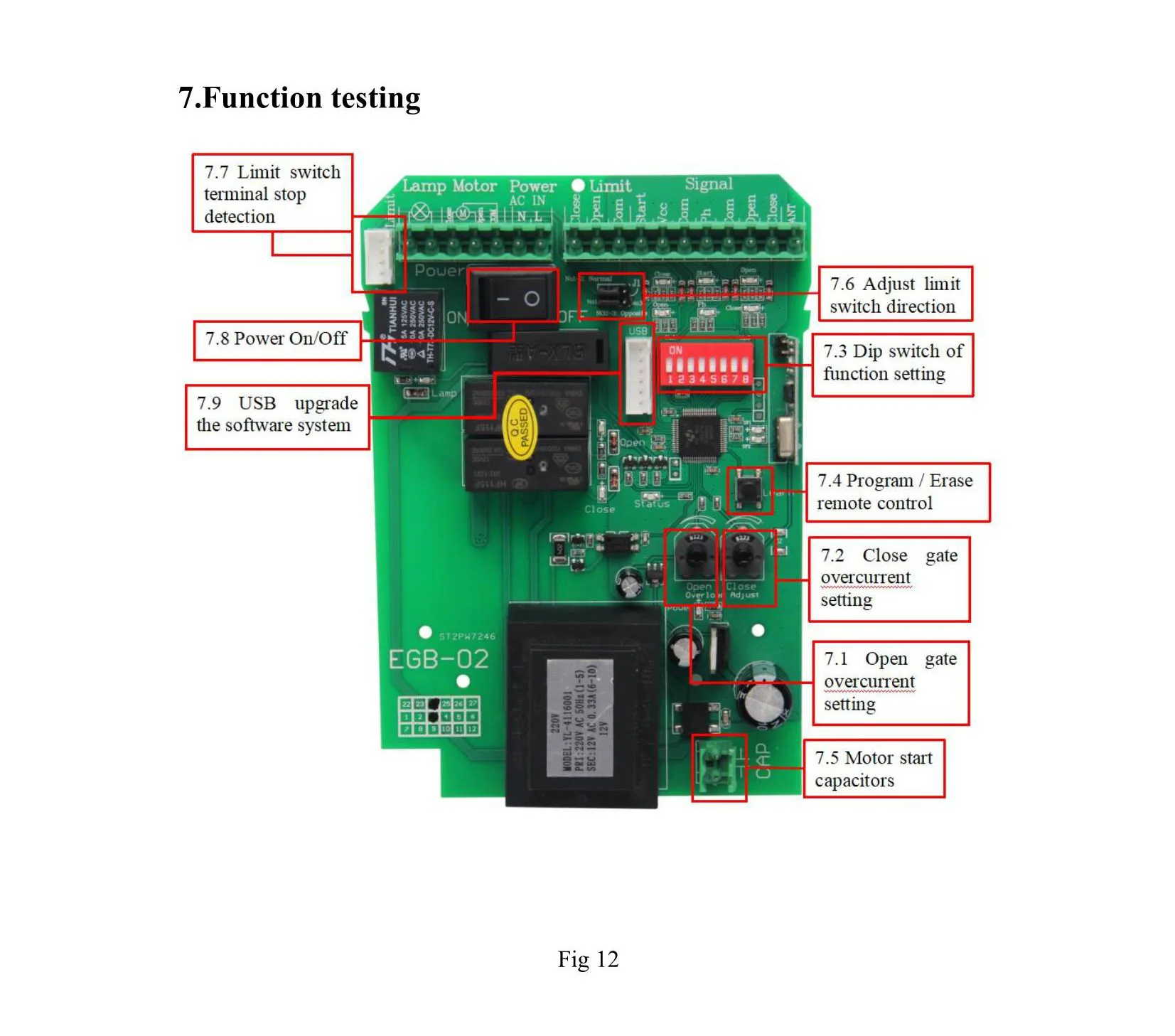

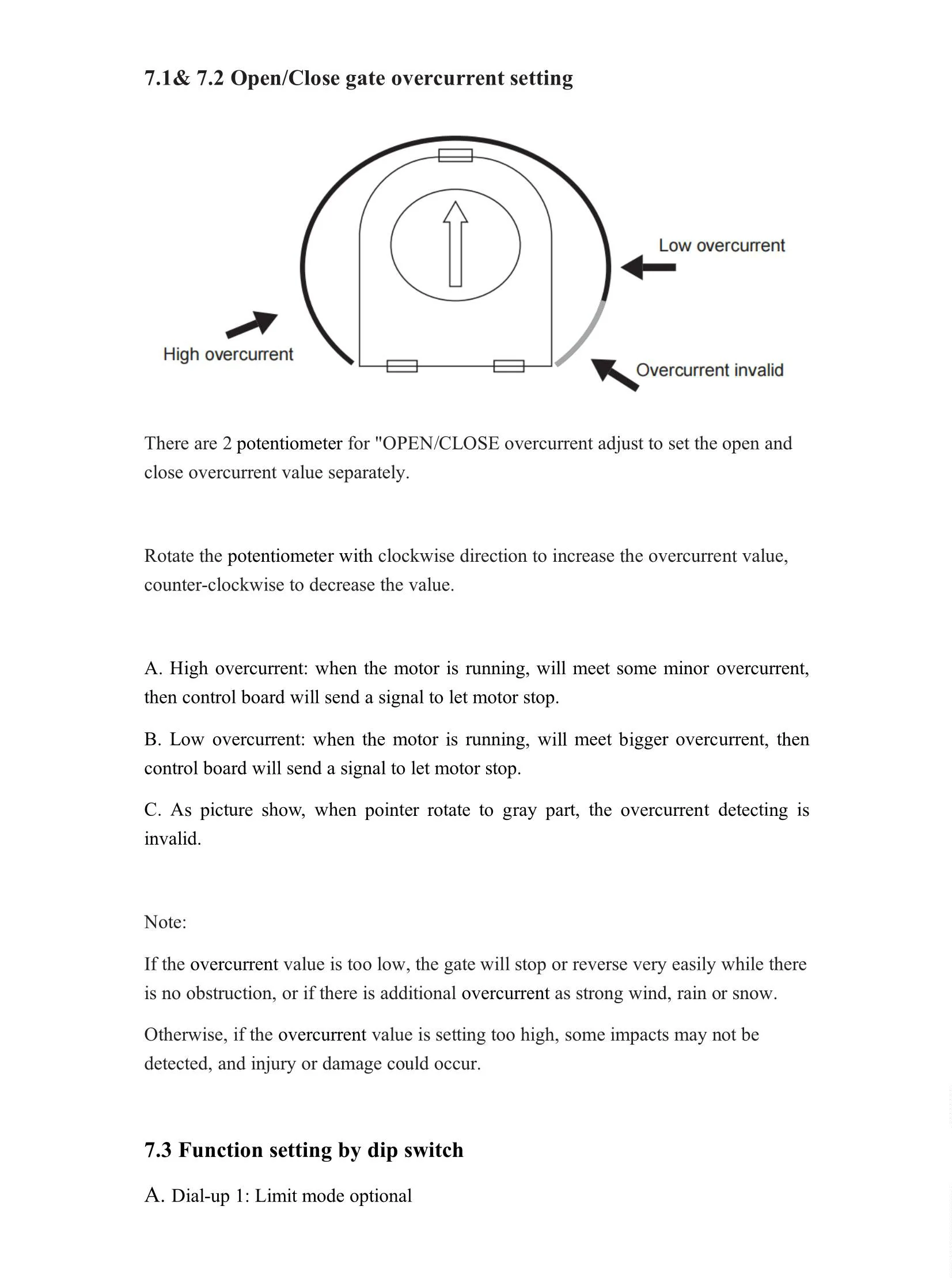

Open/Close gate overcurrent setting
