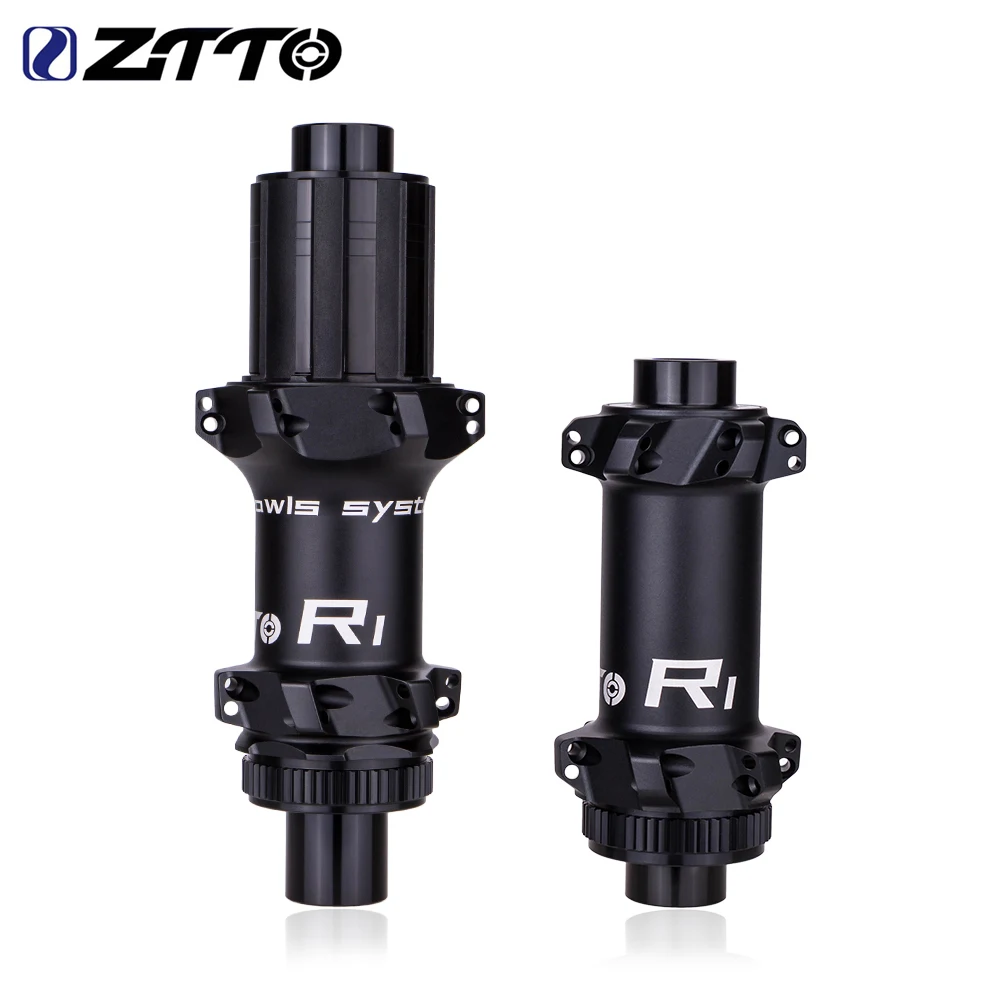

ZTTO R1 Ultralight Straightpull 24 hole Road Bike Hub
Super smooth pawls system
Hub body :XDR/ 11speed Road HG/ CP
24 holes , Max for 2.3mm spokes , 2 Cross
Disc Brake
Front 12x100 / 9x100 QR
Rear 12x142/10x135 QR
Material : Strengthen 7075 axle, Forging 6082 alloy shell CNC made
Super smooth pawls system
Why we chose the pawls system instead of the ratchet system? Please note that this is not an normal pawls system. According to our experimental results, The 36T ratchet system has approximately 1.47N rotation resistance, our new 6 pawls system as approximately 0.343N rotation resistance. This means that the running resistance of the hub body has dropped by 76.6%!

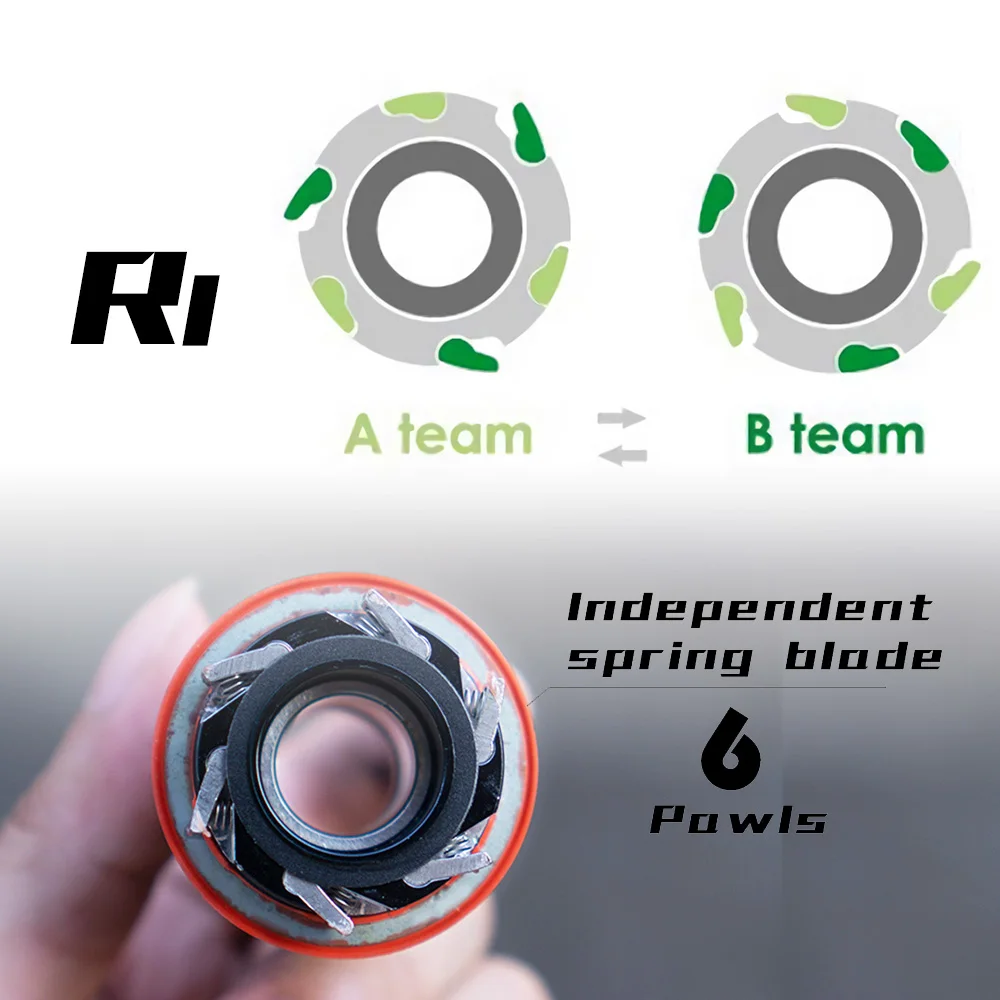

6 Paws system
Not only smooth, but also fast
In the world of road bike, every watt of power waste is unacceptable, so we decisively chose the new system, and we also divided them into two groups to make it reach 72 click/round. (36T x 2 Group)

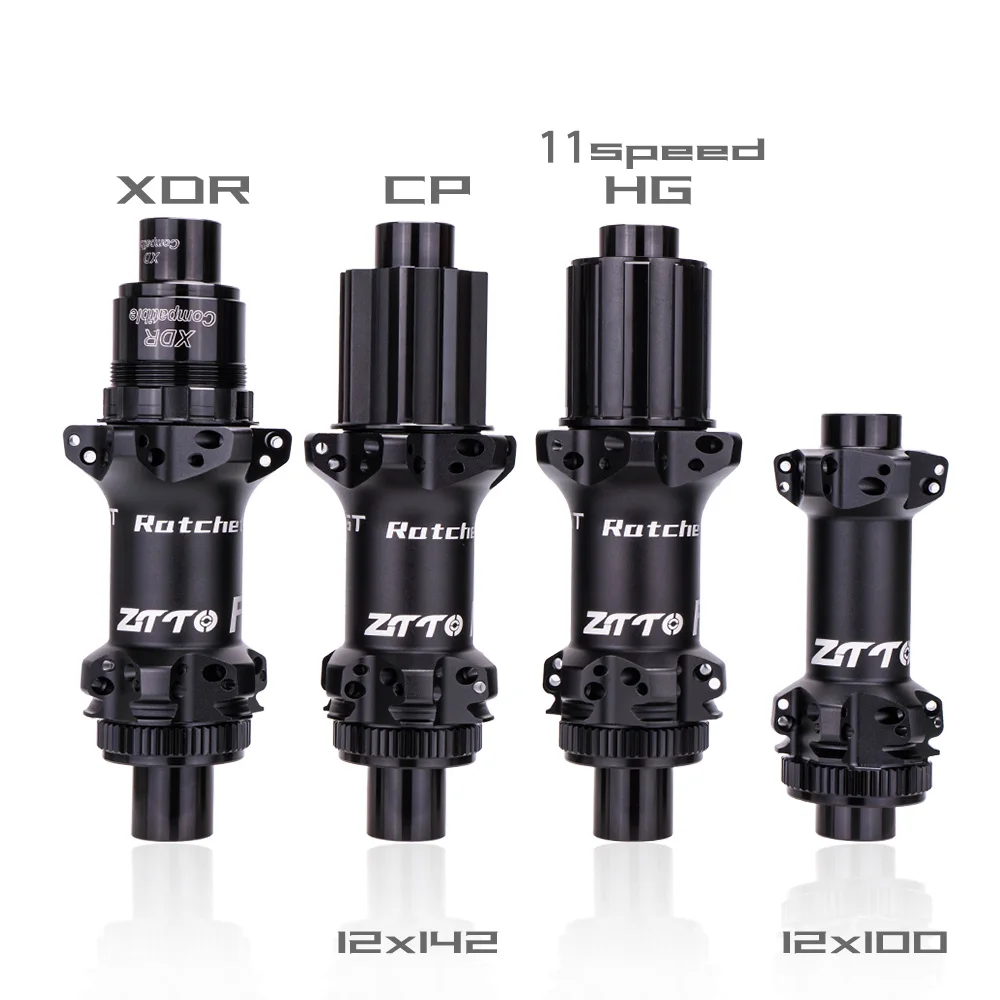

XDR/ HG-11/ CP compatible
You can install any Road bike Cassette with this hub.
if you need to install 8/9/10 speed HG standard cassette, you need add a 1.8mm spacer.
Weight:

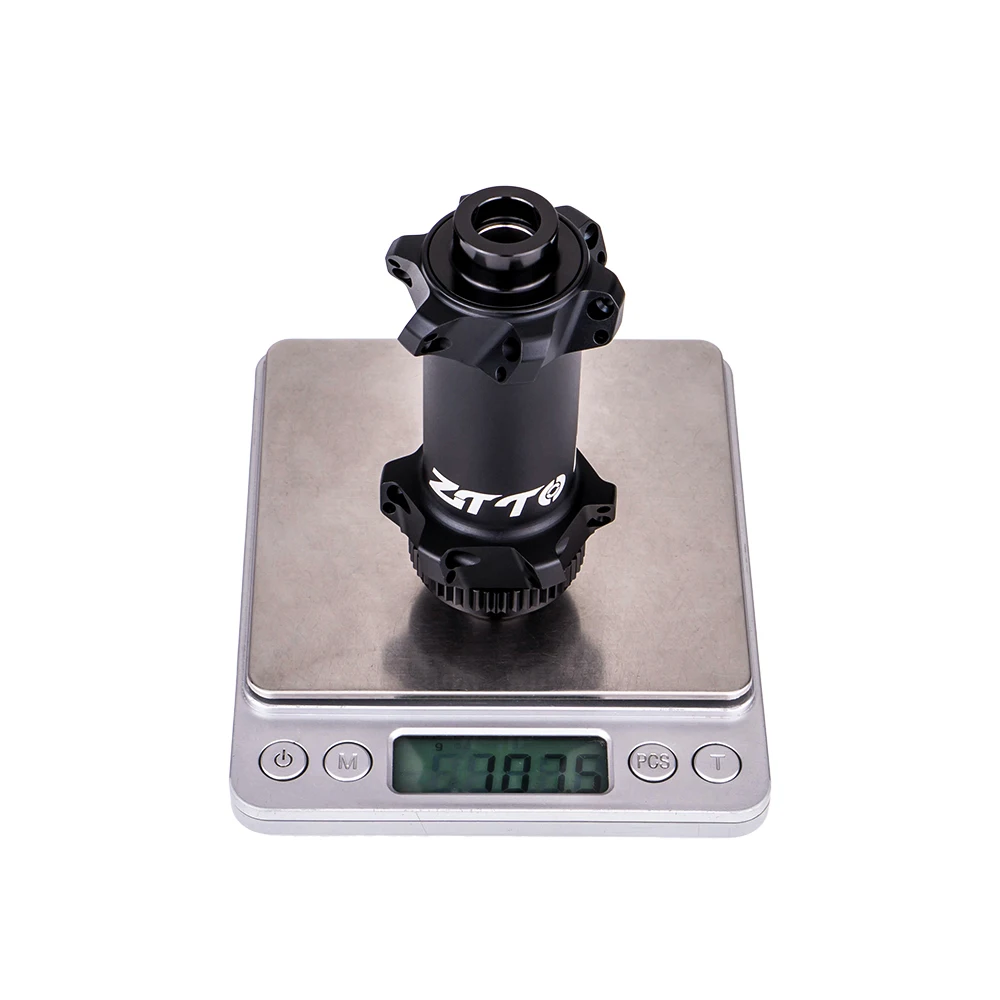

Front-Hub with 12x100 and 9x100 end caps about 107g ;

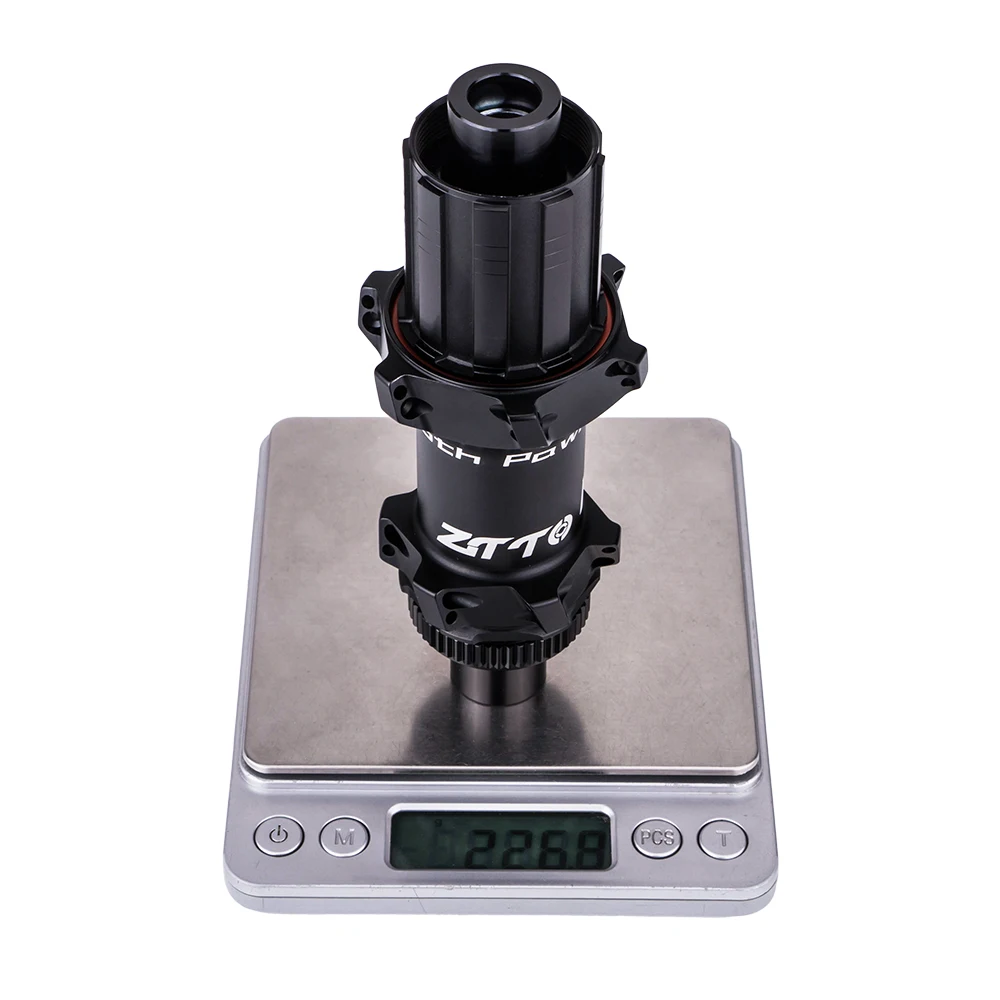

Rear-Hub with 142x12 and 10x135 end caps :
about 212g(XDR )/ 226g(HG-11)/220g(CP) /
Ultralight
about 335g for pair. Alloy rotor bodies Lightweight and anodized. Super smooth surface finish of the contact area for the high precision, low friction rotary seal.
