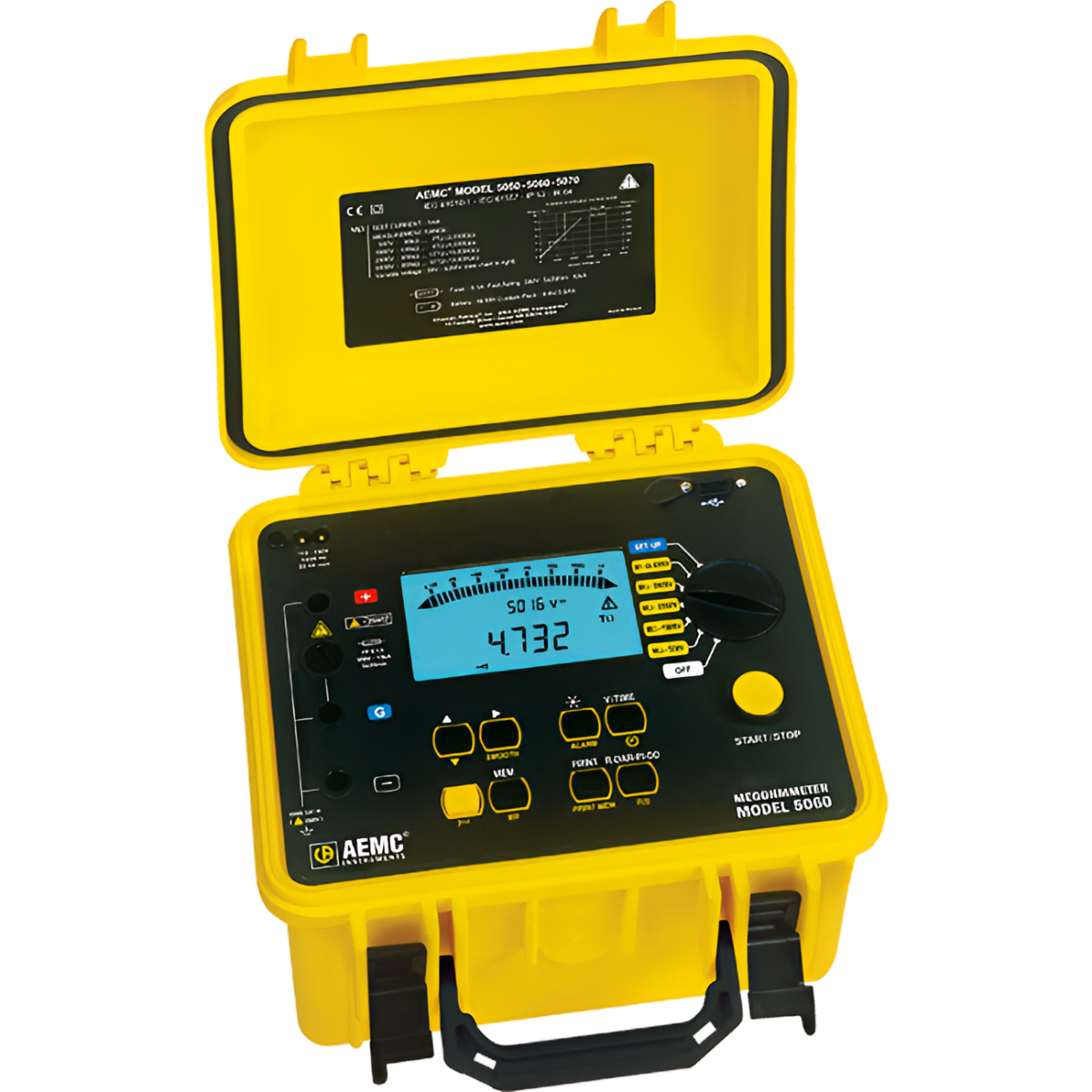

AEMC 5060 Digital Analog Megohmmeter Insulation Tester
The AEMC 5060 Digital/Analog Megohmmeter is a top-tier insulation tester designed for precise and safe electrical diagnostics up to 5000V. Featuring advanced measurements like Dielectric Absorption Ratio, Polarization Index, and Dielectric Discharge, this meter ensures thorough insulation analysis. Its durable design supports internal battery or AC power, with USB connectivity for PC control and detailed report generation via included DataView software.
Detailed Overview
The AEMC 5060 Digital/Analog Megohmmeter is a top-tier insulation tester designed for precise and safe electrical diagnostics up to 5000V. Featuring advanced measurements like Dielectric Absorption Ratio, Polarization Index, and Dielectric Discharge, this meter ensures thorough insulation analysis. Its durable design supports internal battery or AC power, with USB connectivity for PC control and detailed report generation via included DataView software.
Key Features:
-
Dual Display: Digital and analog bargraph for clear, intuitive readings.
-
Advanced Diagnostics: Automatic DAR, PI, and DD calculations for comprehensive insulation health.
-
Versatile Voltage Testing: Test voltages up to 5000V with variable voltage capability.
-
Safe Operation: Built-in safety features including live circuit detection and fast auto discharge.
-
Connectivity: USB interface enables configuration, testing, and report printing through DataView® software.
-
Power Options: Rechargeable NiMH battery or AC line power for flexible usage.
Benefits:
-
Accurate and reliable insulation resistance testing for industrial and field applications.
-
Enhanced safety with test inhibition on live circuits and fast discharge times.
-
Simplified data management and reporting with included software.
-
Portable and robust for use in varied environments and temperatures.
Upgrade your insulation testing with the AEMC 5060 Megohmmeter for dependable diagnostics and ease of use.
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x AEMC 5060 megohmmeter
- 1 x XL classic tool bag
- 3 x 10 ft (5 kV) leads (red / black / blue) with integral 5000 V rated hippo clips
- 1 x Guard terminal jumper lead
- 1 x 5 ft USB A-B cable
- 1 x US 115 V power cord
- 1 x Rechargeable battery pack and a USB stick with DataView® software
- 1 x User manual
Technical Specifications
| Brand | AEMC |
| Model Number | 5060 |
| Product Type | Digital Analog Megohmmeter Insulation Tester |
| Test Voltage Range | 500 V, 1000 V, 2500 V, 5000 V |
| Insulation Resistance Range | 10 kΩ to 10 TΩ |
| Voltage Measurement Range | 1 to 4000 V AC/DC |
| Measurement Accuracy | ±(5 % R + 3ct) to ±(15 % R + 10ct) depending on range |
| Capacitance Measurement | 0.005 to 49.99 µF |
| Leakage Current Measurement | 0 to 3 mA |
| Memory Capacity | 128 kB (Stores 1500+ test results) |
| Communication | USB Port |
| Software | DataView |
| Power Supply | Rechargeable NiMH Battery Pack, External AC Power (85 to 256 V, 50/60 Hz) |
| Battery Life | ≥ 1500 tests at 5000 V into 5 MΩ |
| Charging Time | Approximately 6 hours |
| Operating Temperature | 14 to 131 °F (-10 to 55 °C), ≤ 80% RH |
| Storage Temperature | -40 to 158 °F (-40 to 70 °C), ≤ 90% RH |
| IP Rating | IP 53 |
| Safety Compliance | EN 61010-1, EN 61557, 1000 V CAT III, Pollution Degree 2, CE |
