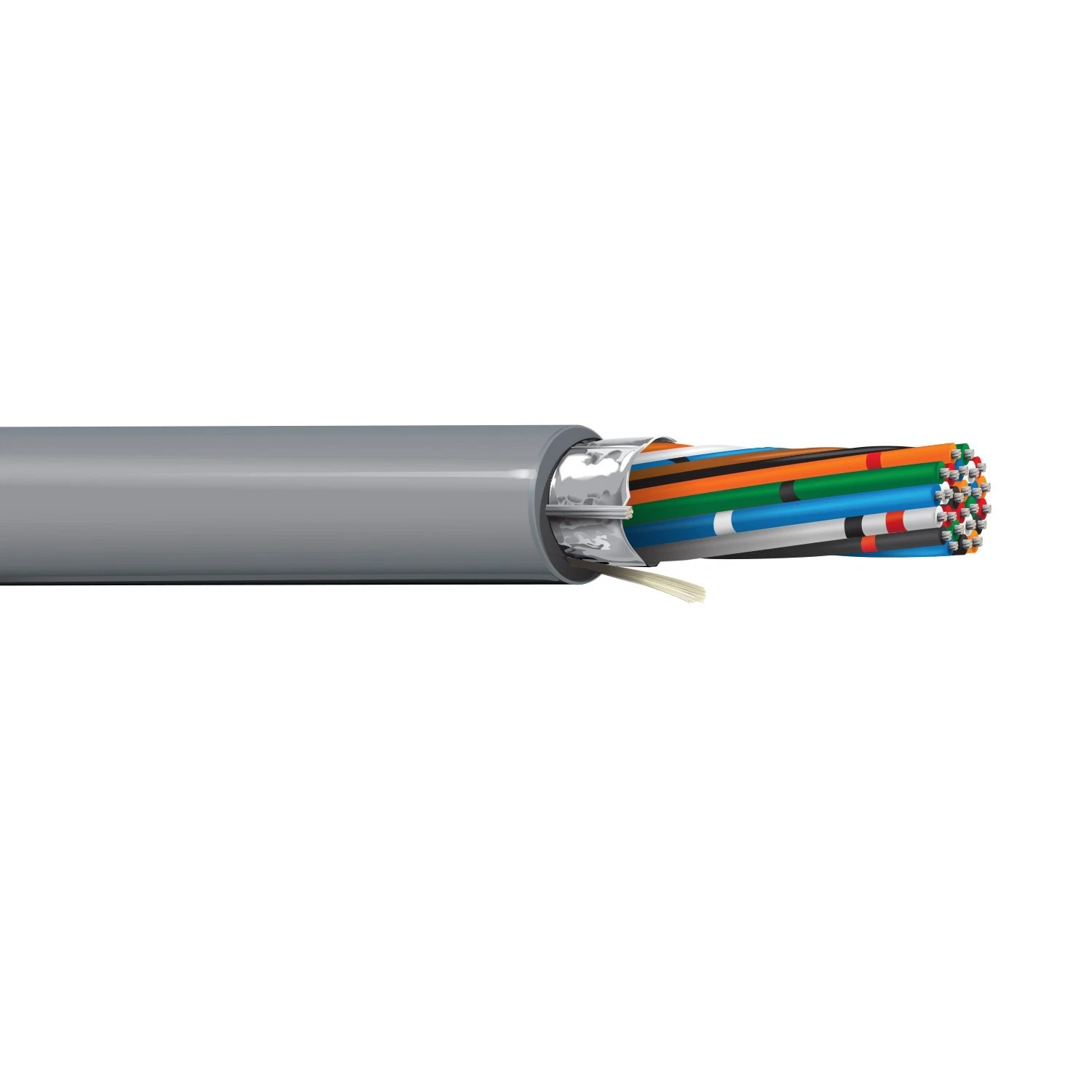

250' Belden 9542 24 AWG 20 Conductor Shielded RS-232 Computer Cable 300V

Click Thumbnails to Enlarge

DESCRIPTION

• Belden 9542 24 AWG 20 Conductor Tinned Copper Overall Beldfoil Shield RS-232 Computer Cable 300V

APPLICATION

• RS-232 Applications
• Computer Communications
• Low Voltage Analog Signals (4-20mA, 0-10V, ...)
• Low Voltage Digital Control (24V, …)
• Line Level Audio; Panel Wiring

CONDUCTOR

• Tinned Copper

INSULATION

• Polyvinyl Chloride (Semi-Rigid)

OUTER SHIELD

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

OUTER JACKET

• Polyvinyl Chloride (PVC)

STANDARDS

• Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
• Sustainability: CA Prop 65
• Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
• CPR Compliance: CPR Euroclass: Eca
• NEC / UL Compliance: Article 800, CMG
• AWM Compliance: AWM 2464
• CEC / C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark

PRODUCT SPECIFICATIONS

Size AWG	24
Number of Conductor	20
Number of Strands	7
Insulation Thickness (inch)	0.011
Jacket Thickness (inch)	0.032
Overall Diameter (inch)	0.314
Weight (lbs/1000ft)	64
