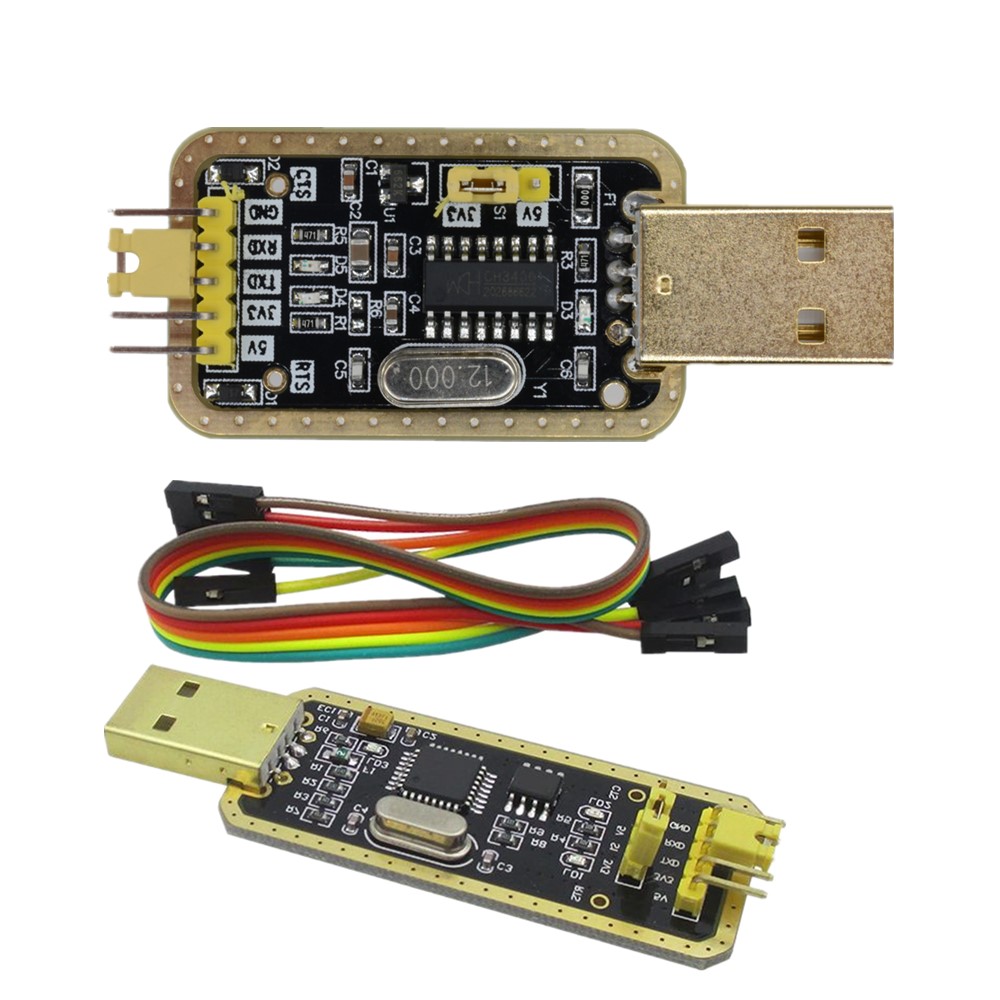

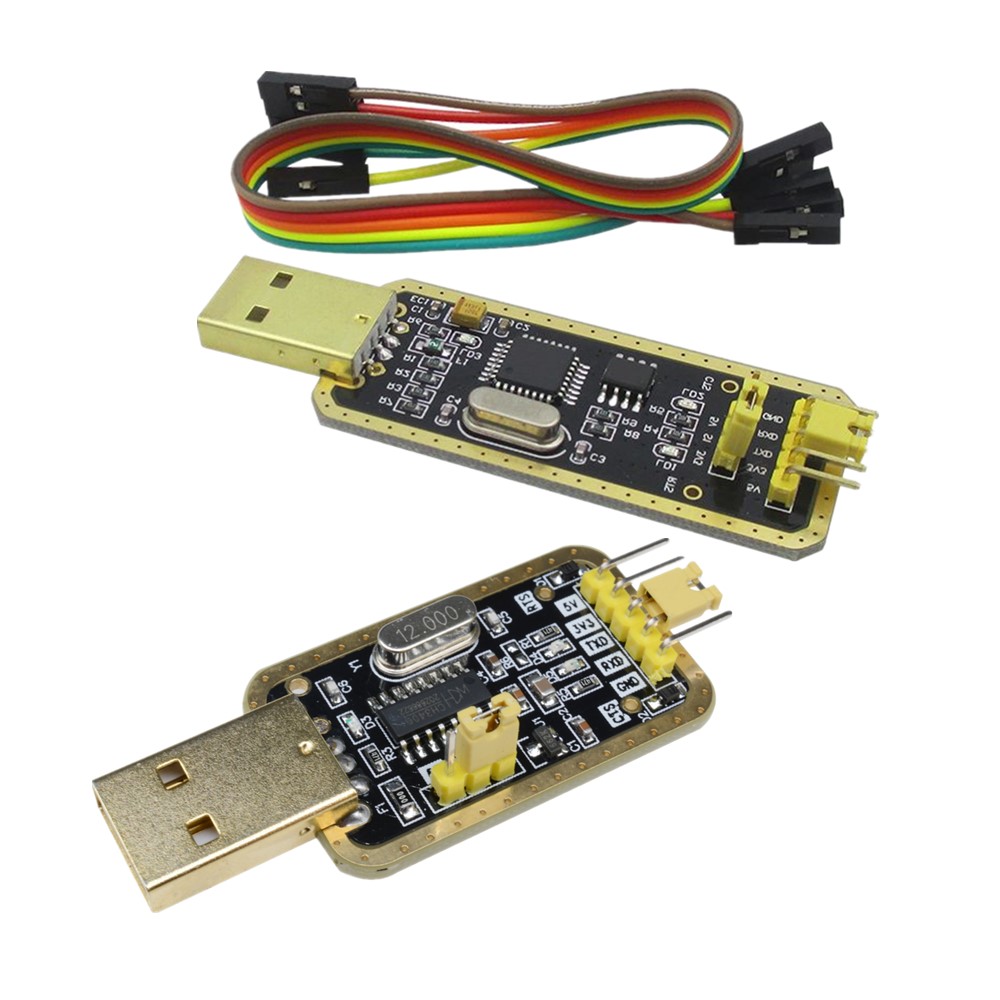

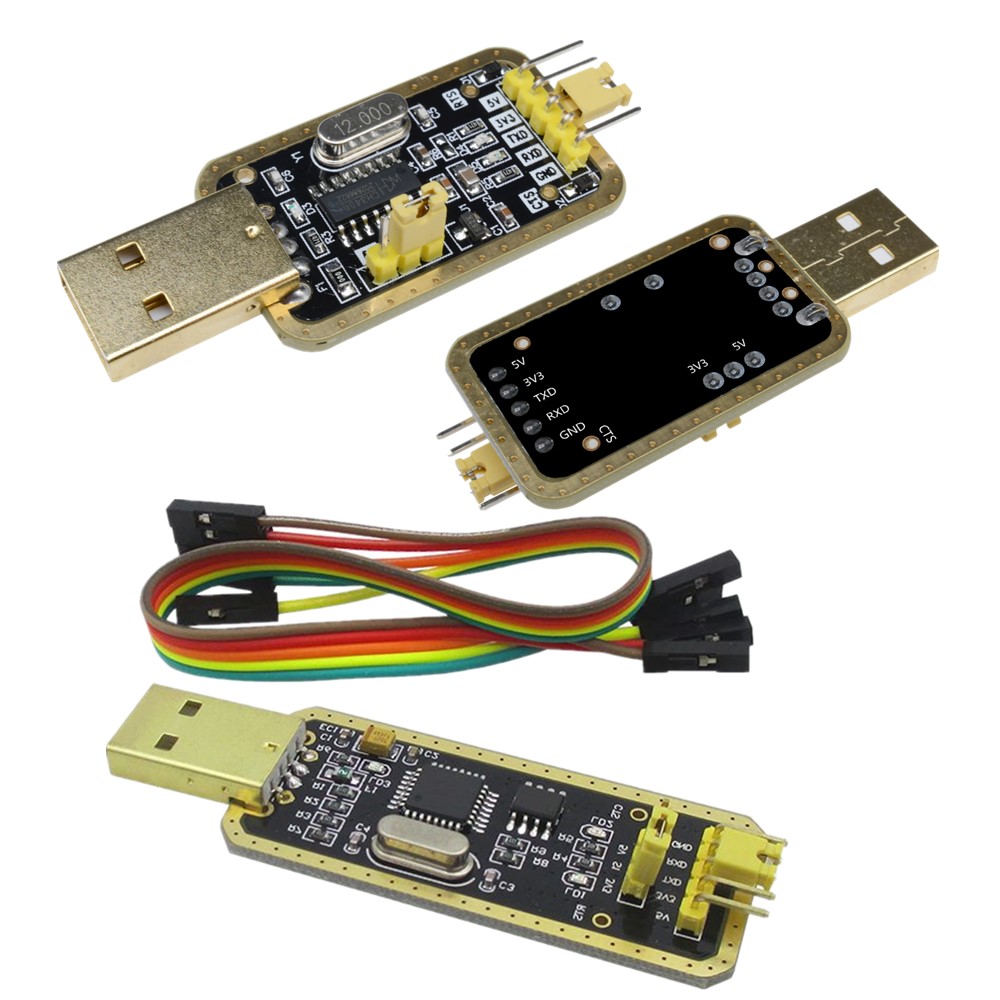

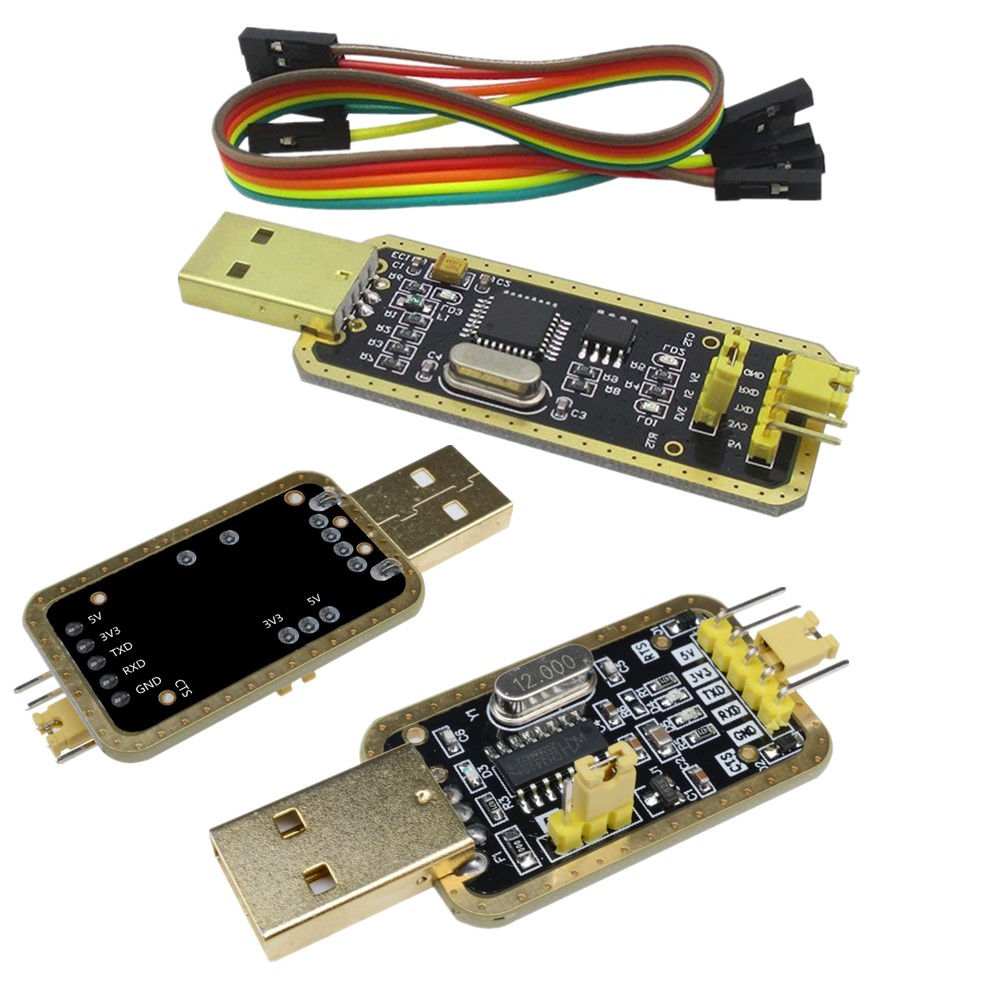

USB to Serial USB to TTL Upgrade Download CH340G FT232 Adapter Brush Board Gold
Item Description
Description:

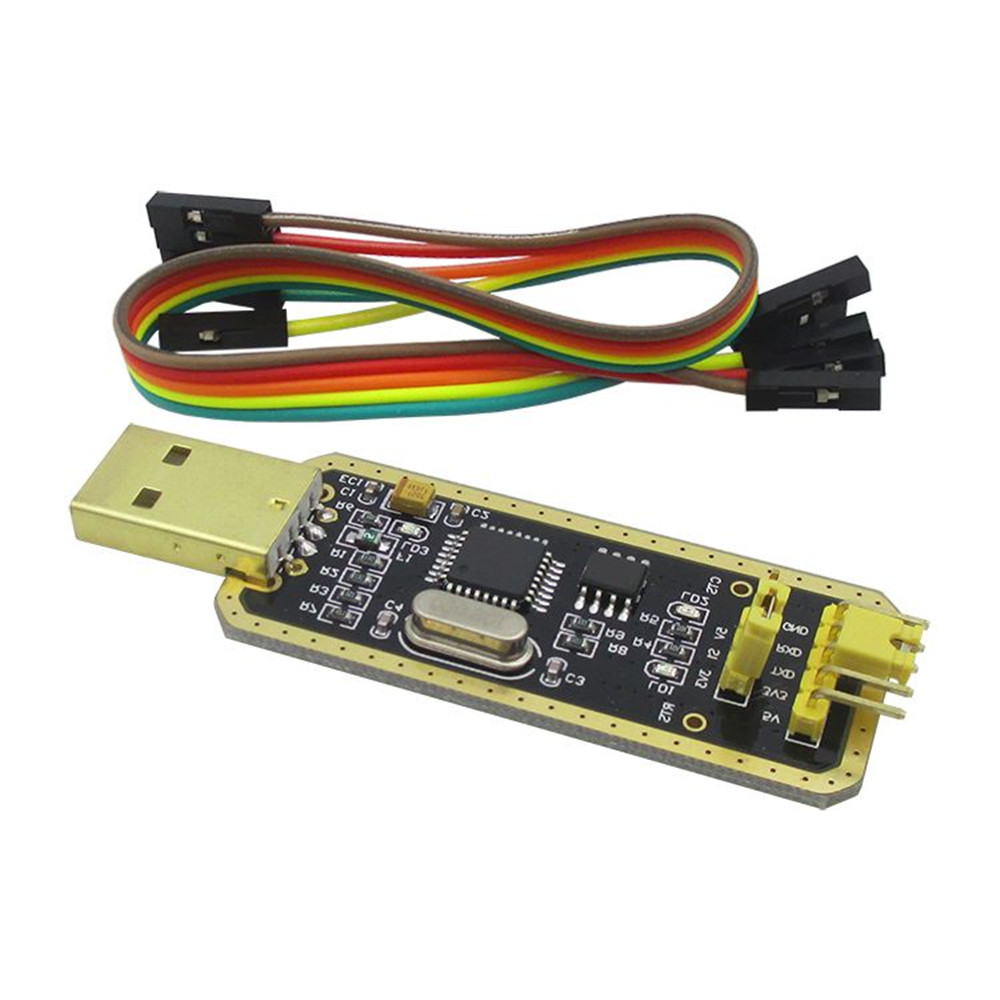

FT232 FT232BL FT232RL USB to Serial USB to TTL Upgrade Download

Using FT232BL industrial chip, external EEPRON (93C46) more stable
Support for Windows 10
Support three power supply mode: 5V external power supply; 3.3V external power supply; by the external power supply (requires 3.3V-5V)
With three LED: TXD LED, RXD LED, POWER LED
GND, RXD, TXD, 3V3, 5V: Cited with curved needle
Other functions PIN: Reserved pad CTS, RTS
With 500MA self-recovery fuse reverse does not burn
Application:
RS-232 traditional device upgrade to USB
USB to RS-232 serial adapter
Instructions for use: (access MCU as an example)
GND: Connect to GND
RXD: connected to MCU.TX (signal flow: MCU.TX >> FT232 >> PC.RX)
TXD: connected to MCU.RX (signal flow: MCU.RX << FT232 << PC.TX)
3V3 / 5V: output 3.3V or 5V (module powered by USB, jump to jumper cap to 3.3V or 5V)
RTS: Connect to MCU.CTS (signal flow: MCU.CTS << FT232 << PC.RTS)
CTS: then MCU.RTS (signal flow: MCU.RTS >> FT232 >> PC.CTS)
FT232BL FT232RL New models that support all systems
CH340G RS232 To USB TTL Module

100% Brand new and high quality.

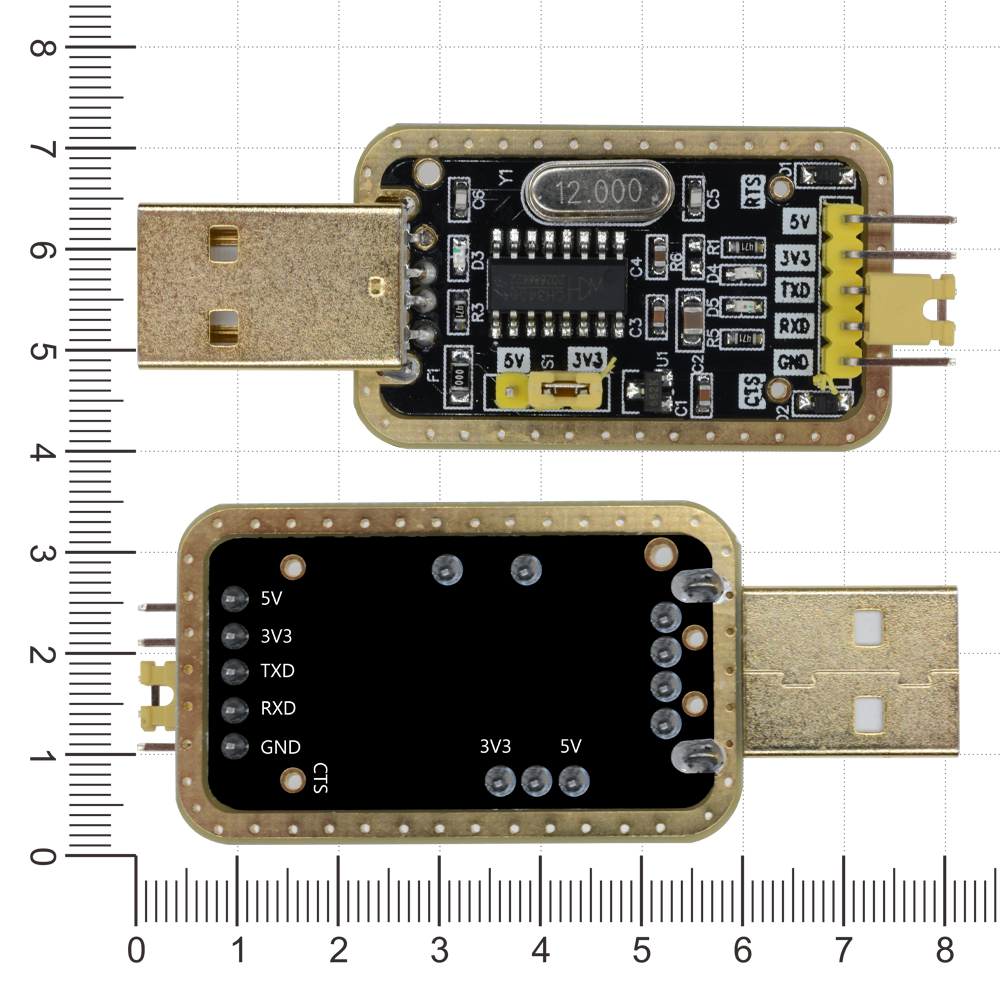

Shape: Same as the picture show
1. Dual Power Management System,
2. Built-in Real PPTC Overcurrent
3. 500mA Resettable Fuse
4. 3.3v 5v Can Really Switch
5. 3.3v Transformer Comes True Green Data Reception Indicator
6. Multifunction CTS Interface, Dual Protection Circuit
7. Top military Black Motherboard
8. Professional Blue Power Indicator Light,
9. Red Data Transmission Indicator,
10. Super Stable Master Chip,
11. Multifunction RTS interface,
12. Multifunction 5P pins

Note:The color of the cable is random.We only provide the hardware,If you need software, Please search on Google.(We have a lot of Stocks,if you need more, please contact us.)

Package included:
1PC*FT232 FT232BL FT232RL USB to Serial USB to TTL Upgrade Download Brush Board Gold /
1PC*CH340G RS232 To USB TTL Module
