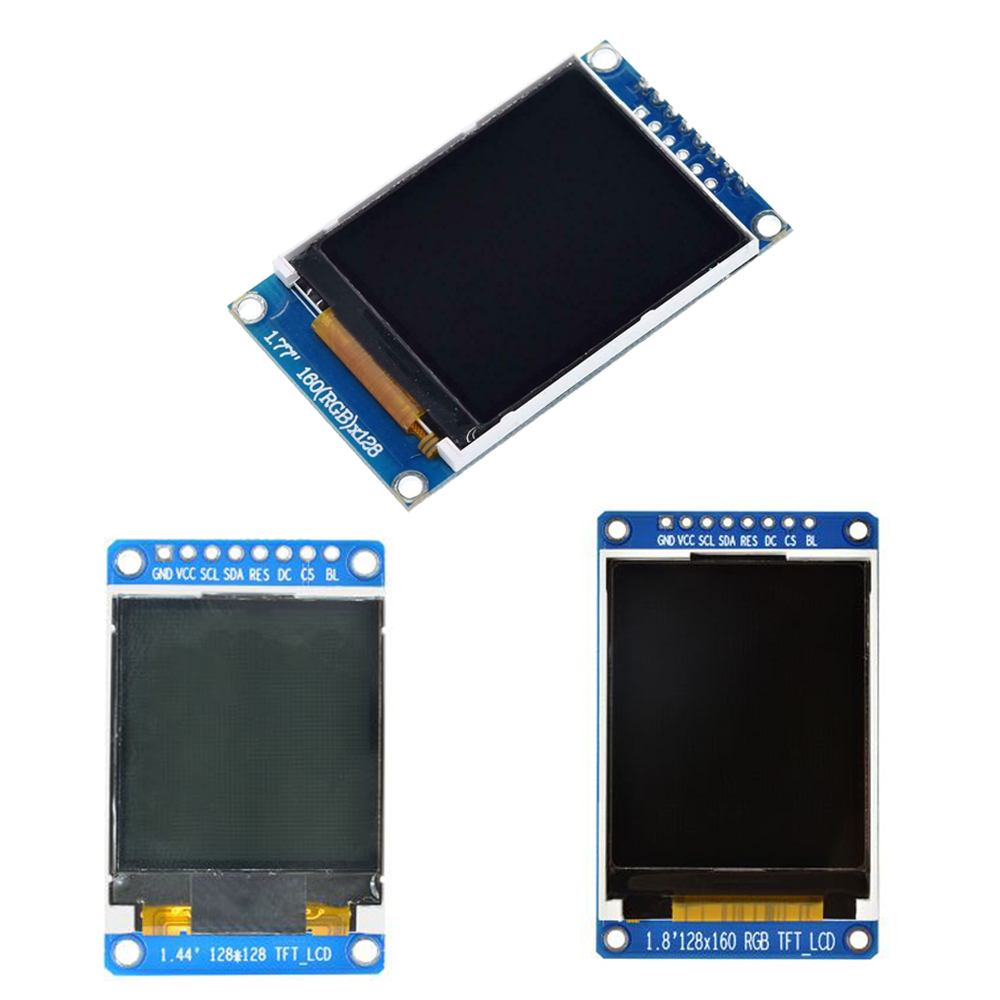

1.44" 1.77" 1.8" TFT Full Color 128x160 LCD Display Module SPI Port for Arduino
Item Description
Description:

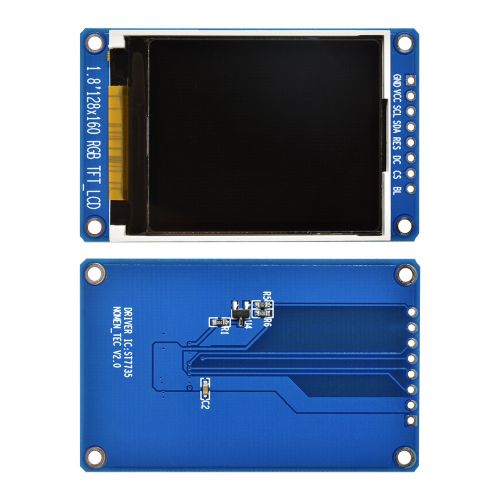

1.8 inch LCD Display Module

SIZE

1.8inch

Display Mode

a-TFT

Display Format

Graphic 128RGB*160 Dot-matrix

Input Data

SPI interface

Drive IC

ST7735S

Dimensional outline

35(W)*56 (H)*3.45+/-0.1(T)mm

Resolution

128RGB*160 Dots

LCD Active area

28.03 (W)*35.04 (H)

Pixel size

0.219(W)*0.219(H)

Viewing Direction

12 o’clock

Operating Temperature

-20～70°C



Weight

9.6

Pin Descriptions:

PIN No

Symbol

Description

1

GND

Ground

2

VCC

Power 3.3V

3

SCL

Serial clock pin.

4

SDA

Serial data input

5

RES

LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6

DC

Data/Command Control

7

CS

Chip Select

8

BLK

Backlight control pin

Connected to the microcontroller
Package Included:
1PC*1.8" ST7735S SPI TFT LCD Display Module

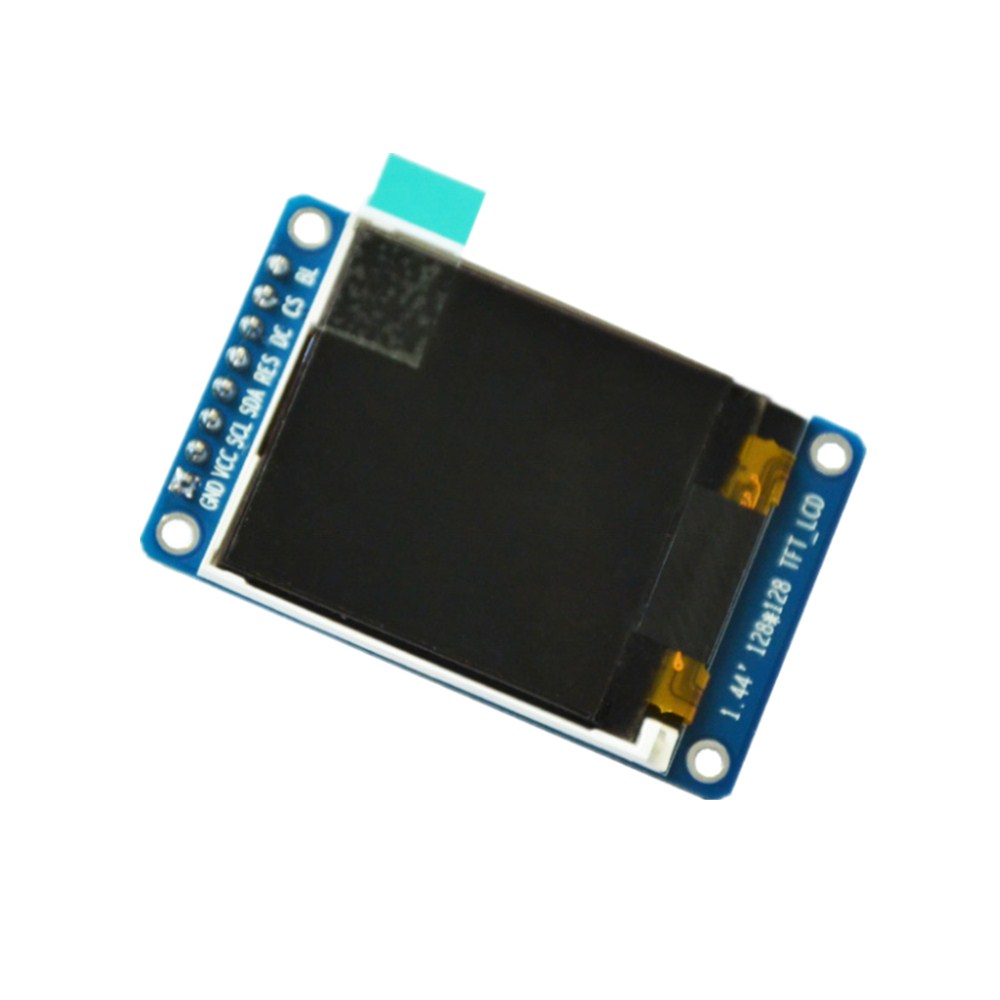

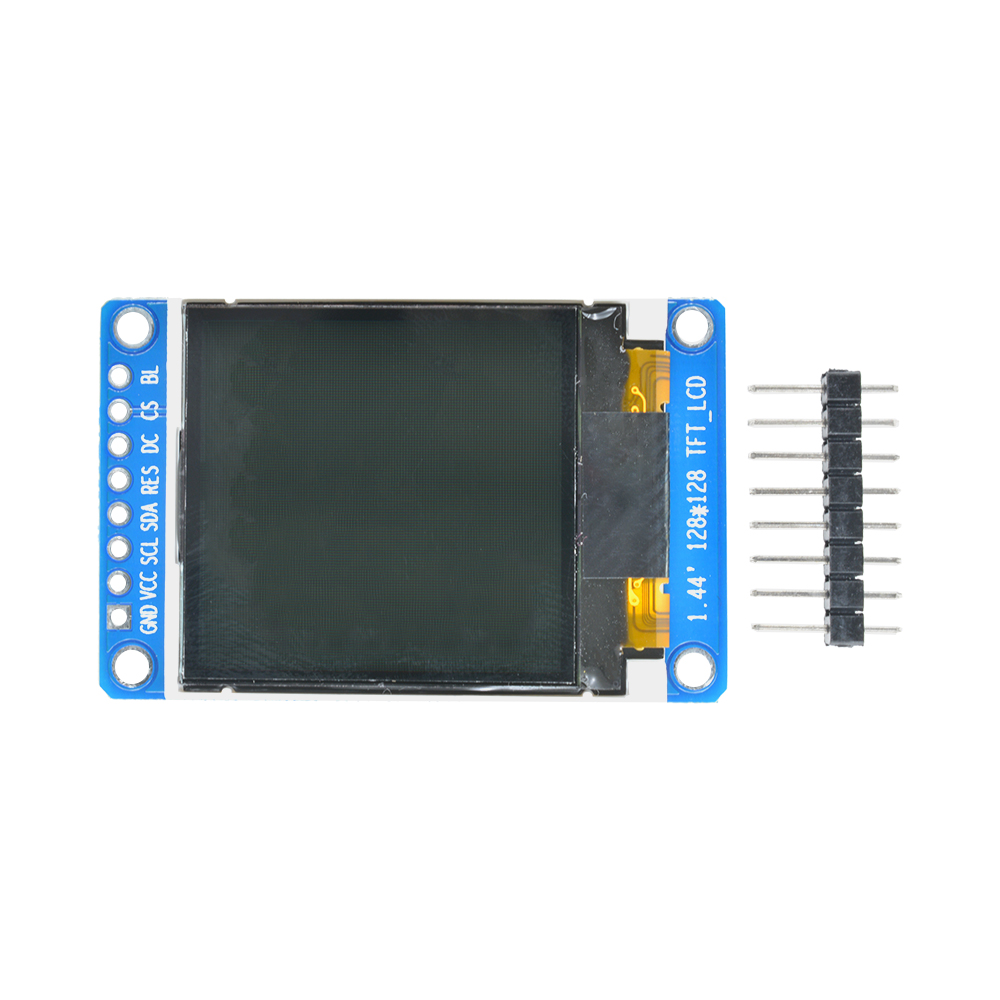

1.44 inch LCD Display Module

SIZE

1.44 inch

Display Mode

a-TFT

Display Format

128RGB*128 dots matrix

Input Data

SPI interface

Drive IC

ST7735S

Dimensional outline

300(W)*46.50(H)*3.45+/-0.1(T)mm

Resolution

128RGB*128 Dots

LCD Active area

25.50 (W)*26.50 (H)

Pixel size

0.20(W)*0.20(H)mm

Viewing Direction

12 o’clock

Operating Temperature

-20～70°C

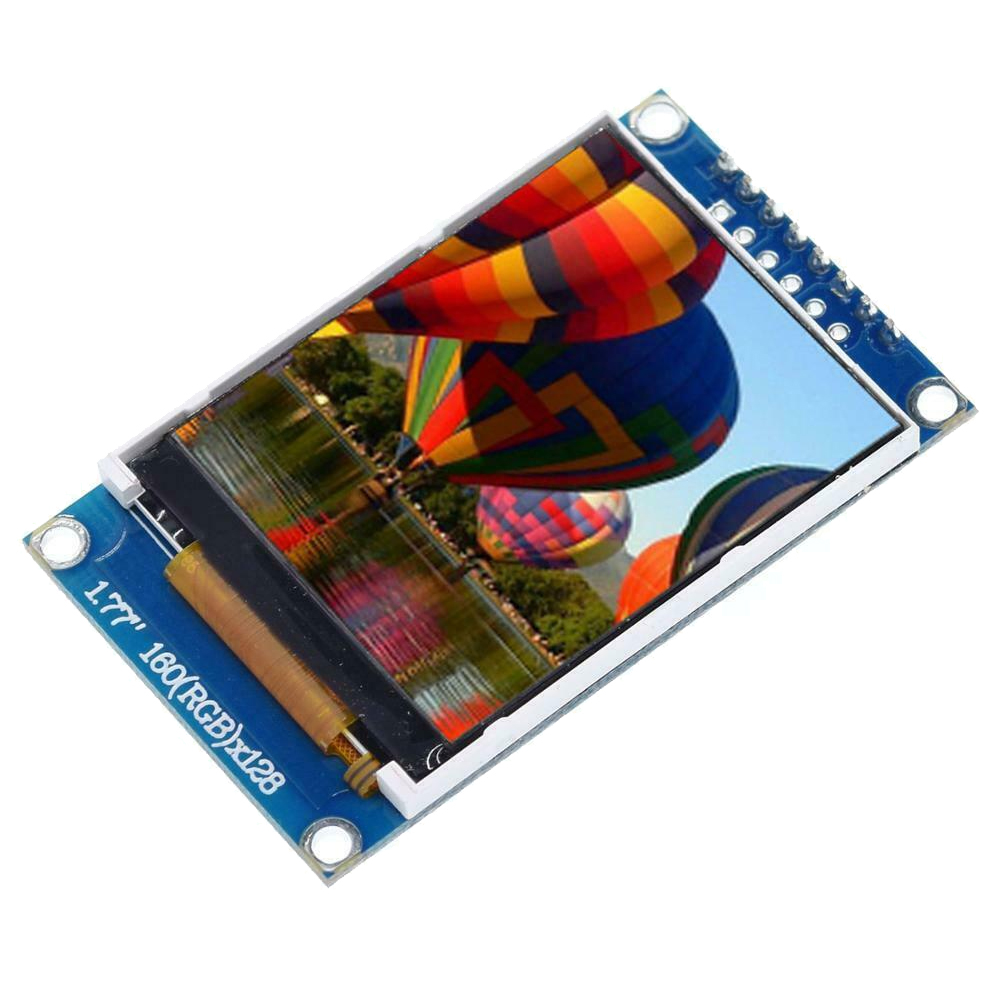

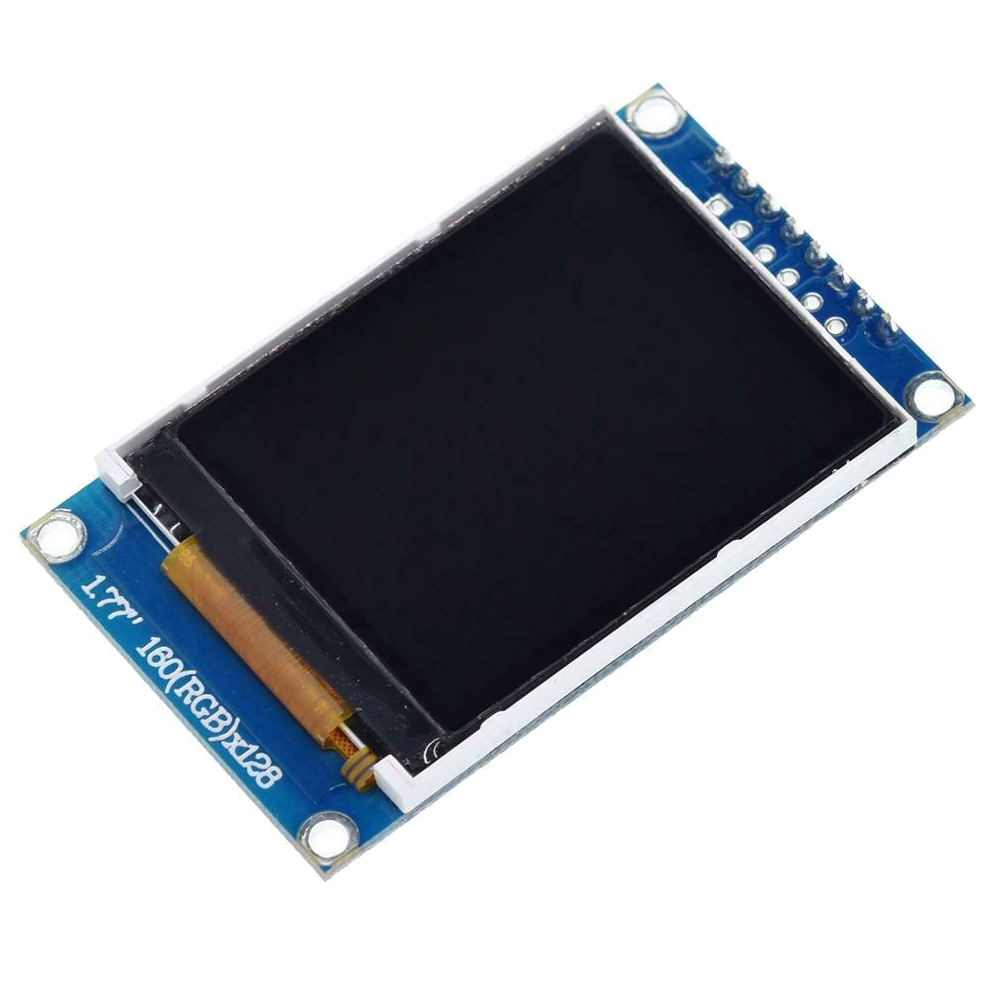

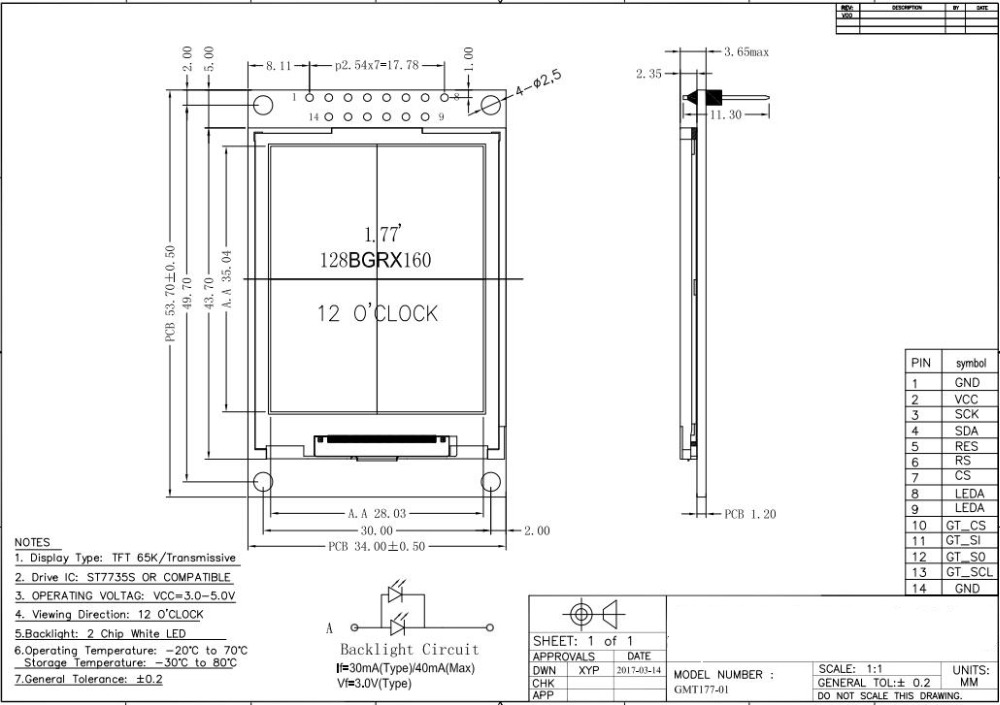

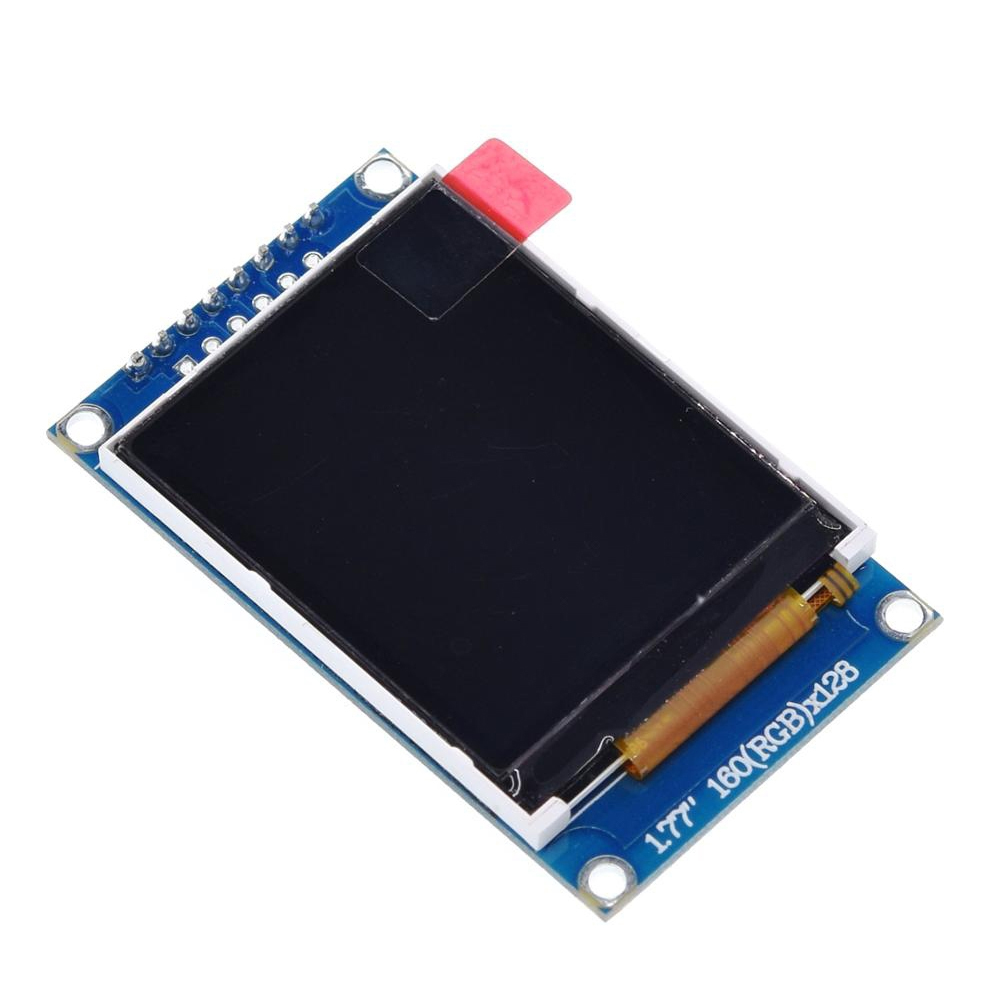

1.77 inch LCD Display Module


1.77 inch TFT LCD Screen 128*160 TFT SPI Serial Port Module Color Screen Module
Package Included:
1PC*1.77 inch TFT LCD Screen 128*160 TFT SPI Serial Port Module Color Screen Module
