Retail Price: $212.06
FloodStop™ DIY Automatic Valve for Water Heater/Whole House Kit with 3/4" Compression Fitting FS 3/4-C v4 (Lead Free)
CONDITION:
NEW in a FACTORY SEALED retail box. We took pics of one we already had opened. The one for sale is NEW.
Water Heaters have a limited life, then leak after years of corrosion. Water Heaters are generally considered a maintenance-free appliance, but they are also one of the single most damaging appliances in the home. Because Water Heaters are continually under pressure, even small pressurized leaks can quickly flood and devastate a home. Whether at home, at work, or on vacation these flooding events can go undetected for hours or even days.
The FloodStop (FS 3/4-C) kit automatically shuts off the water supply to the Water Heater and sounds an alarm, leaving all other household fixtures and appliances operational. Powered by AC adapter/Transformer and 4 AA Batteries as a battery backup in case of a power outage, or the batteries may serve as the sole power source if there’s no nearby electrical outlet to utilize the transformer. The controller will beep to alert you of low or no batteries. The controller has "one" output contact (normally open) that can be connected to an Alarm, Home Automation or Auto-Dialer systems if desired. Easily installed in fifteen minutes. 1-year manufacturer's warranty.
The FloodStop Water Heater models can also be used on main water supply for the whole house as long as the size of the FloodStop is equal to or greater than the size of your main supply. Additional Sensors can be added by wiring one sensor to another in a chain format. There is no max # of sensors; however you will want to use a larger gauge (20AWG or larger) if splicing more than 50 feet to the furthest sensor.
OVERVIEW:
Brand: FloodStop
Model: WATER HEATER FLOODSTOP WITH 1/2" VALVE
Fitting Size: 3/4"
Brand: FloodStop
Model: WATER HEATER FLOODSTOP WITH 3/4" VALVE
Connection Style: Compression
Style: FS3/4NPT (New V4 Controller)
Easy Installation - see link below to user manual
FloodStop is the only product of its kind that uses solid (lead free) brass, motorize ball valves for every appliance in your home.
Units can be powered by batteries or AC
The FloodStop valve is installed between the Water Heater and its manual shutoff valve.
Automatic monthly cycling of the valves.
Named one of Readers Digest top 100 new products
Water/leak sensor is placed at the base of the Water Heater
Valve stays open until water loss is detected
Water on sensor closes FloodStop valve and sounds alarm
Valve stays closed until problem is attended to and system is reset
Motorized Full-Port Ball Valve (3/4 inch compression ends)
Control Unit (with Battery Backup 4 X AA Size) - Batteries Sold Seprately
One output contact (normally open) that can be connected to an Alarm, Home Automation or Auto-Dialer systems if desired
AC Power Adaptor
Output Contact Wires - approx 3ft to valve and approx 7ft to sensor
MPN: FS3/4-C / FS 3/4-C
UPC: 815361000817
LINK TO USER MANUAL:
https://www.diycontrols.com/dl/Installation%20Guide%20FS%20Water%20Heater%20V4.pdf
LINK TO SPEC SHEET:
https://www.diycontrols.com/dl/Specification%20Sheet%20(FS%203%204-C%20V4).pdf

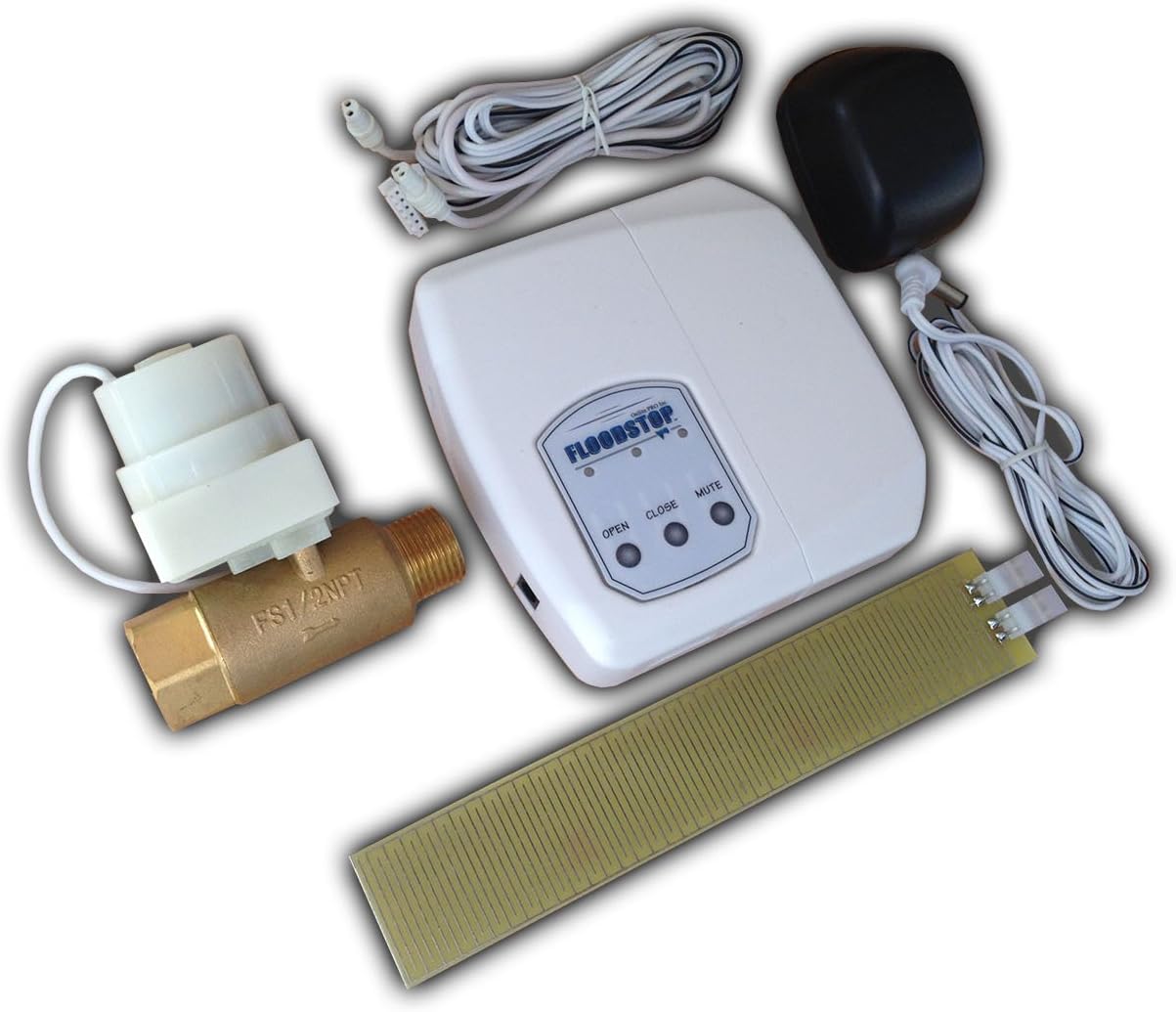

Components:
Motorized "Full-Port" Ball Valve (3/4 inch with "Compression Fitting" for copper pipe applications)
Control Unit
Water/Leak Sensor (1.25” X 7.5”)
AC/DC Power Adaptor (or use 4 X AA Batteries as Primary Power Source)
Output Contact Wires (2)
Specification Sheet
DESCRIPTION
FS 3/4C Floodstop With Battery Back-Up Option for Power Outage 3/4 Inch compression fitting water valve and water alarm system meets 2014 drinking water standards of USA. Battery back-up option. in case of power outage. Full port water valve unit for all 3/4 inch copper pipe applications. Floodstop responds immediately to signals from attached water sensor or extra sensors. 87 decibel alarm sounds continuously after valve closes in response to a wet water sensor. By On-Site Pro. Flood Stop Water Heater or Water Softener FS 3/4 C Features: Optional Additional Sensors : Increase coverage. Sensors "train" together. Valve Length: 3.5 inches. Reset and Test Buttons : Test valve performance without water. Controller: 20VAC and/or battery backup (4 AA batteries).. Simplicity: Easily installed, operated and maintained. Multiple Applications: Residential, condo and apartment dwellings. Operation: Full port brass ball valve automatically shuts off water supply to water heater when water sensor/sensors get wet. Single Water Appliance Application: No wires to route throughout the home Loud 87 decibel Alarm: Beeps. Mute button. One Water Sensor Included: 1.5" X 7.5", double sided. Add optional sensors in series. AC Adapter Cord: 6 ft. long Wire Length from the Controller to the Valve: About 30 Inches Long. Warranty: 1 year limited manufacturer warranty FloodStop Controller: 3 buttons: Mute, Close Valve and Open Valve. Water sensitivity adjustment. Clockwise: less sensitive. Counter clockwise: More sensitive. 4-pin connection to valve/sensor connector. Outputs: Normally closed. Contacts for any device that can utilize them, like auto phone dialer, alarm systems, X10 home automation devices. DIY or hire a plumber. Installation: 15 minutes or less in most instances. The Floodstop for water heaters includes a security system and auto dialer output contacts. The water shut off controller is AC with a battery back up.(No batteries included). With a full port motorized
