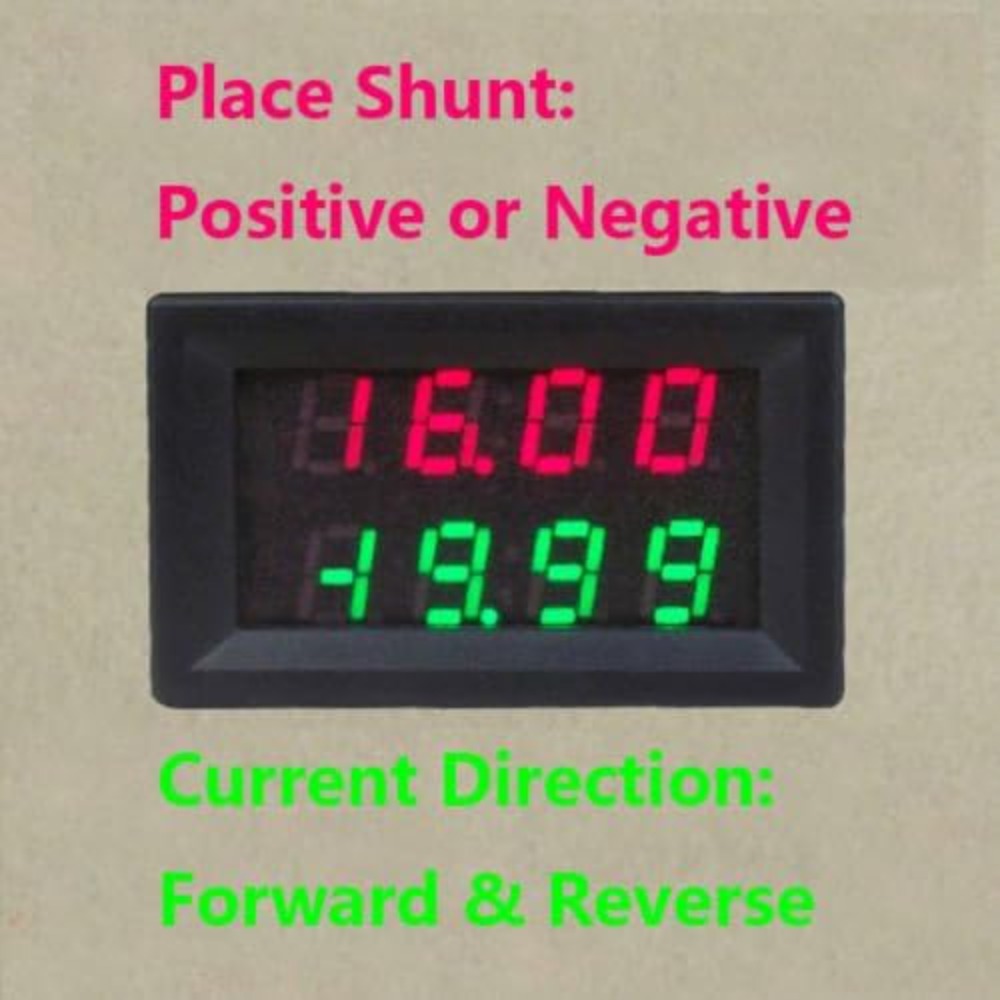

DC Bidirectional Current Charge Discharge Meter 100V +-30A Bidirectional Current Shunt Can be put on Positive Side

Product Description

Key Feature

  • Combines two functions in one Current(A), Voltage(V)
  • It can be powered by the same power being measured, no need ISOLATED power.

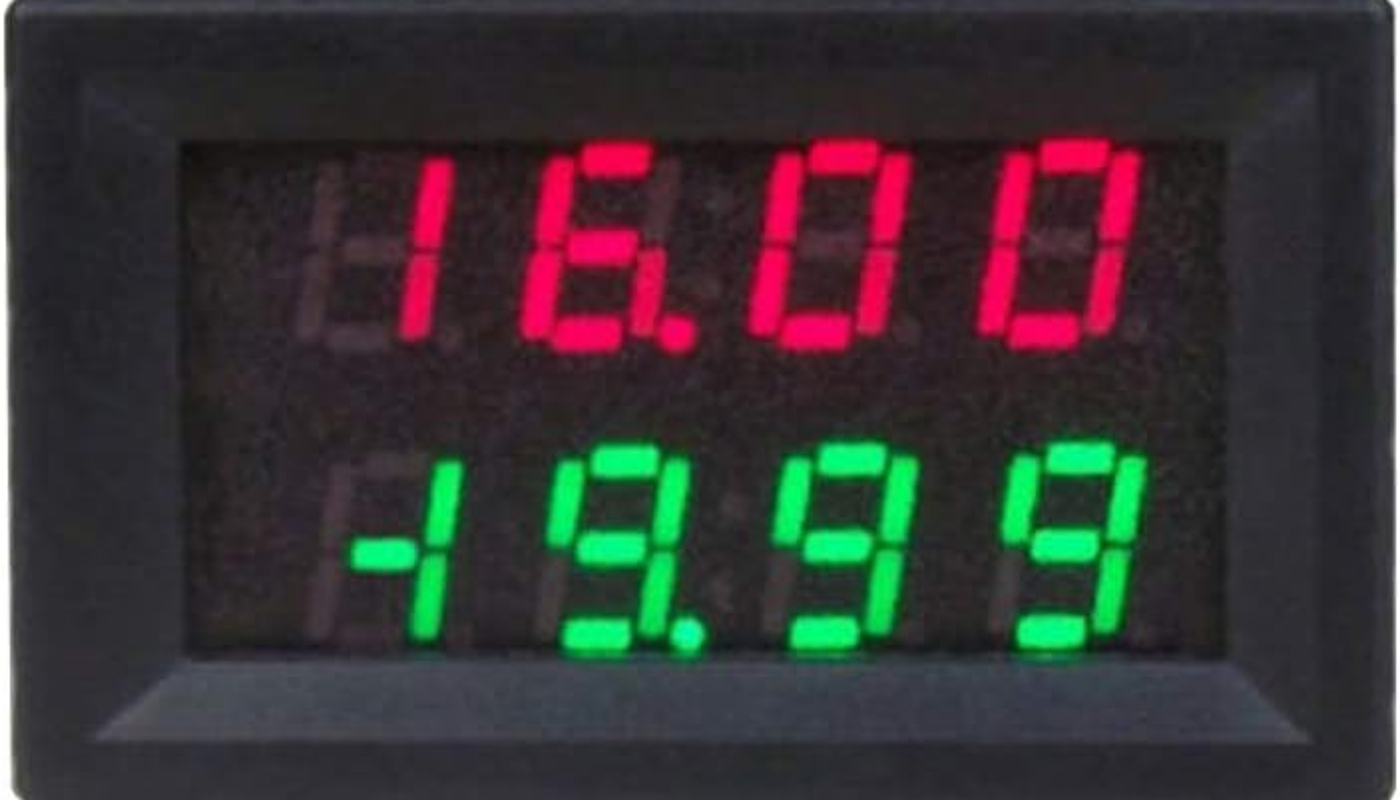

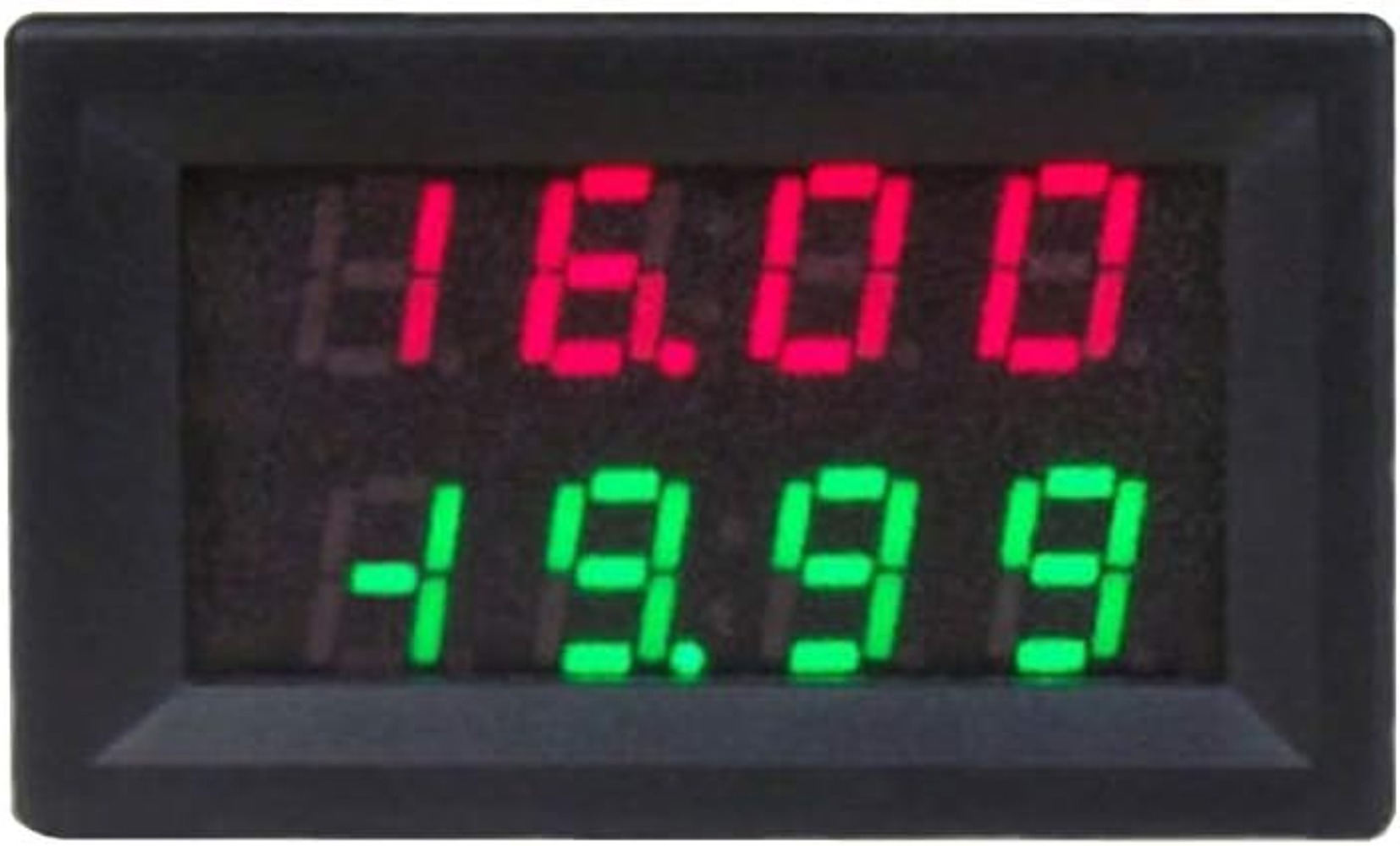

  • Current reading display Minus "-" when measuring Reverse Current.
  • It is miniature, accuracy, and more cost-effective.
  • One digital meter can use as two, and save space and bring more economy for user.


Specifiction:
Power Supply: 5~30Vdc
Measure Range: 0~100V
Sampling Rate: 3 time/sec
Accuracy: +/- 0.2% + 2 LSB
Resolution: 0.01V / 0.1A
Consumption: <30mA
Din Size: 48mm*29*20mm
Panel-out: 45.5mm*26mm


The auction includes
1x Combo meter
1x Shunt

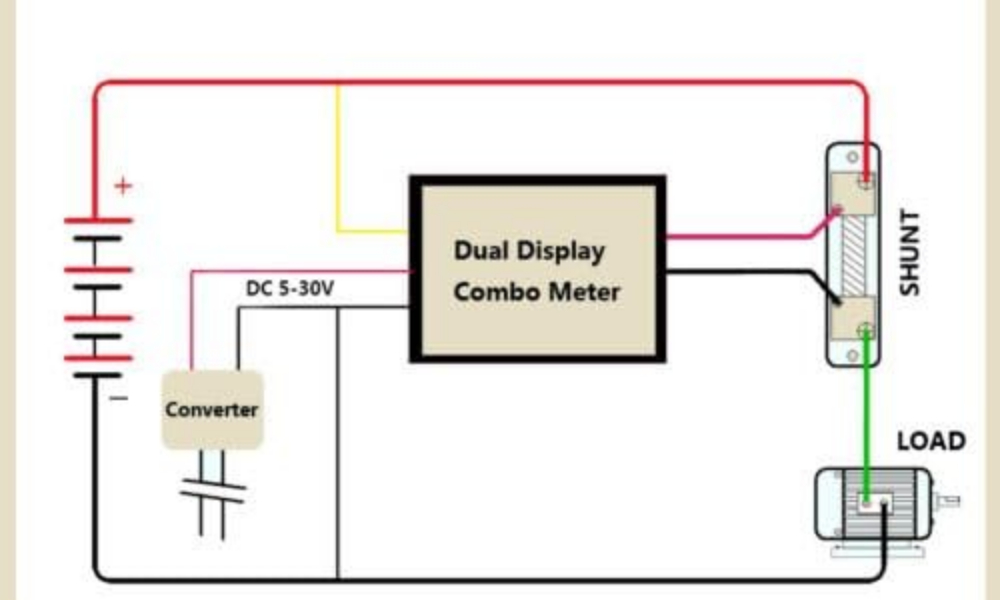

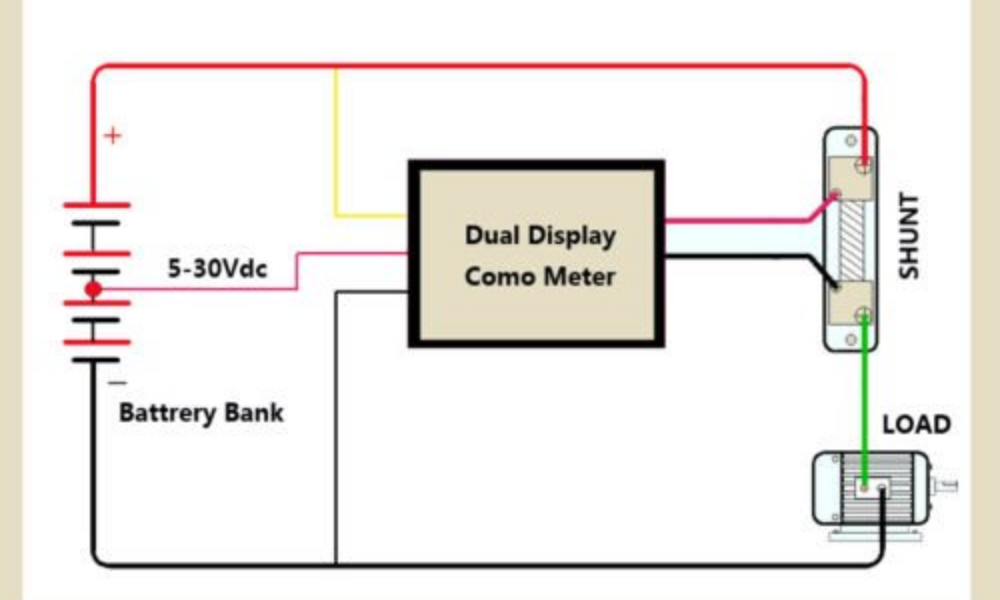

1x Wiring diagram
