ZTTO Road Bike R1S / R2 Tubeless Disc Brake Wheelset

Front 12x100 TA and 9*100 QR/ Rear 12x142 TA and 10x135 QR

you will get 4 side caps for front hub, and 4 side caps for the rear hub, so you can change it by yourself

TECH SPECS

Rim Material: Aluminum alloy
Wheel Size: 700c
Tire Type: clincher , inner tube, tubeless compatible
Rim Width: [external] 22mm, [internal] 19/18mm
Brake Compatibility: Center lock
R1s Hubs: 6pawls, 72 click/round
R2 hub: 36T ratchet , 36click/round

Front Axle :
12x100 thru axle and 9x100 QR
Rear Axle:
12x142 thru axle and 10x135 QR

Spoke: 24/24, straightpull. #1423 1.4x2.3mm steel bladed spokes

Weight:
30mm about 1644g (HGR) /38mm about 1950g
weight base on HGR body, XDR will litghter

Recommended Use: Road bike

ZTTO road bike wheels offer big hit performance

Engineered for low aerodynamic drag and precise handling in just about any type of riding conditions, the ZTTO R1S Clincher Road Wheel provides the ride that ZTTO is known for, at a price that makes quality and performance more affordable than ever. using1423 spokes and DSN spoke nipples, which results in a fast, reliable wheel that's tough enough to survive the road less traveled, yet light enough to charge up climbs on the steepest grades.

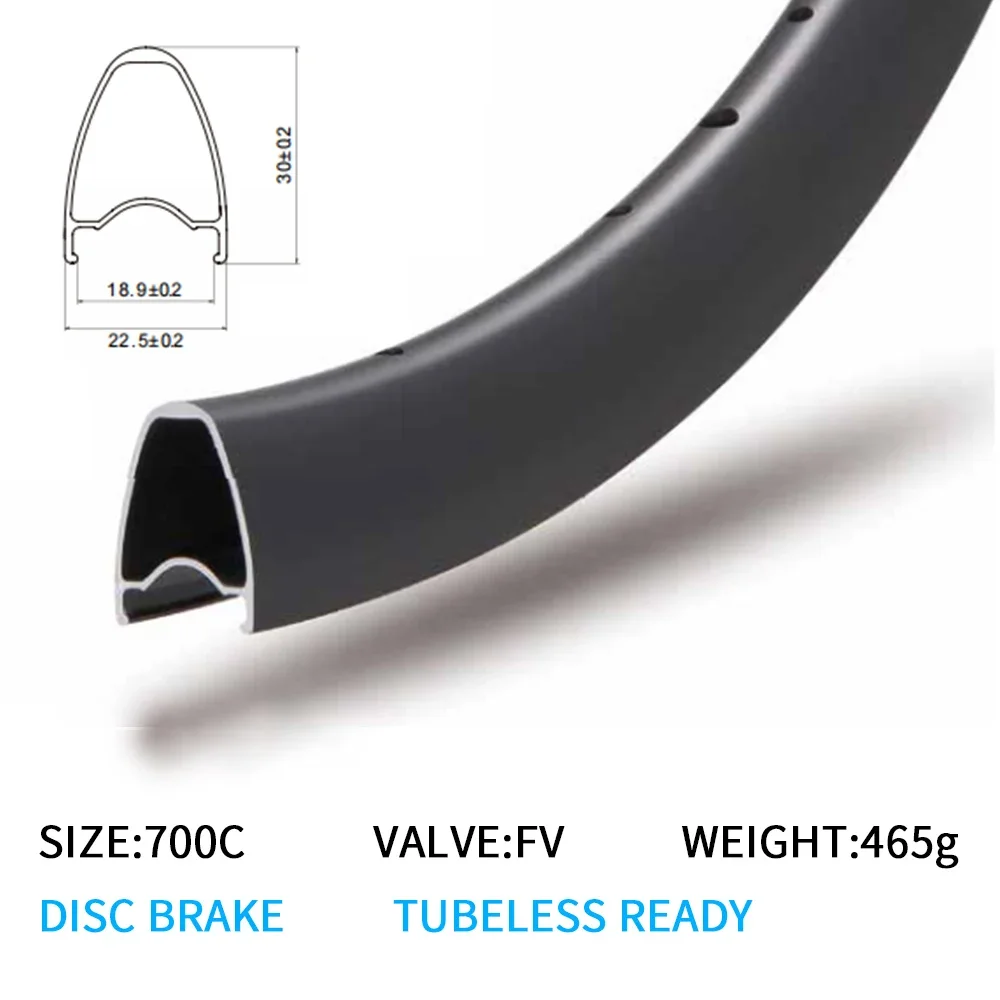

22mm Aluminum Alloy Tubeless Rim

it has an internal width of 18.9mm and depth of 30mm available. These rim depth delivers tried and true aero benefits with high levels of balance and stability, while remaining nimble enough to handle different types of terrain and varying wind conditions.

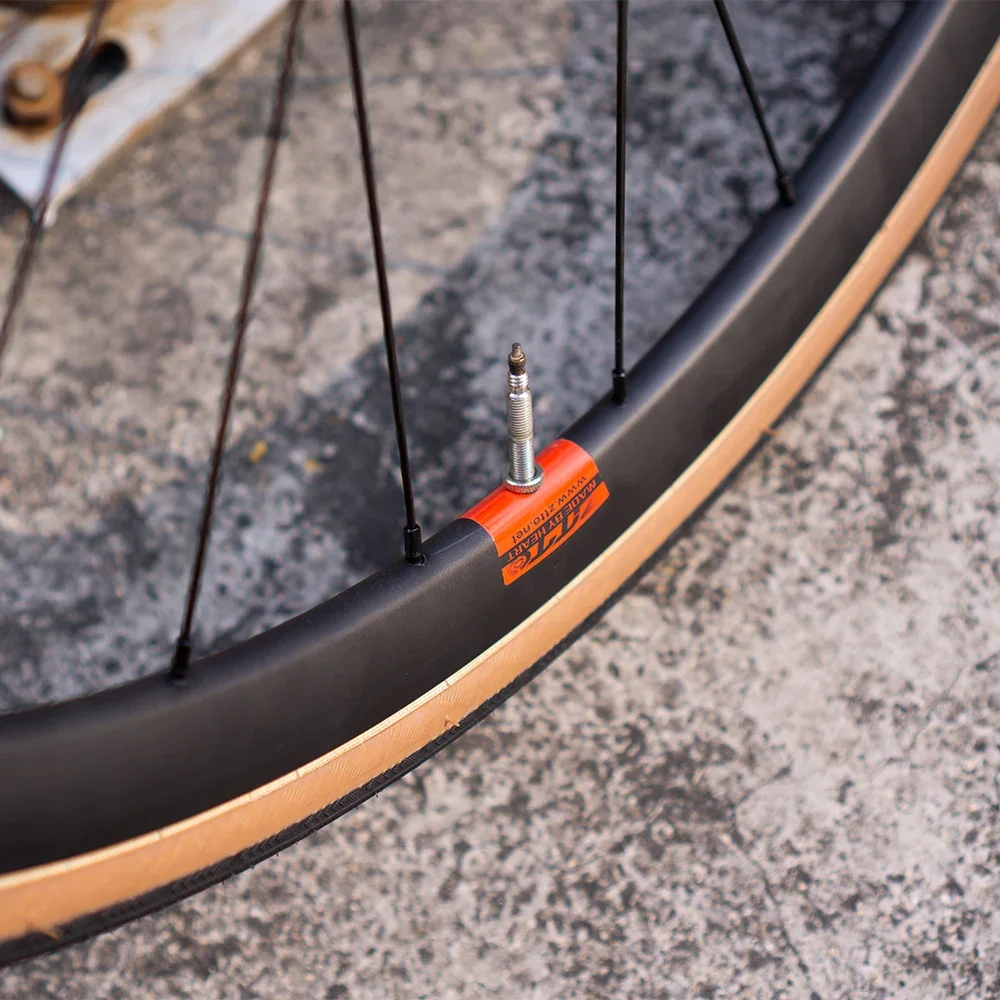

Tubeless

Tubeless-ready and budget-friendly performance wheels. Tubeless lets you lower pressure to roll fast and smooth

Premium Sealed Bearings

it will make hubset rolls smoothly and efficiently.

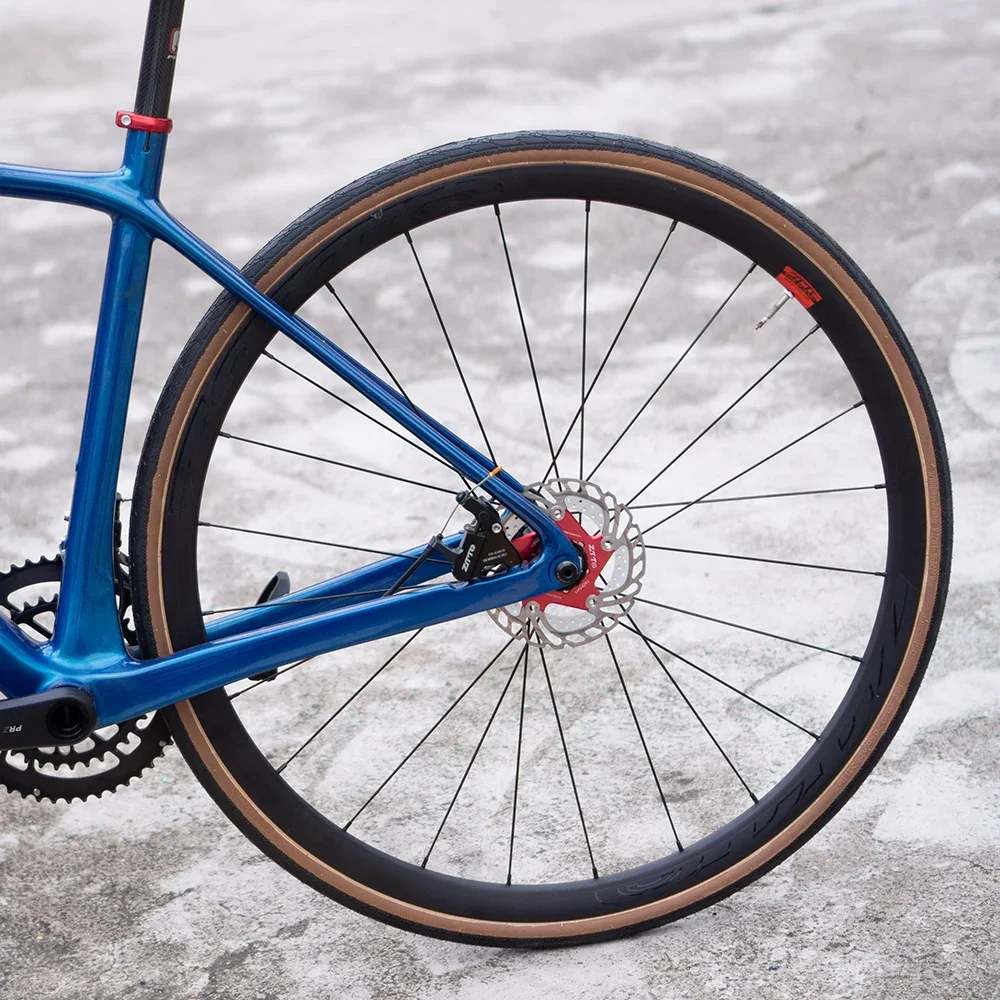

Center Lock Disc Brake Compatible

Centerlock disc brakes improve braking in variable weather conditions, also means a stiffer wheel

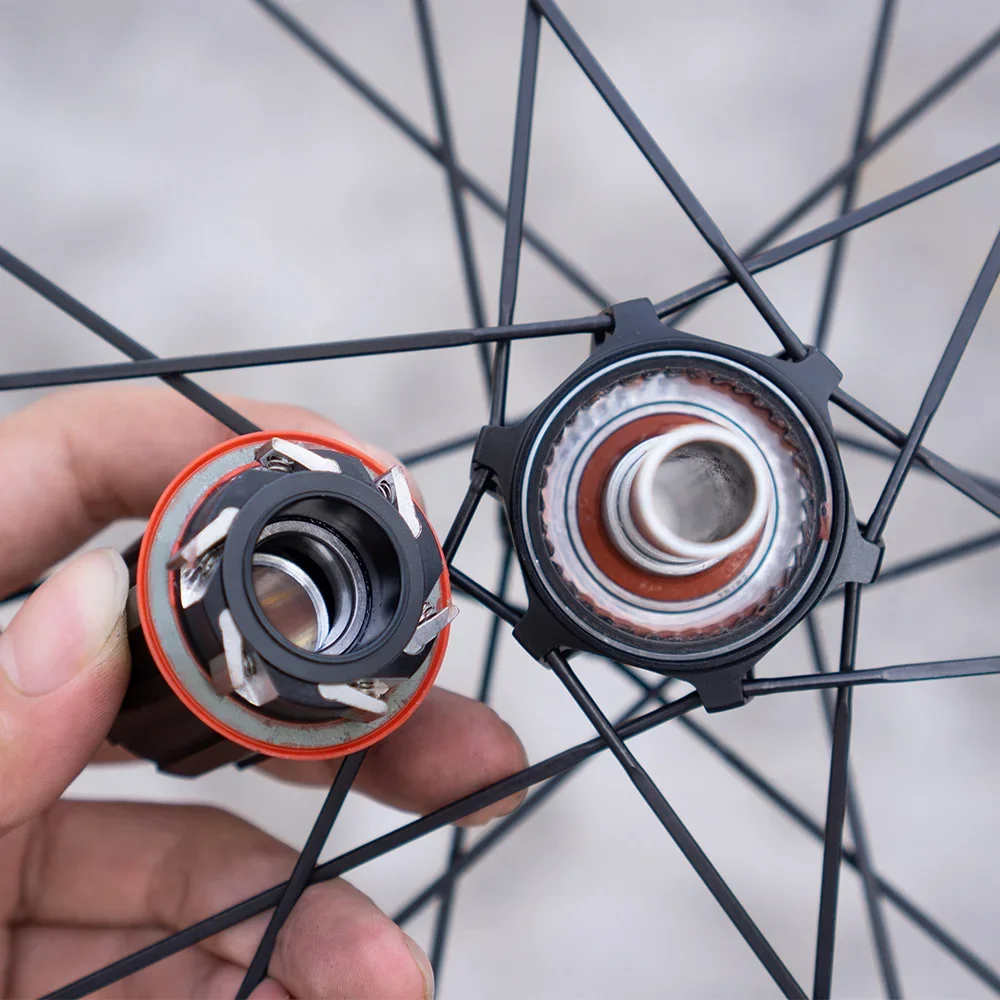

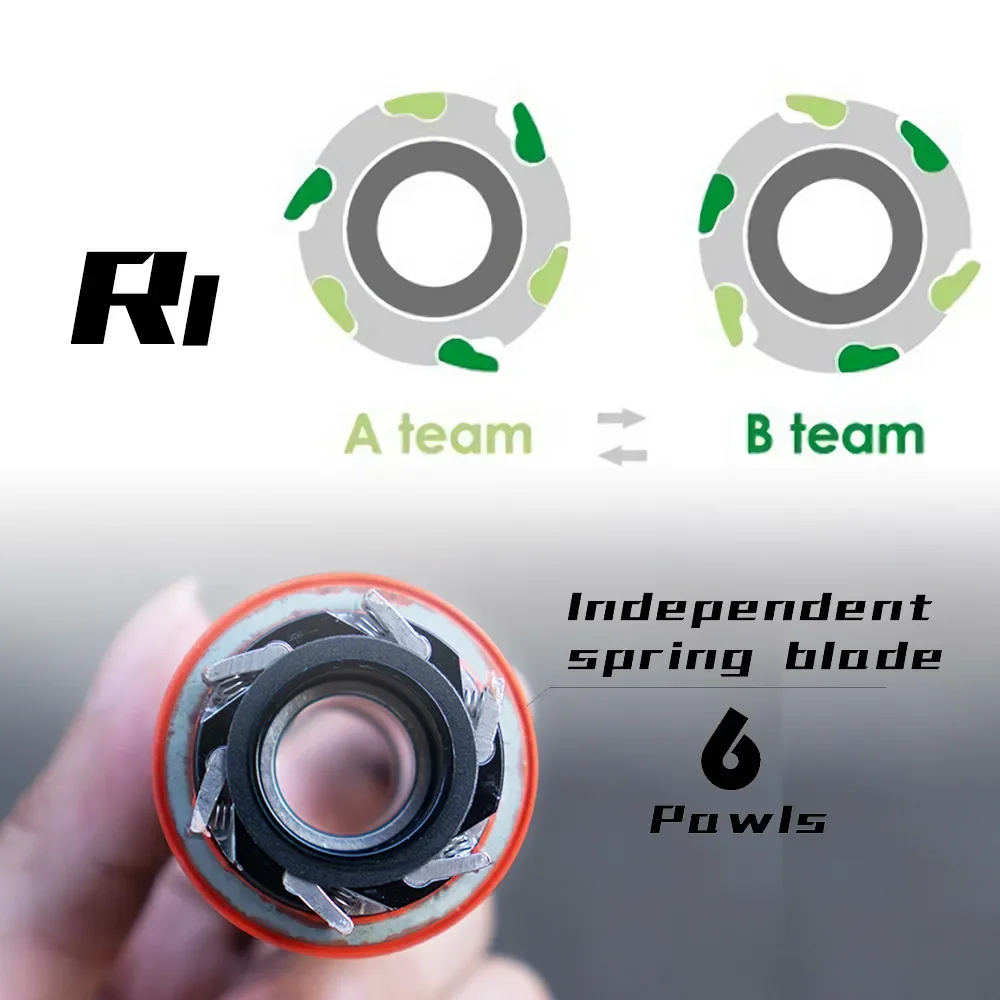

ZTTO New R1S Freehub- 6 Pawls System

Those pawls are split into two trios with slightly offset timing, though, which yields a quick five-degree engagement speed for more immediate power transfer after coasting.The spring leaf of each pawl is independent. It is very reliable.Your hub can carry magical reliability and smoothness over the long haul, virtually regardless of riding conditions.

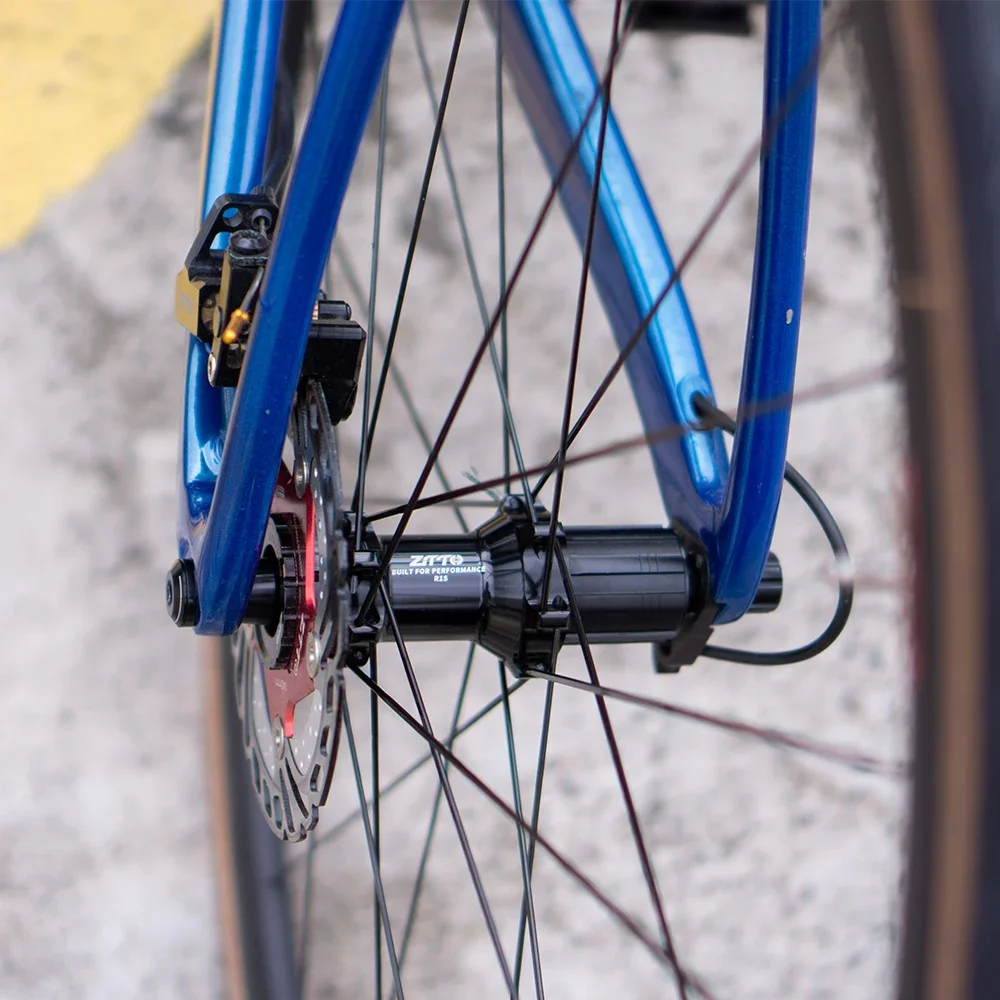

12x100/ 12x142 Thru Axle Design for Disc Brake

you will get front 12x100 and rear 12x142 thru axle cap. (also you will get 9x100/10x135 QR cap as a gift )

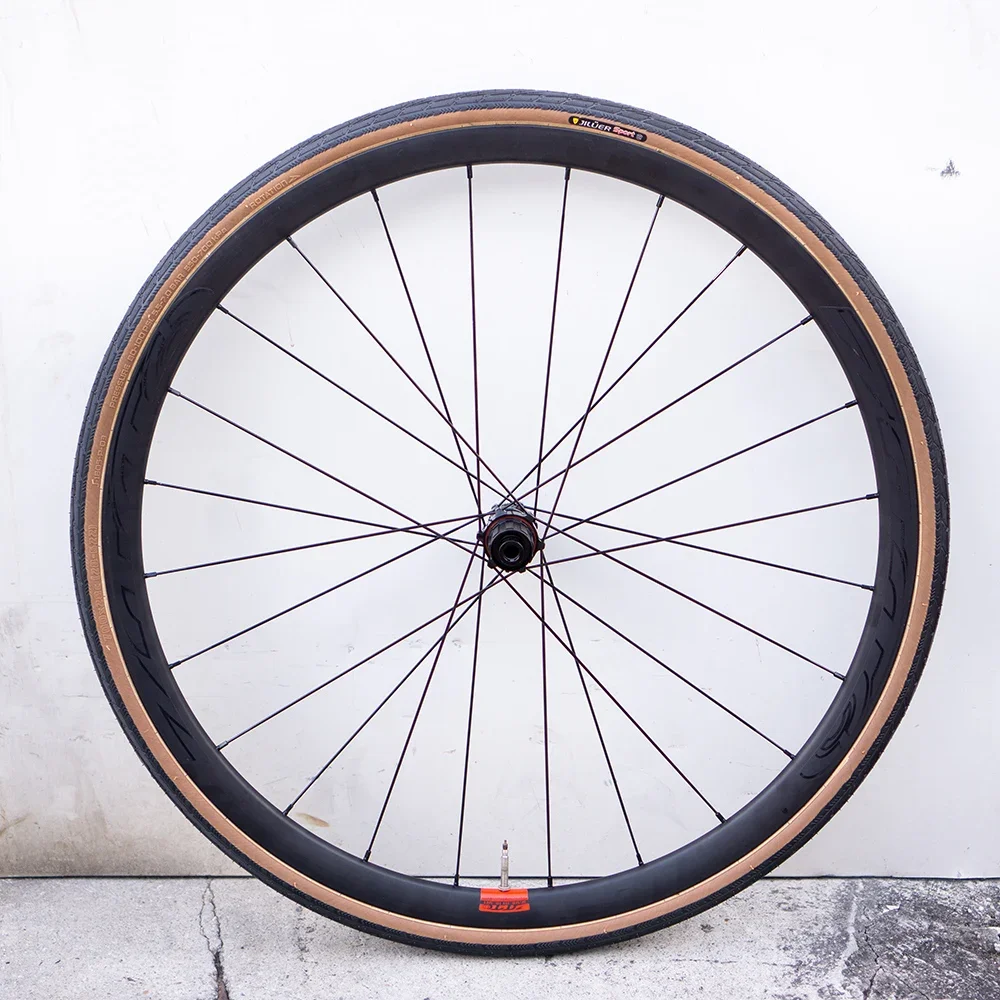

24 holes,straightpull. #1423 1.4x2.3mm steel bladed spokes

bladed spokes keeps the bike fast. Sufficient number of spokes allows you to ride it with confidence, It's tough enough to withstand the rigors of cyclocross and gravel-grinding as well.

Most of Cassette Compatible

Road bike 11 speed HG and XDR freehub available now. and we will launch MS and CP version ASAP. if you are using 8/9/10 speed cassette, then please add 1.8mm spacer to the freehub.

Please Note (IMPORTANT)

This wheelset is a custom product, we will start building after payment is completed, once we start building, we do not accept any changes or cancellations.
we will carry out the process of force release, secondary adjustment, etc., so the construction will take about 5 working days, which is normal.
If you want it to be good, then it can't be built fast. thank you for your understanding.

due to the large size of the wheels, for European countries we can only transport by train, which means it will take a long time(50+ days is a normal situation ), if you are in a hurry to use it, please choose DHL shipping when you place an order.
if you have any special requirements (such as front boost/ rear normal) please contact our customer service before placing an order.
