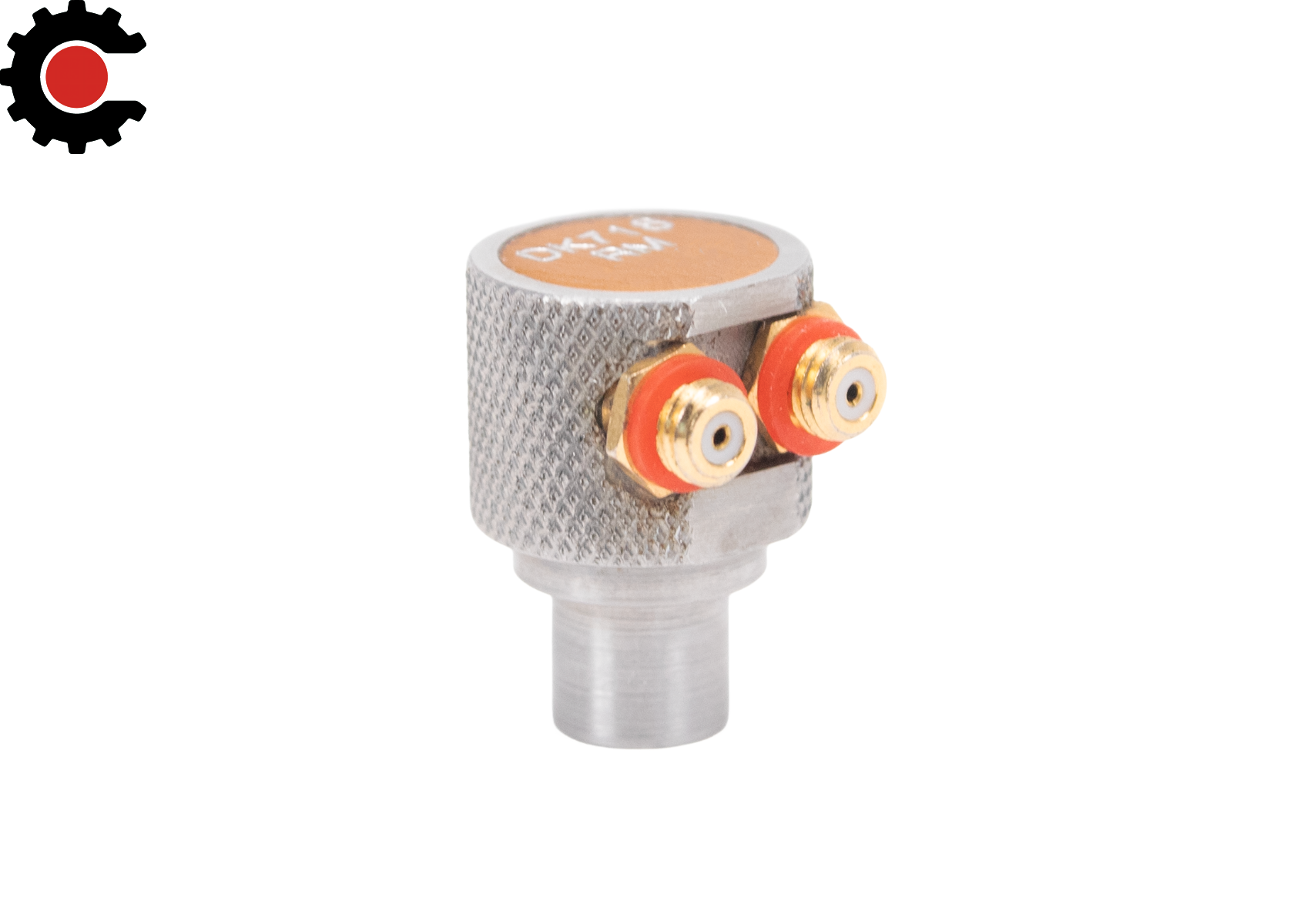

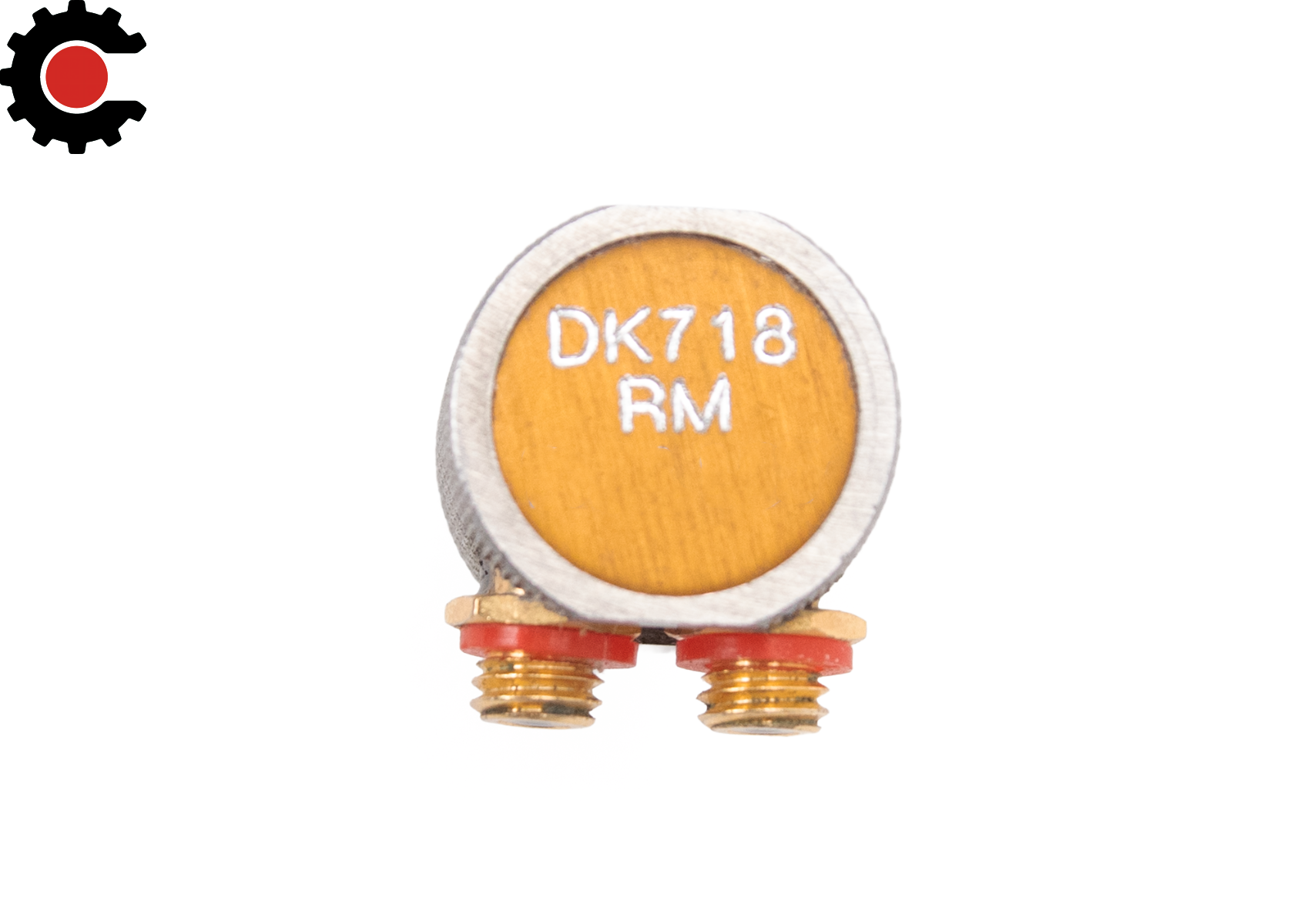

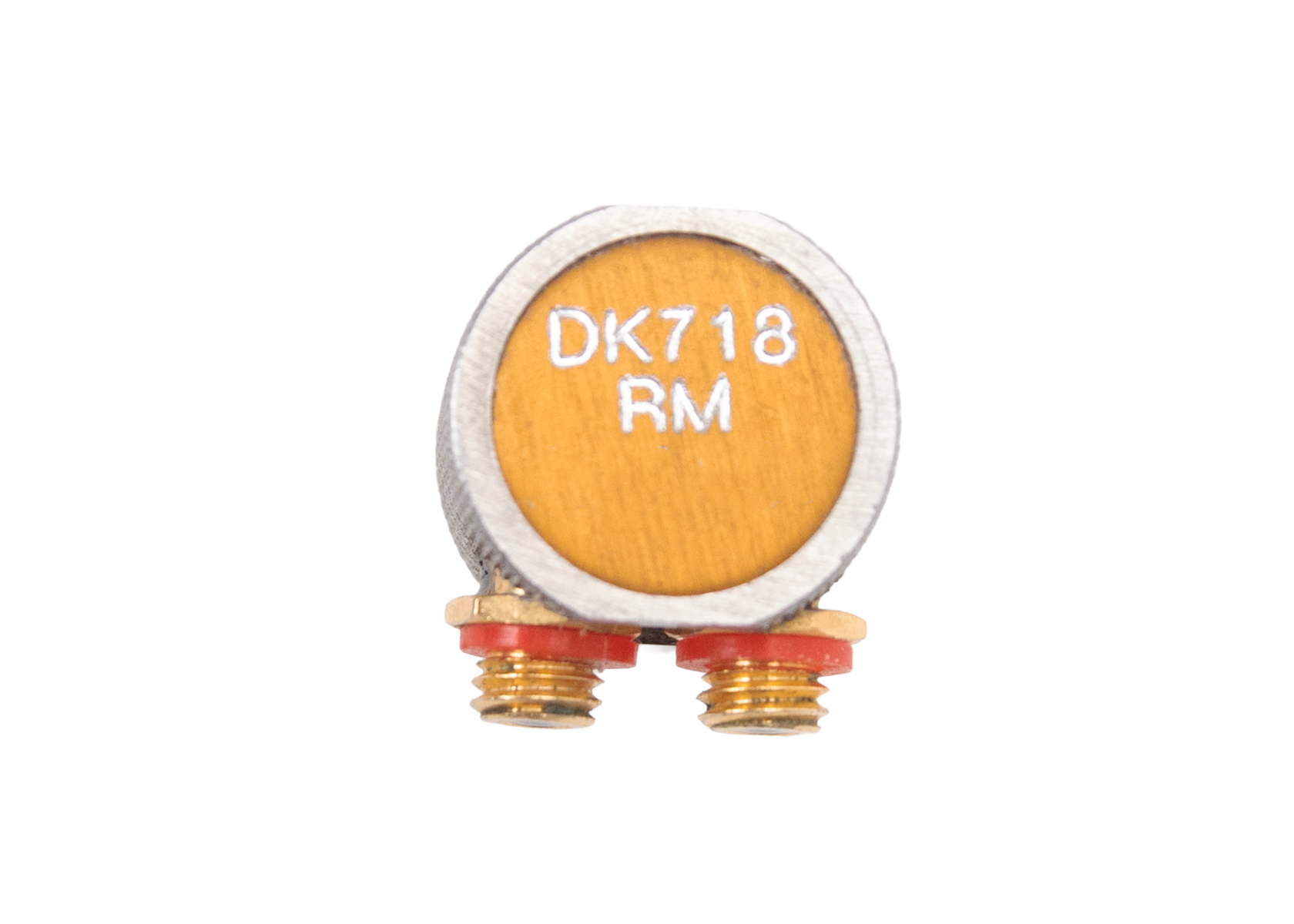

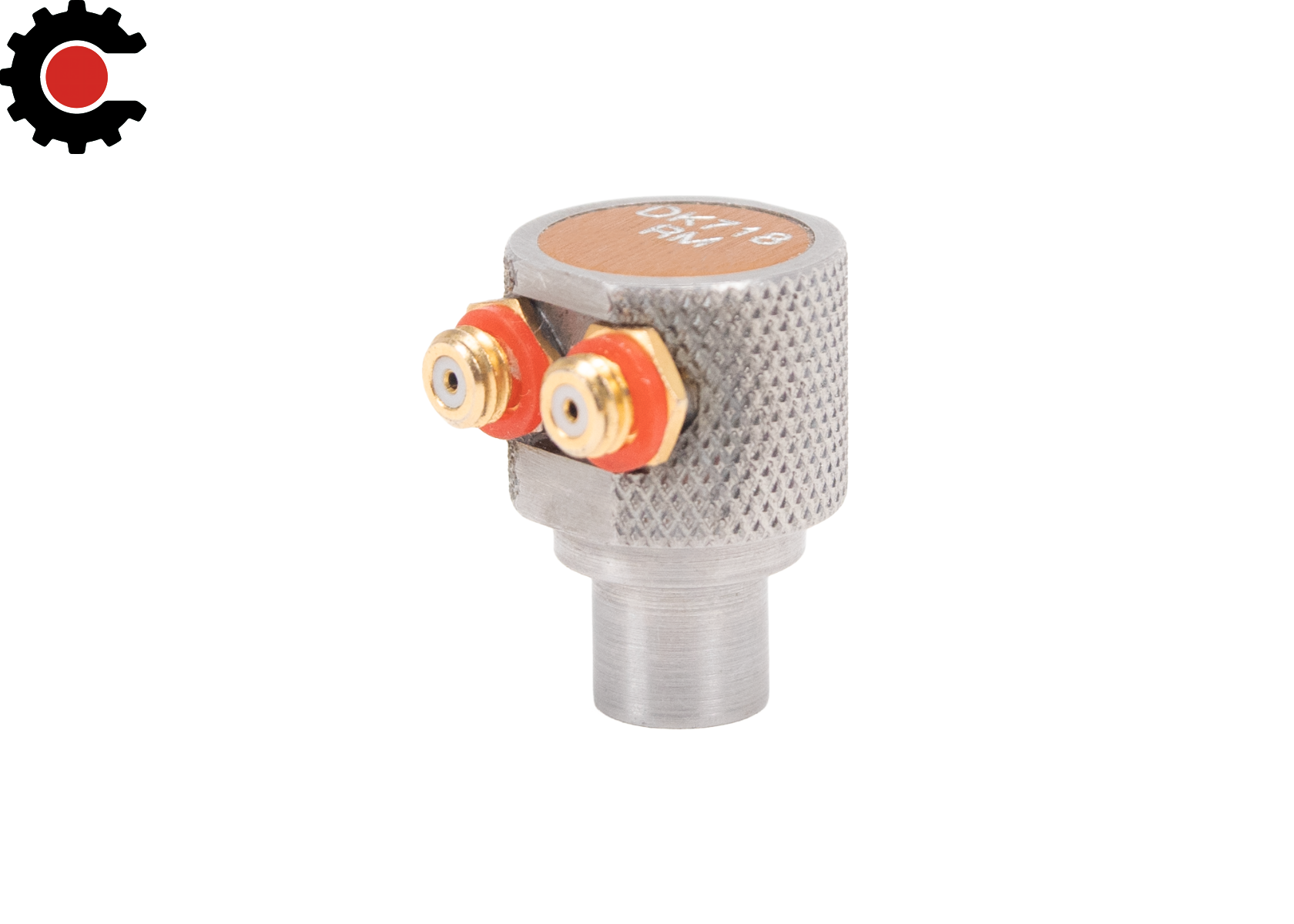

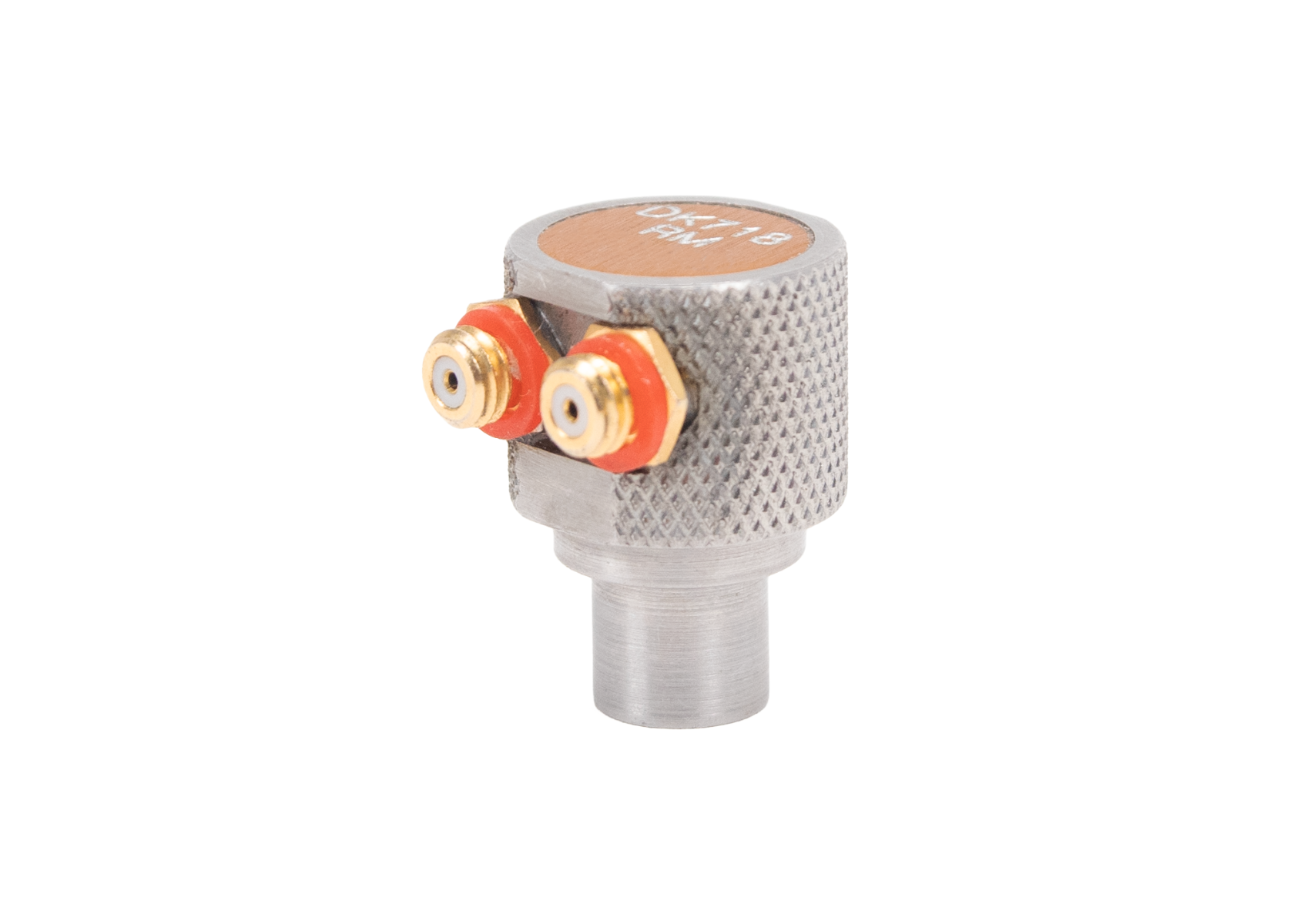

Sonatest DK718RM 7.5MHz Dual Element Ultrasonic Transducer
Certified pre-owned Sonatest DK718RM, 7.5 MHz 1/8" dual element ultrasonic transducer—features a right-angle Microdot connector for tight access and reliable coupling. Optimized for thin-wall and small-diameter component inspection. Compatible with major Sonatest flaw detectors.
Detailed Overview
Product Overview: Sonatest DK718RM 7.5 MHz 1/8" Dual Element Ultrasonic Transducer
The Sonatest DK718RM is a 7.5 MHz 1/8" dual element ultrasonic transducer designed for precise flaw detection and thickness measurement in thin or small-diameter components.
With a right-angle Microdot connector, it provides accessible and dependable performance in high-resolution industrial NDT applications.
Key Features of the Sonatest DK718RM Transducer
- 7.5 MHz center frequency—optimal for thin-wall and fine-featured inspections
- 1/8" (3.18 mm) dual element configuration for enhanced near-surface resolution
- Right-angle Microdot connector for use in restricted or hard-to-reach areas
- Rugged construction for industrial and field applications
- Ideal for small-diameter tube, pipe, and part inspection
- Typical steel measurement range: ~0.030"–2" (0.76–50.8 mm)[2]
- Operating temperature: 0–200°C (32–392°F)[2]
Common Applications
- Thin-wall flaw detection in metals, plastics, and composites
- High-resolution thickness measurement of pipes, tubes, and flat stock
- Corrosion monitoring and weld inspection
- Aerospace, automotive, and industrial quality control for small or precision parts
Compatible Devices
- Sonatest Sitescan D-10
- Sonatest Prisma
- Sonatest Veo+
- Sonatest Masterscan Series
- Other ultrasonic flaw detectors with Microdot connector (verify compatibility before purchase)
Enhance your thin-wall and small-access NDT with a certified pre-owned Sonatest DK718RM from Cartoli.
Call 1-833-322-7865 for immediate availability and expert guidance.
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x Sonatest DK718RM 7.5 MHz 1/8" Dual Element Ultrasonic Transducer
Technical Specifications
| Model | DK718RM |
|---|---|
| Description | 7.5 MHz 1/8" Dual Element Ultrasonic Transducer with Right-Angle Microdot Connector |
| Frequency | 7.5 MHz |
| Element Diameter | 3.18 mm (1/8") |
| Dual Element | Yes |
| Measurement Range (Steel) | ~0.030"–2" (0.76–50.8 mm)[2] |
| Connector | Right-Angle Microdot |
| Operating Temperature | 0–200°C (32–392°F)[2] |
| Case Material | Aluminum/Polymer Composite |
| Common Applications | Thin-wall inspection, corrosion monitoring, welds, small precision parts |
| Compatible Devices |
Sonatest Sitescan D-10, Prisma, Veo+, Masterscan Series; Other flaw detectors with Microdot connector |
