- Condition: 100% new
- Color: Silver
- Material: Stainless Steel
- Type: Liquid Float Switch
- Fitment Type: Direct Replacement
- Thread: 1/2
- Current: 0.5A
- Power: 50W
- Liquid Temperature : -30 85
- Maximum Temperature Resistance: 120 Degrees
- Item included: 1 x Float Switch
- Suitable for: Liquids with Different Densities, Acidity, Alkalinity, Pressures, Temperatures, and Household Appliances, Industrial Equipment, Horticultural Equipment, Medical Equipment, Beauty and Hairdressing Equipment, Aquaculture and Industrial Water, etc.
This Is Aftermarket Replacement Item But Not Genuine
- Note:
1) All dimensions are measured by hand, there may be small deviations.
2) Color may vary slightly due to the color setting of each individual monitor.

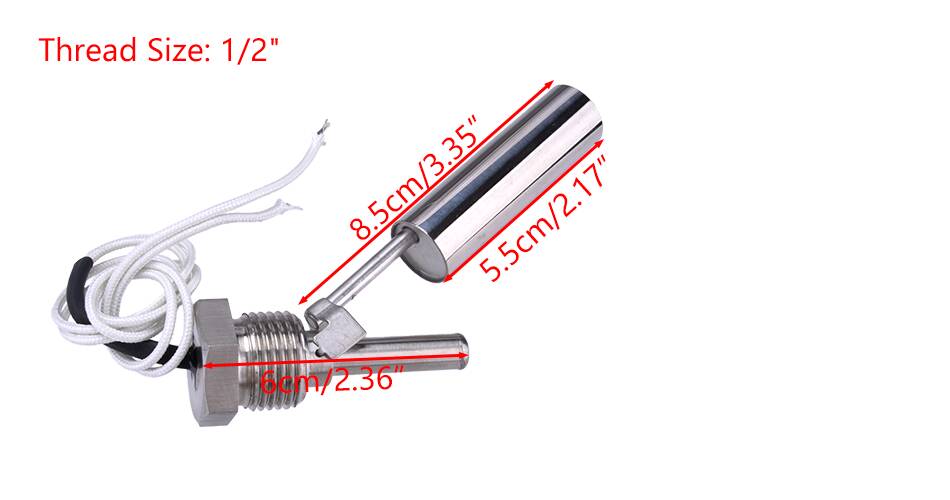

Product Dimension:
Feature:
1)The float has a stroke of 10 millimeters, which means a control range of 10 millimeters. If a large control range is required, it can be installed in two combinations, one long and one short.
2) Using a magnetic spring switch does not require a separate power supply, and the contact life of the magnetic spring can generally reach 2 million times.
3) This switch cannot directly control solenoid valves, high-power relays, AC contactors, etc. You need to add a small relay (such as HH54P) for transition.
4) High reliability, low wiring cost, and easy installation.
5) Made of stainless steel material, it can be used for high temperature and high pressure, durable and practical to use.
6) Wide range of use: This product is mainly used in household appliances (such as pure water dispensers, water dispensers, drinking machines, humidifiers, dehumidifiers, electric water heaters, air conditioning equipment, household tap water direct drinking systems, etc.), industrial equipment (such as air and oil compressors, air coolers, drainage systems, lubricating oil systems), horticultural equipment, medical equipment, beauty and hairdressing equipment, aquaculture and industrial water. The switch can be used to control the liquid level (drainage or inflow) of water tanks, pools, sinks, fish tanks, etc., or to act as an up and down alarm switch for liquid level.
