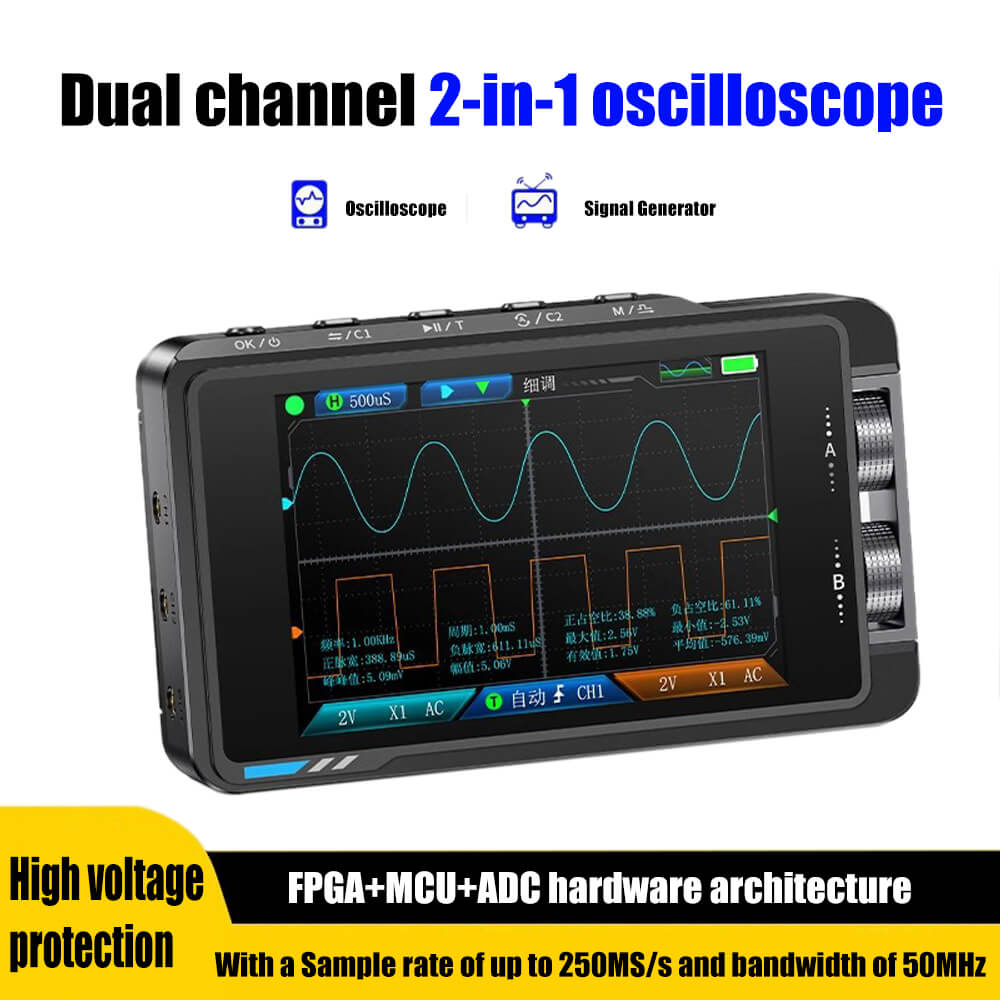

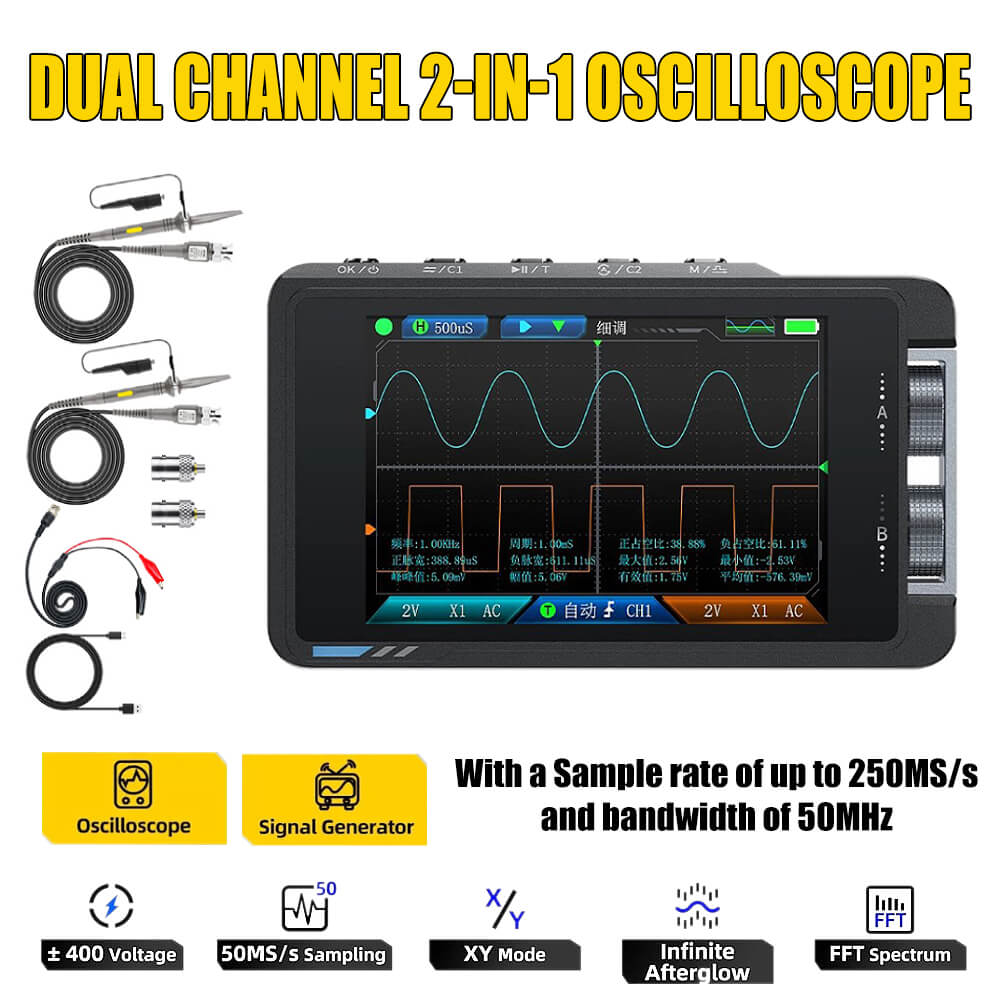

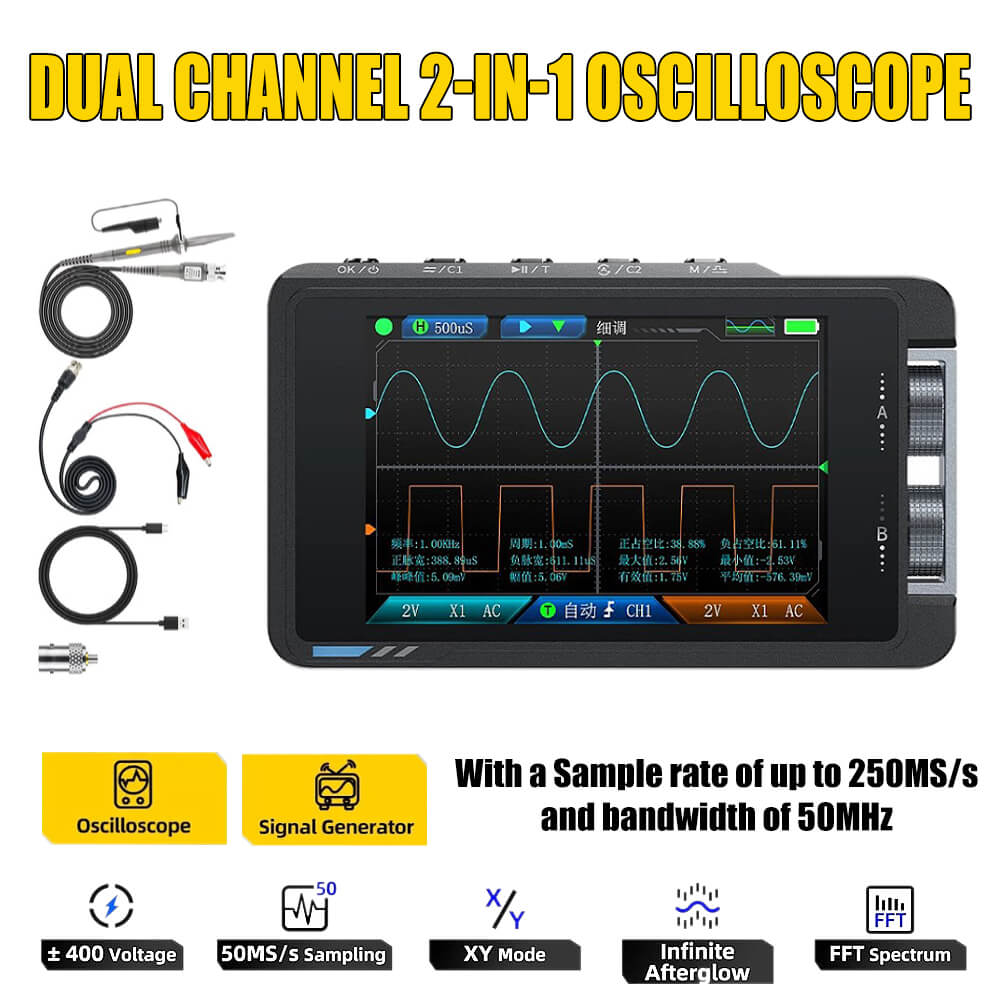

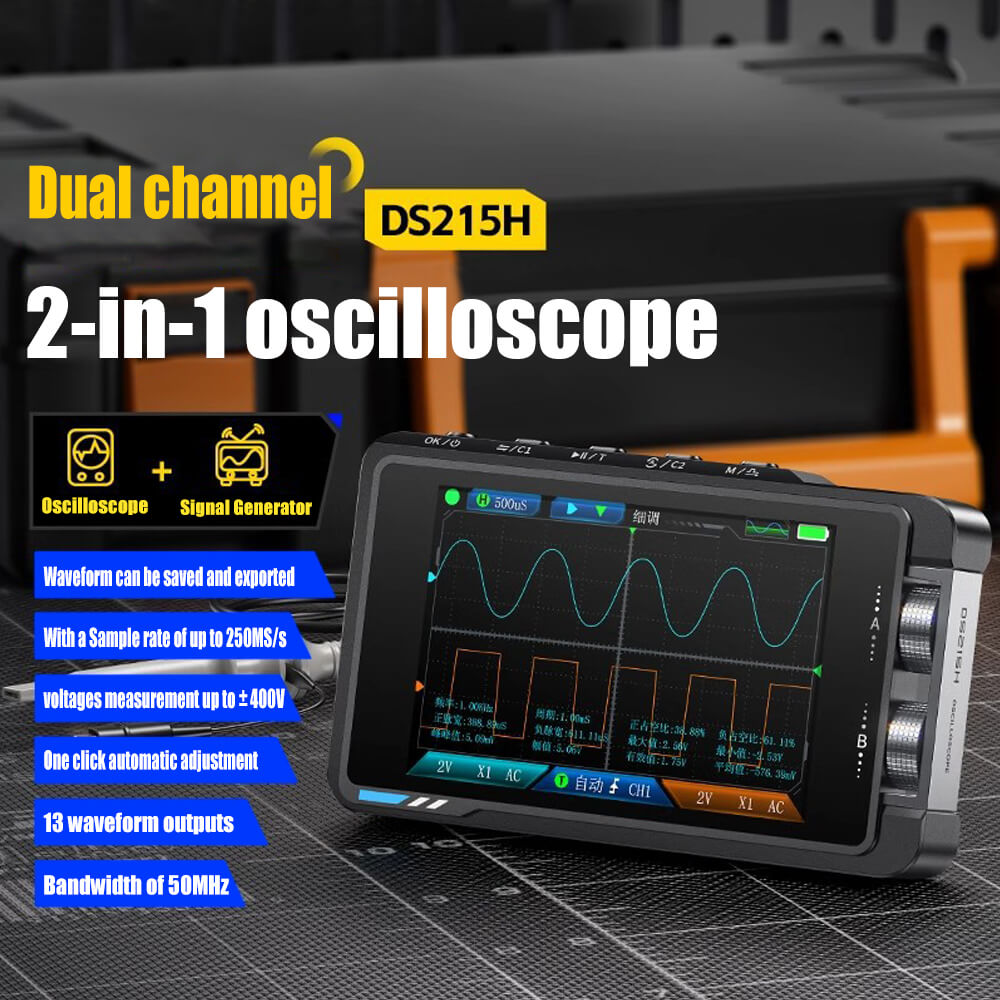

- With a Sample rate of up to 250MS/s and bandwidth of 50MHz, it ensures accurate measurements for various applications.

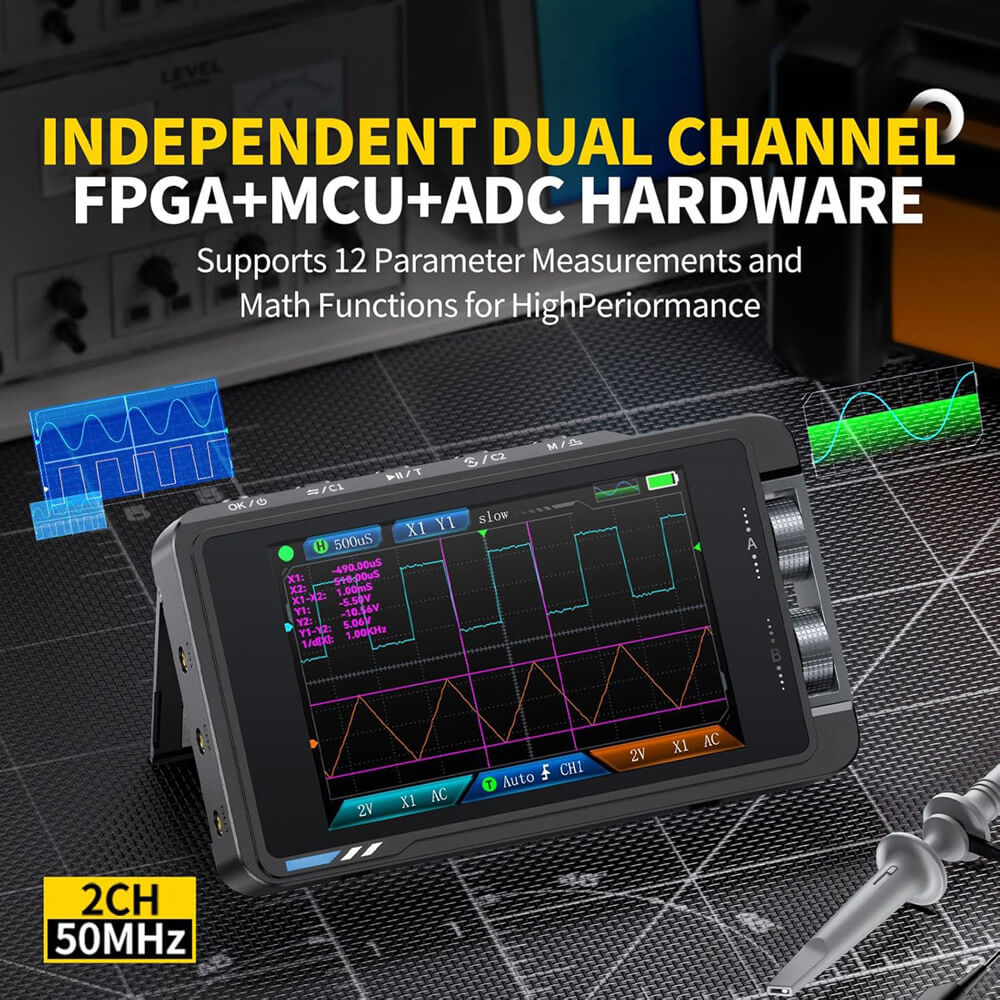

- Dual-Channel Precision: Independent,isolated channels eliminate cross-talk for accurate signal measurement (±400V max input).
- Supports voltages measurement up to ± 400V, providing safe performances in wide voltages scenario.
- Screenshots saving and viewing, making data analysis more and efficient.

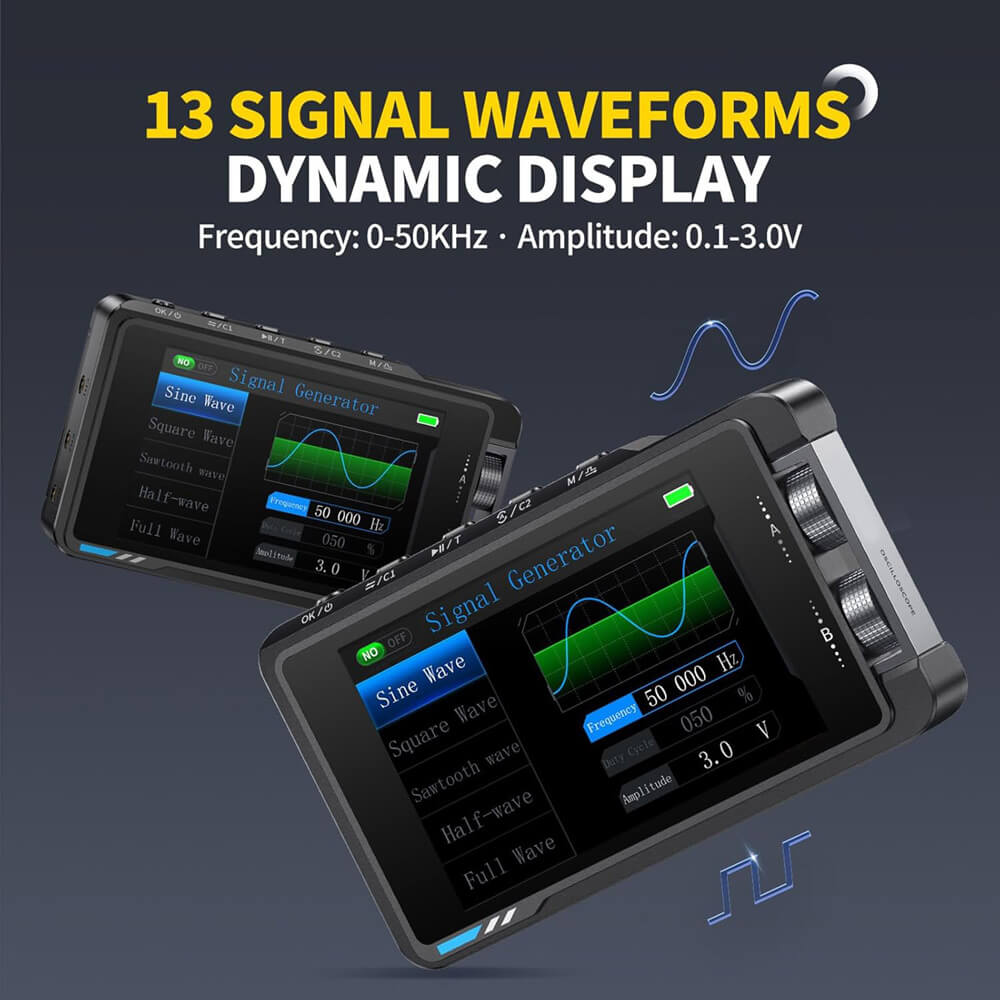

- Equipped with signals generator function, 13 waveform outputs with frequency of 0-50KHz, adjustable in 1Hz step.
- Multi-language support (English, Japanese, Spanish, etc.)
- Portable & User-Friendly: Compact design (66×110×19.5mm) powered by Type-C (5V/1A) or 1500mAh rechargeable battery.
- Equipped with 3.5inch display screen (480x320 resolution), the visual is clear and intuitived.
Specifications:
Oscilloscope:
Channels: 2 (1MΩ input impedance)
Vertical Sensitivity: 10mV/div – 10V/div
Timebase Range: 20ns/div – 20s/div
Trigger Modes: Auto/Normal/Single (edge/pulse width)
Probe Attenuation: 1x/10x
Signal Generator:
Waveforms: Sine, Square, Pulse, Ramp, etc.
Frequency Range: 0–50kHz
Output Voltage: 0.1–3.0V (DC-coupled)
General:
Screen: 3.5-inch IPS (1024×600 resolution)
Input Protection: ±400V surge protection
Compliance: CE/RoHS (if applicable)

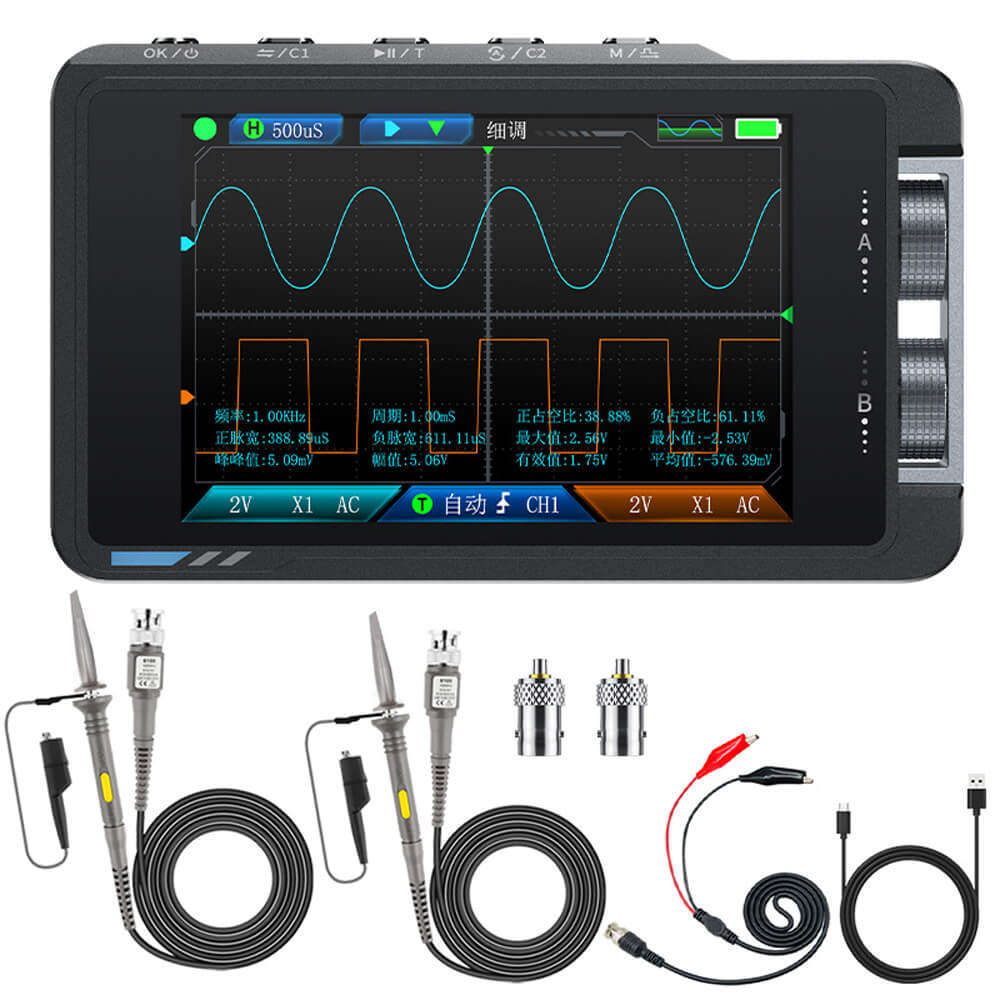

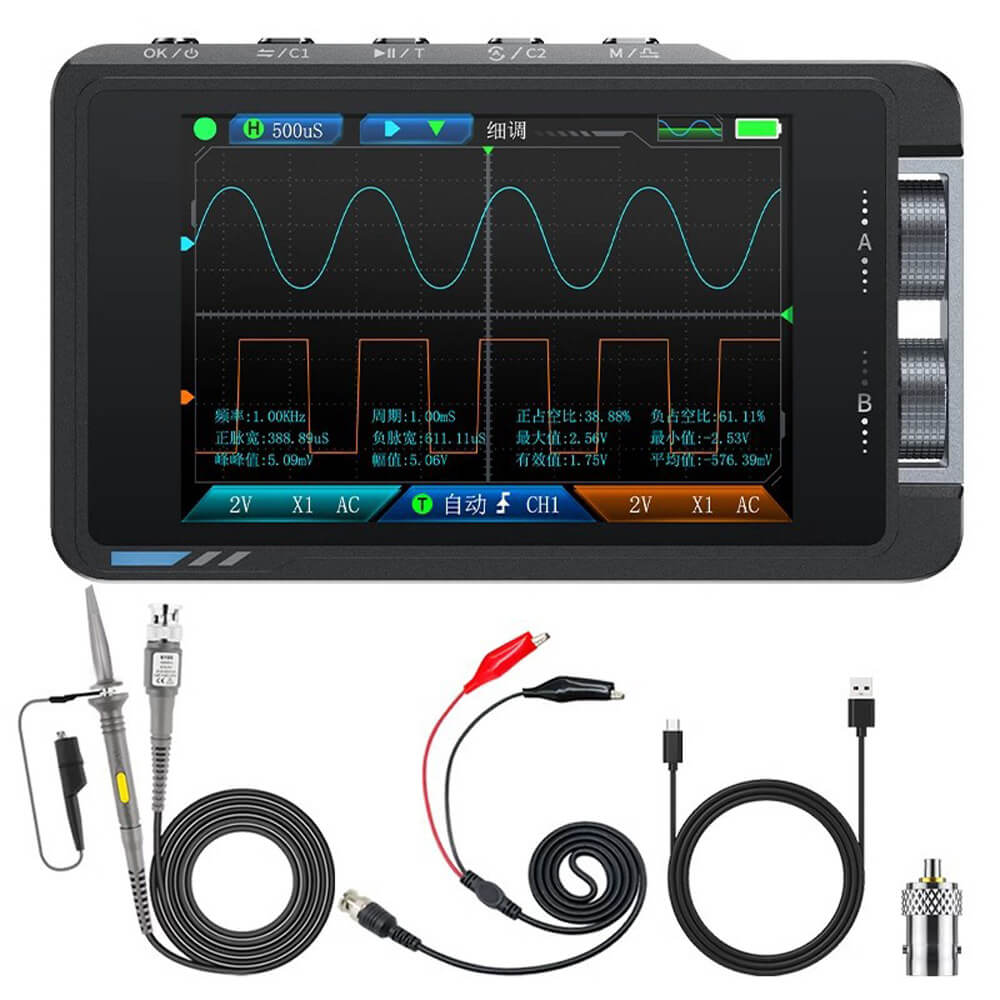

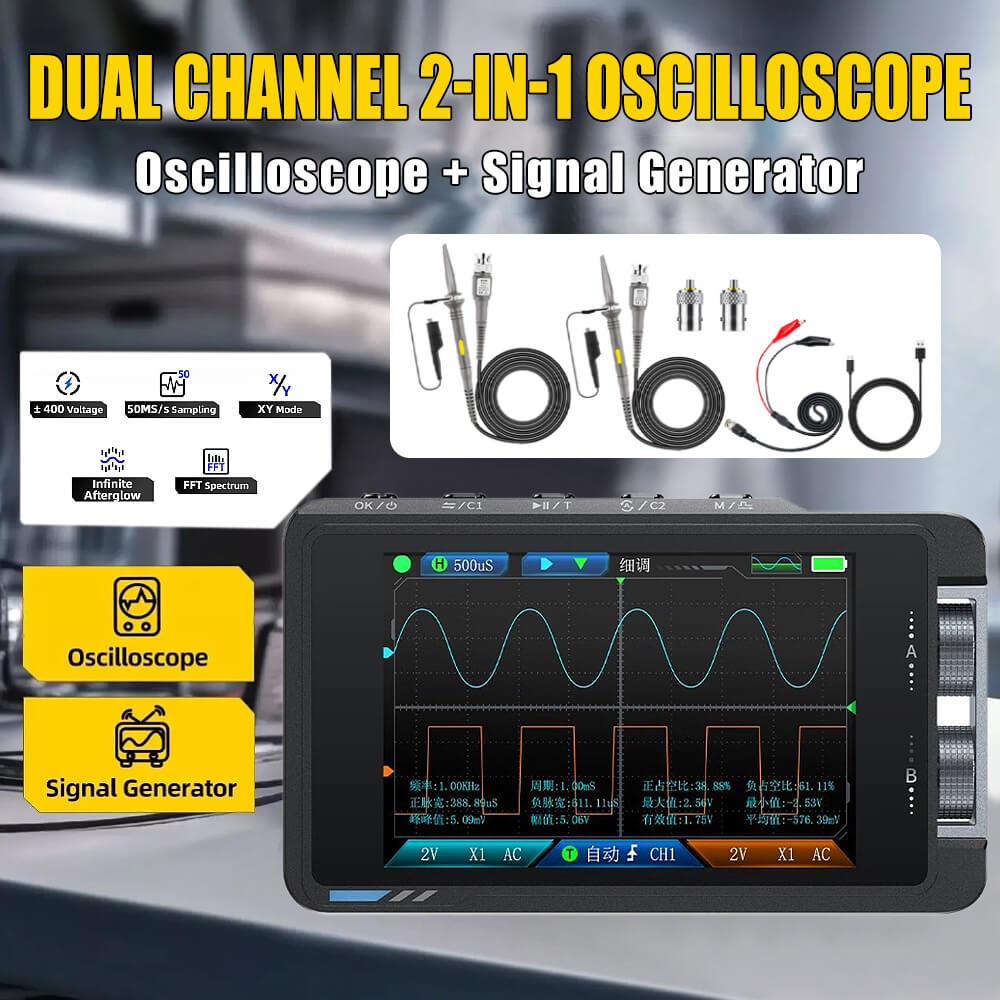

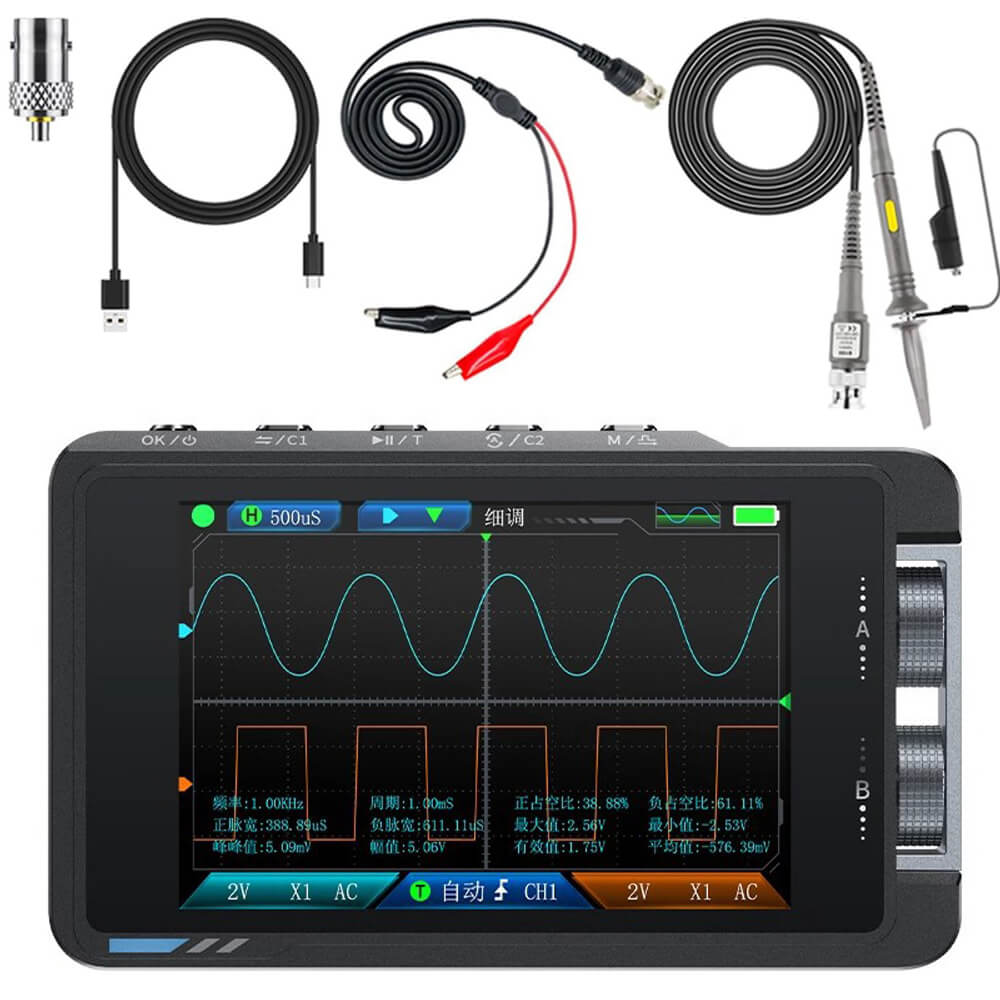

Package Included:
Kit A:
1 x Oscilloscope
1 x Type-C Charging Cable
1 x Lanyard
1 x Alligator Clip Probe
1 x English Manual
Kit B:
1 x Oscilloscope
1 x Type-C Charging Cable
1 x Lanyard
2 x Alligator Clip Probe
1 x English Manual
Ideal For:
Electronics Repair | Circuit Debugging | Educational Labs
Hobbyists | Engineers | Industrial Testing
Safety & Compliance:
Avoid exceeding ±400V input to prevent damage.
