1 touch a-second user recognition
Stores 3,000 templates,100,000 transactions
Reads Fingerprint and/or Card
Optional integrated smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Audio-Visual indications for acceptance and rejection of valid/invalid fingers


1.One fingerprint develop the whole world
2.Adopt high reliable industrial component parts and optical sensor, watchdog monitor to avoid unit hang ,unique reset key   keeps the unit well work
3.Easy to install all the cable connection EM lock installation are the same to the traditional IC/ID Access control
4.One-way alarm output: dismantlement alarm, threatens alarm, unlock illegally alarm, not block alarm

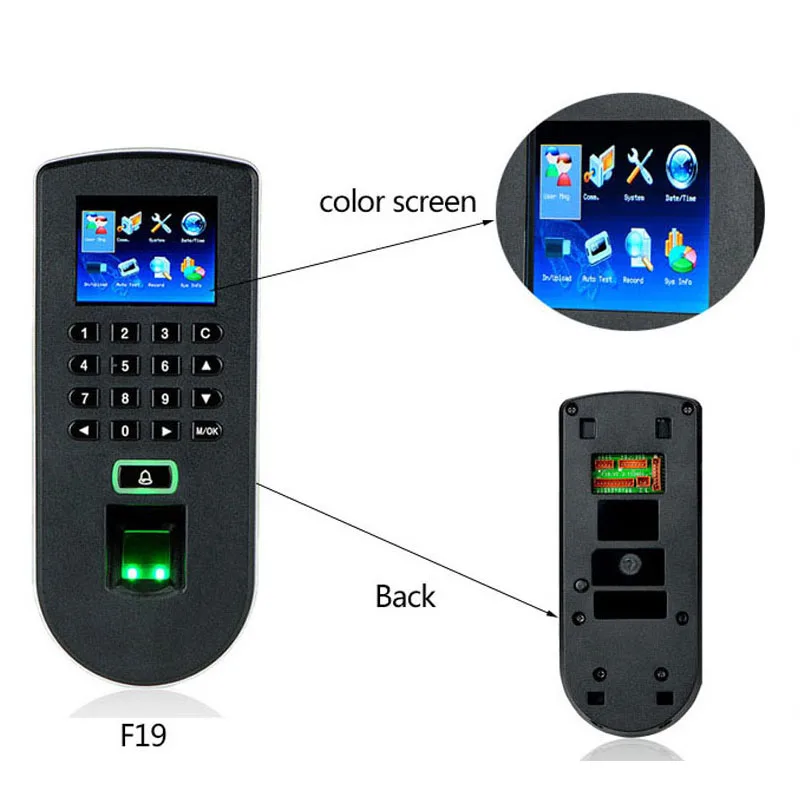

Model
F19
Software
ZKAccess3.5
Display
2.4-inch TFT LCD Color Screen
Fingerprint sensor
ZKOptical Sensor
Algorithm Version
ZKFinger V10.0
Fingerprint Capacity
3,000
Card Capacity
10,000
Log Capacity
100,000
RF Card
EM(standard)/MF(optional)
Authentication Method
FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF
Access Control Interface
Electric lock, Door sensor, Alarm, Exit button
Communication
TCP/IP, RS232/485,USB-host,
Wiegand Signal
Input,Output,SRB
Functions
DST,Record Query,Anti-passback,External RS485 fingerprint reader,Printer(Optional)
Power Supply
12VDC 3A
Operating Temperature
0~ 45
Dimensions (W×H×D)

195.7mm×81.2mm×42.1mm
