Features:
l Eliminates annoying driving noise, which is especially noticeable when the motor is not rotating or at low speeds

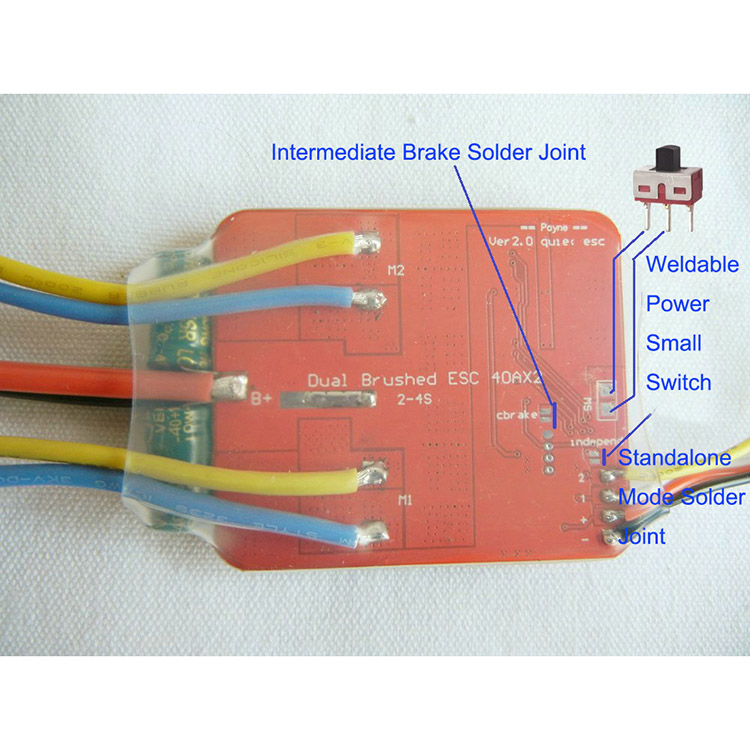

l The user can modify the solder joint to take effect in the intermediate brake
l MCU instant power-off protection
l Appearance is also more beautiful
l Middle point start, runaway protection, power failure protection, overheat protection
l 795 775 540 550 380 390 high current motors can be used
Specification:
l Voltage: 6V-16V (for 2-4S Lithium Battery)
l Current: Single Forward 40A, Reverse 20A
l Remote Control Center Point Rated: PWM 1500us (+50 -50)
l Size: 54x48MM
l Applicable Model: for RC Metal Track Tank Boat
l Quantity: 1 PCS
Package:
l 1x ESC
Advanced Parameter Setting Method (Center Point Brake, Mixing Control, Initial Strength, Linear):
l 1.The single yellow wire is plugged into 1 channel, the white wire (3P wire) is plugged into 2 channels, and the motor is plugged in, but do not plug in the battery first
l 2. Take left hand throttle controller as example, first operate the right stick as follows, and keep it:
l Upper left Set whether to neutralize the brake <default: without>
l Upper right Set whether to mix control <default: mix control>
l Bottom Left Sets the initial strength (small, medium, high) <default: medium>
l Bottom Right Set Linear (Small, Medium, Large) <Default: Medium> Linear is large, the motor response is slower, but more realistic
l 3. Power on the ESC again (insert the battery), after hearing the short falling tone, return the right stick to the middle, and then hear the long sound of the ESC unlocking, indicating that the setting is successful
l Notice:
l 1. You can only change the settings once at one power-on. for 3 options, progressive loop
l 2. If right hand throttle, the right stick up and down is THR channel, so the white line (3P line) should be inserted into THR channel
l 3. If you want to use Flysky gun control to change the neutral position brake, just put: throttle to the maximum, steering to the far left -> power on the ESC -> the throttle and steering are all back to the middle, then the setting is complete
l Note that the remote control channel should not be reversed, the channel upper limit should exceed 1850us, and the lower limit should be lower than 1150us
