1.High performance dual-core processor with 240MHz, supporting AI computing and secure encryption.
2.Integrated Wi-Fi and Bluetooth 5 (LE), supports 40MHz bandwidth and Bluetooth Mesh.

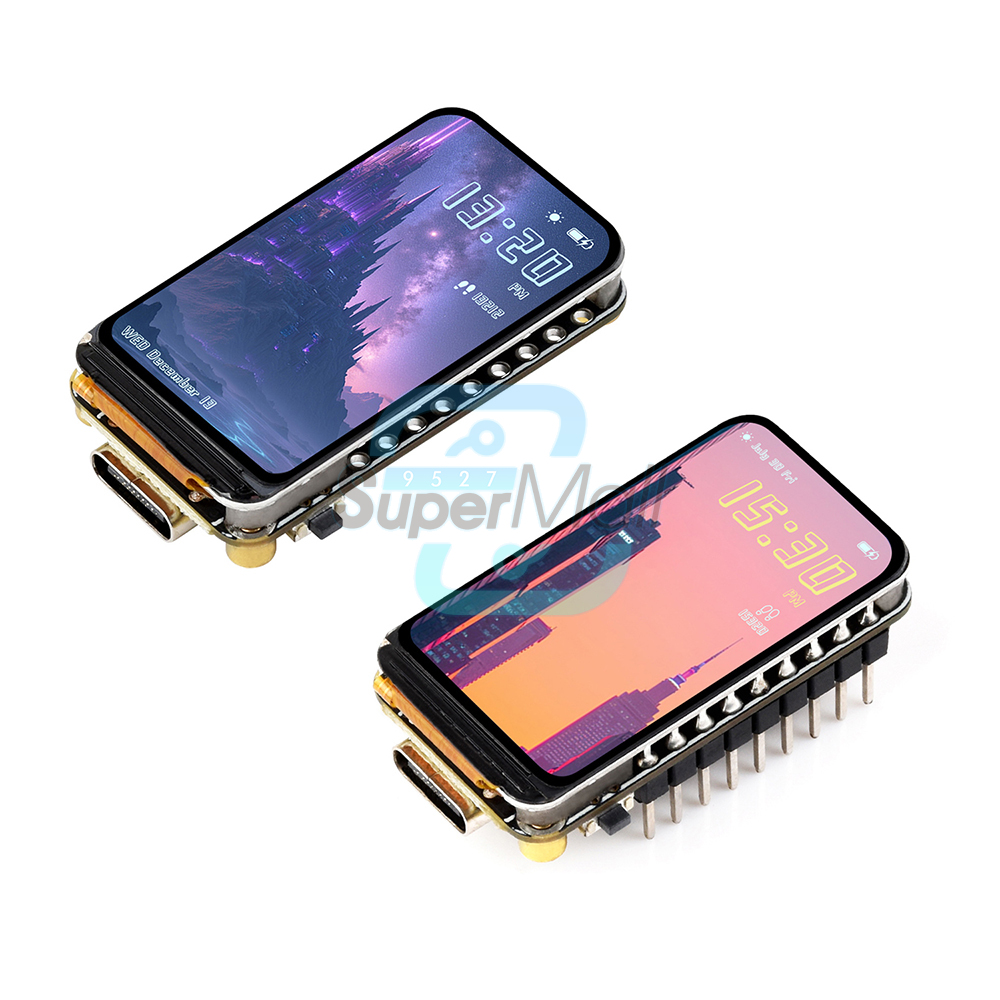

3. Equipped with 1.47-inch IPS full-color LCD screen with 172 x 320 resolution and brilliant colors.
4. Onboard QMI8658 6-axis IMU sensor, support device status detection and pedometer function.
5. Large-capacity storage combination, including 8MB PSRAM, 16MB Flash, to meet the diverse development needs.

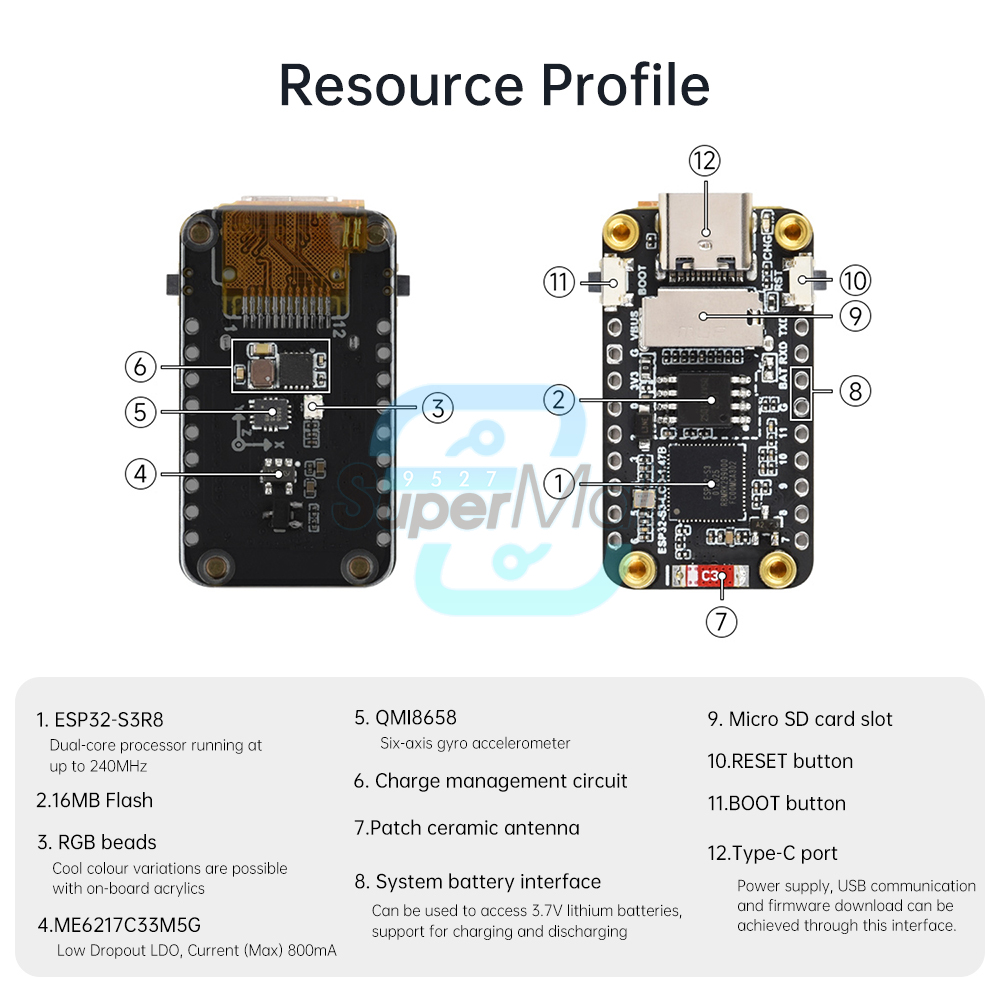

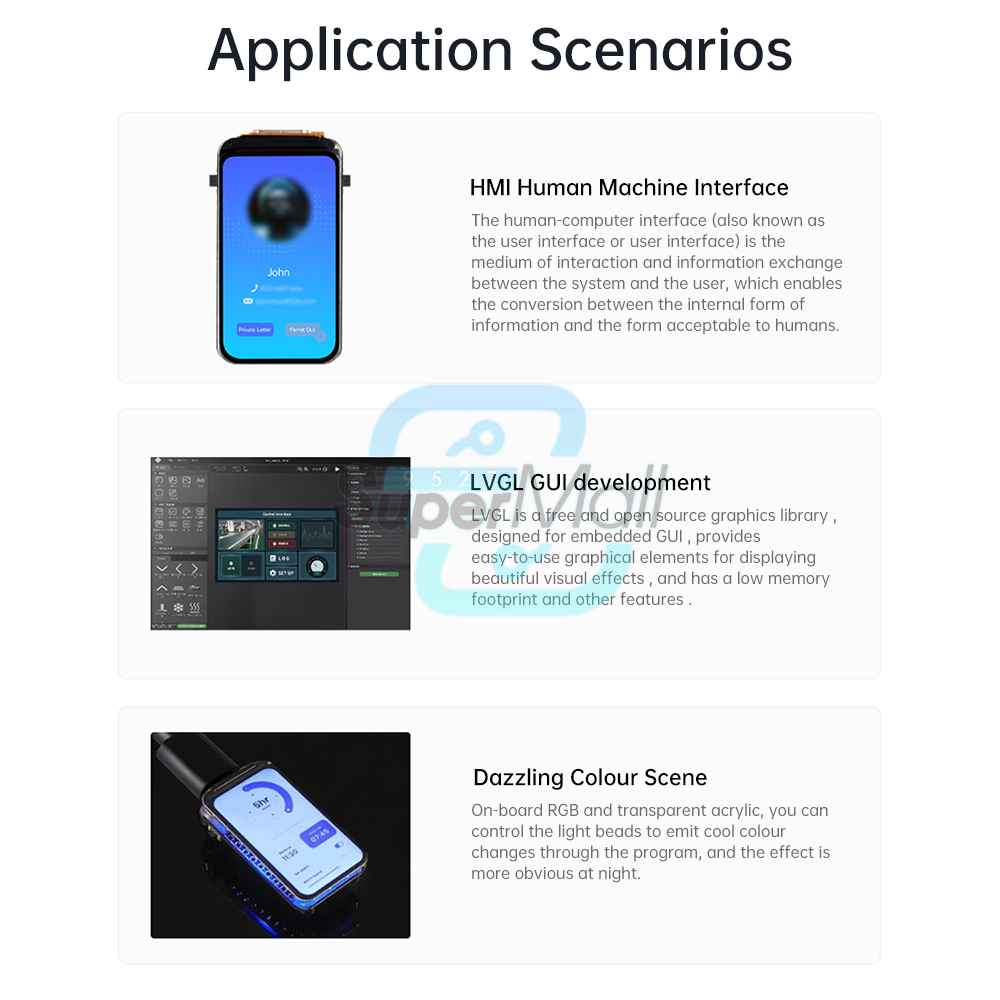

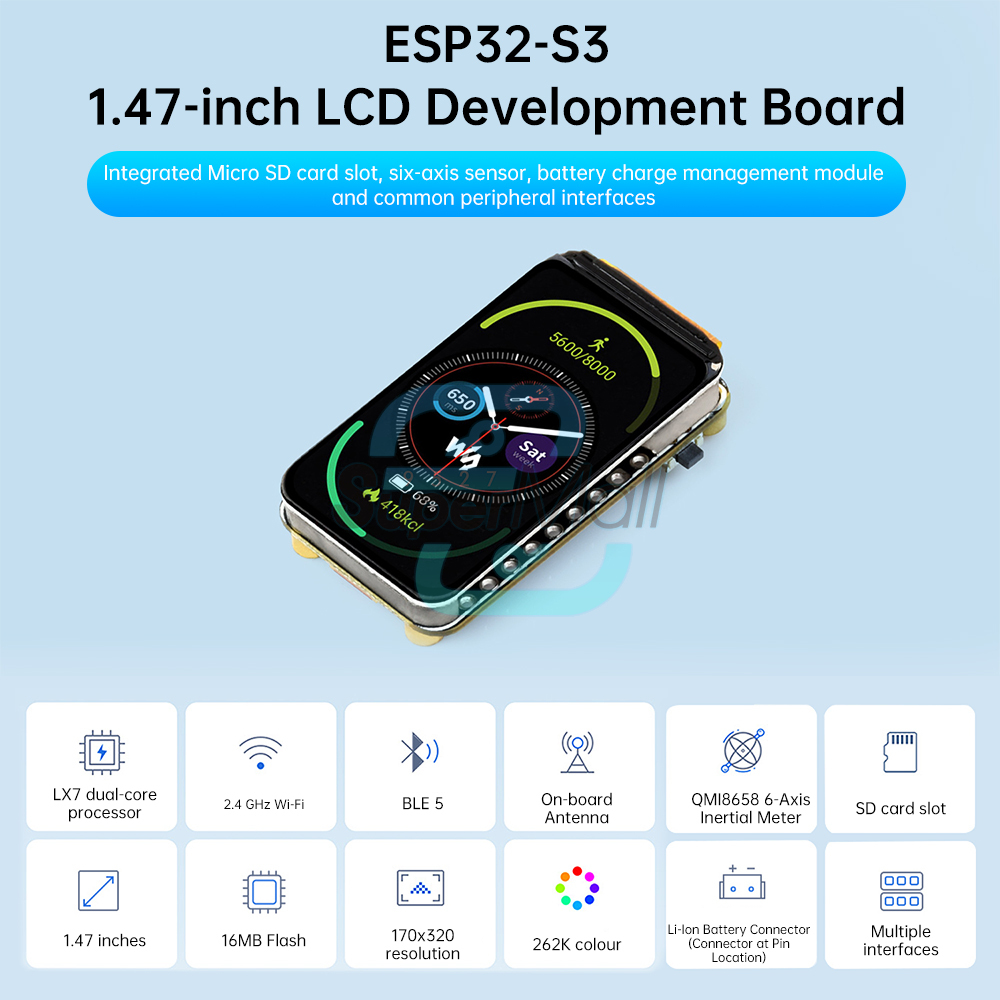

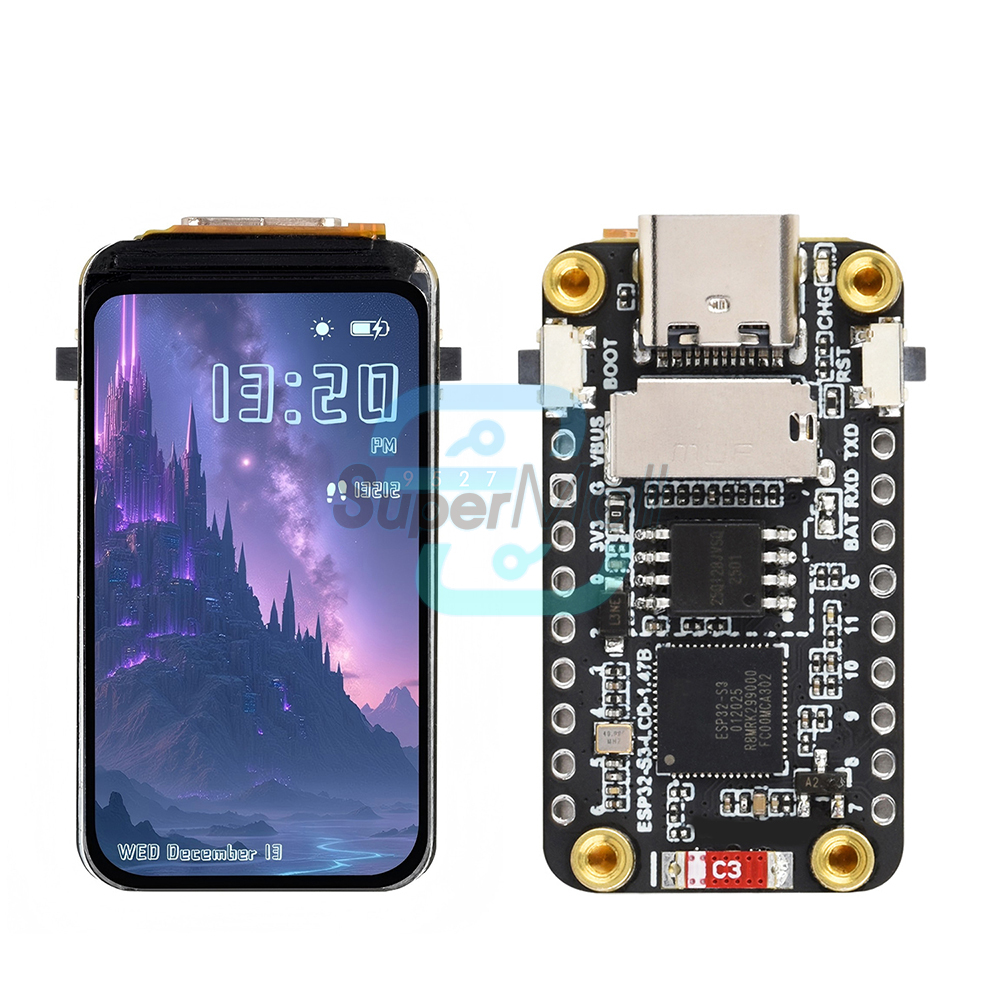

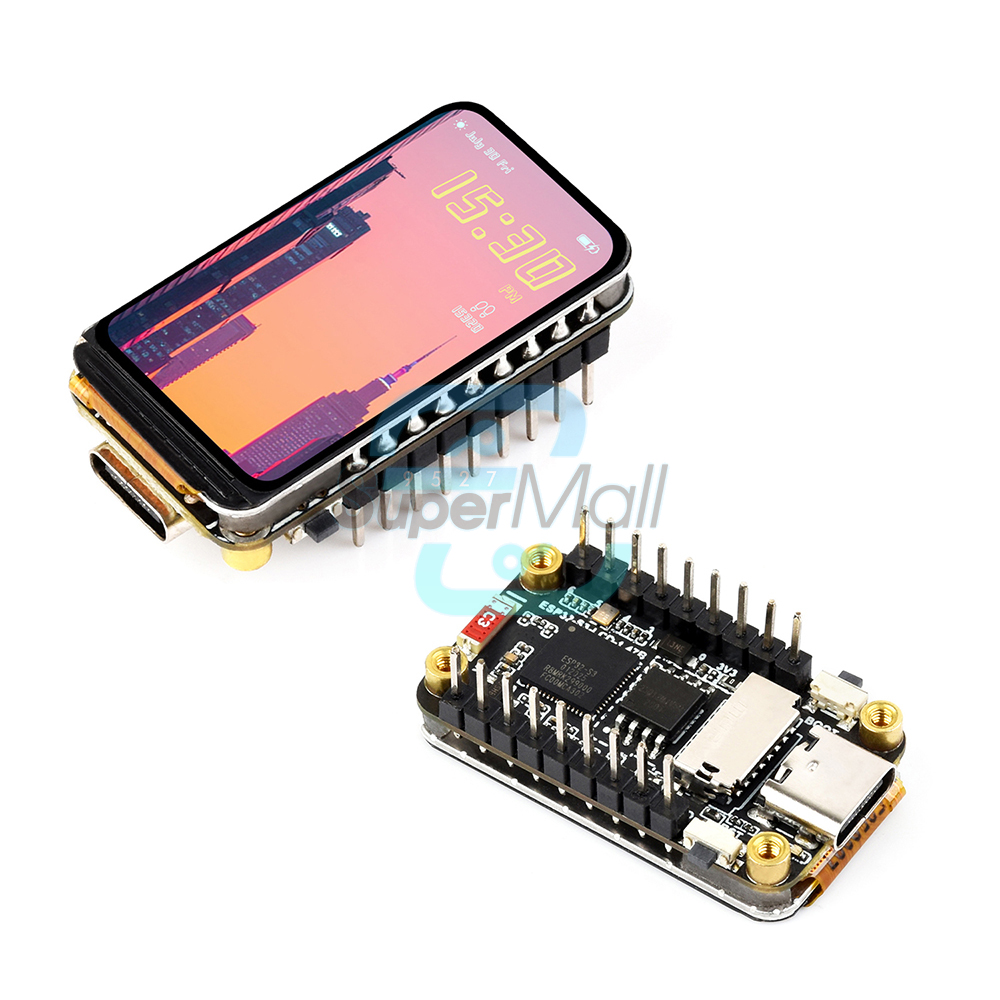

This product is a microcontroller development board supporting 2.4GHz Wi-Fi and Bluetooth BLE 5. It integrates high-capacity Flash and PSRAM, and has a 1.47-inch LCD screen on board, which can smoothly run GUI interface programs such as LVGL, and combined with a variety of peripheral interfaces, it can quickly develop HMI applications for ESP32-S3.
High-performance Xtensa 32-bit LX7 dual-core processor with up to 240MHz

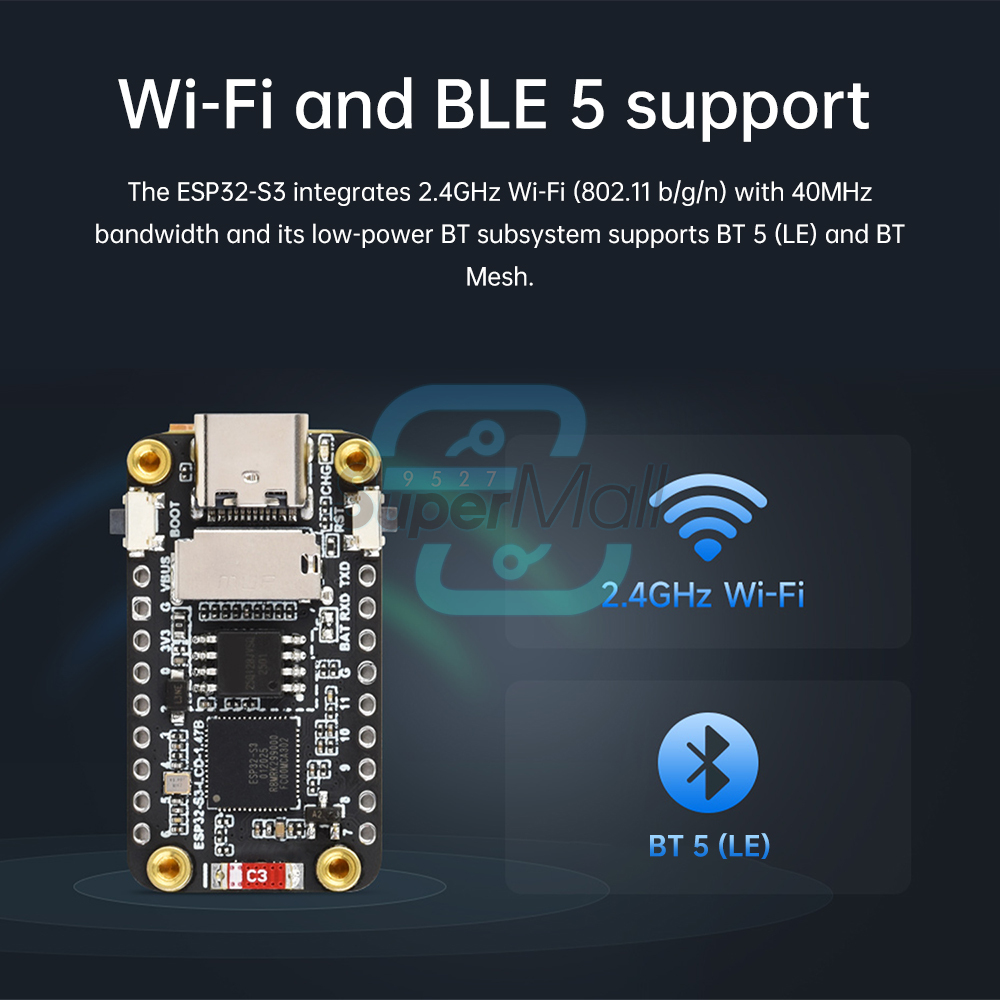

2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) support with onboard antenna
512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash
1.47-inch LCD screen with 17.7-inch LCD screen, and 16MB Flash onboard. 1.47-inch LCD screen, 172 x 320 resolution, 262K color

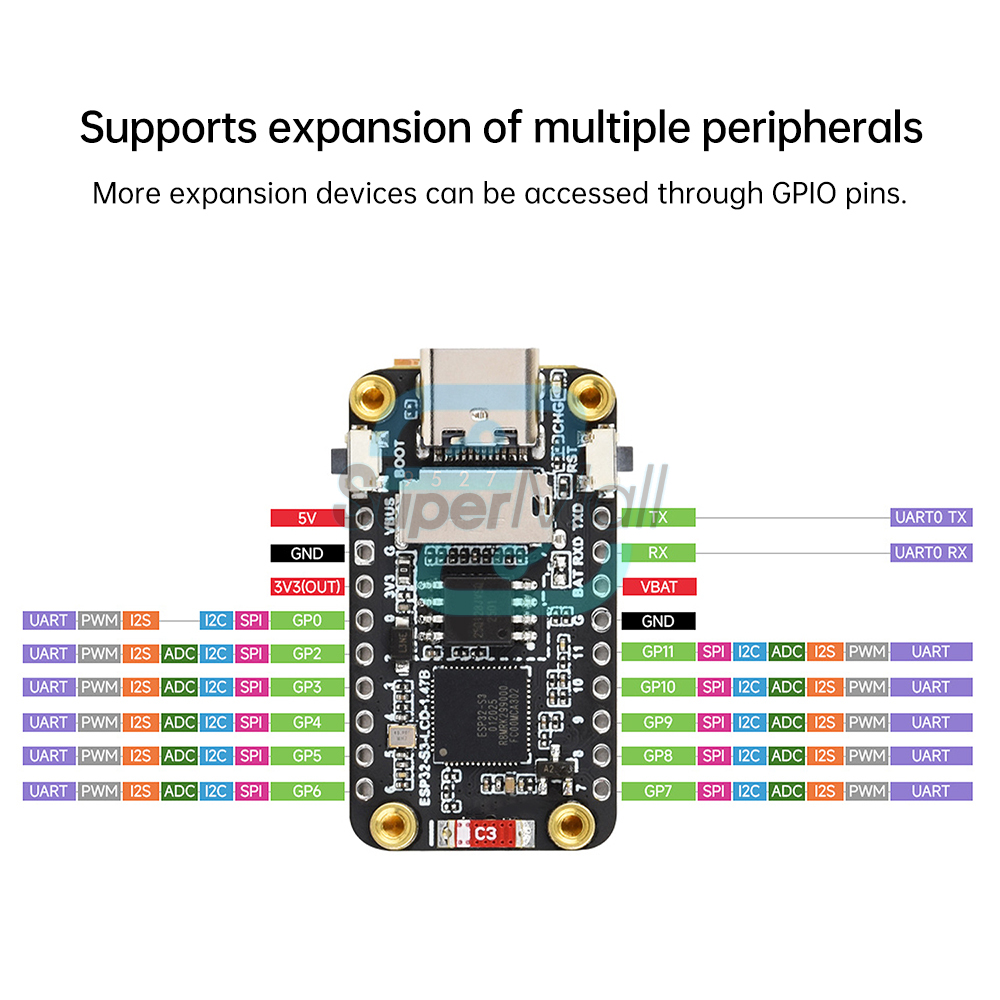

most GPIOs, integrated full-speed USB serial port
QMI8658 6-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope) on board, which can detect the device's deflection status, pedometer, etc.
RGB color light beads on board, with transparent acrylic sandwich to achieve cool lighting effects
Micro SD card slot on board, which can be connected to an external SD card. Micro SD card slot, can be connected to an external SD card to store pictures or files
Battery charging management module on board, allowing access to the battery to power the device
Support flexible clock, multiple power modes and other accurate control, to achieve multi-scene low-power mode

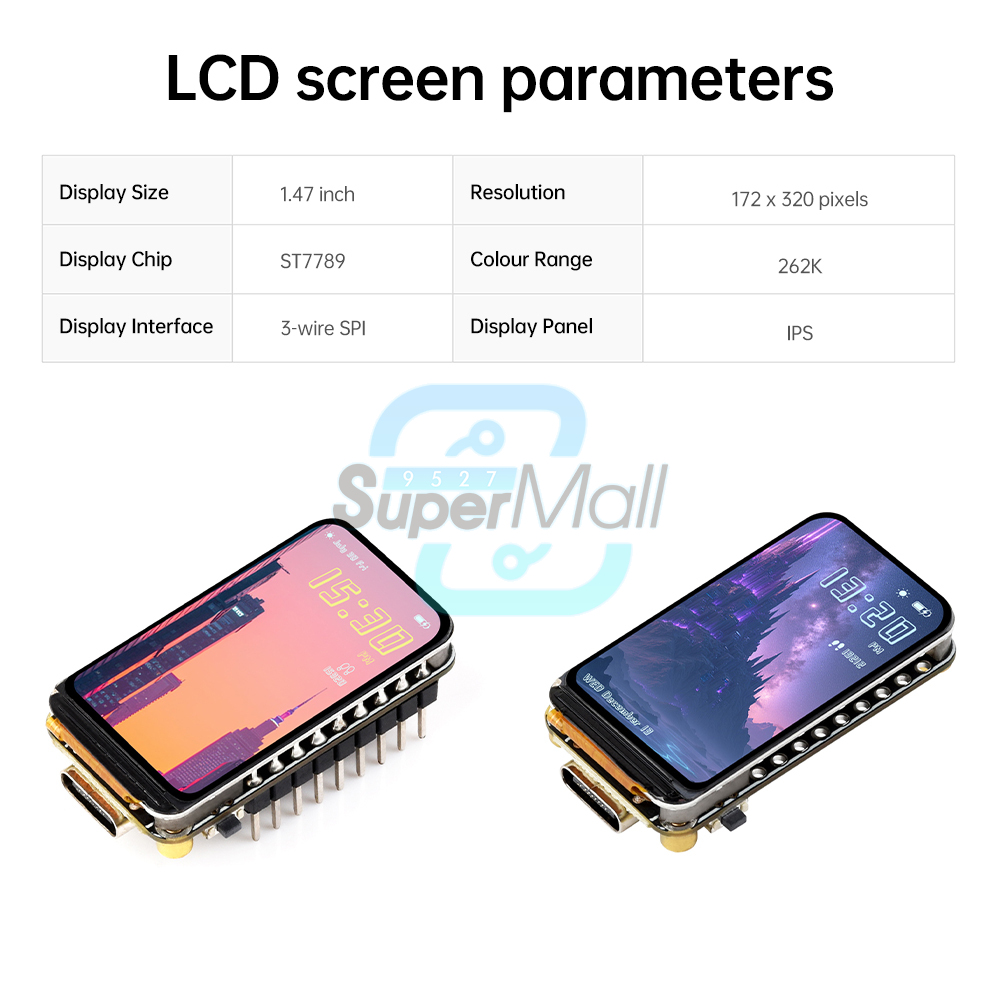

Display size: 1.47 inches
Resolution: 172 × 320 pixels
Display chip: ST7789
Color range: 262K
Display interface: 3-wire SPI
Display Panel: IPS

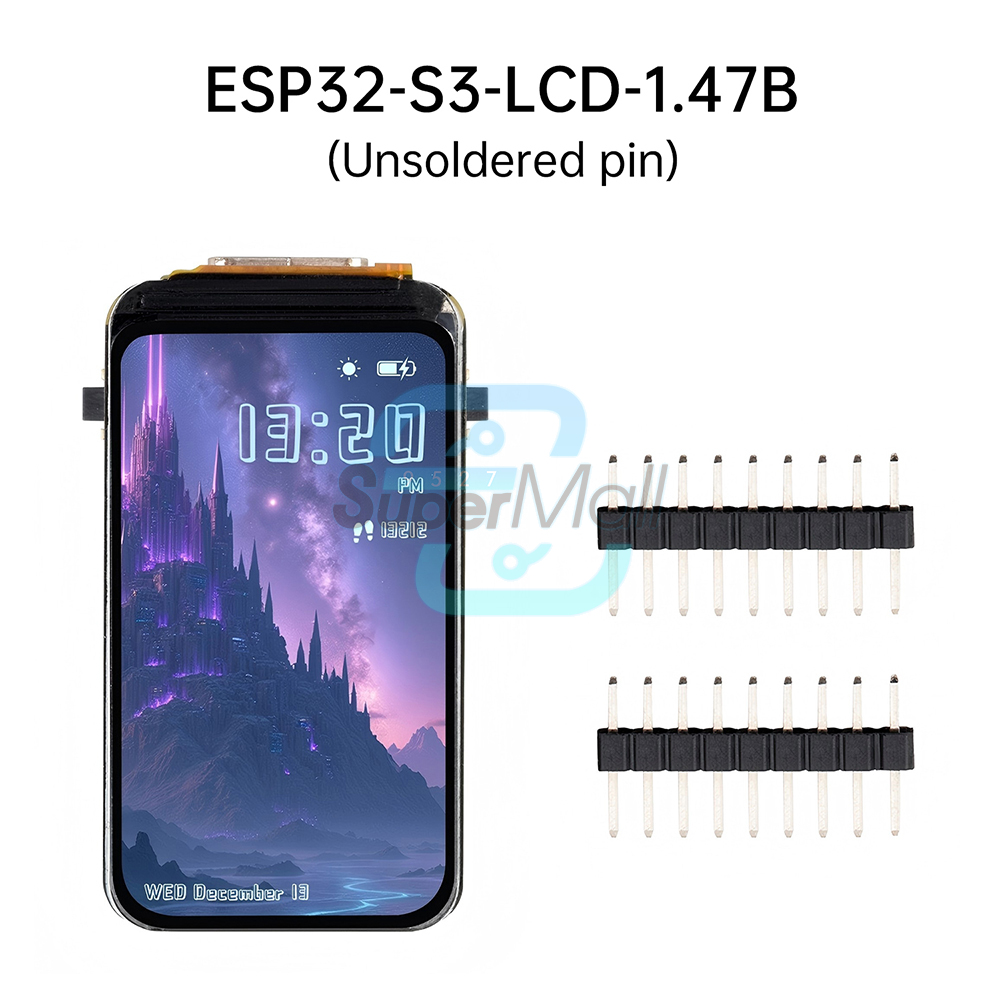

1 x Development Board

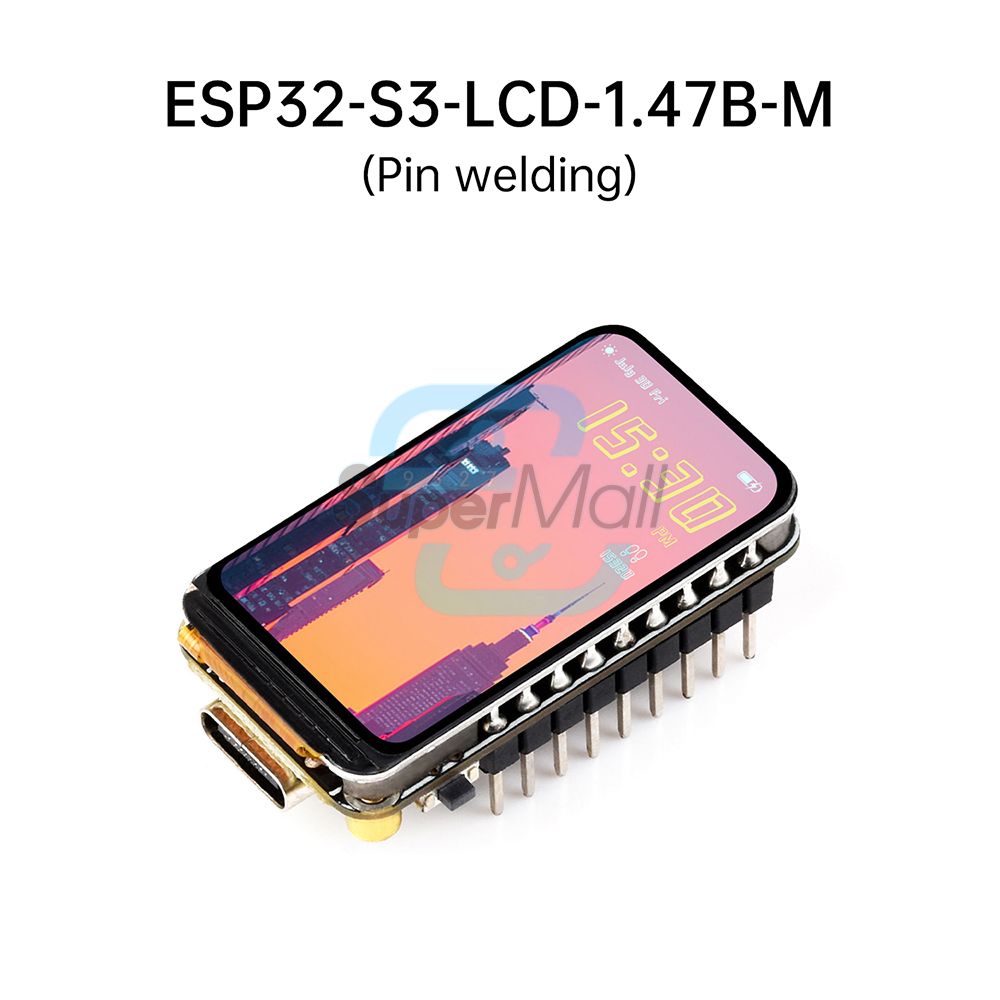

2 x Pin
