All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application

For Toyota Supra JZA70, Mark II, Crown 1JZ-GTE 1JZ-GE 1JZ

Specification

- TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
- Type: Forged 4340 aircraft chrome moly quality steel

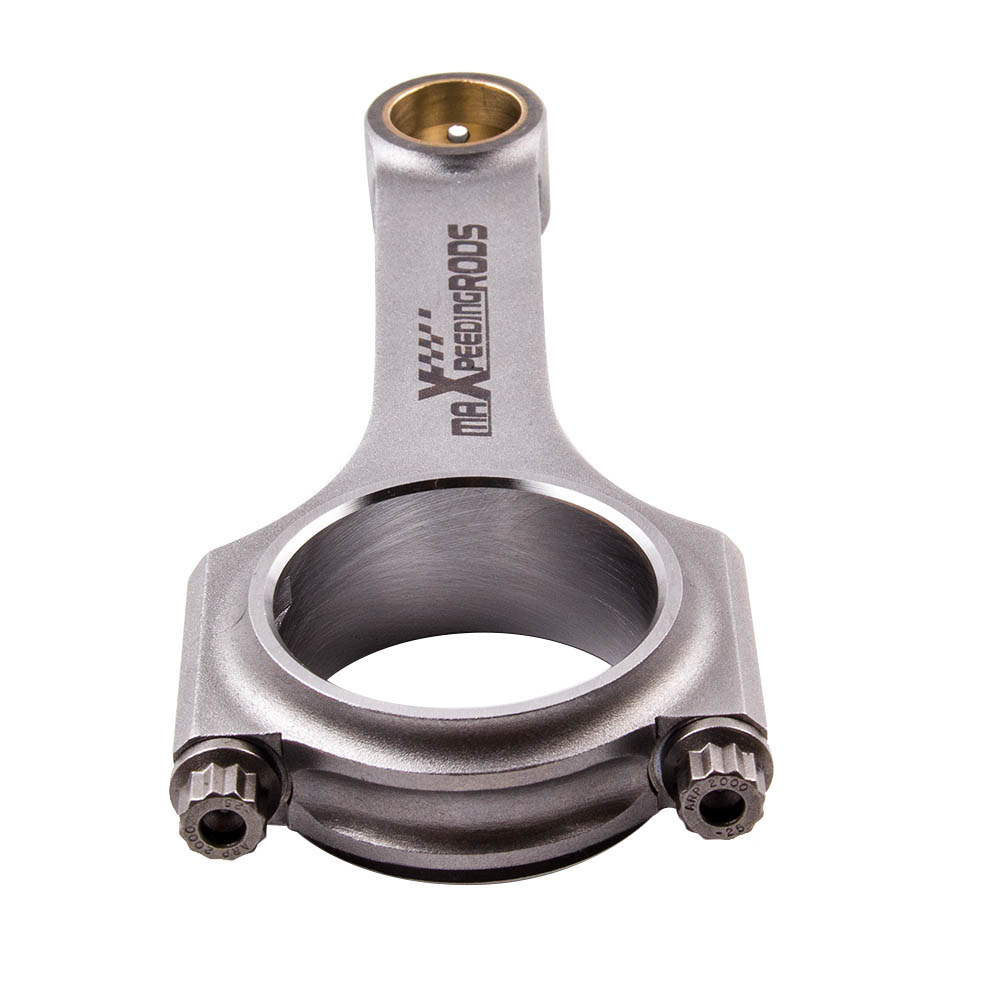

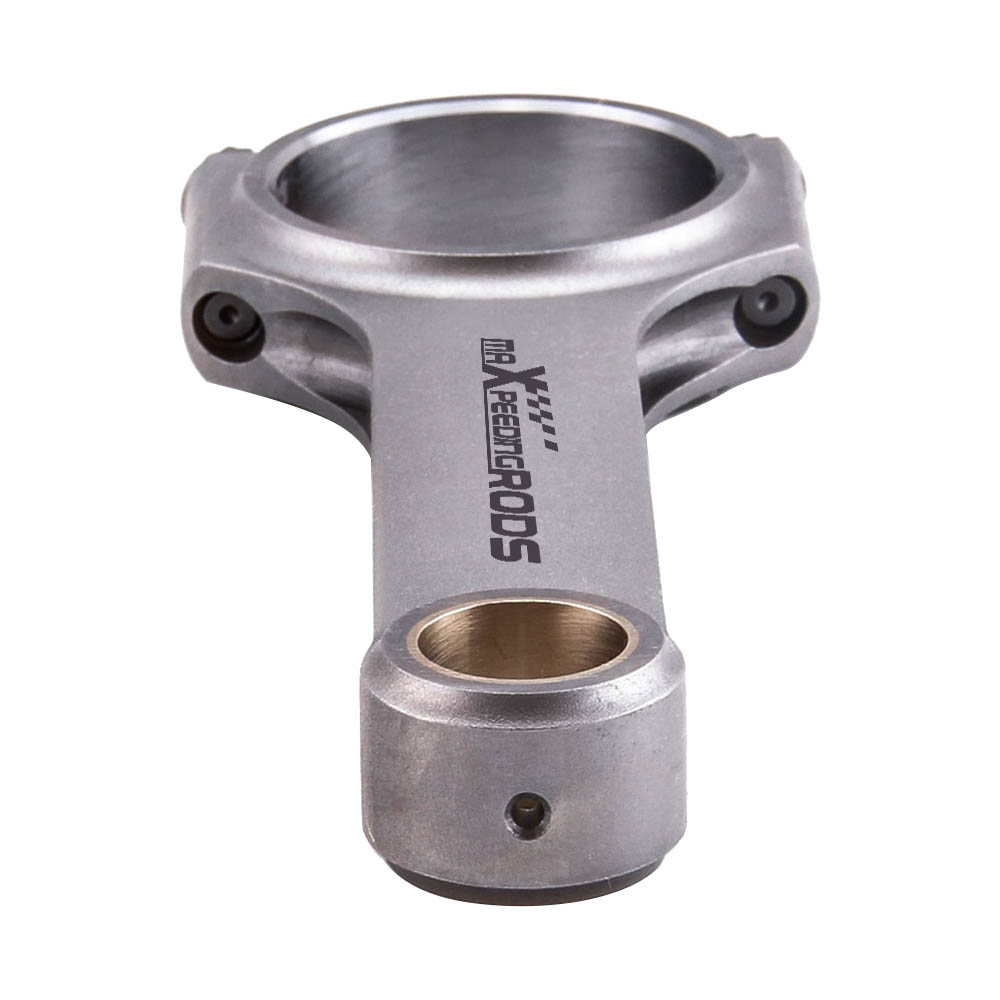

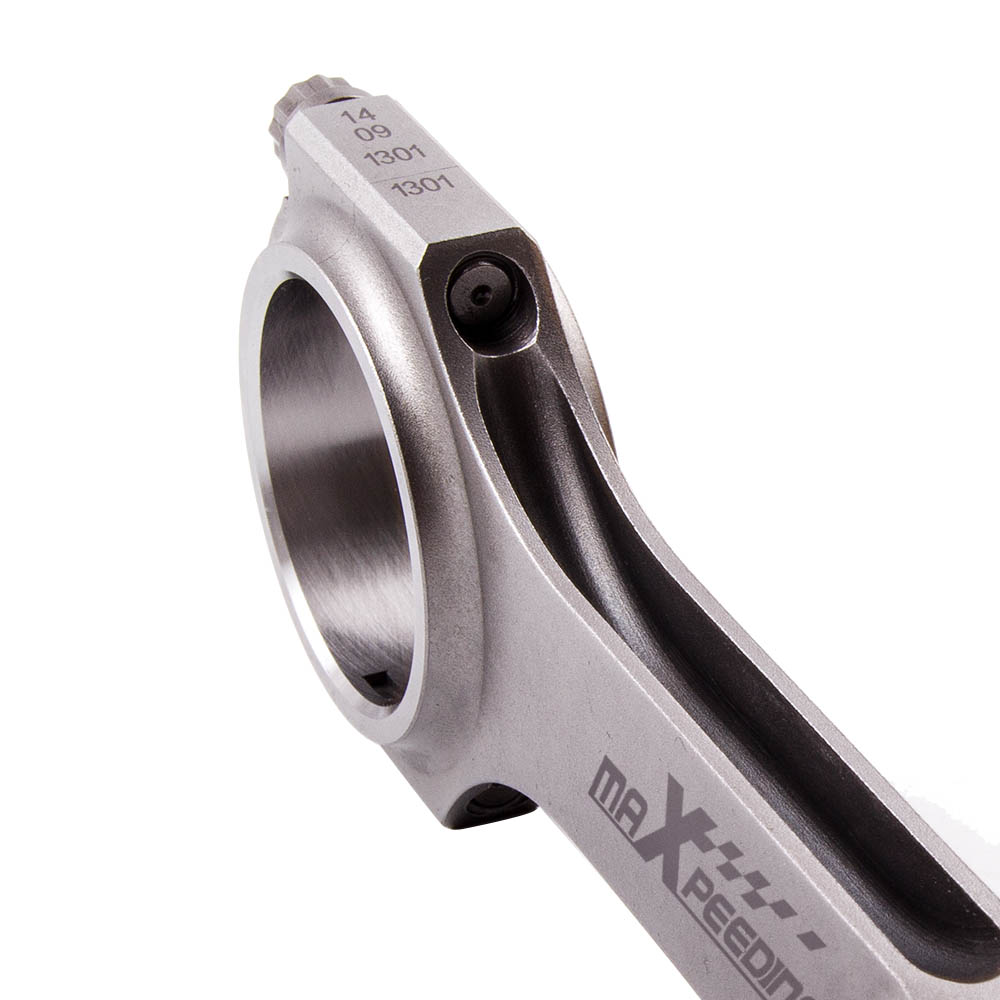

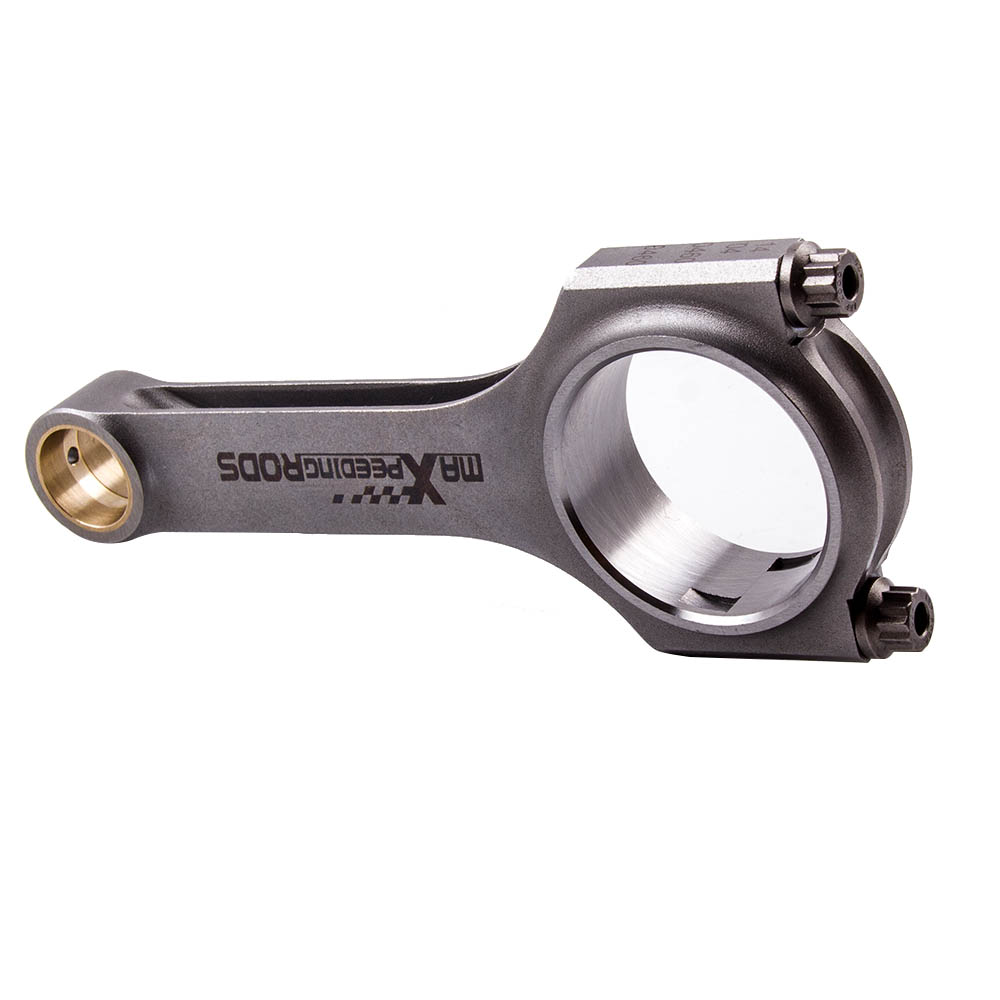

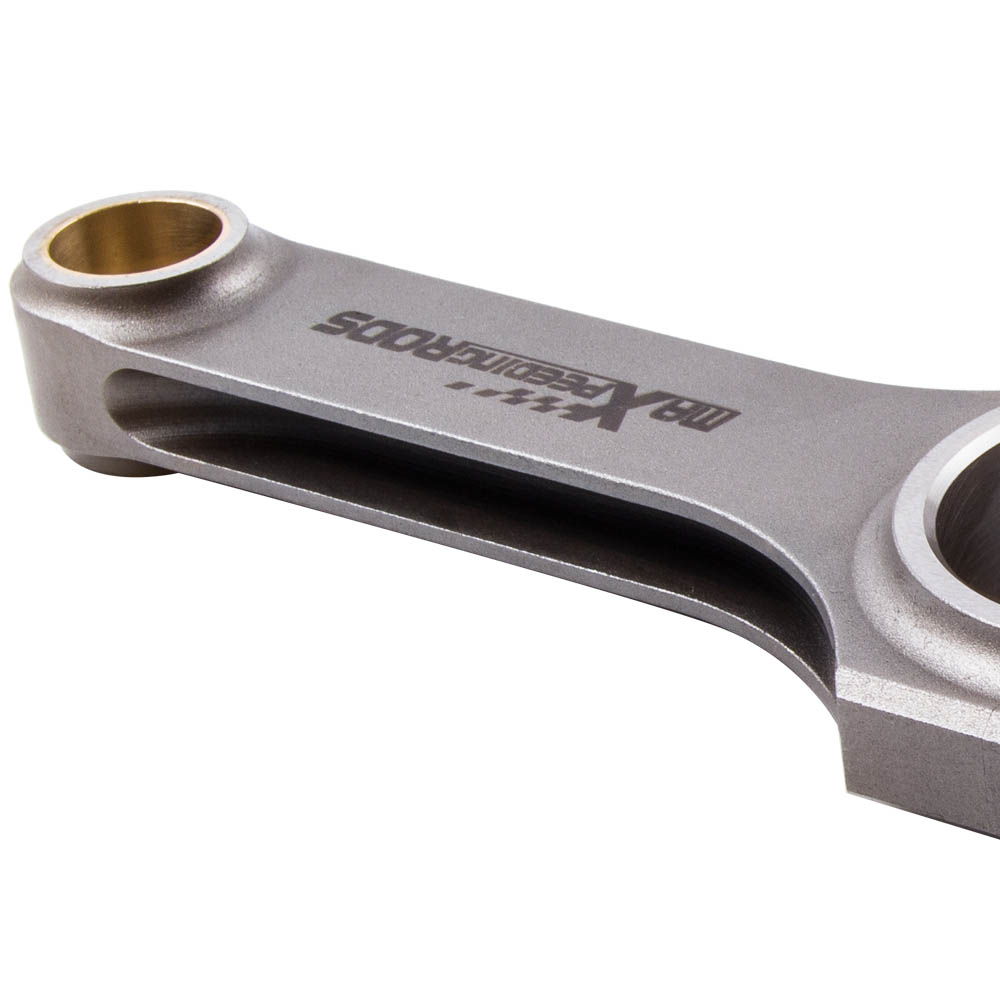

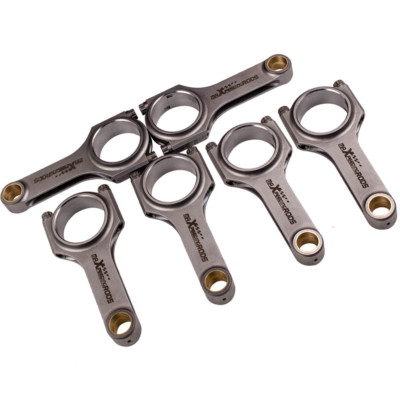

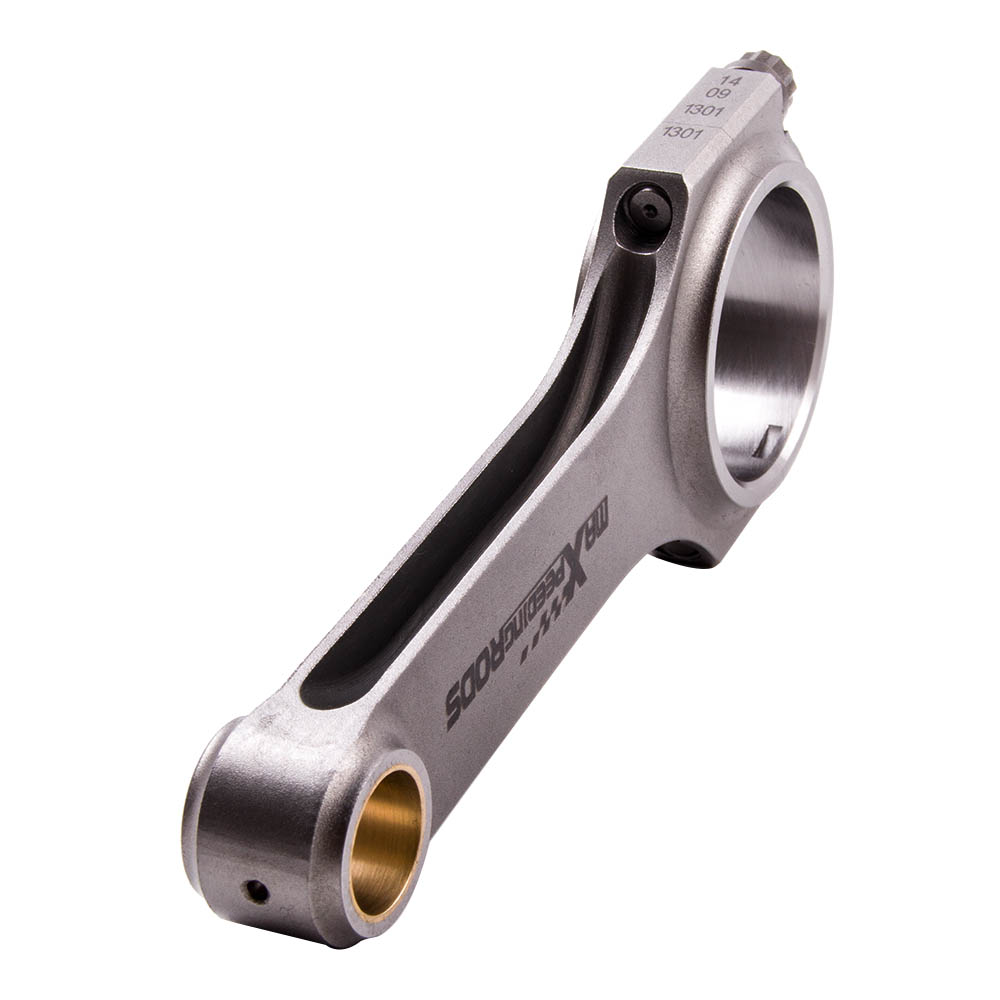

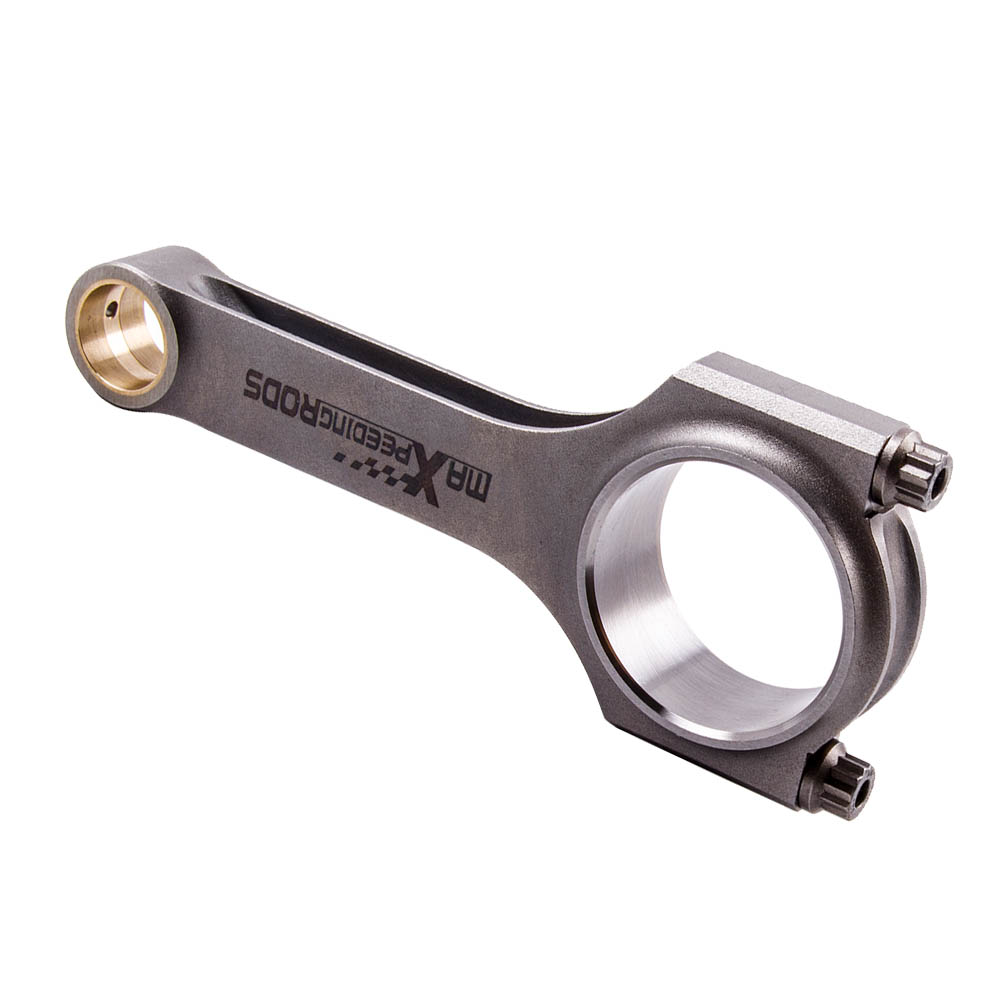

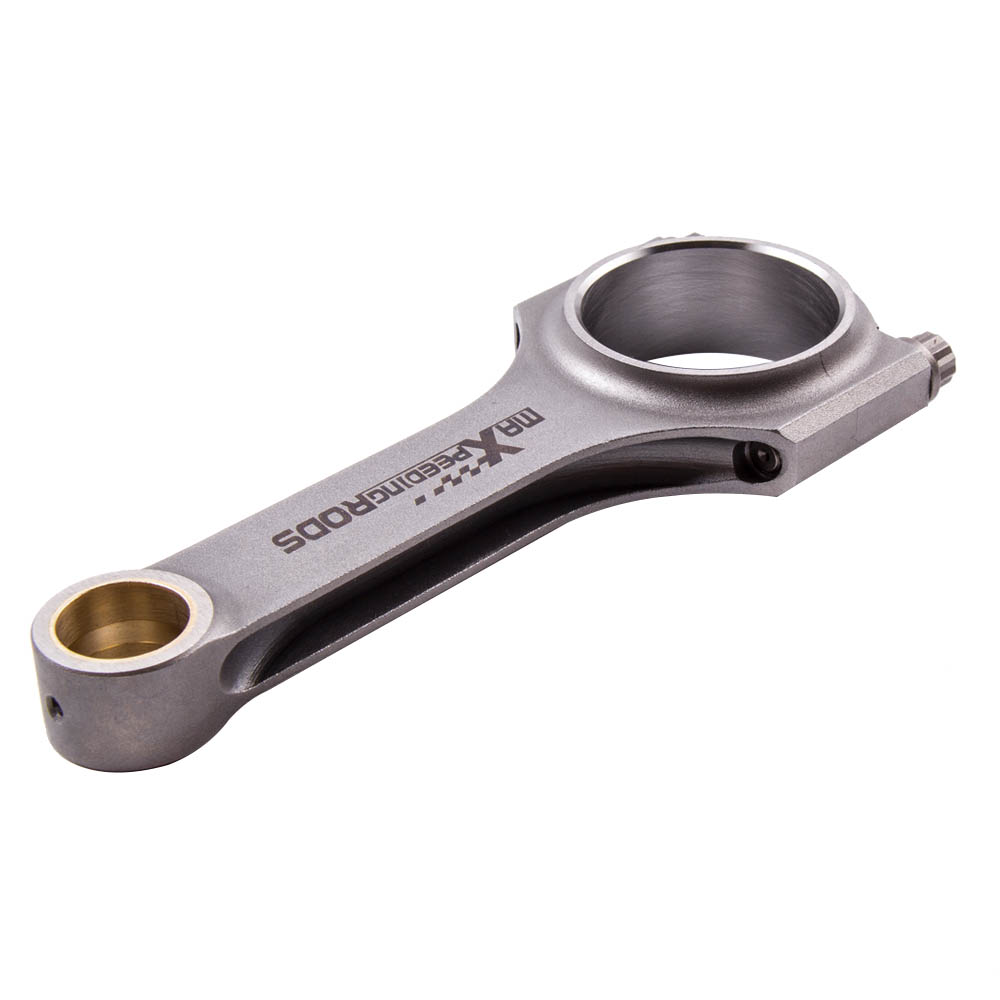

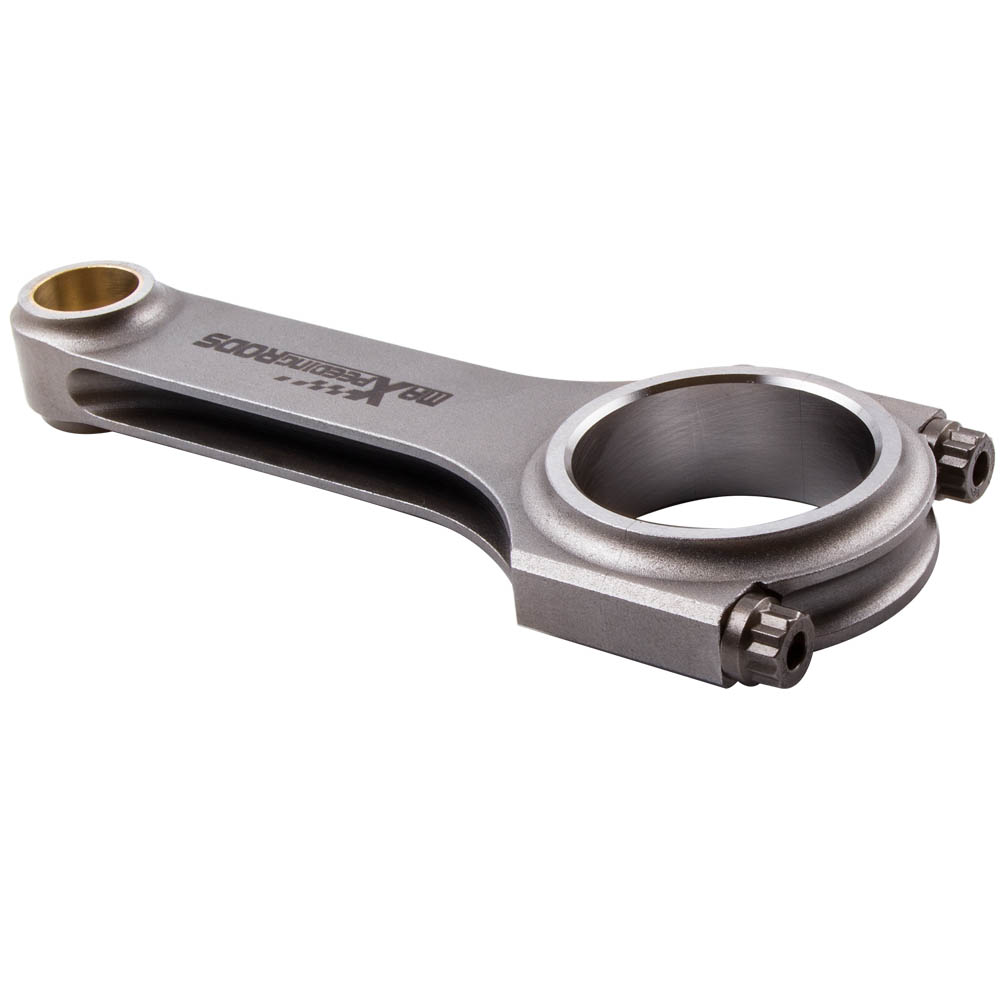

- H-beam Conrods Quantity: 6 Pieces as showing in picture

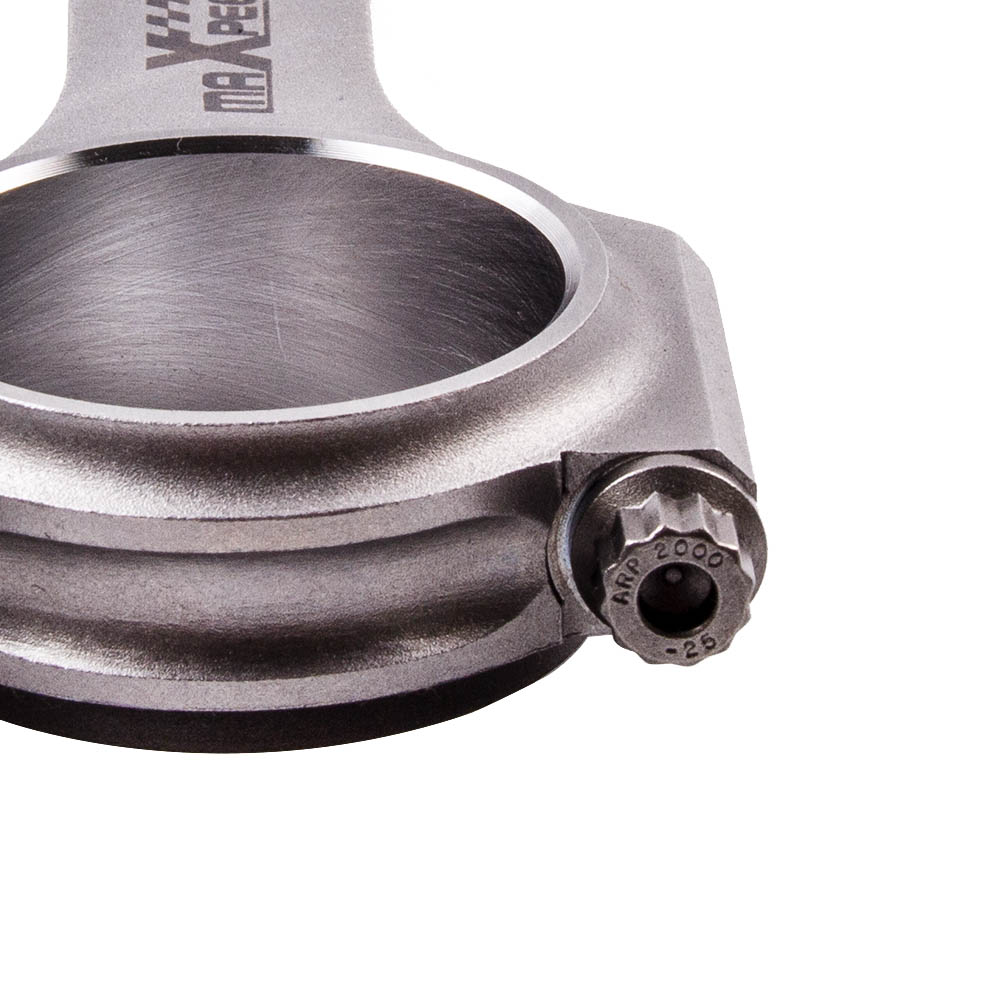

- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm
- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 7000 - 9000rpm
- Warranty: 1 Year warranty for any manufacturing defect

Dimensions

Center to center length: 125.25mm
Big end diameter: 55mm
Small end diameter: 22mm
Big end width: 25.9mm
Small end width: 25.9mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
