50Kg Weighing Sensor
Specification:
Size: 34mmX34mm
Internal 1000 Ohm half-bridge strain gauge load cell, range is 50kg, half-bridge structure.
When measuring, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the middle, with a beam of white plastic cover arm) and the outside edges to form a shear force in the opposite direction, i.e., in the middle of strain beam bending necessary changes can occur under stress, strain beam side by another force can not have a barrier.
The sensor use the following three methods:
1, using a sensor with external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for external resistor
2, the use of only two full-bridge sensors measuring range is the range of the two sensors and: 50kgx2 = 100kg
3, the use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg
Package Included:

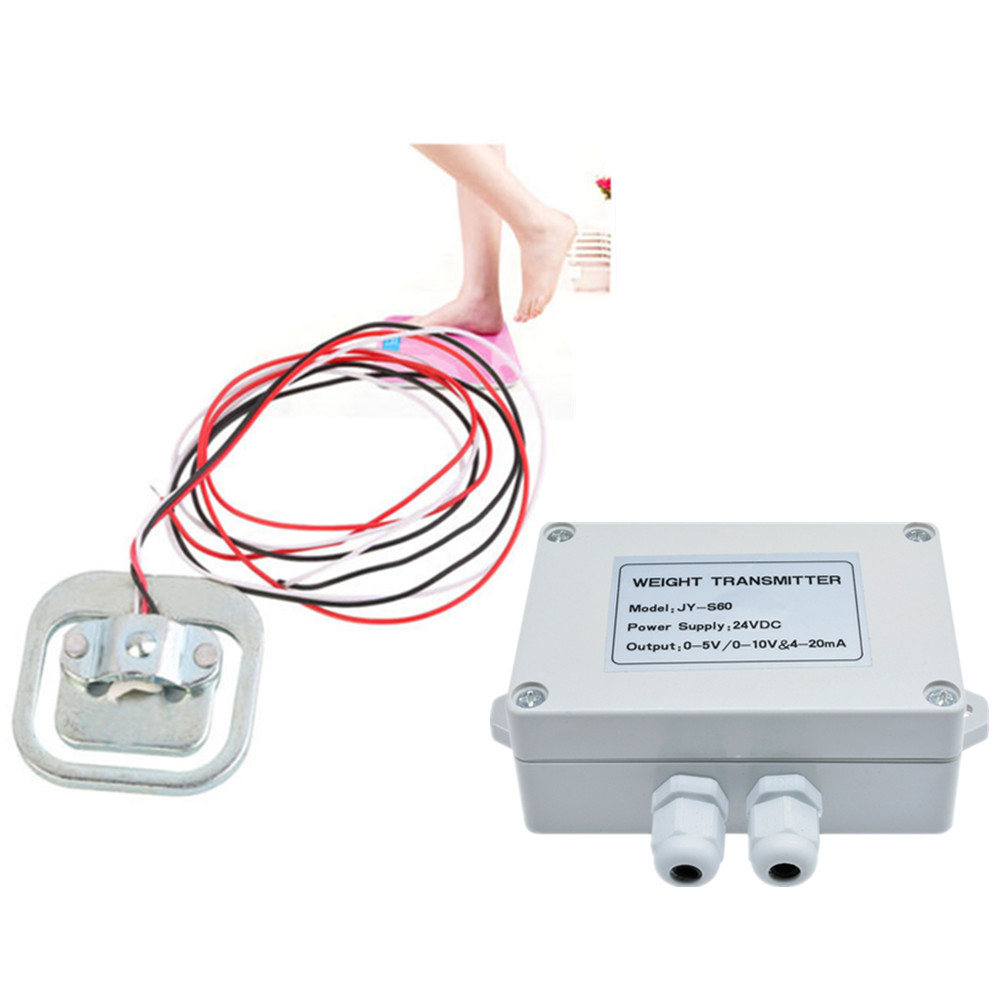

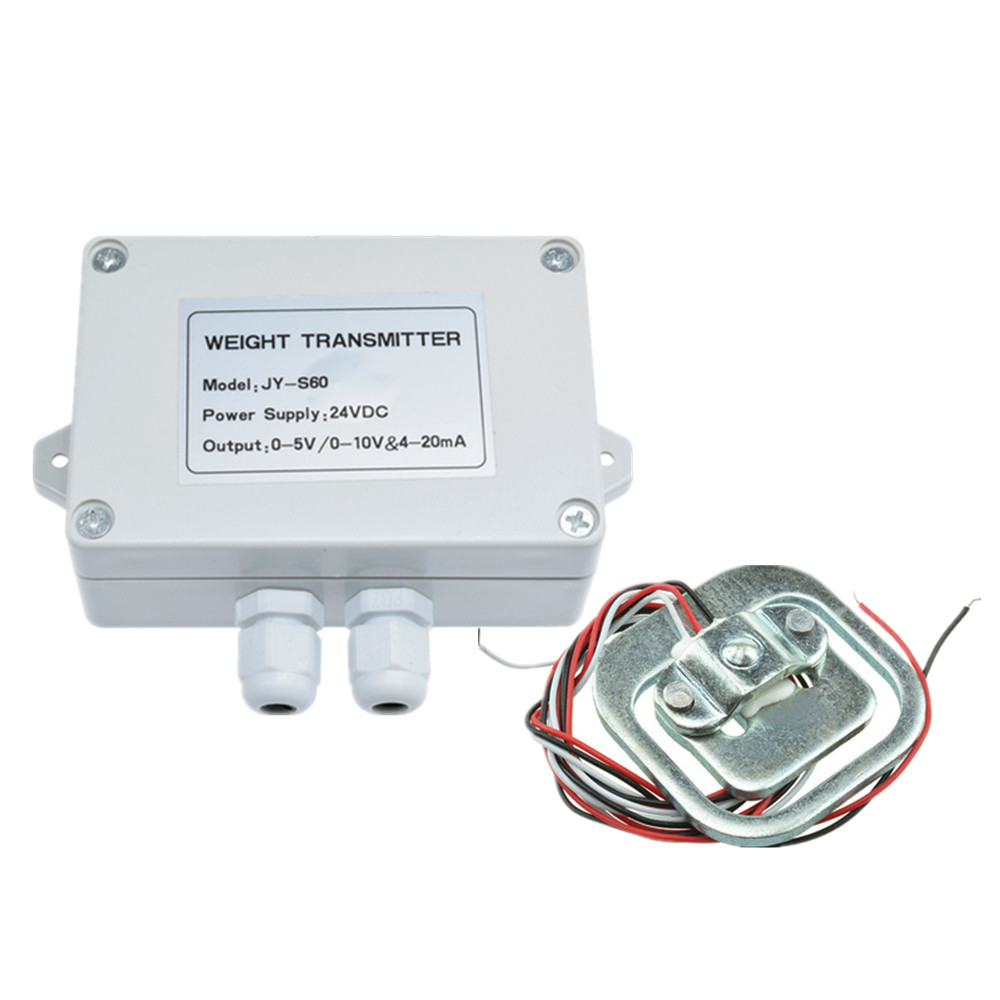

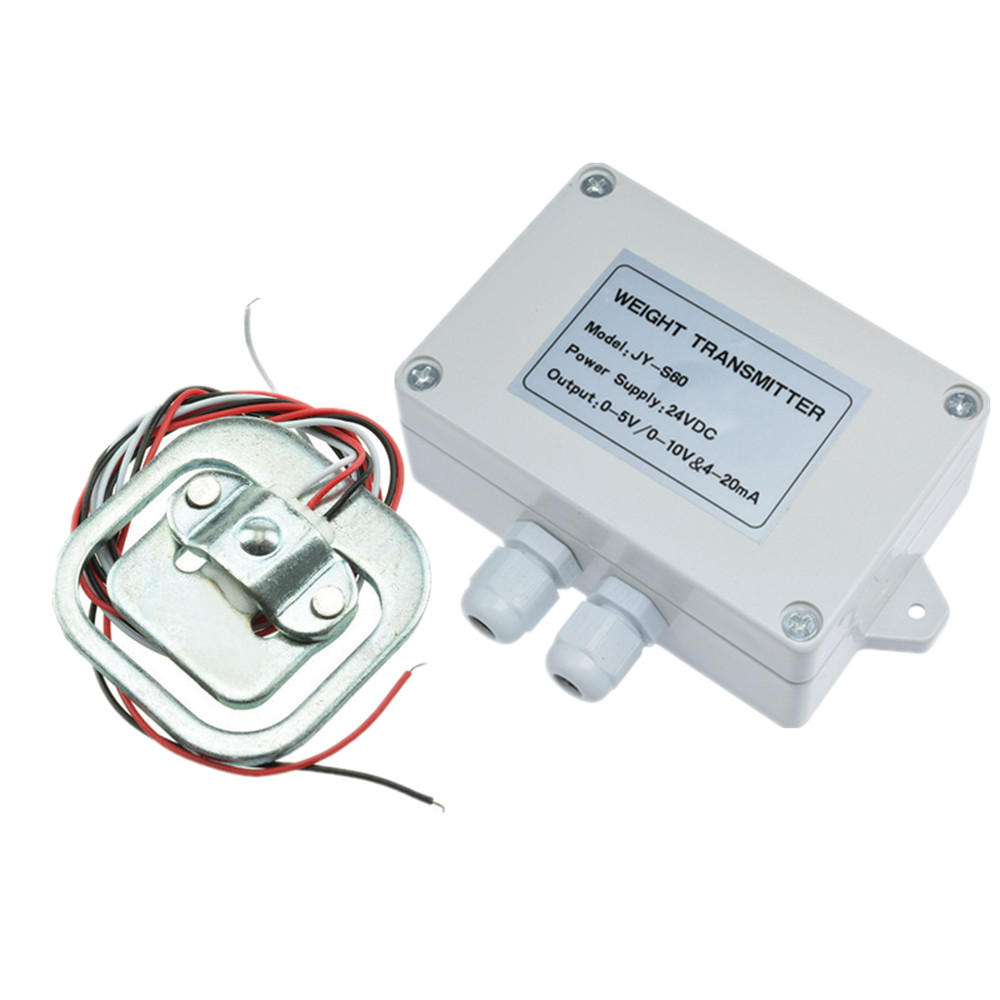

1 x DIY 50Kg Body Load Cell Weighing Sensor Resistance strain Half-bridge Original
1 x DIY 50Kg Body Load Cell Weighing Sensor Resistance strain Half-bridge Original

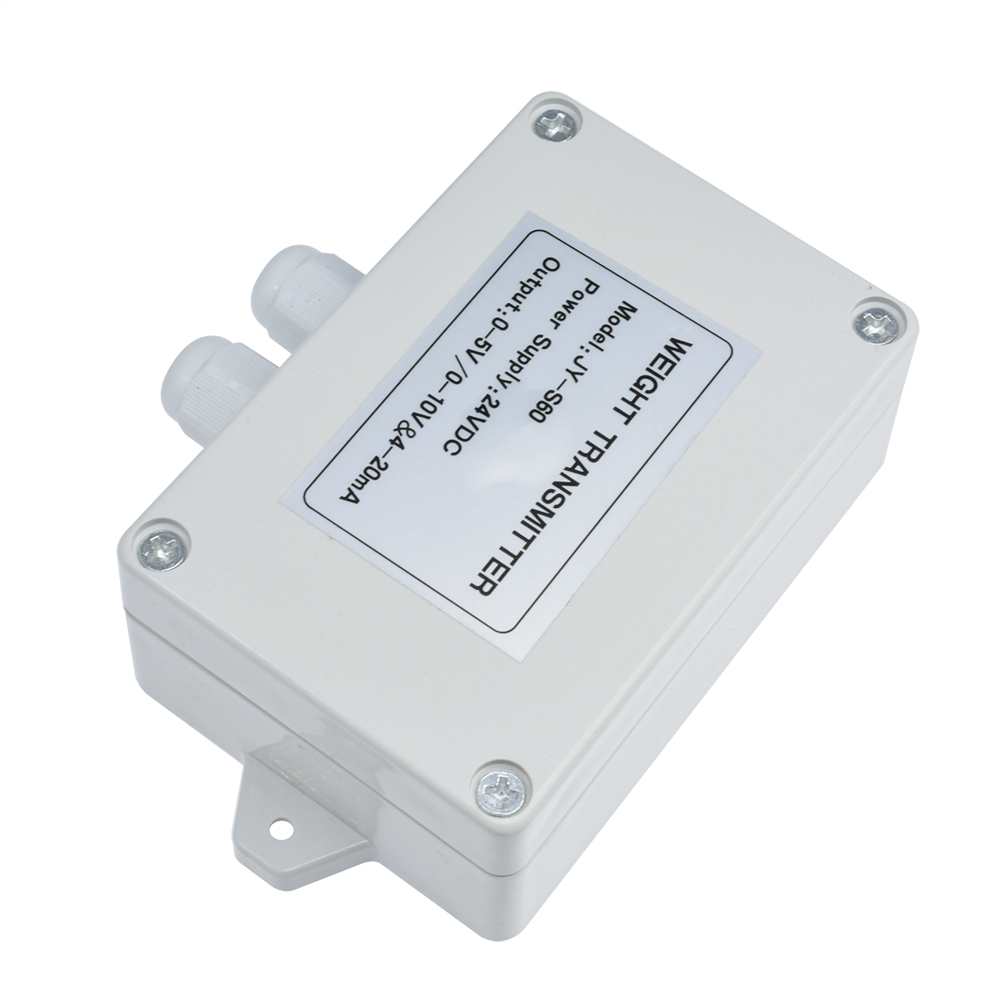

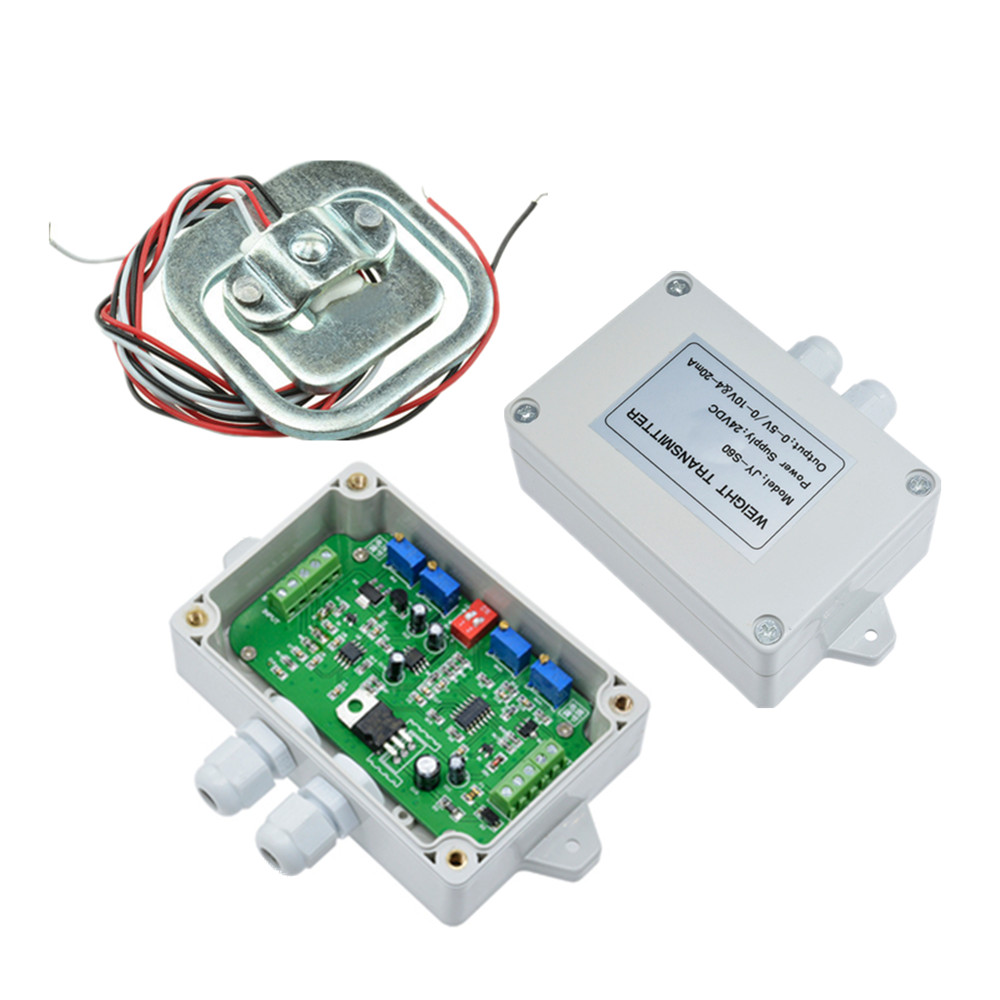

Load Sensor Amplifier Transmitter
Housing and wire connectors are waterproof design, good sealing, suitable for harsh environments
Look beautiful, durable, anti-jamming performance
Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Technical Parameters
Look beautiful, durable, anti-jamming performance
Ultra- high-precision op amp circuit, high accuracy, good stability
The power supply has reverse polarity protection, surge protection, overcurrent protection
Suitable for weighing, pull pressure, torque, and other strain sensor.
Technical Parameters
Working voltage: DC 12-24V
Output signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
input signal:sensor sensitivity 2.0MV/V
output incentive:5V(E+)
Operating temperature range: -20 - 80
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S
Gear selection:dial switch turn OFF , V0 output 0-5v , 1 turn to ON V0 output 0-10V
1 and 2 both turn to OFF VO output 0-5v IO output 4-20MA
About debugging：
1 zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2 gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".
3 the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.
Package included :
Output signal: voltage (0-5V, 0-10V, 1-5V, ± 5V) 4-20ma
input signal:sensor sensitivity 2.0MV/V
output incentive:5V(E+)
Operating temperature range: -20 - 80
Operating Humidity: 10% RH-90% RH (non-condensing)
Accuracy: better than 0.1% F.S
Precision is better than 0.05% F.S
Gear selection:dial switch turn OFF , V0 output 0-5v , 1 turn to ON V0 output 0-10V
1 and 2 both turn to OFF VO output 0-5v IO output 4-20MA
About debugging：
1 zero adjustment
First of all, make the system is in the idle state, adjust the marking "ZERO" potentiometer to adjust the zero offset. The multimeter is used to measure the output voltage or current, let show a value as close as possible to the zero value display. Or change the magnification zero change will become big.
2 gain adjustment
The system loading a certain weight value (the recommended range: 80% ~ 100% FS), the calculation of the output current value according to the load weight and the maximum weighting value relation, using the digital multimeter monitoring output, potentiometer to adjust amplifier gain spin labeled "SPAN".
3 the retest
The system is in the idle state, measuring the zero output; loading a certain weight value, output voltage measurement whether fluoride expectation magnification If not, repeat steps 1, 2 adjust again.
Package included :
1 x Load Cell sensor Amplifier Transmitter
