• Feature：
  • Base RPM: Rotational Speed refers to the motor in rated frequency and rated voltage (or even rated load), the actual speed of the rotor rotation
  • CW(Clockwise) :Represents clockwise rotation
  • CCW (Counter-Clockwise):Represents a counter clockwise rotation
  • TEFC（Totally Enclosed Fan Cooled):Prevents free exchange of air between the frame interior and exterior, but does not make the frame completely airtight. A fan is mounted on the shaft and pushes air onto the frame during operation to aid the cooling process. Tefc-style shells are versatile. Used for pumps, fans and compressors

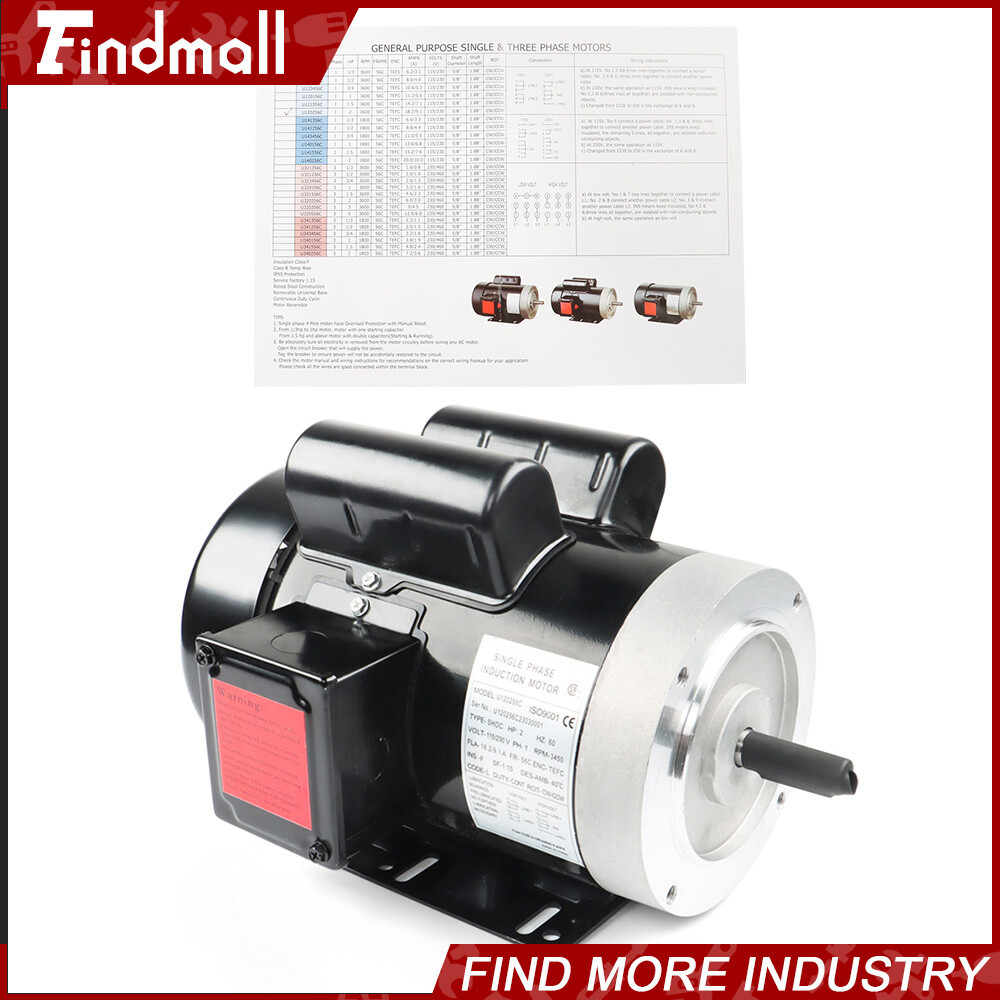

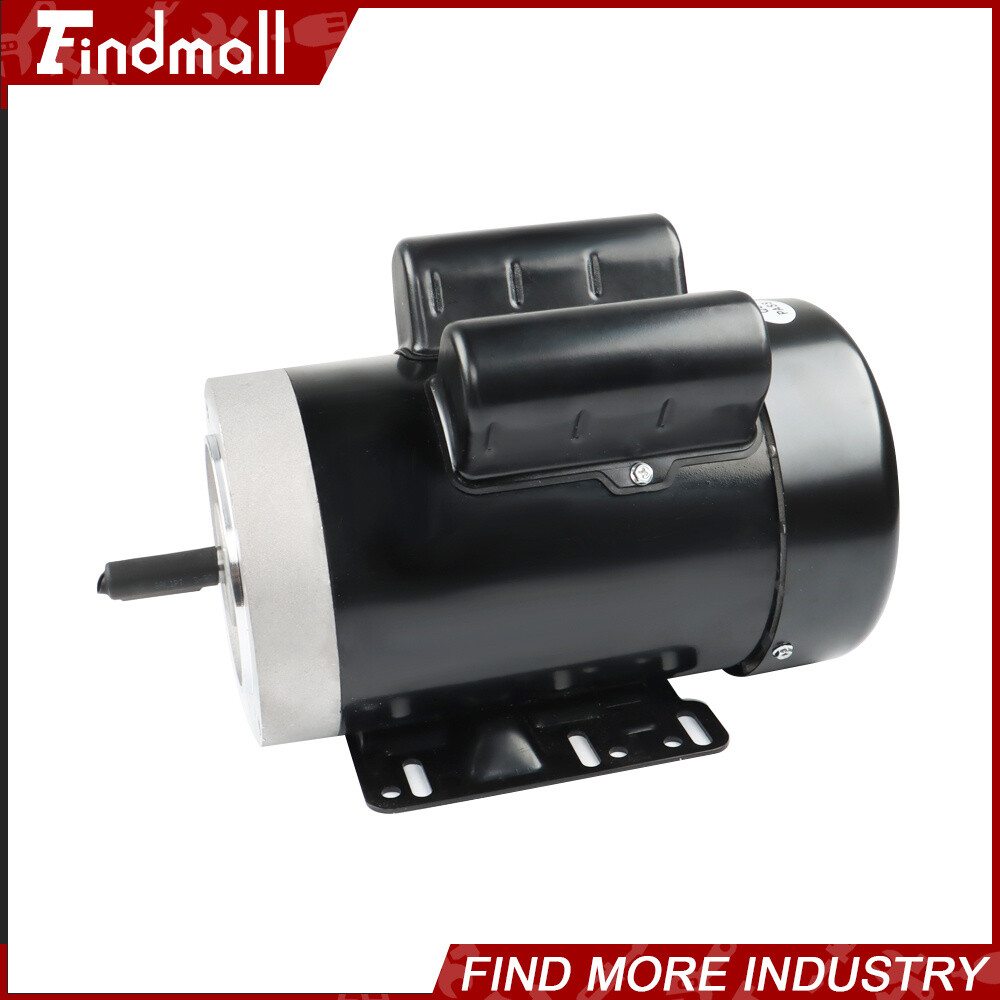

    • Findmall 2HP Single Phase Motor 115V/230V 3450 RPM 56C Frame 5/8" Shaft 60Hz

    Feature：

    Base RPM: Rotational Speed refers to the motor in rated frequency and rated voltage (or even rated load), the actual speed of the rotor rotation

    CW(Clockwise) :Represents clockwise rotation

    CCW (Counter-Clockwise):Represents a counter clockwise rotation

    TEFC（Totally Enclosed Fan Cooled):Prevents free exchange of air between the frame interior and exterior, but does not make the frame completely airtight. A fan is mounted on the shaft and pushes air onto the frame during operation to aid the cooling process. Tefc-style shells are versatile. Used for pumps, fans and compressors

    Insulation Class F:Including a synthetic resin paint modified with silicone organic compounds for inorganic substances such as mica, asbestos and glass filament；or a synthetic resin, such as alkyd or epoxy with heat resistance meeting this requirement as a binder.The maximum permissible operating temperature is 155 ° C

    Pole :Refers to the number of magnetic poles in the excitation winding of the motor.Level 2 means that each phase of the motor contains 2 magnetic poles (one N-pole and another S-pole)?



    Description：

    Frequency Rating：60 Hz

    Reversible/Non-Reversible：Reversible

    Nominal Rated Input Voltage：115/230 V

    Rated Load (HP)：2

    Special Motor Construction：Spindle Motor

    Shaft Diameter：５/8 in

    Enclosure Type：TEFC (Totally Enclosed Fan Cooled)

    Phase：Single Phase

    Insulation Class：F (Max 311°F)

    Mounting Type：Base-Mounted

    Pole ：２

    Amps：18.2A / 9.1A  A

    Motor Type：Induction/Asynchronous

    Base RPM：3450RPM

    IP Rating：IP55

    Shaft Length：1.88in

    Protector：Non

    Housing Material：Steel shell

    Model：General Electric Motor

    IEC Frame Size：56C

    Gross Weight：40.79 lb

    Net Weight : /35.05 lb



    Package List:

    1 x Electric Motor

    1 x Product Manual






    Item Specifics
    Country of Origin United States
    Brand findmall
    MPN 652678
    Speed 3450 RPM
    Voltage 230 Volts, 115 Volts
    Horsepower 2 hp
    Shaft Diameter 5/8"
    Shaft length 1.88"
    Rotation CW/CCW
    INS F
    Base RPM 3450
    AMP 18.2A/9.1A
    HZ 60HZ
    IEC Frame Size 56C
    Enclosure Type TEFC
    Amps 18.2/9.1A
    IP Rating IP55
    Phase Single phase
    ENC TEFC
    ROT CW/CCW
    Frame 56C
    Frequency 50/60
    Pole 2
    Manufacturer Warranty 1 year
