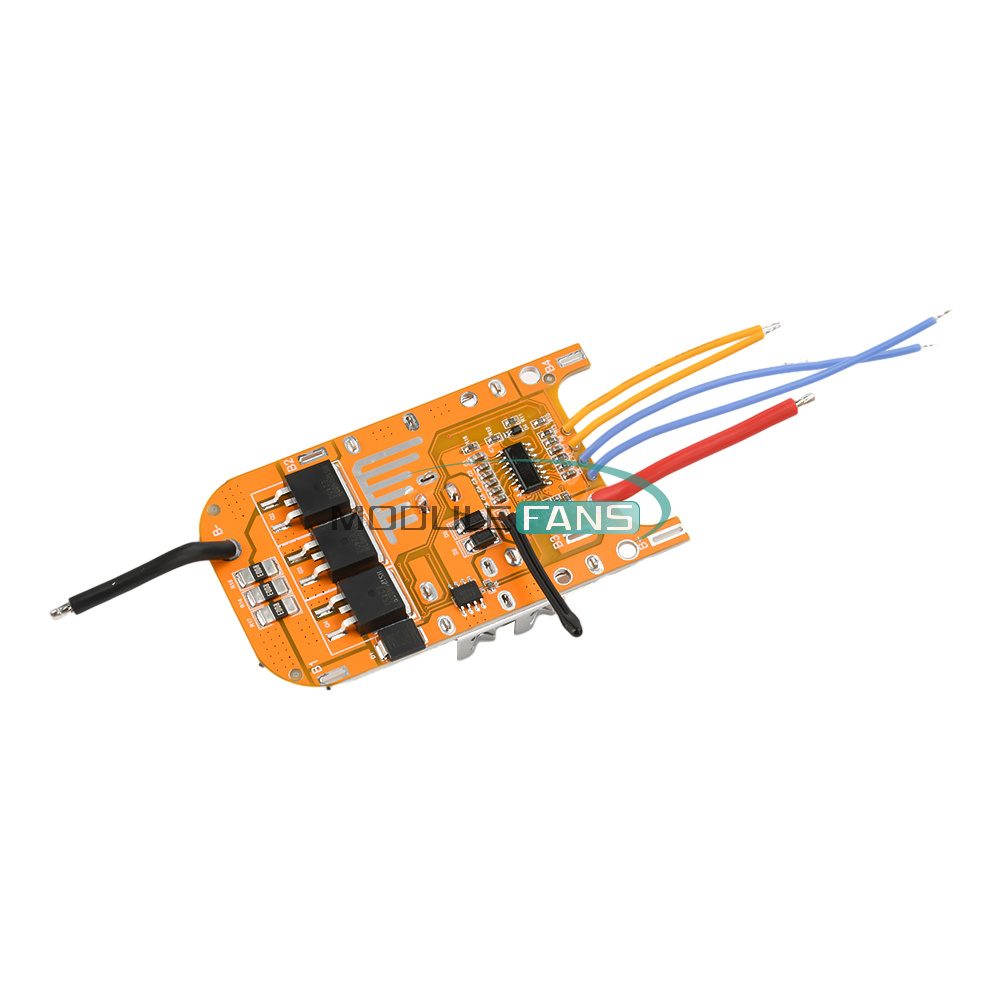

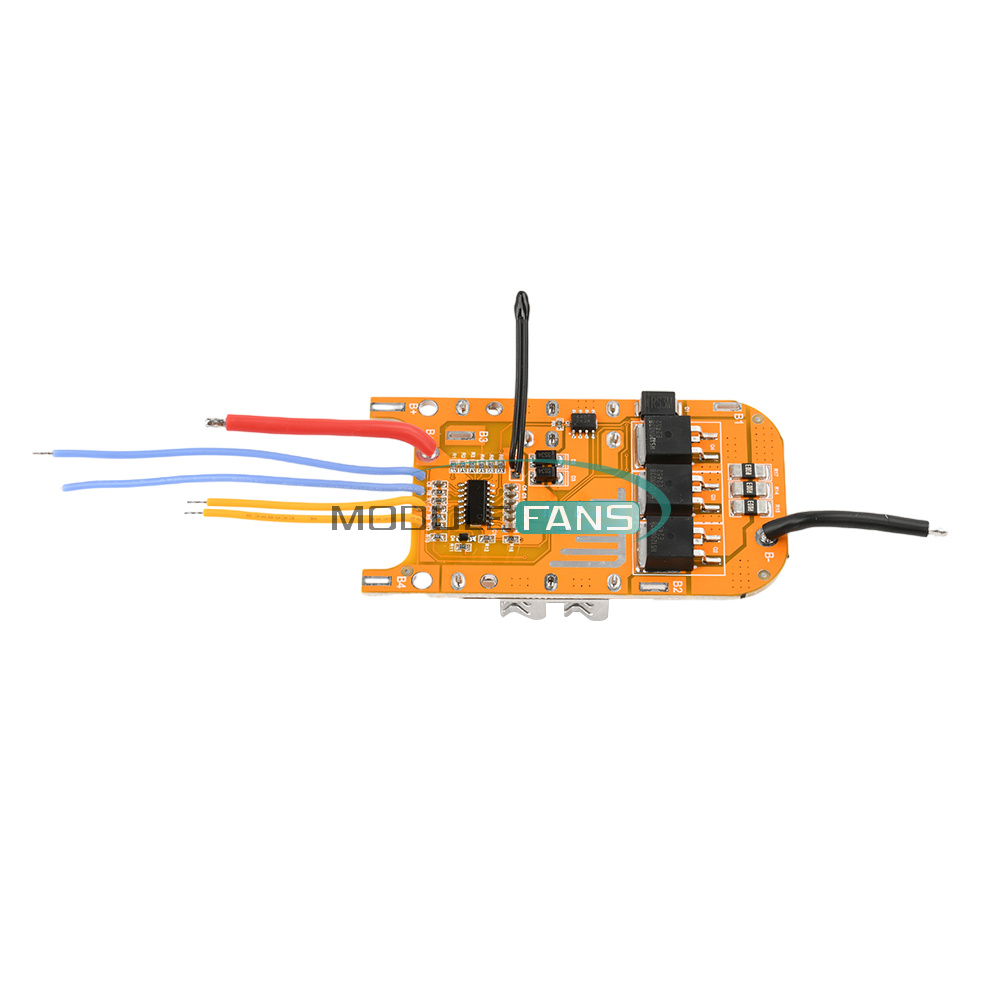

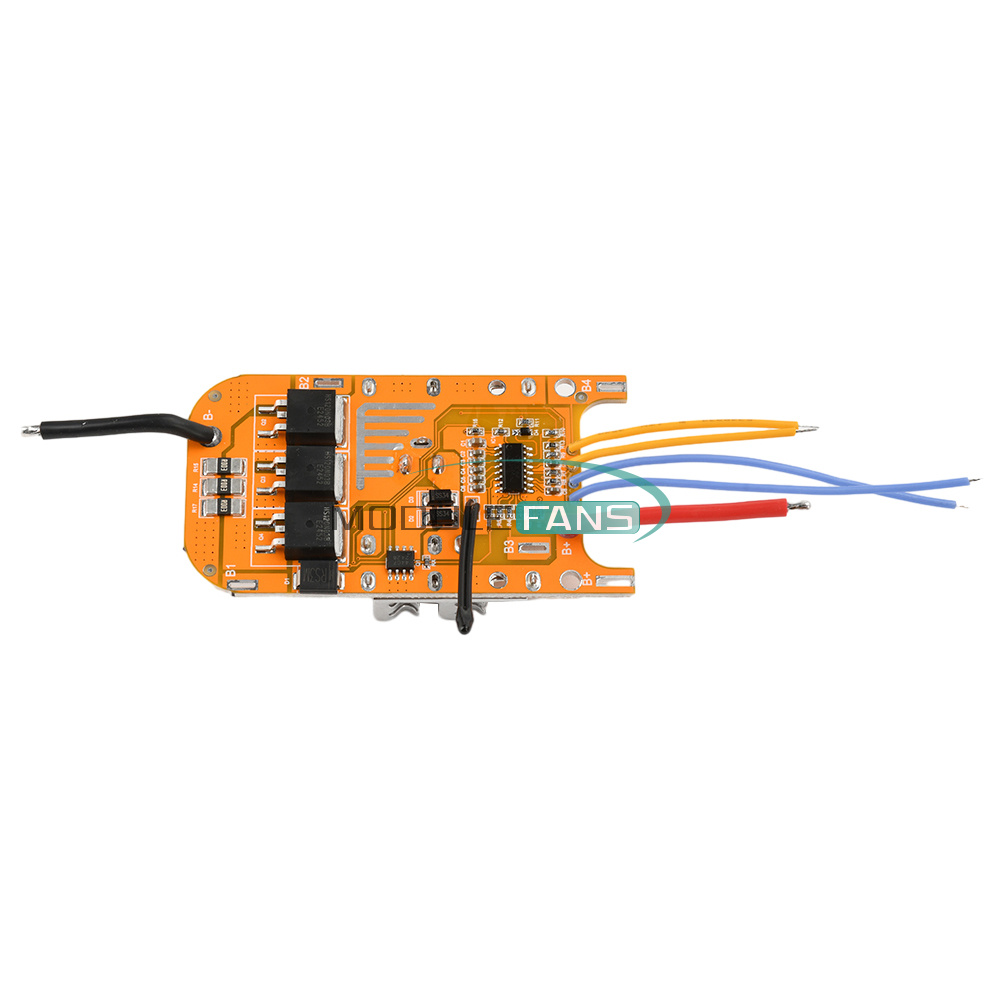

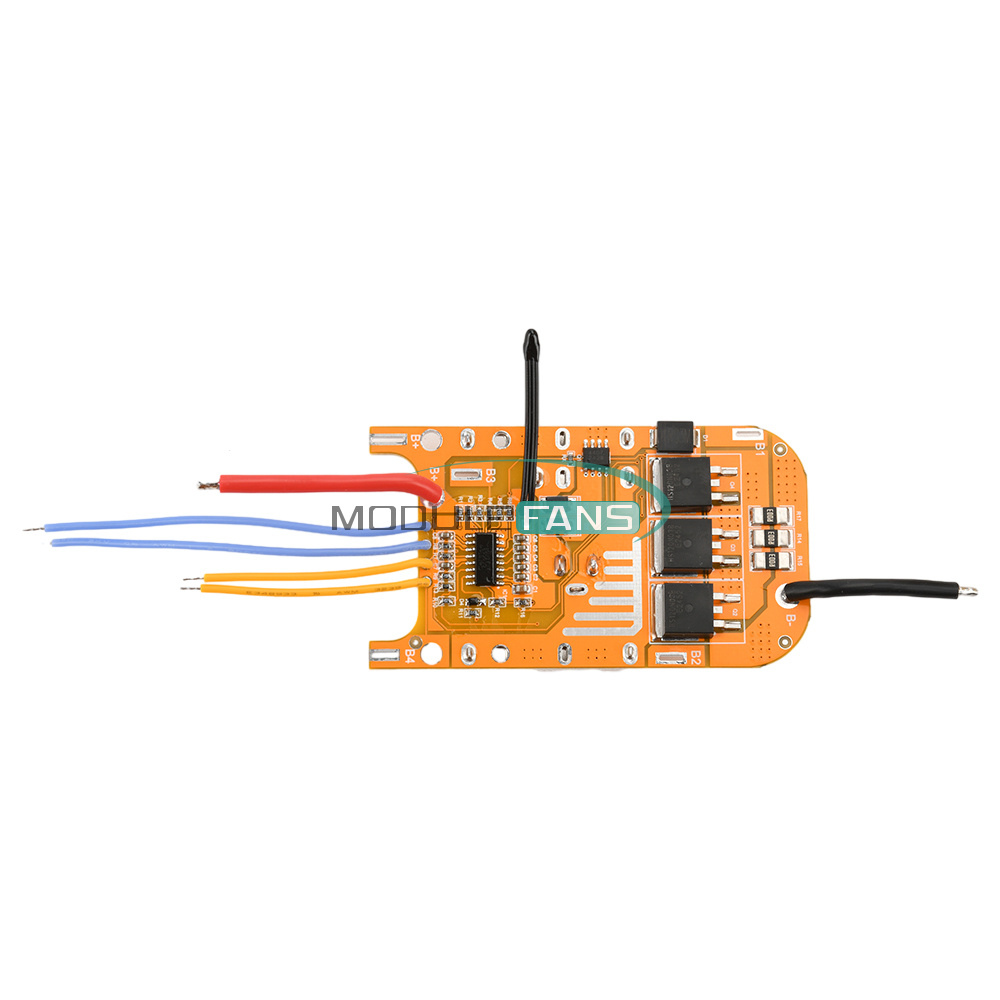

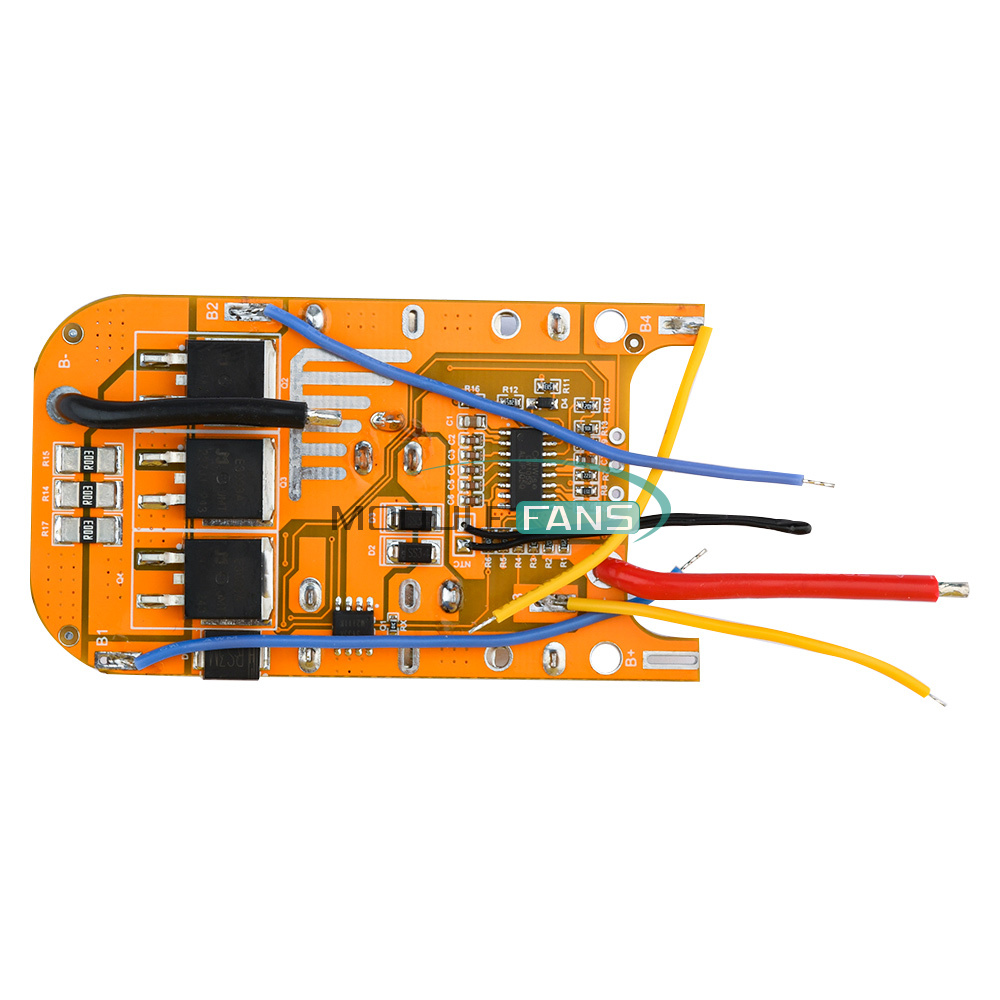

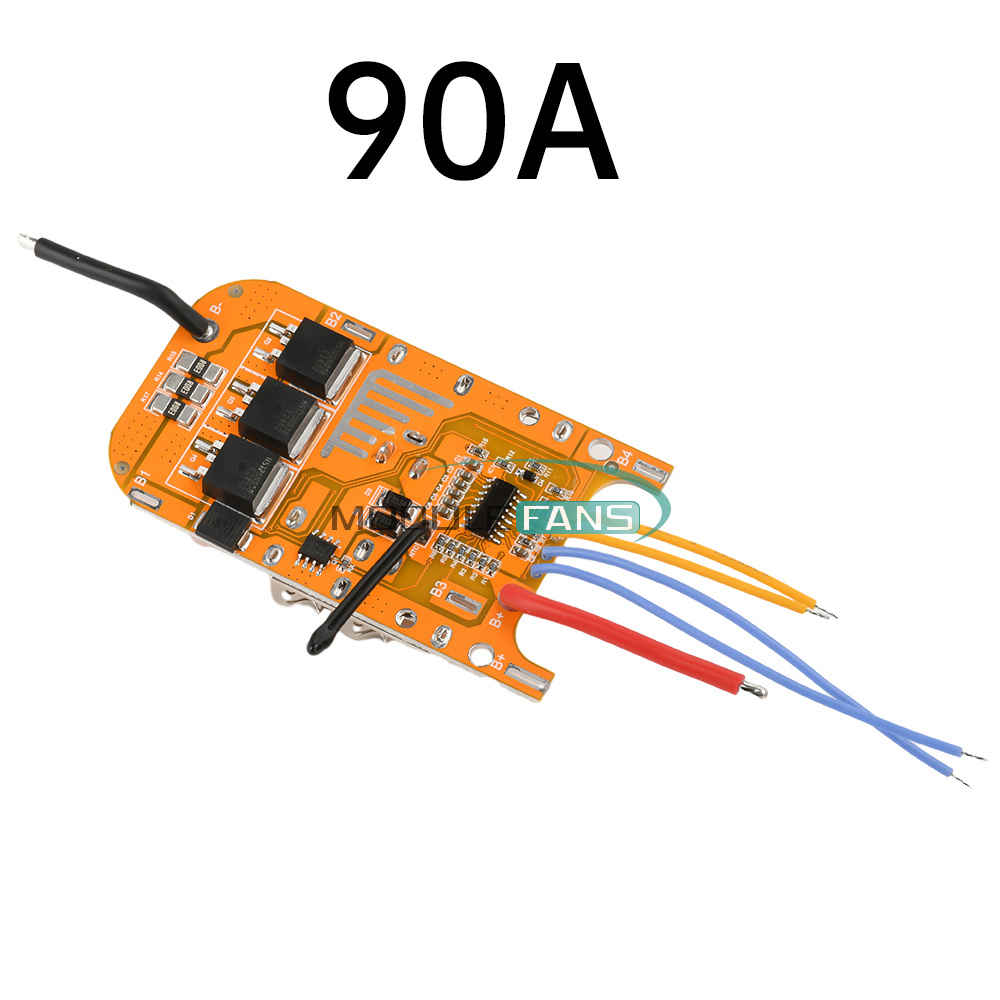

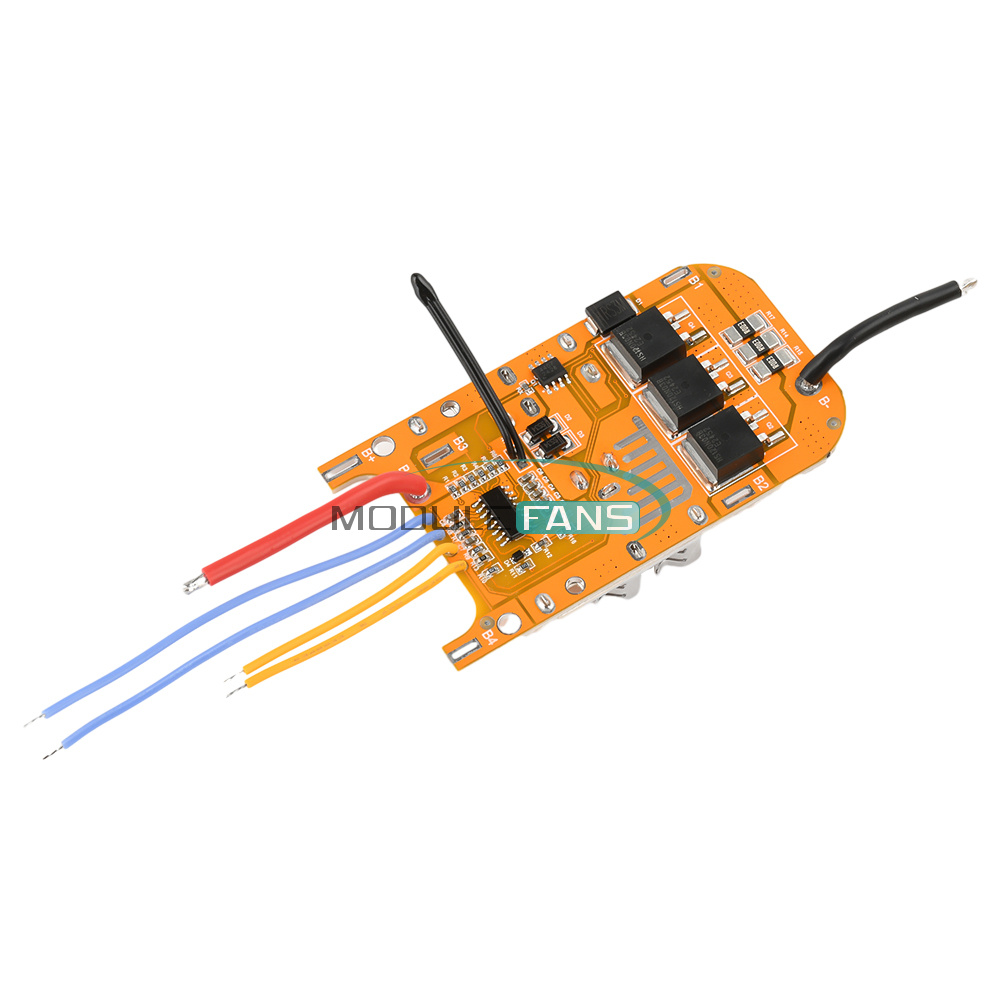

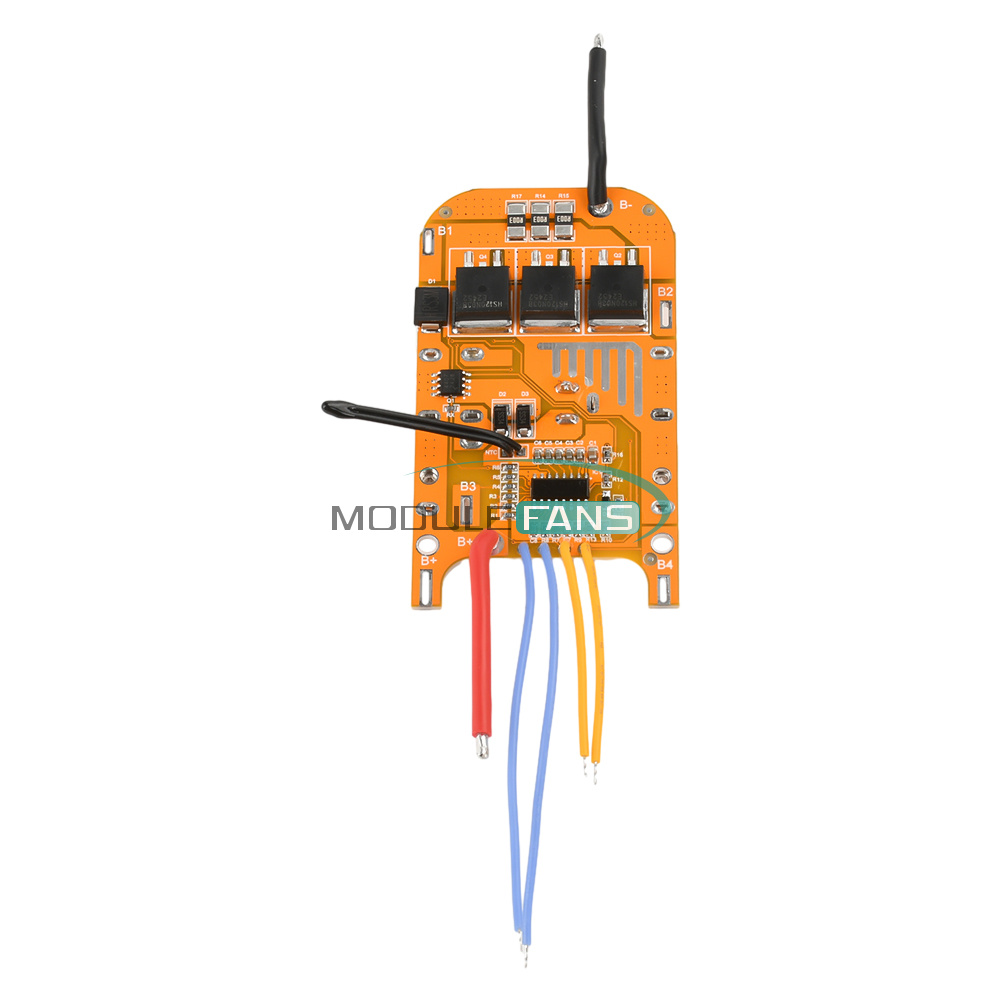

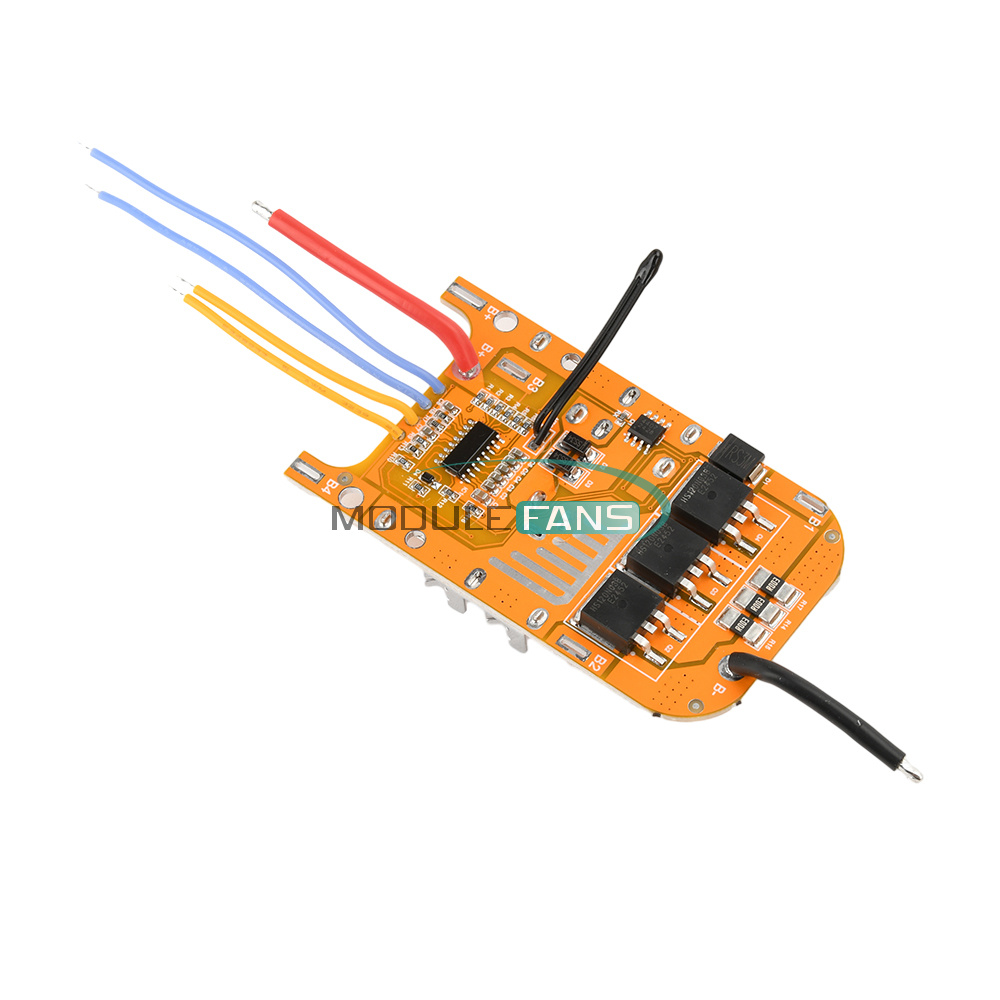

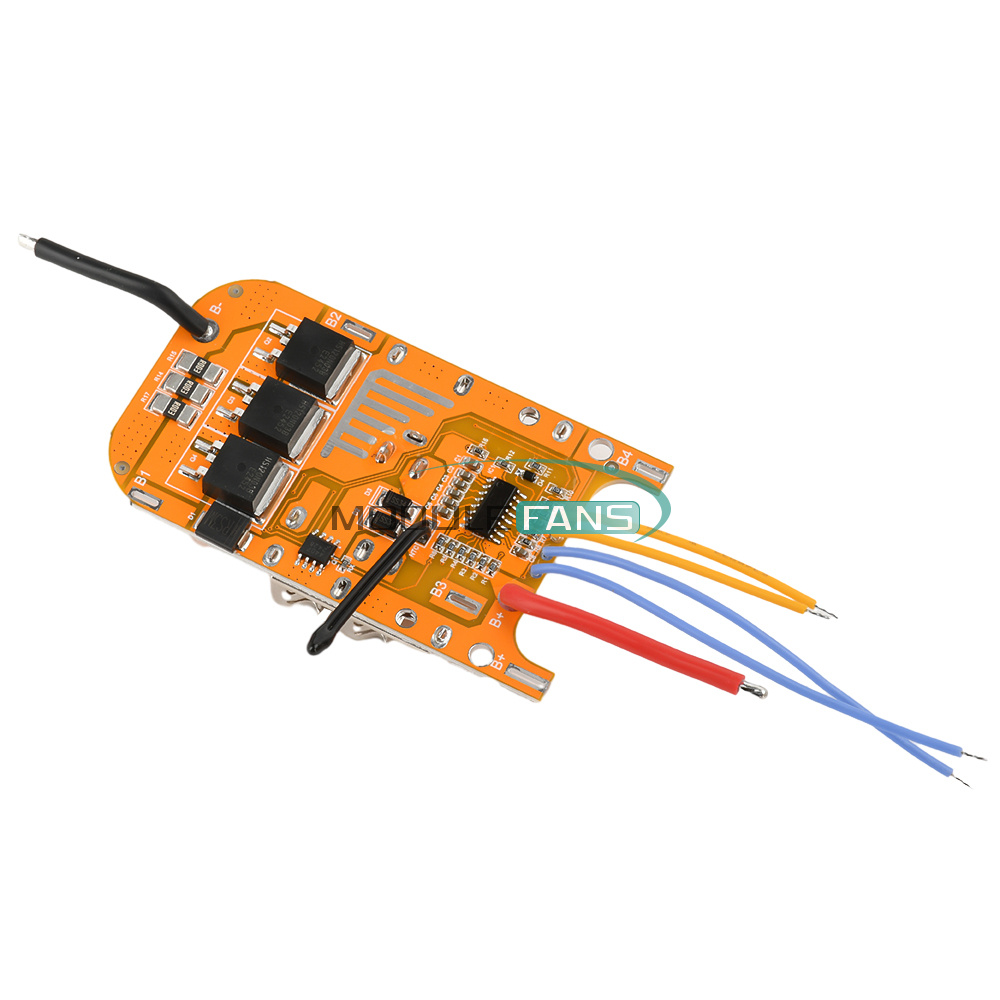

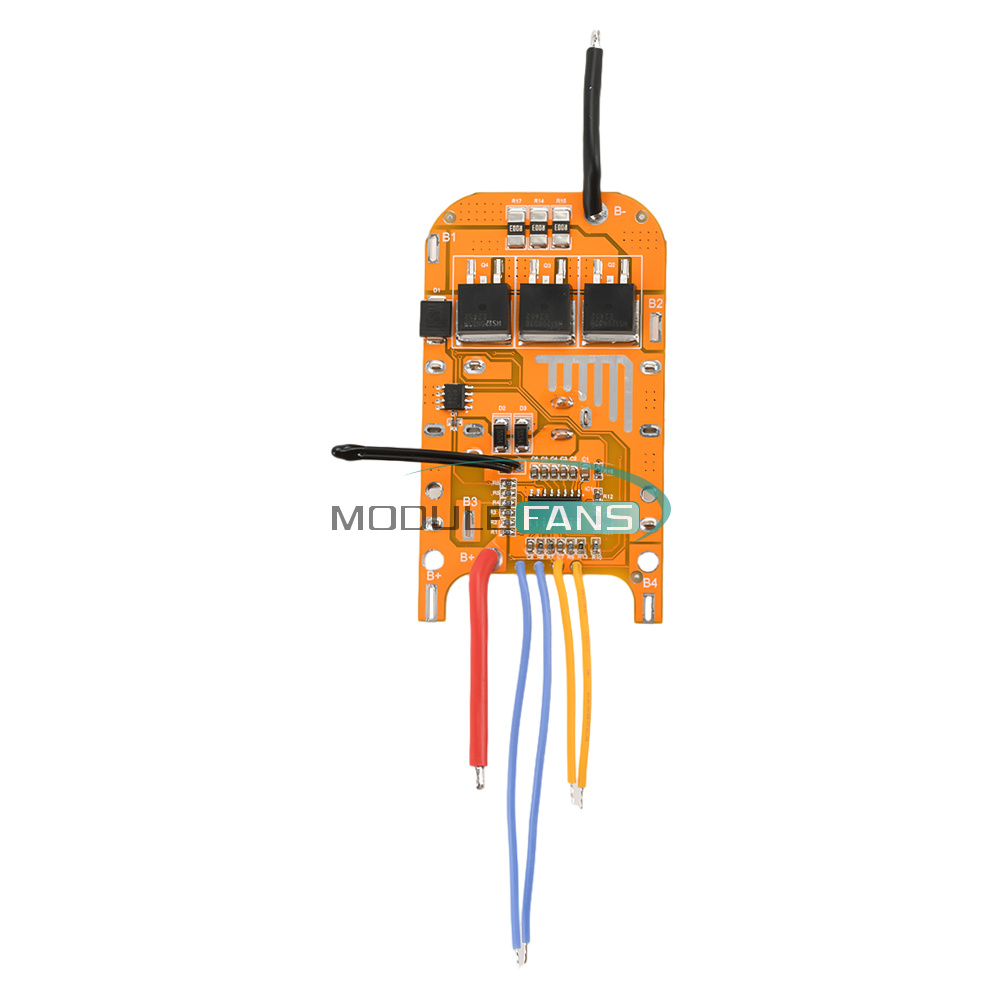

BMS 5S 21V 80A 90A 18650 Li-ion Battery Protection Circuit Charging Board Module
Features:
1.This product uses 5 dedicated lithium-ion battery ICs as processors to detect real-time information such as voltage, charging and discharging current, and environmental temperature of each battery,
2.Implement overcurrent protection functions for overcharging, discharging, and discharging batteries;
3.It has protection functions such as short circuit, charging overcurrent, temperature protection, etc;
4.The board has good quality and is equipped with thick copper hardware terminals, making it durable;
5.It does not generate heat after long time use, and is commonly used for battery pack of lithium Angle grinder of Makita model.
Parameters:
Continuous discharge current: 80A: 25A; 90A: 30A.
Instantaneous (start-up) current: 80A: 80±3A; 90A: 90±3A
Charging voltage: 4.25±0.025V
Continuous charging current: 3A
Overcharge detection voltage: 4.25±0.025V
Overcharge detection delay time: 0.5S
Overcharge recovery voltage: 4.0±0.025V
Over-discharge detection voltage: 2.7±0.025V
Over-discharge detection delay time: 1S
Over-discharge release voltage: 3.0±0.025V
Over-current detection voltage: 100mV
Over-current detection delay time: 350ms
Over-current protection lifting condition: charging recovery or load disconnection
Short circuit protection condition: external load short circuit
Detection delay time: 250us
Short-circuit protection release condition: charging recovery or load disconnection
Operating temperature range: -20-75°C
Package include:
1X protective board
