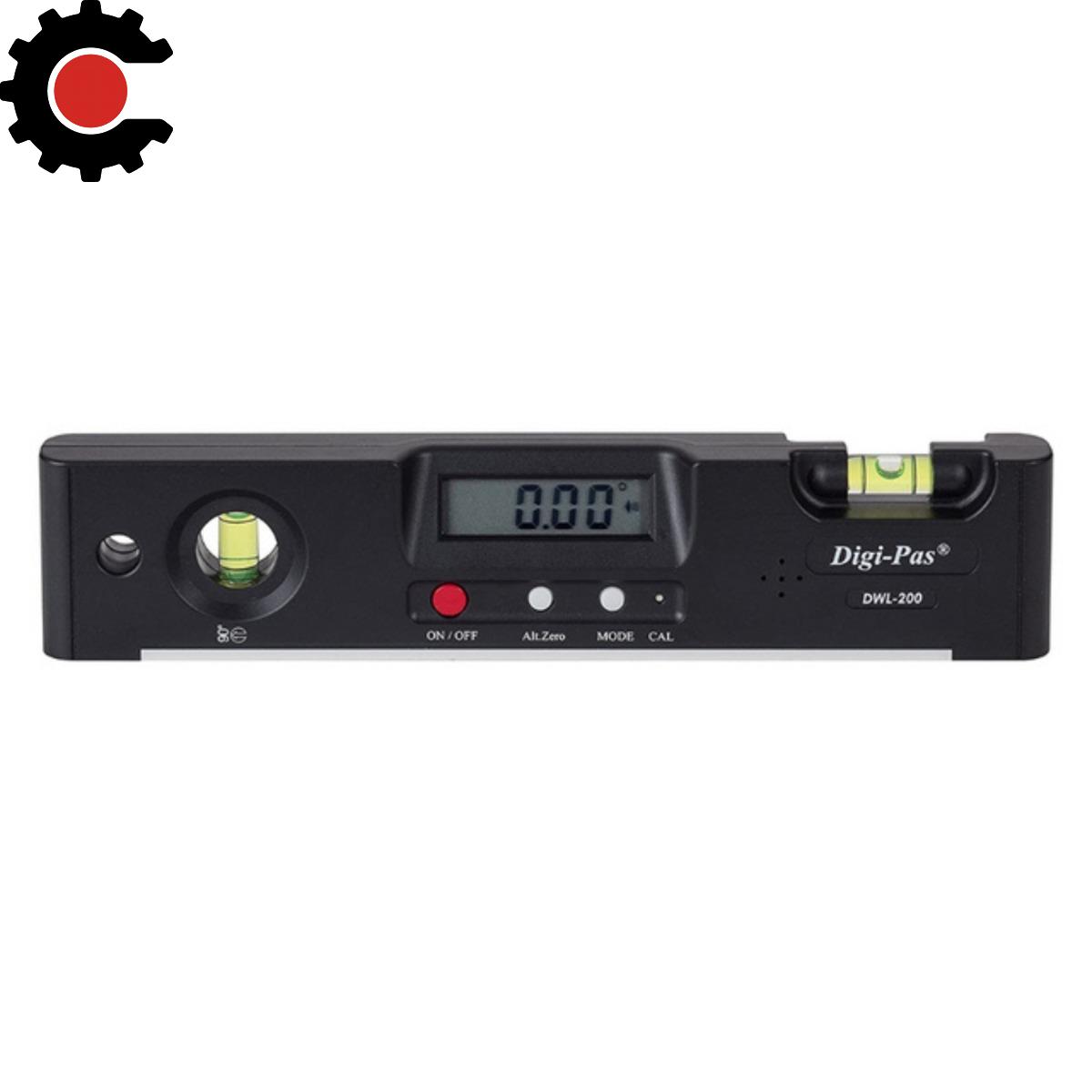

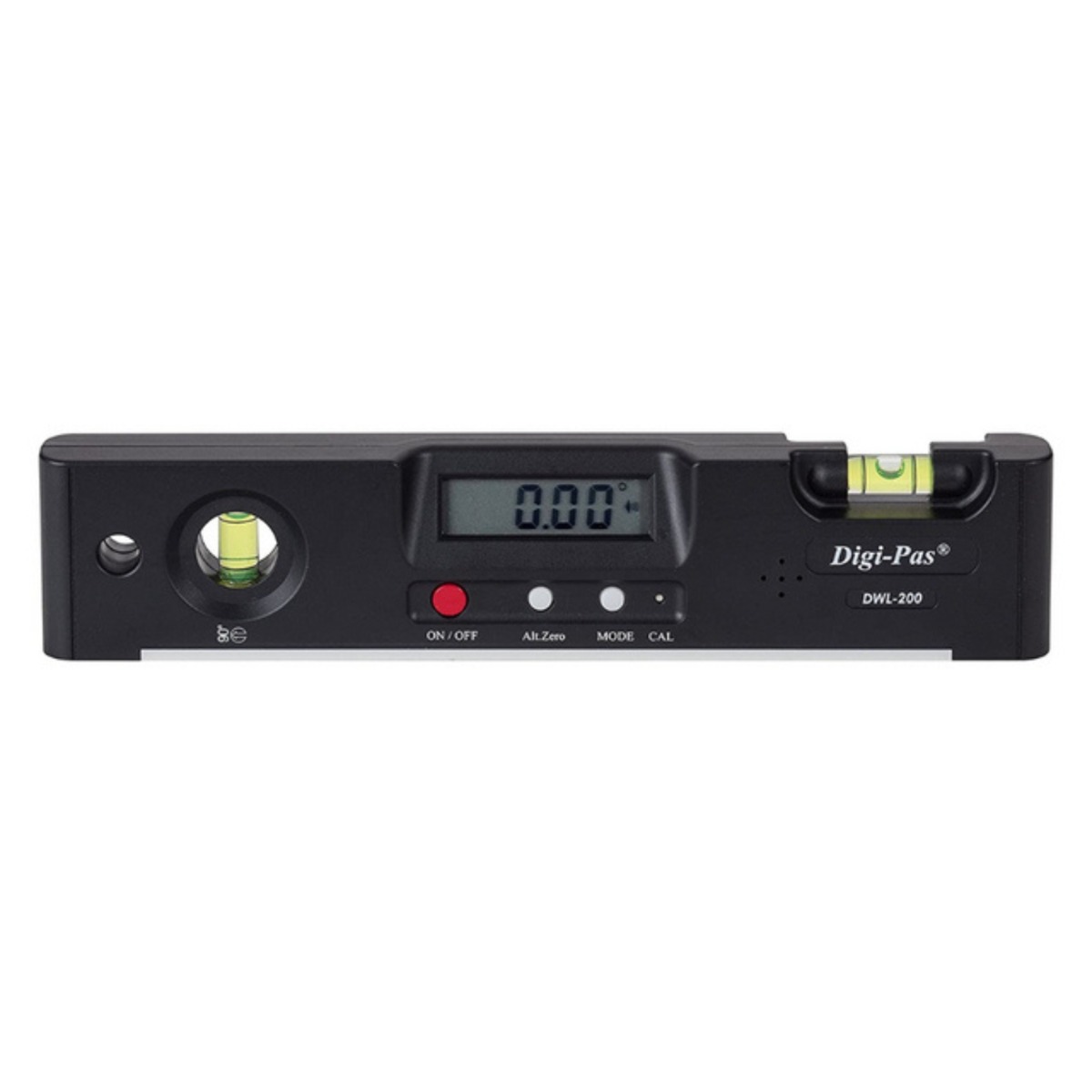

Digi-Pas DWL-200 Torpedo Digital Level
Digi-Pas DWL-200 Torpedo Digital Level delivers fast digital angle and slope measurement with 0.1° resolution, alternate zero, inverted display, self-calibration, and magnetic hands-free positioning.
Detailed Overview
Digital Angle and Slope Measurement for Leveling Work
The Digi-Pas DWL-200 is a torpedo digital level designed for angle and slope measurement. It measures across 0° to 90° in four quadrants and displays readings in degree and percent slope. The compact format supports inspection, alignment, and general leveling tasks in professional and DIY settings.
Digital Inclination Measurement with Magnetic Positioning
- Measures angular position from 0° to 90° across 4 x 90° (360°) for single-axis leveling work.
- Displays readings in degree and percent slope to support direct angle and gradient interpretation.
- Uses alternate zero function to set a reference angle before comparative measurement.
- Supports viewing during reversed positioning through inverted display behavior.
- Magnetic base holds to metal work pieces during measurement for stable placement.
Measurement Functions and Defined Performance
- Resolution is 0.1° (1.75mm/M).
- Accuracy is ±0.1° at around 0° and 90°, and ±0.2° from 1° to 89°.
- Includes user self calibration for restoring measurement reference.
- Includes HOLD function to freeze reading and buzzer sound indication.
- Dimensions are 200 x 43 x 18 mm and battery requirement is 2 x AAA.
Alignment, Inspection, and General Leveling Tasks
- Suitable for home and DIY work.
- Supports roof contractor and solar modules installation workflows.
- Supports satellite dish alignment, steel-beam structure alignment, and window frame installation.
Key Benefits
-
✓Fully Tested & Certified
-
✓30-Day Risk-Free Returns
-
✓1-Year Full Warranty
-
✓Professional Calibration Services
-
✓Trade-In Program Available
-
✓Fast & Reliable Delivery
What's in the Box
- 1 x Digi-Pas DWL-200 Torpedo Digital Level
Technical Specifications
| Brand | Digi-Pas |
|---|---|
| Model | DWL-200 |
| Instrument Type | Torpedo Digital Level |
| Measurement Range | 0° ~ 90° ; 4 x 90° (360°) |
| Resolution | 0.1° (1.75mm/M) |
| Accuracy | ±0.1° at around 0° & 90°; ±0.2° at 1° to 89° |
| Measuring Units | (°) Degree & %Slope |
| Alternate Zero Function | Yes |
| Inverted Display | Yes |
| User Self Calibration | Yes |
| HOLD Function | Yes |
| Buzzer Sound | Yes |
| Built-In Vials | Yes |
| Magnet | Yes |
| Auto Shut Off | Yes |
| Dimensions (L x H x W) | 200 x 43 x 18 mm |
| Battery Requirement | 2 x AAA |
