ZBT60RL 90 Degree Right Angle Hollow Rotating Platform Turntable Gearbox Reducer for 40 Frame 50w 100w AC Servo Motor Input shaft diameter 8mm

Ratio option: 10:1  15:1  25:1

Bearing structure: cross roller bearing

Positioning accuracy: ≤1 arc-min

Repeat positioning accuracy: ≤15arc-sec

Product features: small size, large load-bearing torque, low noise, high positioning accuracy, and can achieve positioning at any angle. The turntable has a hollow structure, and the maximum aperture can be 150mm, which is convenient for the installation of the trachea and wires in the fixture. Same as the splitter and DD motor, the load can be directly fixed on the hollow rotating platform for transmission, and it can be adapted to various brands of servo motors and stepping motors.

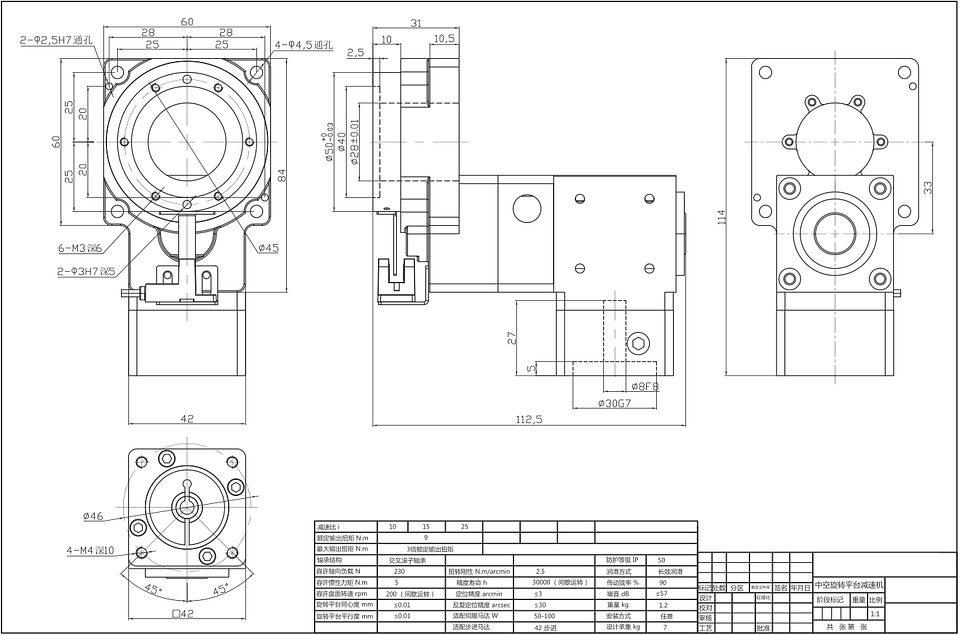

please check the drawing of this gearbox here .If you have any question on this gearbox, please aske me
