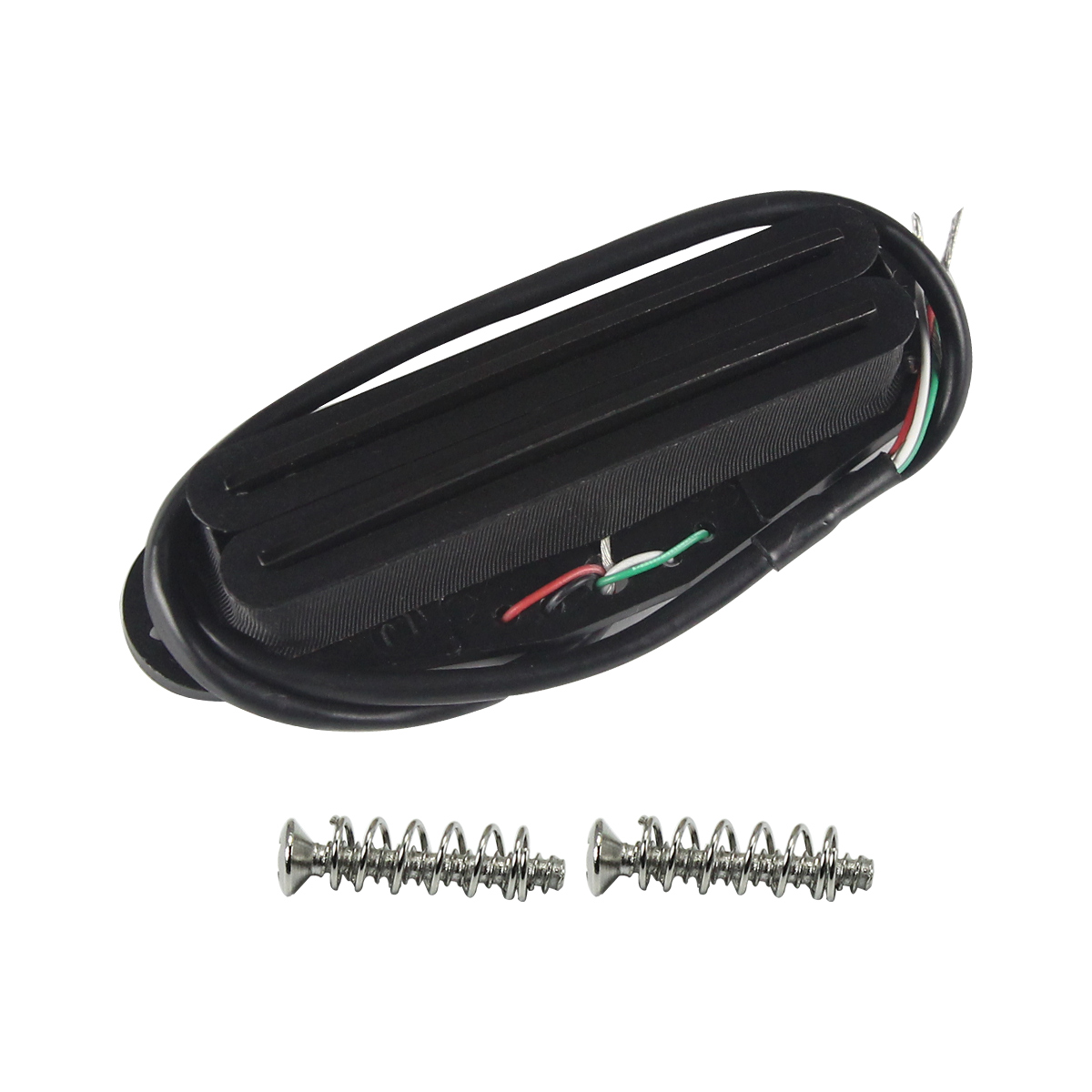

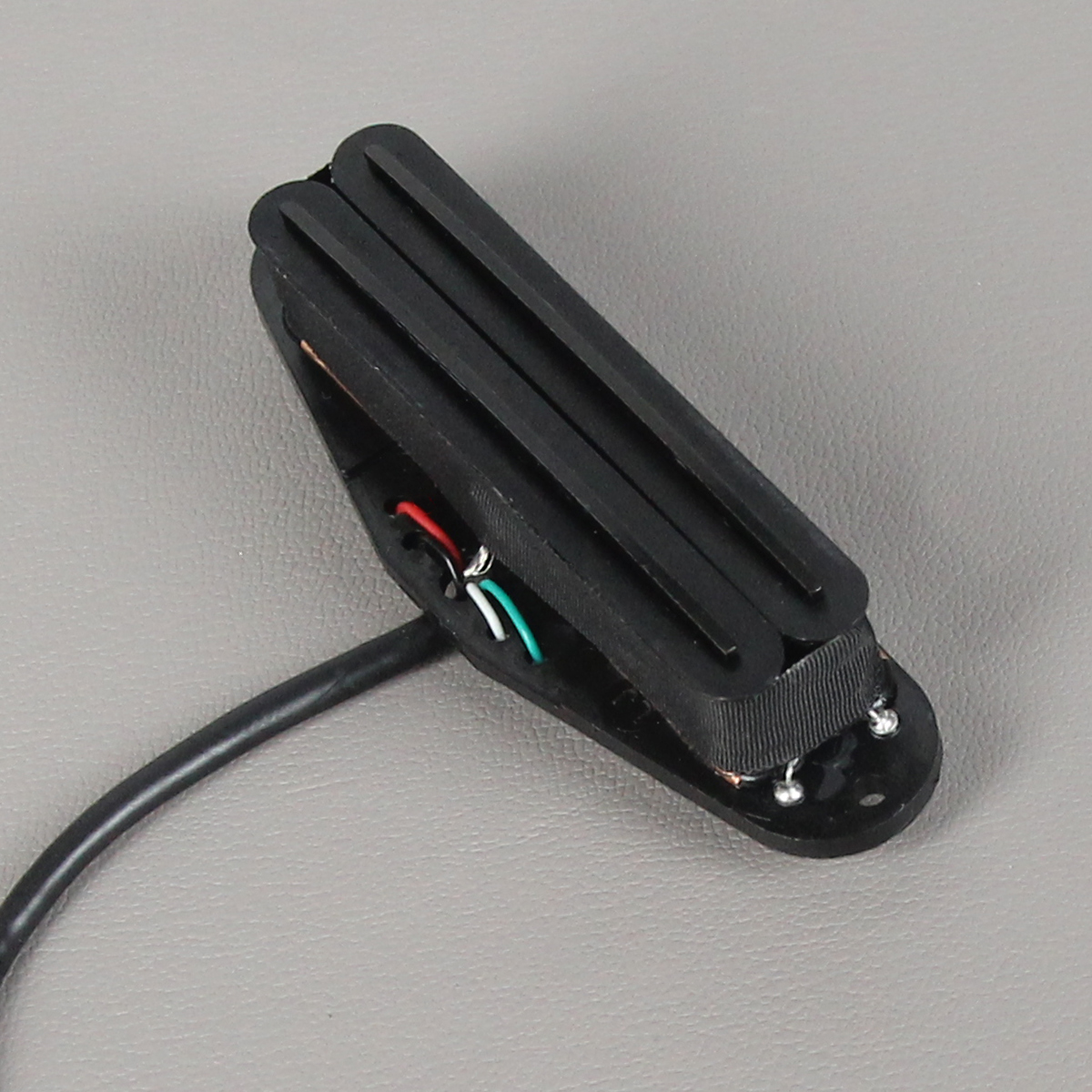

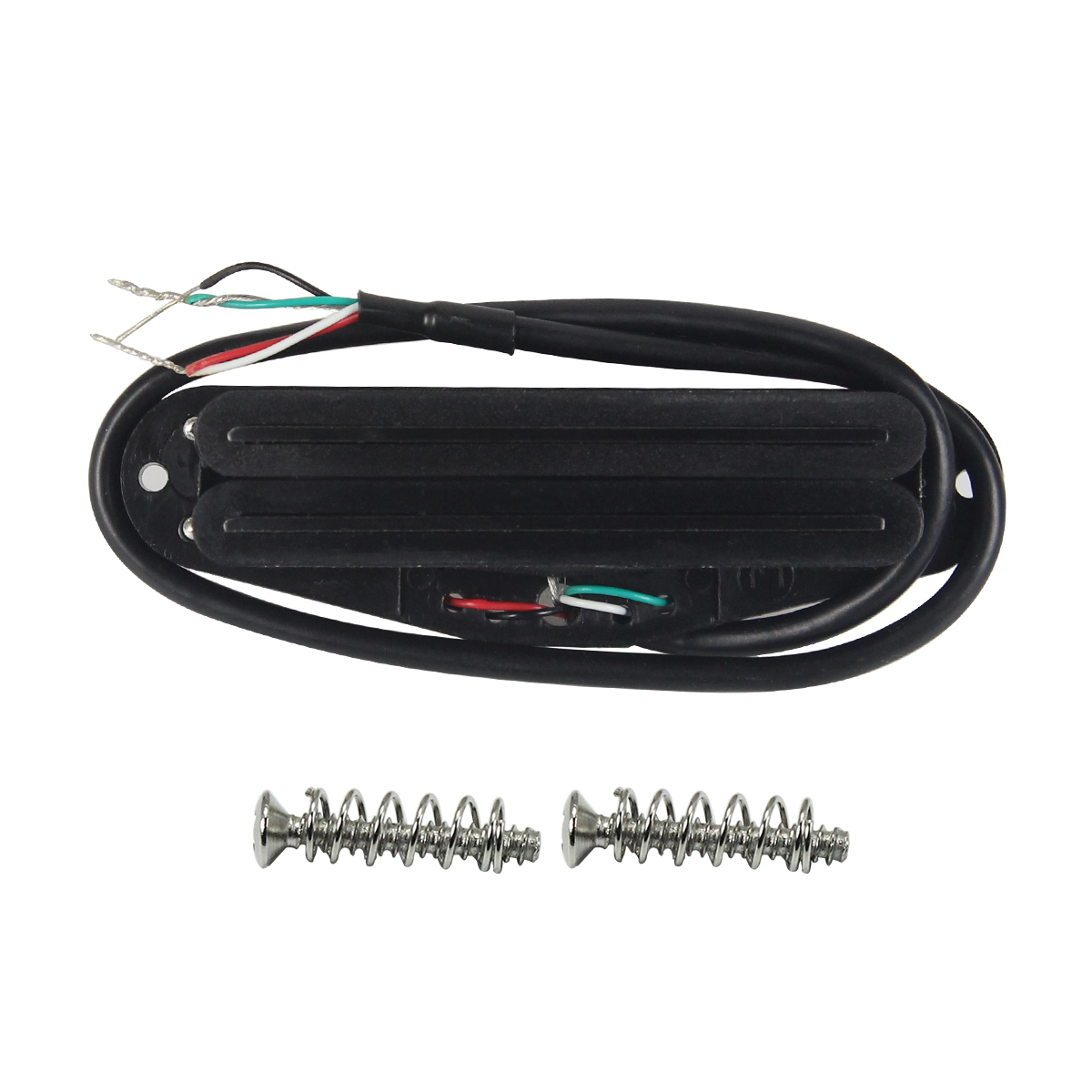

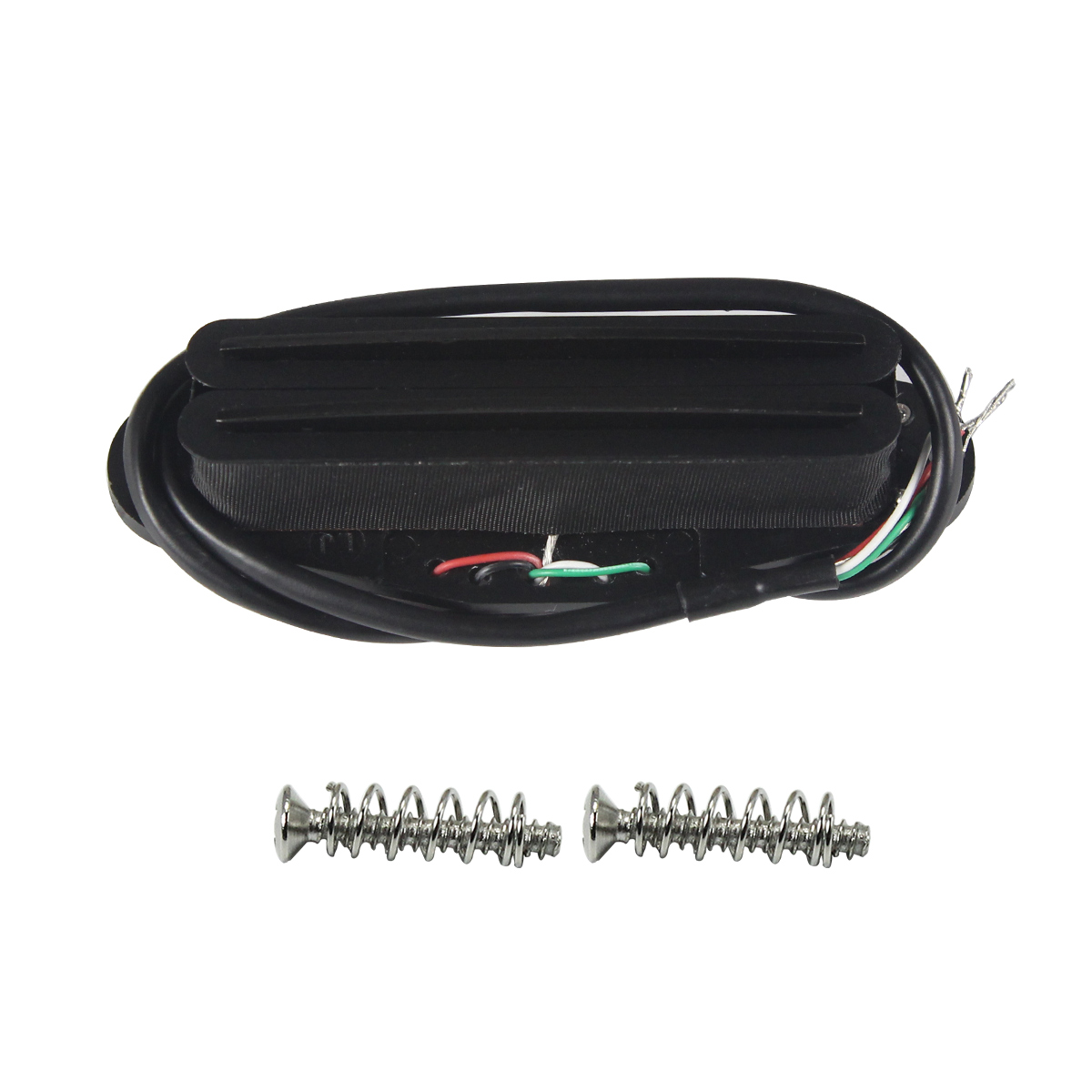

Specifications: Dual Dual Rails Humbucker Pickup For FD ST Style Electric Guitar or Similar Guitar Parts Replacement. A Dual Railspickup is that the strings never leave the full magnetic field of the pole piece, even when a string is bent. so that string spacing is not an issue; no matter the string spacing at the bridge or nut, each string will be properly aligned with the rail. Can used for all Neck/Middle/Bridge Position, but the low resistance more suit for neck position, high resistance more for bridge position. These are fully wax posted, low noise! Magnet: Ceramic Resistance: 12-13k Color: Full Black Out There are 4-wires allowing the option of coil-tapping, if required, or can be wired as per a traditional 2-wire humbucker. 🎸Wires Color Code: the black & bare wires for ground; the green wire for signal (hot wire); the white & red wires together for coil split (series cable). Packing List : 1 x Guitar Pickup 2 x Screws 2 x Springs
