DC30D Generator Controller Power Generator Auto Start Control for DieselGasoline

Product Description：

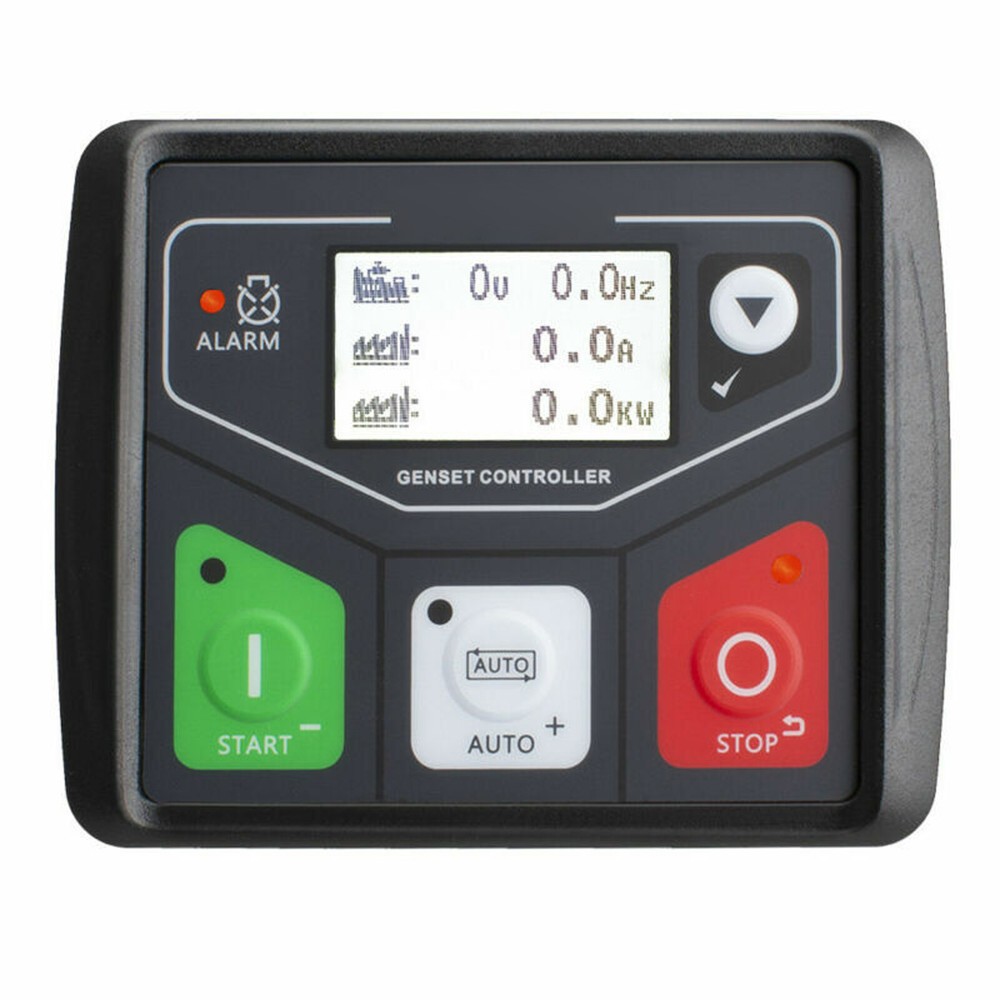

Genst Controller DC30D for Small Diesel Gasoline Generator Start Stop Monitor

Summary：
This Controller Series is specialized for small diesel, gasoline, gas generator sets’start, stop,monitor and defaults checking as well as parameters setting.
The controller has a point array LCD screen, can display various faults in the same time that the genset will be stopped once it can not work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use grammable interface by USB to adjust via
PC. It can be widely applied for all kinds of auto control system of gensets.

Main Features
32 units Micro-cession technology is used.
1.8 inches 128*64 LCD display with backlight, option language interface (Chinese/English), user’s language set if necessary.
PC front face panel, which is water-of, oil-of, UV of so that the durability is longer.
USB Port: parameters can be set even without power.
All the parameters can be set through front panel buttons.
Collect and display a variety of engine and generator parameters.
Records function: relative faults shall be recorded in real time.
It has 5 relay outputs, 3 of which are configurable, and more than 10 functions can be selected for each channel.
1 switch value input, and each can be set as max 20 functions.
3 sensor simulation input connectors, various kinds of units can be set.
Sensor can be self-defined by front face button or PC software.
Various of crank s(RPM,Frequency, Oil Pressure) can be chosen.
Control Protection:Auto Start/Stop of genset,load transfer and perfect failure display and tection.Standard water-of rubber gasket. The waterof can reach IP54.
Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
Parameters Display
