MY RC Coreless Digital Servo 6V 10KG/12KG/20KG/25KG Gear Servos High Torque Standard Steering 25T Output Gear Spline For 1/8 1/10 RC Car
Features:

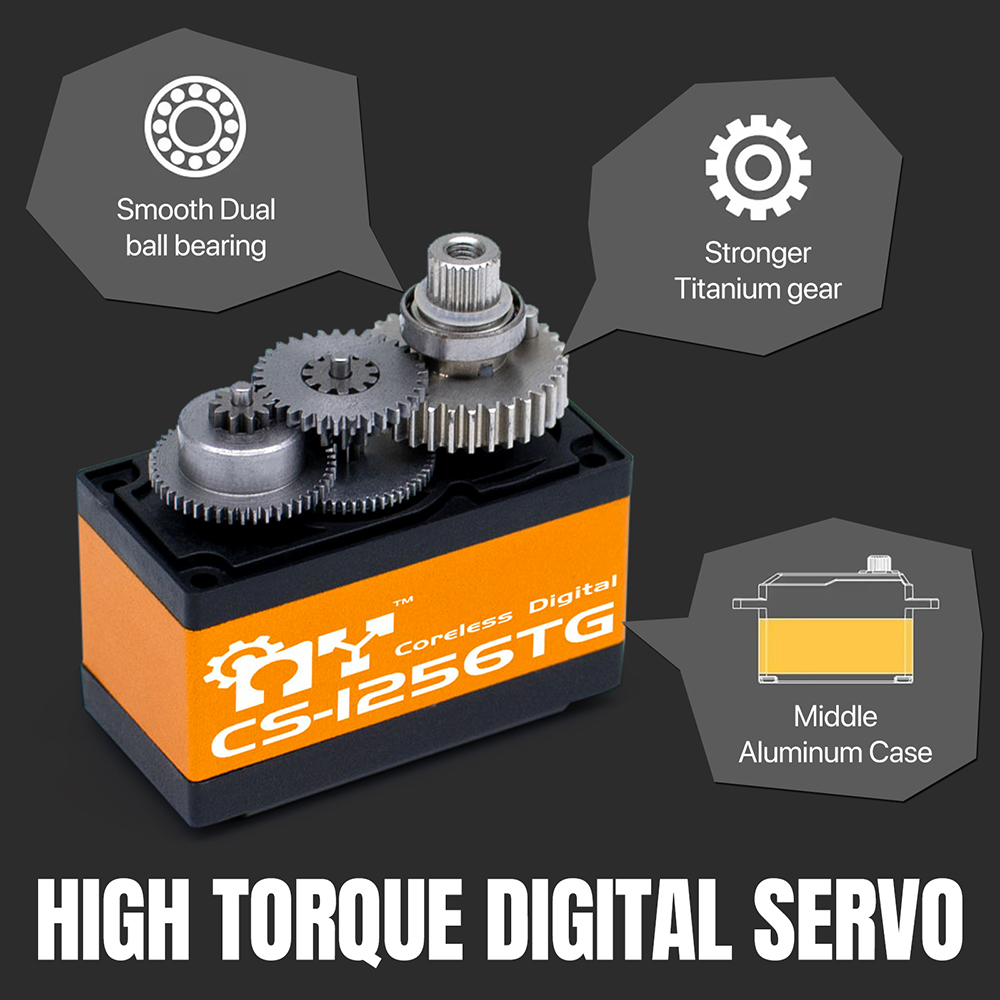

1. High Performance Coreless Digital Standard Servo
2. High Precision Taiwan-madeTitanium alloy & aluminum gear
3. Aluminium Middle Case
4. Double ball bearing
5. Genuine JR plug
6. Large Torque Long Life Lower Noise
Description:
CS-1256TG CS-1257TG CS-1258TG CS-1268SG Coreless Digital Servo High Torque Super Strong Steel Gears Ensure Long Life, Durability And Lower Noise.

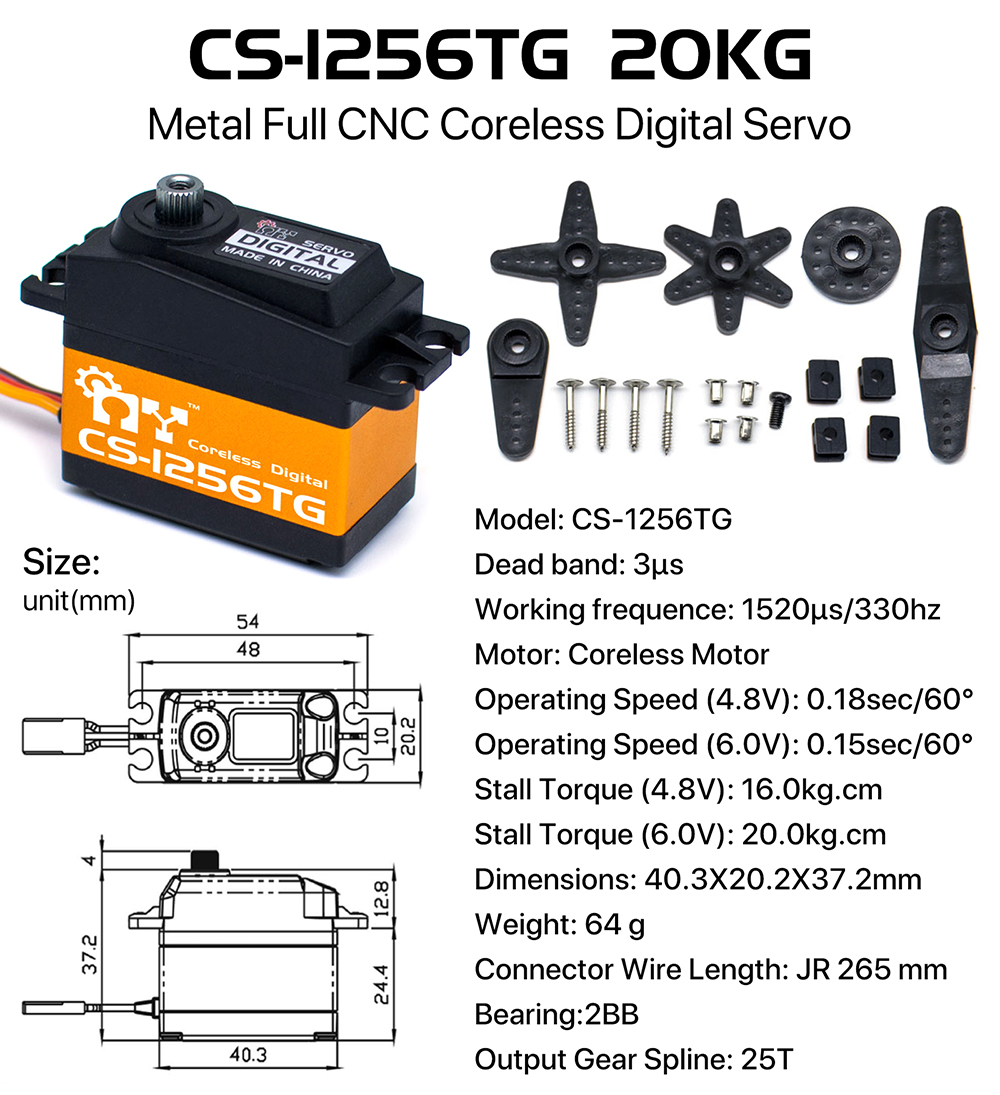

CS-1256TG Specifications:
Dead band: 3us
Working frequence:1520us/ 330hz
Motor: Coreless Motor
Operating Speed 4.8v): 0.18sec60°
Operating Speed (6.0v): 0.15sec60°
Stall Torque (4.8V):16.0kg.cm
Stall Torque (6.0V): 20.0kg.cm
Dimensions:40.3x20.2x37.2mm
Weight: 64 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Output Gear Spline:25T
CS-1257TG Specifications:
Dead band: 3us
Working frequence: 1520us/ 330hz
Motor: Coreless Motor
Operating Speed 4.8v):0.09sec/60°
Operating Speed (6.0v): 0.07sec/60°
Stall Torque (4.8V):8.0kg.cm
Stall Torque (6.0v):10.0kg.cm
Dimensions: 40.3x20.2X37.2mm
Weight: 64 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Output Gear Spline:25T

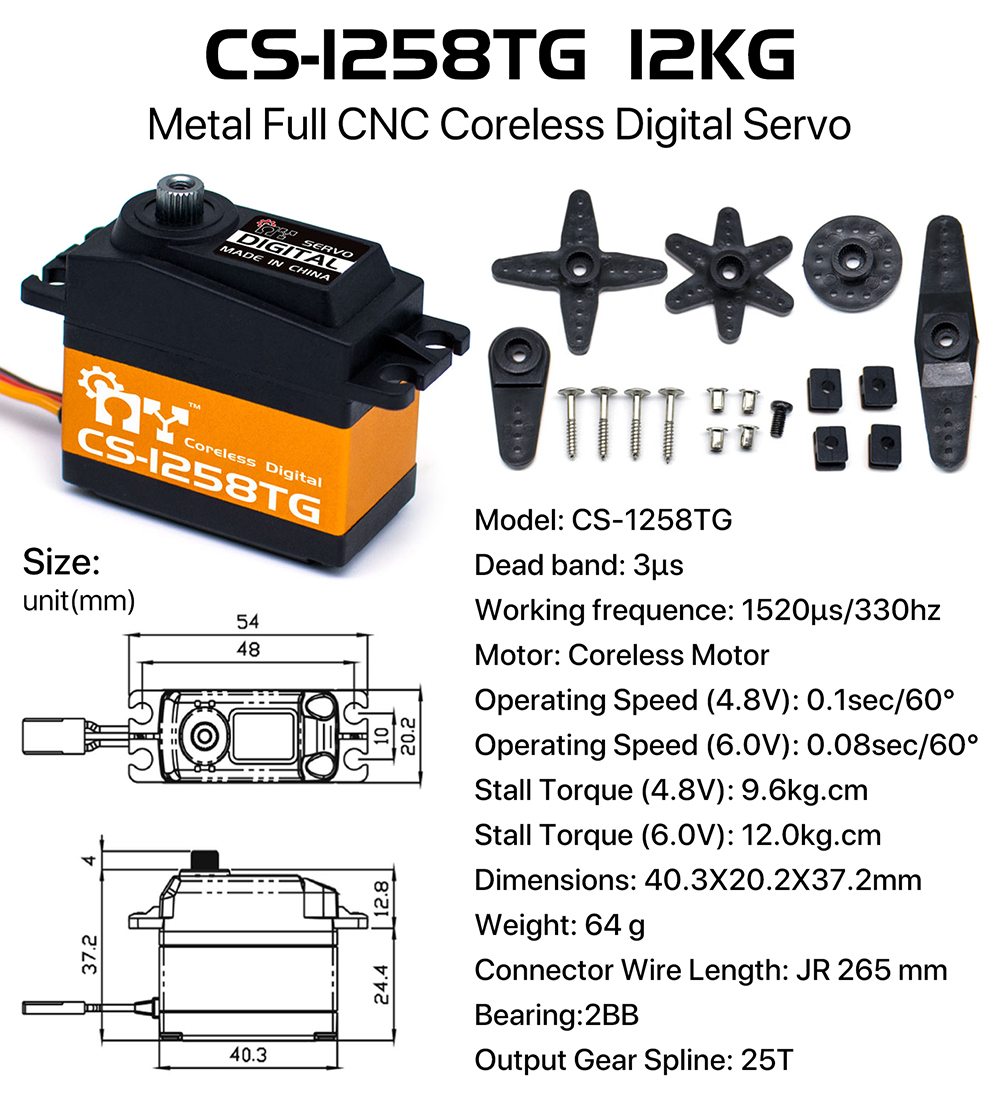

CS-1258TG Specifications:
Dead band: 3us
Working frequence: 1520us/ 330hz
Motor: Coreless Motor
Operating Speed 4.8v):0.1sec60°
Operating Speed (6.0v): 0.08sec/60°
Stall Torque (4.8V):9.6kg.cm
Stall Torque(6.0V):12.0kg.cm
Dimensions:40.3X20.2X37.2mm
Weight:64g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Output Gear Spline:25T

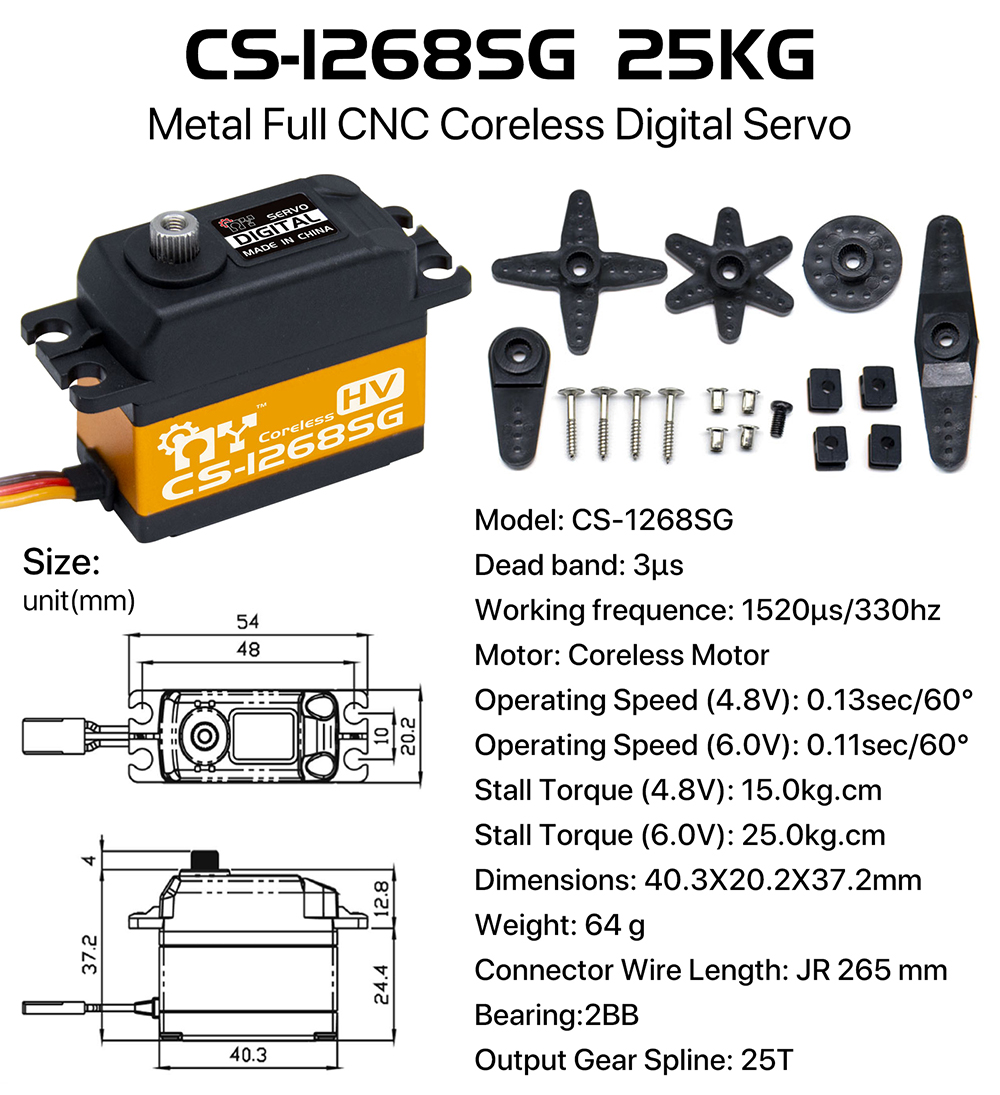

CS-1268SG Specifications:
Dead band: 3us
Working frequence: 1520us/ 330hz
Motor: Coreless Motor
Operating Speed 6.0v): 0.13sec/60°
Operating Speed (7.4V): 0.11sec/60°
Stall Torque (6.0v):15.0kg.cm
Stall Torque (7.4V): 25.0kg.cm
Dimensions:40.3X20.2X37.2mm
Weight: 62g
Connector Wire Length: JR 265 mm
Bearing:2BB
Output Gear Spline:25T

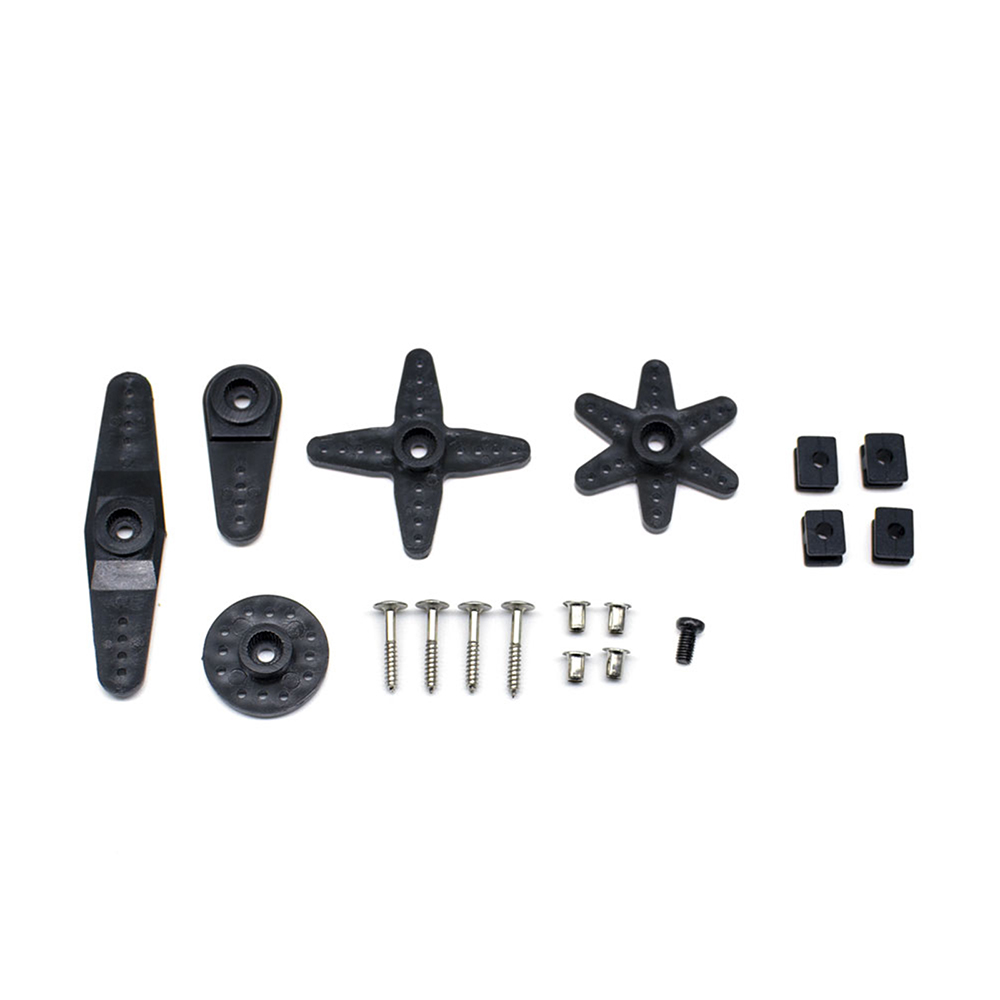

Package contents:
1*Digital Servo
Note:
Only the above package content, other products are not included.
