Car FM Radio Module Bluetooth Speaker MP3 Decoder Board USB TF FM Remote Music Player 7V-22V 2*30W

    • Condition: 100% new
    • Color: As picture shows
    • Material: Plastic & Metal
    • Size: approx. 9.2 x 4.1cm(3.62 x 1.61inch) (LxW)
    • Output Power:

      1. 2 * 20w (vdd = 14.5v, rl = 4 )

      2. 2 * 33w (vdd = 22v, rl = 8 )

    • Item included:

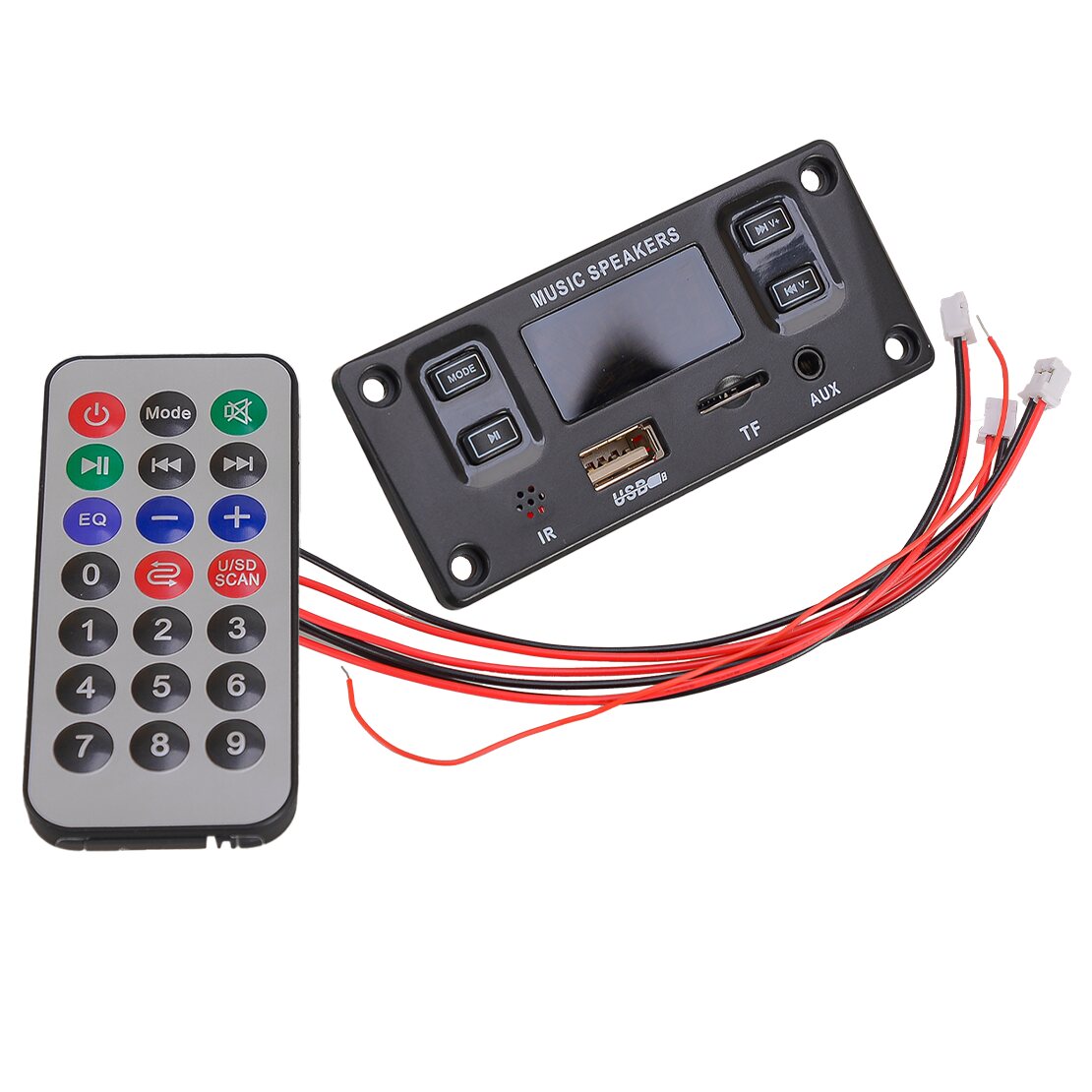

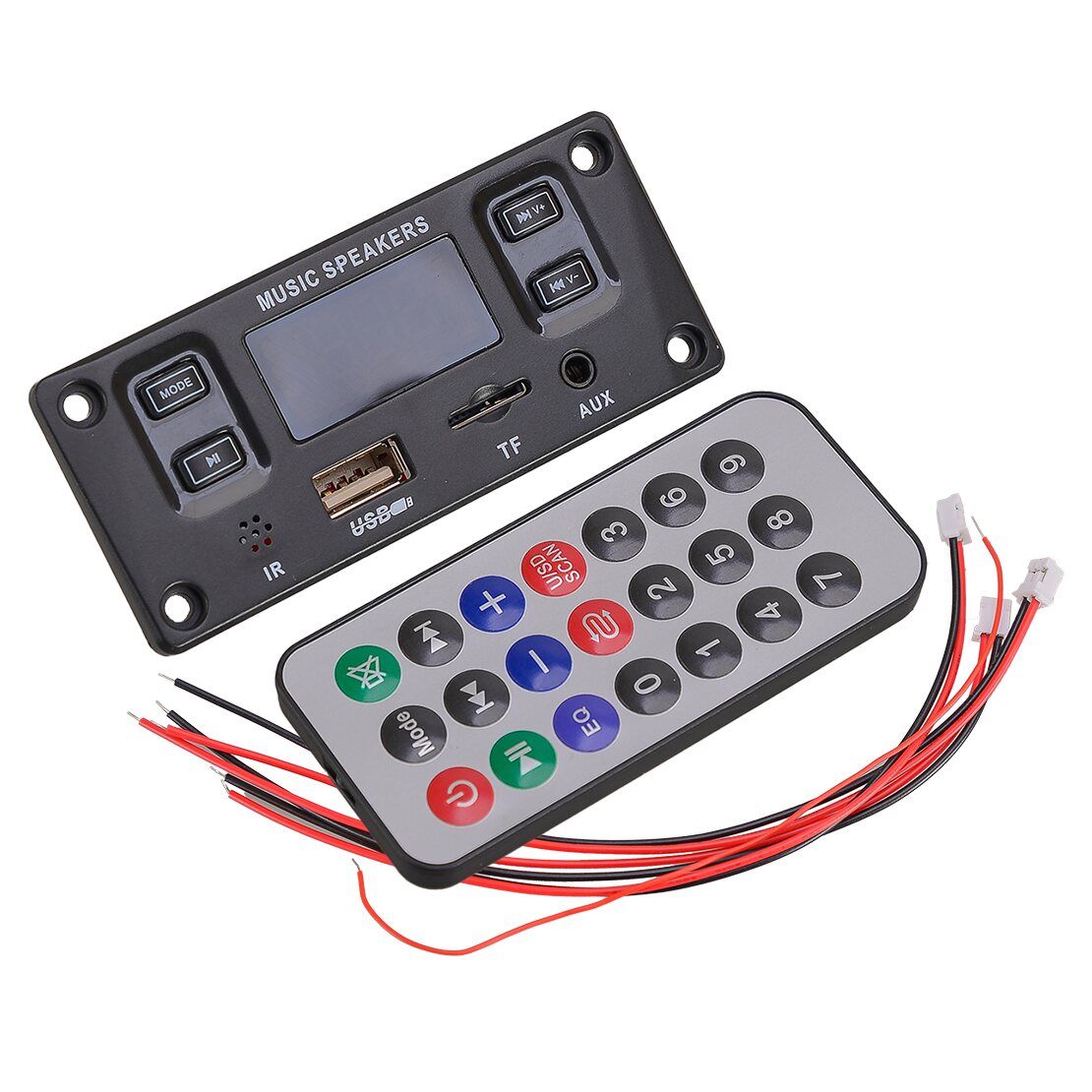

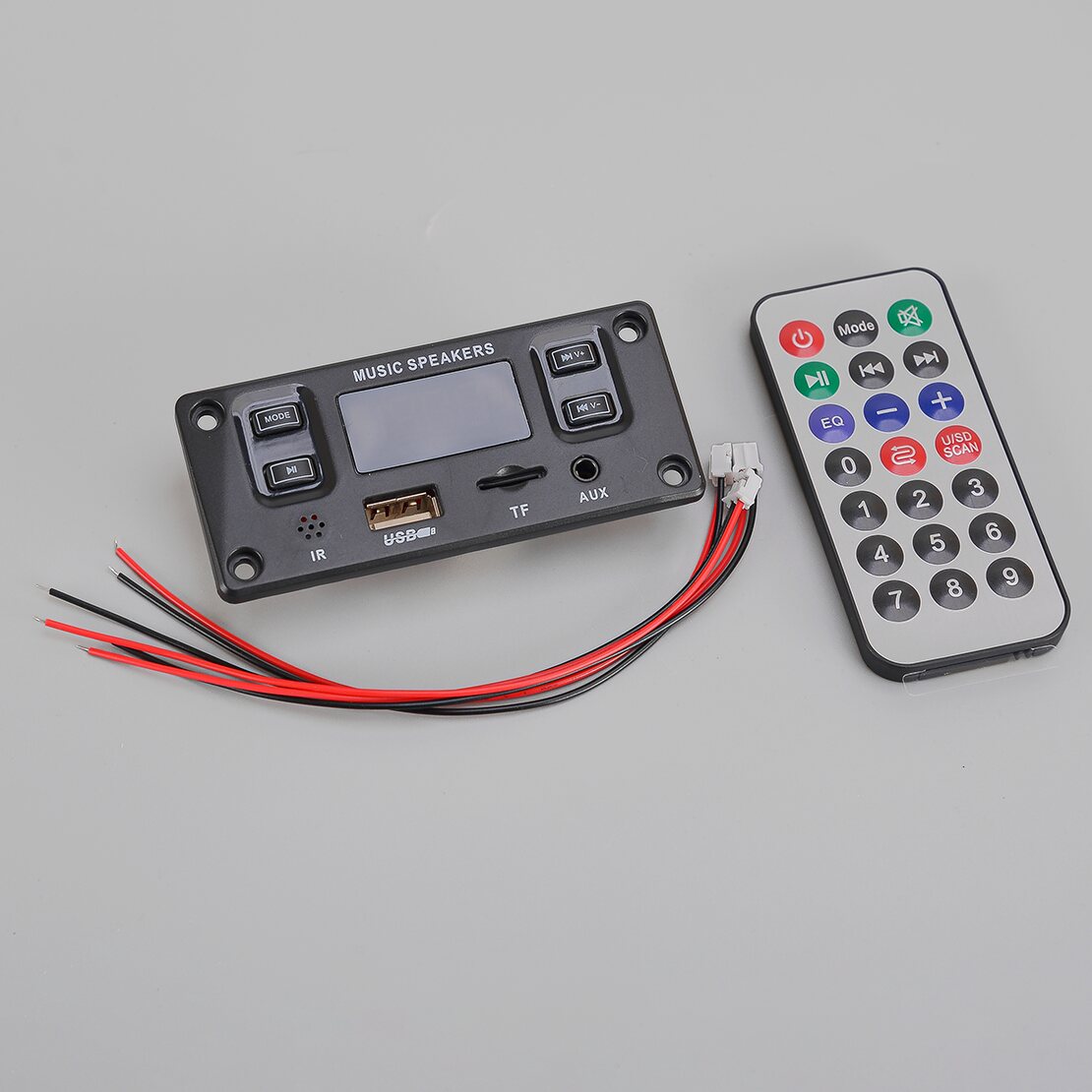

      1 x Car MP3 Decoder Board Module

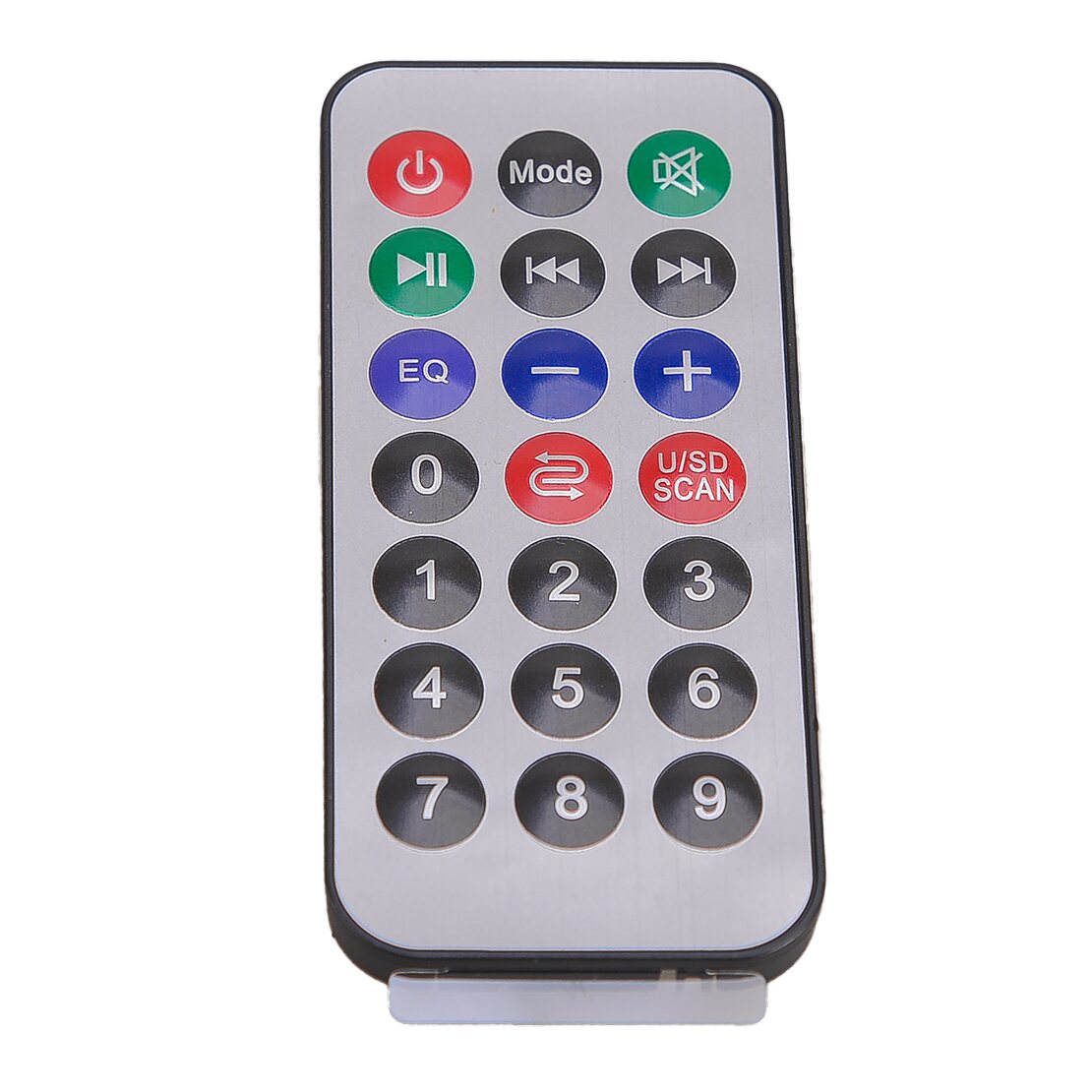

      1 x Remote Control(no batteries)

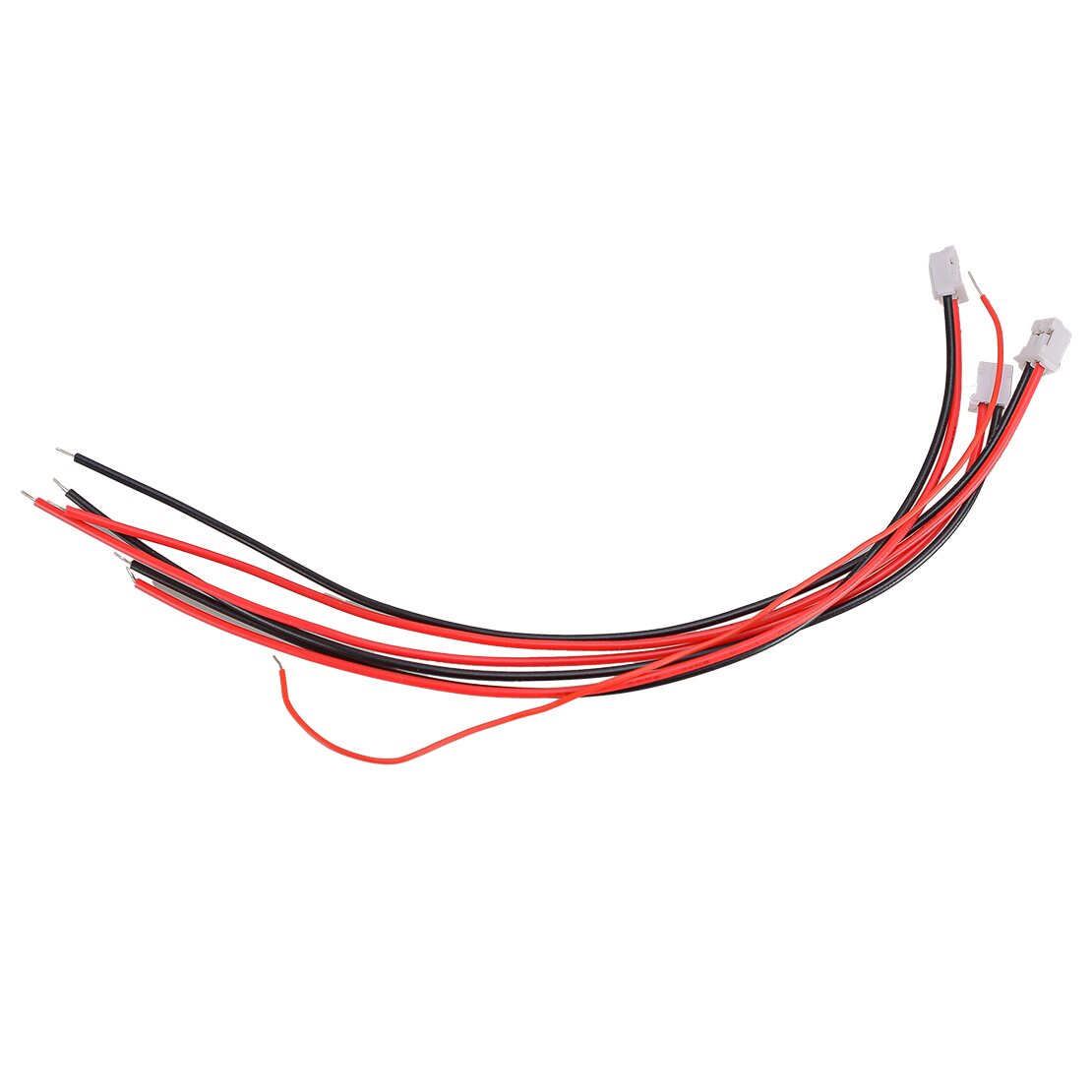

      1 x Cables

    • Support:

      fit for the call

      fit for power-off memory

      fit for DC 7v-22v and the current is 2-3A

      fit for the song format MP3 /WMA/WAV/APE/FLAC

      fit for folder selection and playback

      fit for Recording only supports TF mode or USB mode

    • Compatible With: fit for all car

    • This Is Aftermarket Replacement Item But Not Genuine

    • Note:

      1) All dimensions are measured by hand, there may be small deviations.

      2) Color may vary slightly due to the color setting of each individual monitor.

Feature:

1) Bluetooth version 5.0.

2) Support the call (press the pause button to answer the call for a long time).

3) Support recording. Recording only supports TF mode or USB mode.

4) (Press and hold the MODE button to start recording, press and hold the MODE button again to cancel recording and play the recording file; Exit the recording mode and press the pause button for a long time to exit. When recording, you need to connect a storage device, such as a USB flash drive or TF card ).

5) Support power-off memory, remember the songs and volume before power failure.

6) The power supply voltage supports DC 7v-22v and the current is 2-3A.

7) You can connect the speaker directly.

8) Support the song format MP3 /WMA/WAV/APE/FLAC.

9) Main functions MP3/USB/TF/FM/BLUETOOTH/ remote control.

10) Product with amplifier support balanced output, Power 60W, stereo 2*30W.

11) Support folder selection and playback. When USB or TF plays, there is a folder in the device and there are songs in the folder.

12) Press the Up button or Down button twice to select the folder to play songs, and the screen will display F001-F00 accordingly.

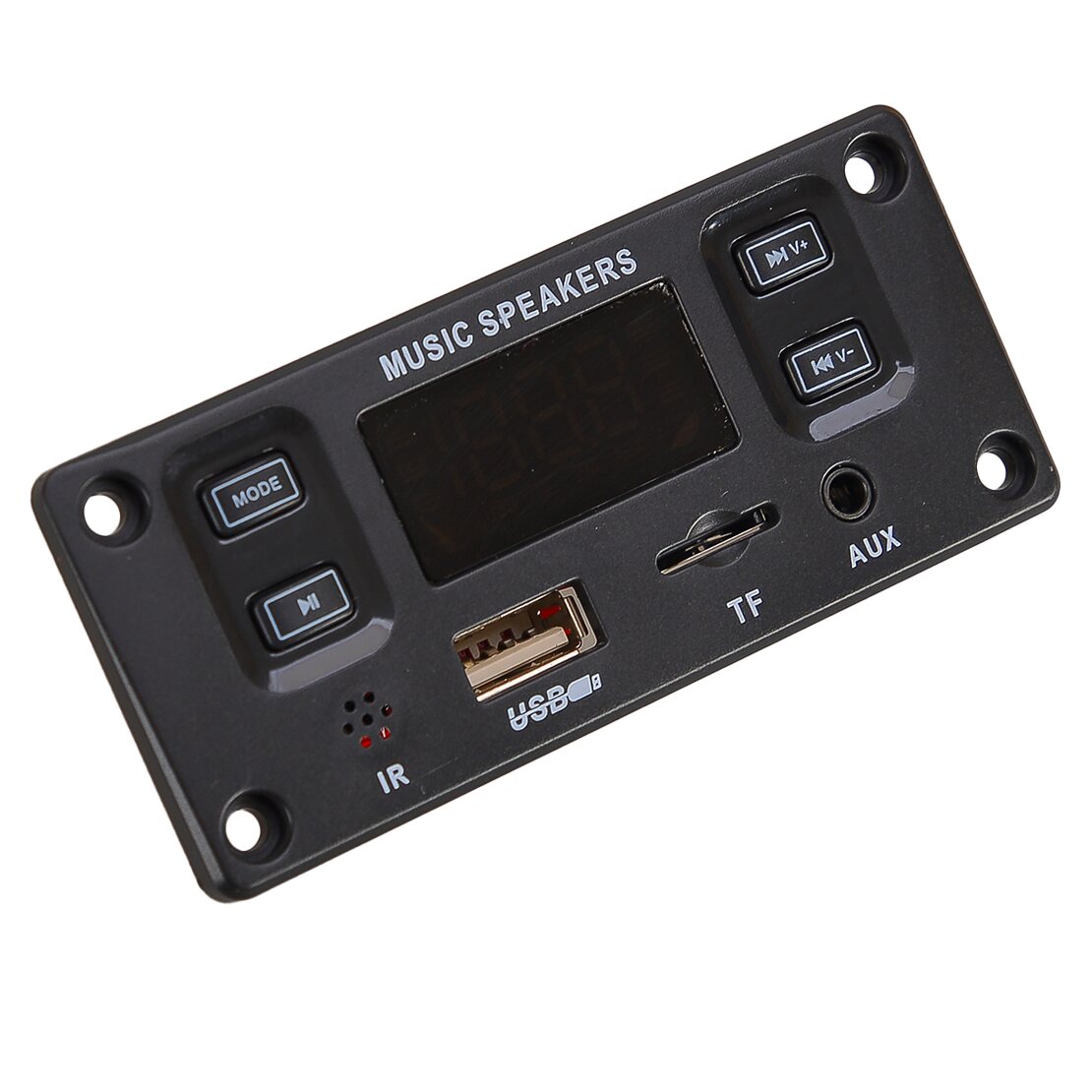

Key Function Description:

1) VOL-: long press volume down; in USB/TF/Bluetooth/Radio mode short press for the previous song/previous radio station.

2) PLAY: in USB/TF/Bluetooth mode short press for play/pause; long press for mode switching.

3) VOL+: long press volume up; in USB/TF/Bluetooth/Radio mode short press for the next song/next radio station.

4) MODE: for mode switching, a total of 5 modes (Bluetooth-TF-USB-FM-AUX).
