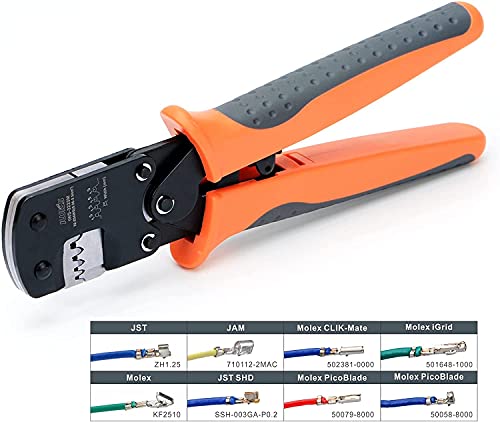

IWISS Crimping Pliers for JST Connectors, Ratchet Type Open Barrel 0.03-0.5 mm2
Description

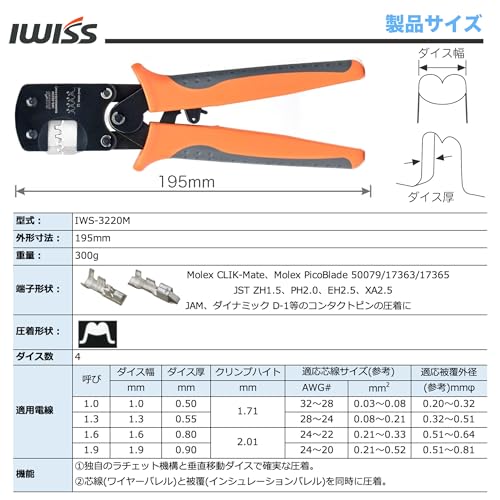

Total length: 195mm; Weight: 300g
Each die width: 1.0mm, 1.3mm, 1.6mm, 1.9mm
Outer diameter of each reference wire: 0.20~0.32mm, 0.32~0.51mm, 0.51~0.64mm, 0.51~0.81mm
Corresponding core wire sizes for reference: 0.03~0.08mm², 0.08~0.21mm², 0.21~0.33mm², 0.21~0.52mm²
Features: ① Reliable crimping with unique ratchet mechanism and vertically moving die. ②The elastic modulus and hardness of the die are high due to EDM processing. ③ Crimp the core wire (wire barrel) and sheathing (insulation barrel) at the same time.
Each die width: 1.0mm, 1.3mm, 1.6mm, 1.9mm
Outer diameter of each reference wire: 0.20~0.32mm, 0.32~0.51mm, 0.51~0.64mm, 0.51~0.81mm
Corresponding core wire sizes for reference: 0.03~0.08mm², 0.08~0.21mm², 0.21~0.33mm², 0.21~0.52mm²
Features: ① Reliable crimping with unique ratchet mechanism and vertically moving die. ②The elastic modulus and hardness of the die are high due to EDM processing. ③ Crimp the core wire (wire barrel) and sheathing (insulation barrel) at the same time.
