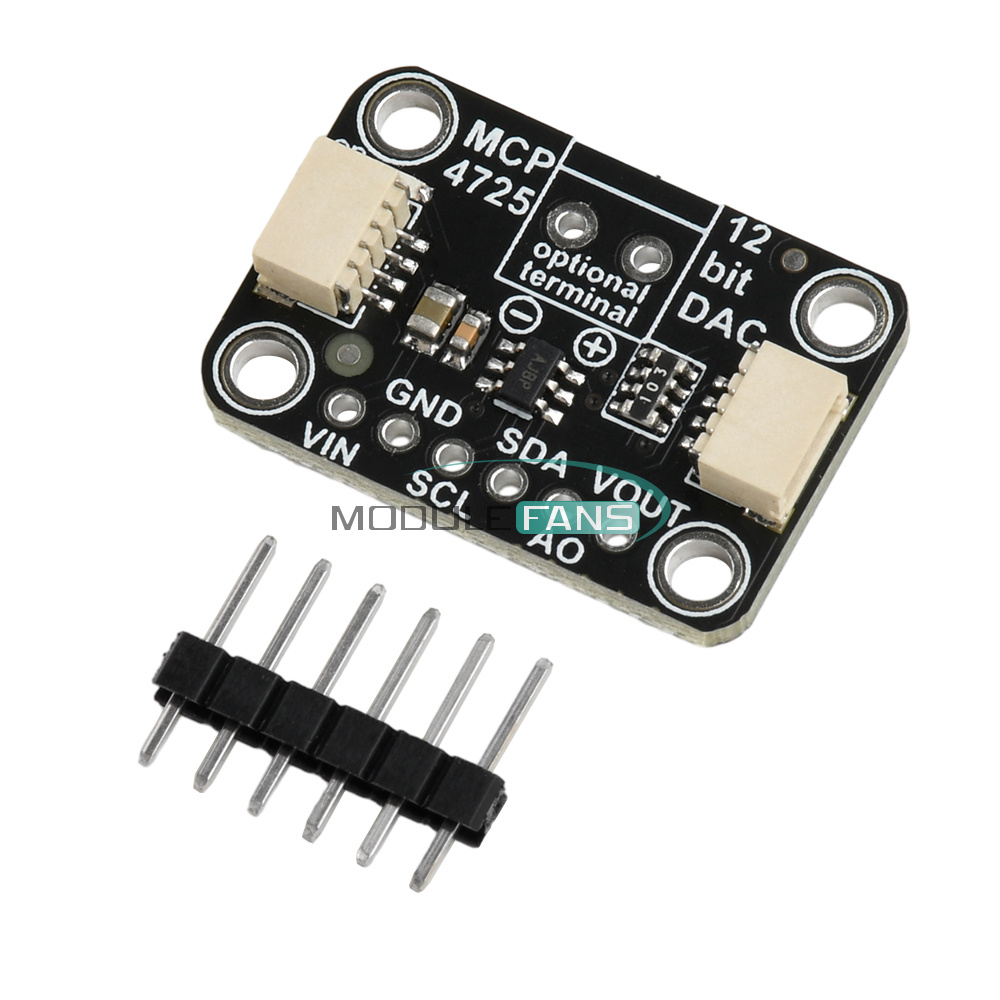

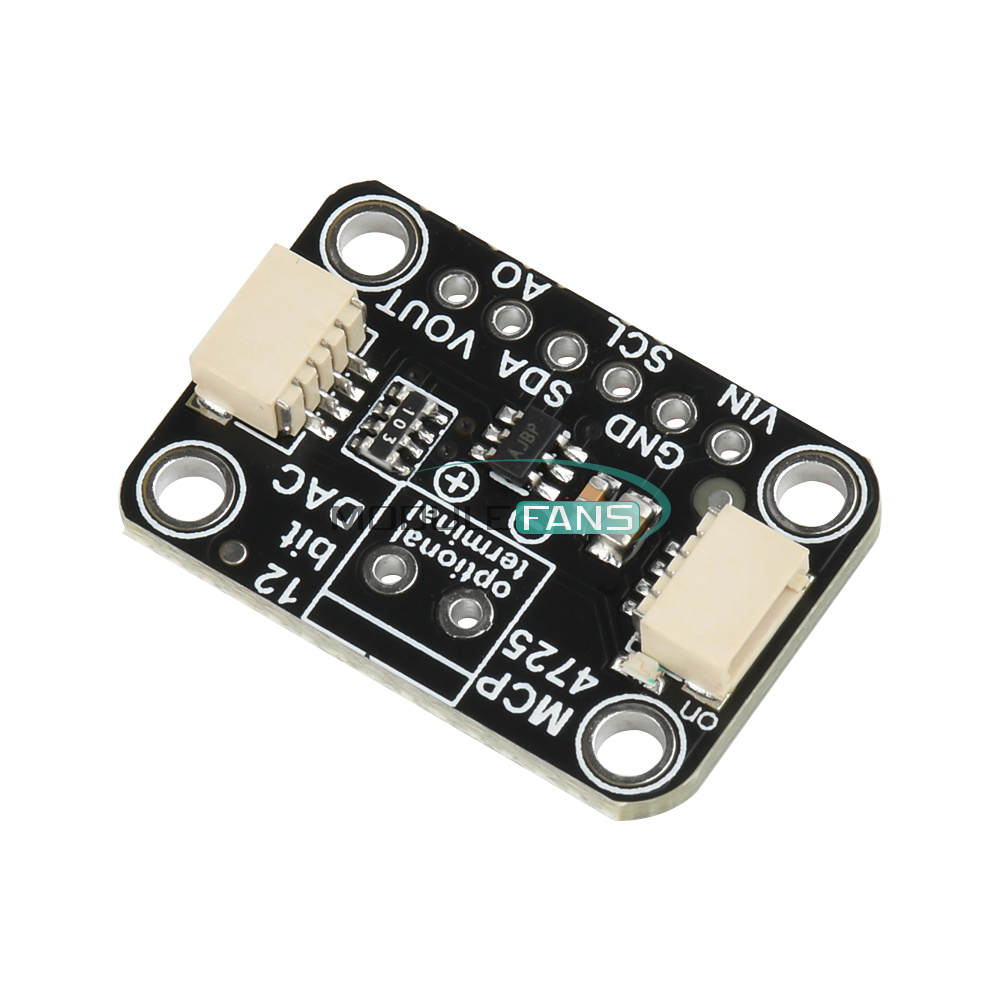

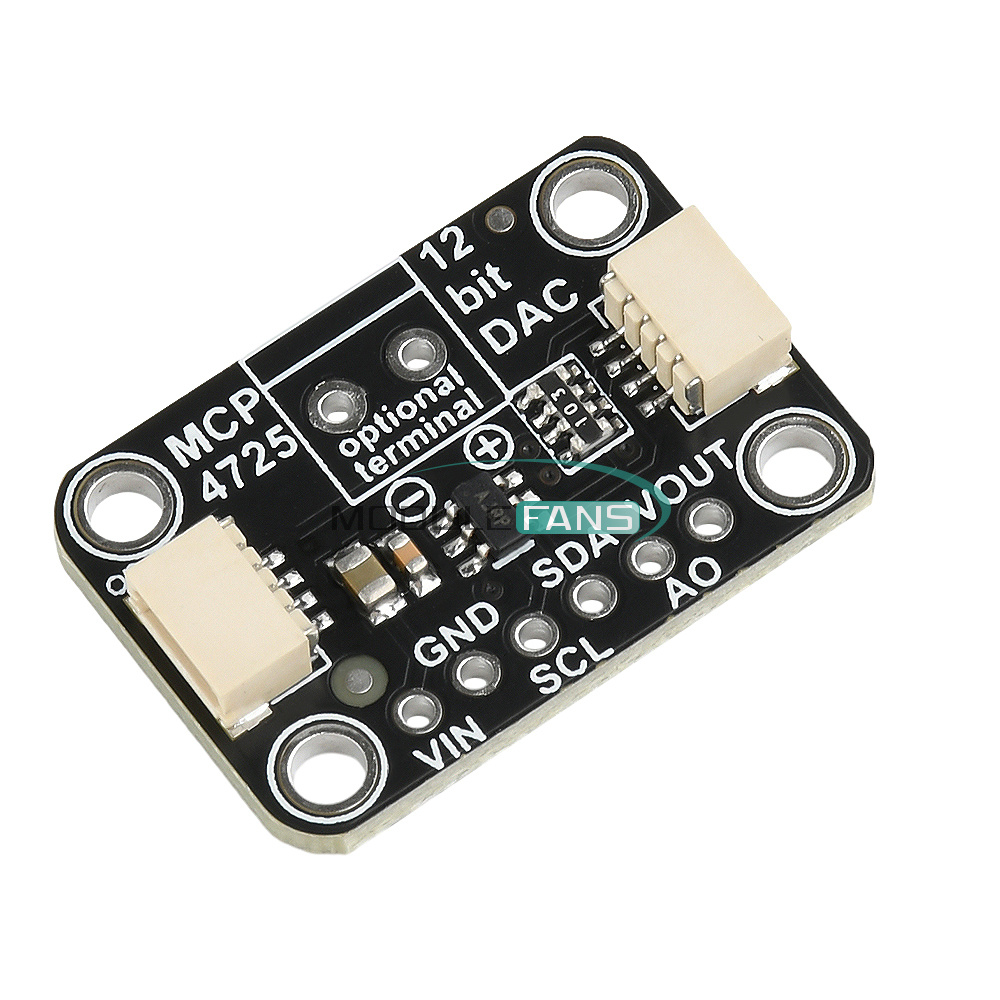

MCP4725 Breakout Board 12-bit I2C DAC Digital to Analogue Conversion Module DIY


Features
1. 12-bit resolution: MCP4725 provides 12-bit resolution, which means it can convert the input digital signal to 4096 different analogue voltage levels.
2. Integrated EEPROM Memory: The chip has a built-in EEPROM memory that stores the output voltage settings, even after a power failure.
3. I²C interface: The MCP4725 communicates using the standard I²C serial bus interface, which makes it easy to interface with microcontrollers or other digital circuits.
4. Dual Power Supply: The MCP4725 can be powered from a single 2.7V to 5.5V power supply, and also supports a low-power mode to conserve energy.
5. Internal Reference Voltage: An internal 2.048V reference voltage is integrated, making it possible to generate output voltages in a simpler way.
6. Fast Mode: Supports fast mode for faster output update rate.

Specification
Supply voltage: 2.7-5.5V
Chip: MCP4725 DAC

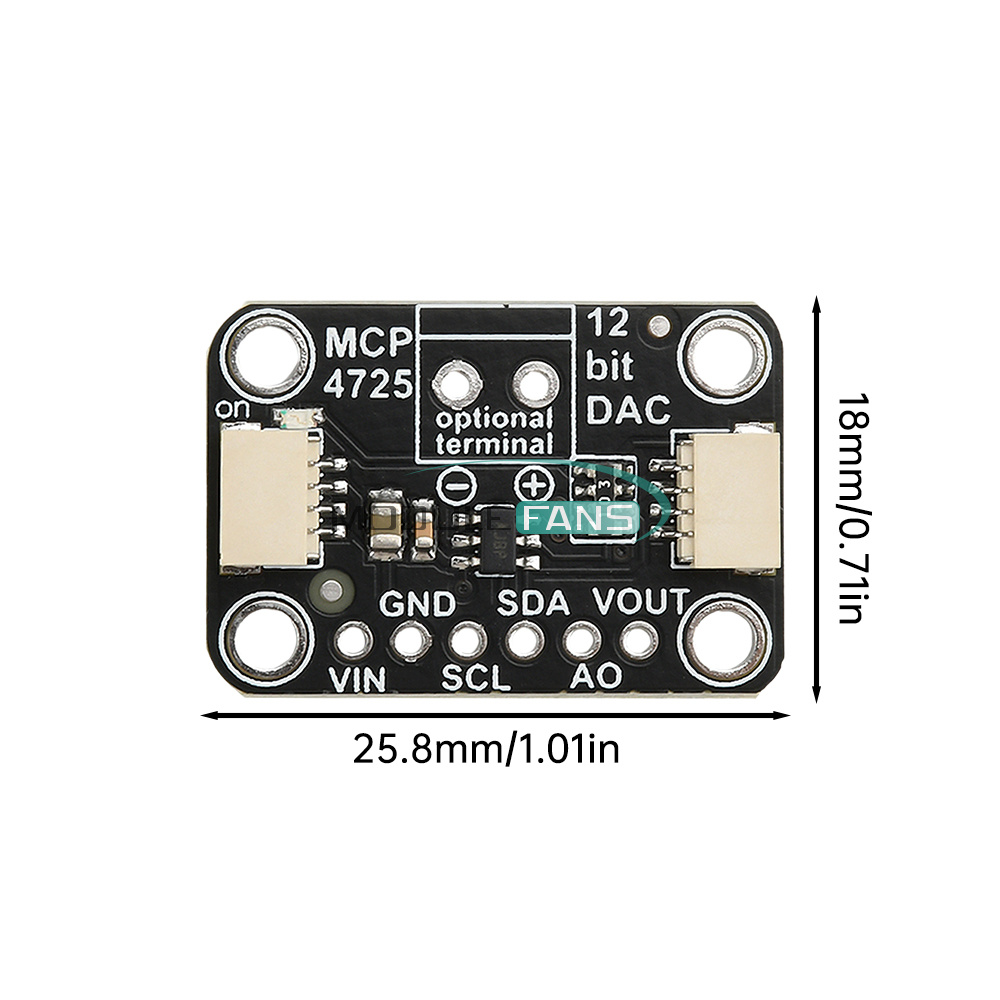

Product size :25*18*5mm

Applications
The MCP4725 DAC chip can be used in many applications that require an analogue output, including but not limited to:
Electronic regulation: regulation circuits used to control voltage, current or power.
Instrumentation: such as signal generators, oscilloscopes, etc.
Sensor calibration: to convert digital sensor outputs into corresponding analogue quantities.
Audio equipment: for audio signal processing and control.

Package includes
1 x Breakout board
1 x Pin

Precautions
When using the MCP4725, you need to pay attention to the following points:
Ensure that the chip is properly configured and initialised to obtain the required output accuracy and range.
Consider power supply and ground wiring in the design to ensure good signal integrity and stability.
For specific applications, precise calibration and adjustment may be required to ensure that the output voltage meets the requirements.
Overall, the MCP4725 is a feature-rich, easy-to-use and flexible DAC chip for a variety of application scenarios requiring analogue outputs.
