1. This driver board is equipped with reverse connection protection, and reversing the power supply will not burn the board
2. If the forward and reverse rotation of the motor is changed during operation, the motor will immediately reverse after stopping
3. When the brake is applied to a low potential, it will immediately stop the motor and prevent its inertia
4. The wiring is simple, just connect the three wires of the brushless motor and the positive and negative poles of the power supply to use it
5. The product comes with a potentiometer for speed regulation and supports PLC 0-5V analog signal speed regulation

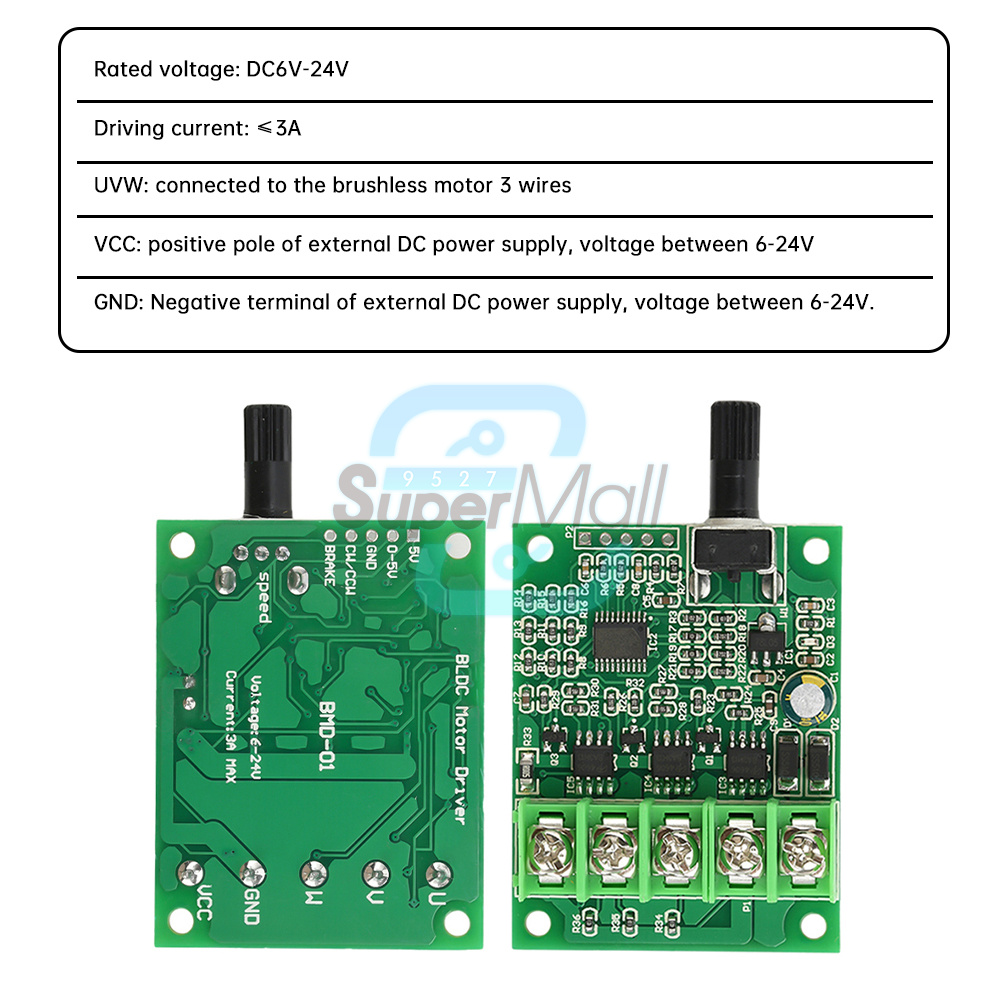

Rated voltage: DC6V-24V
Drive current: ≤ 3A

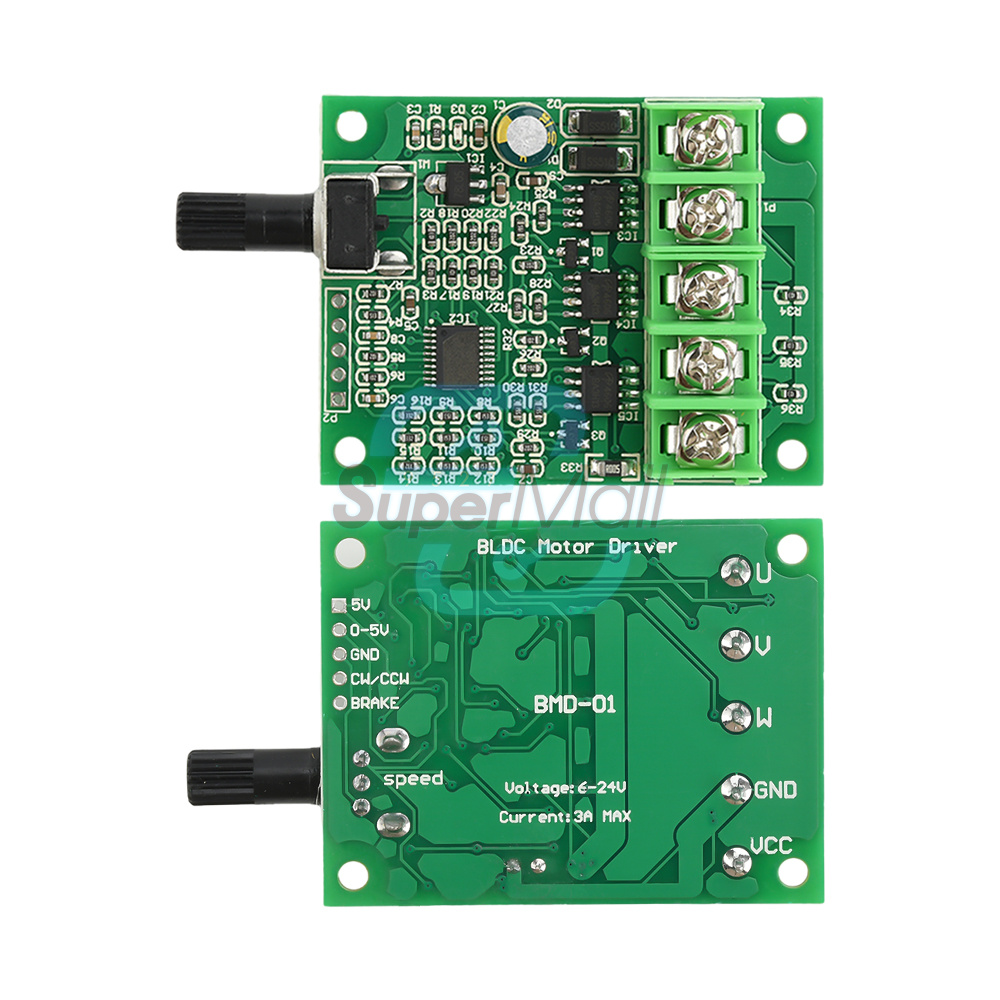

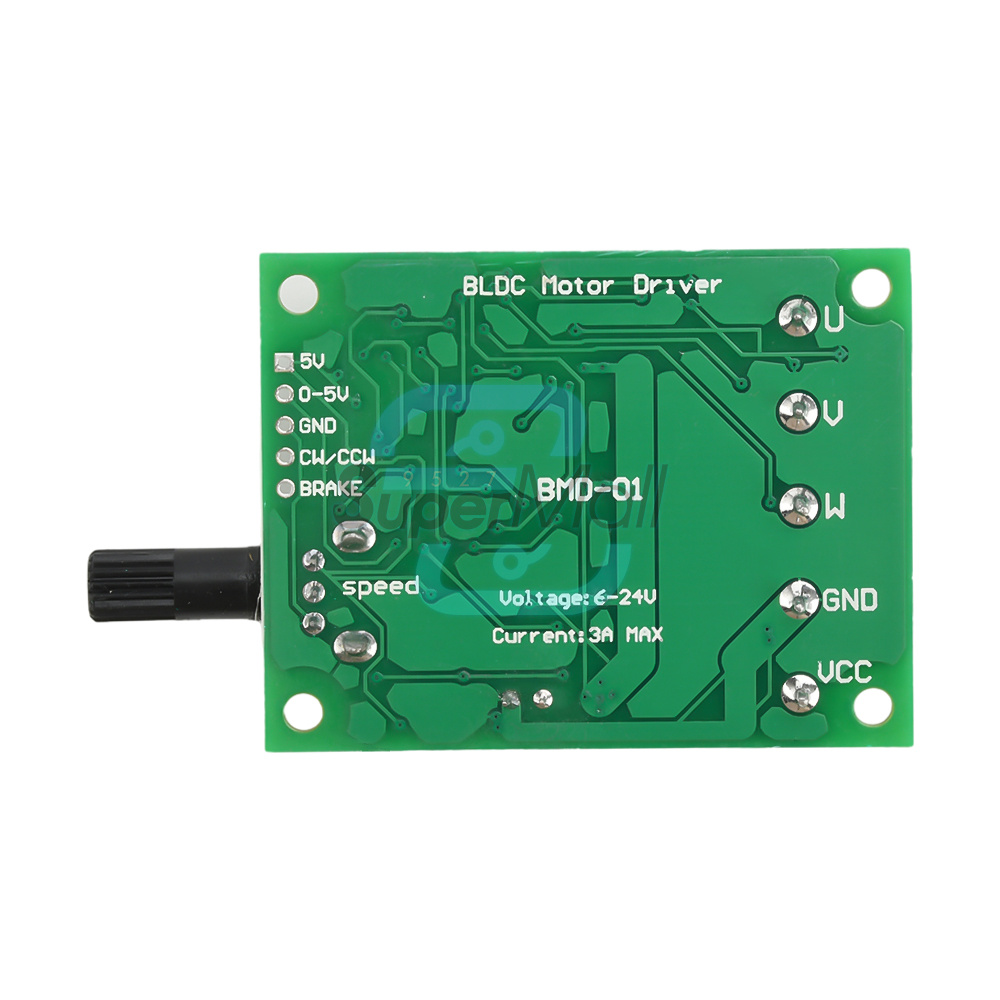

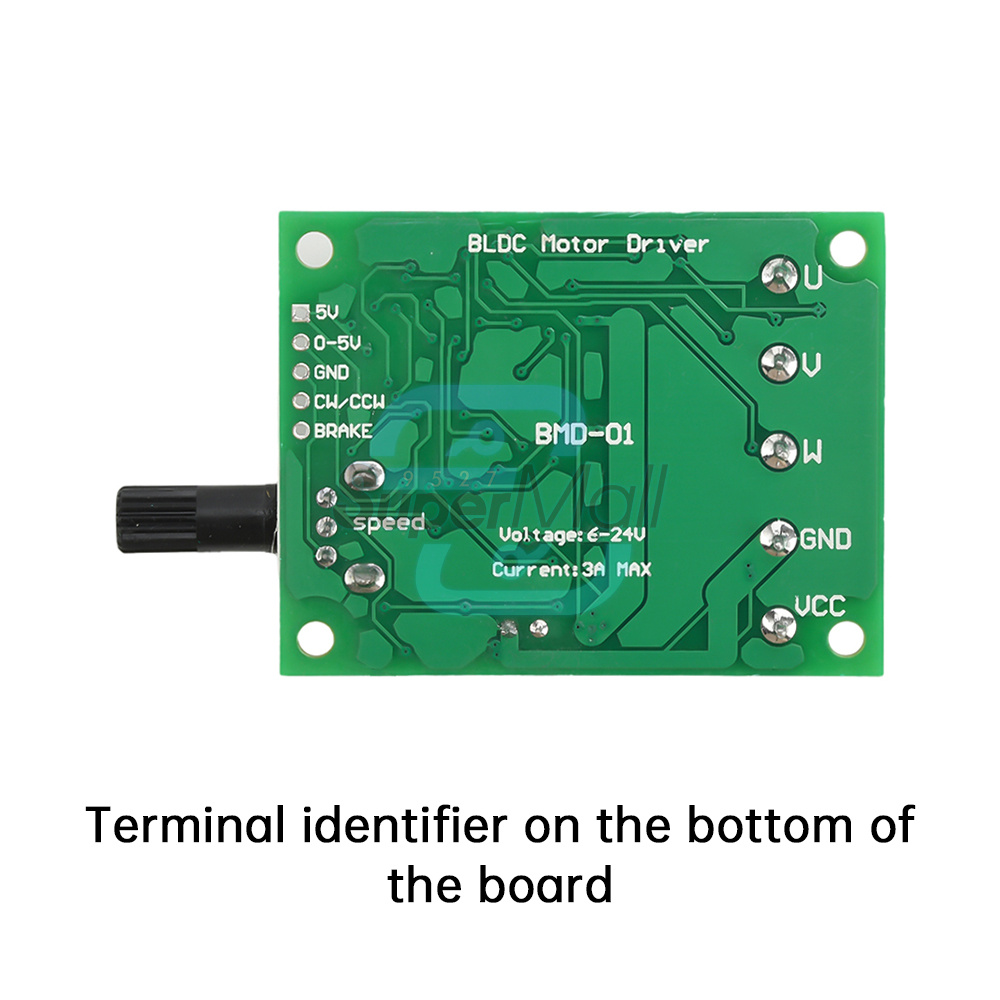

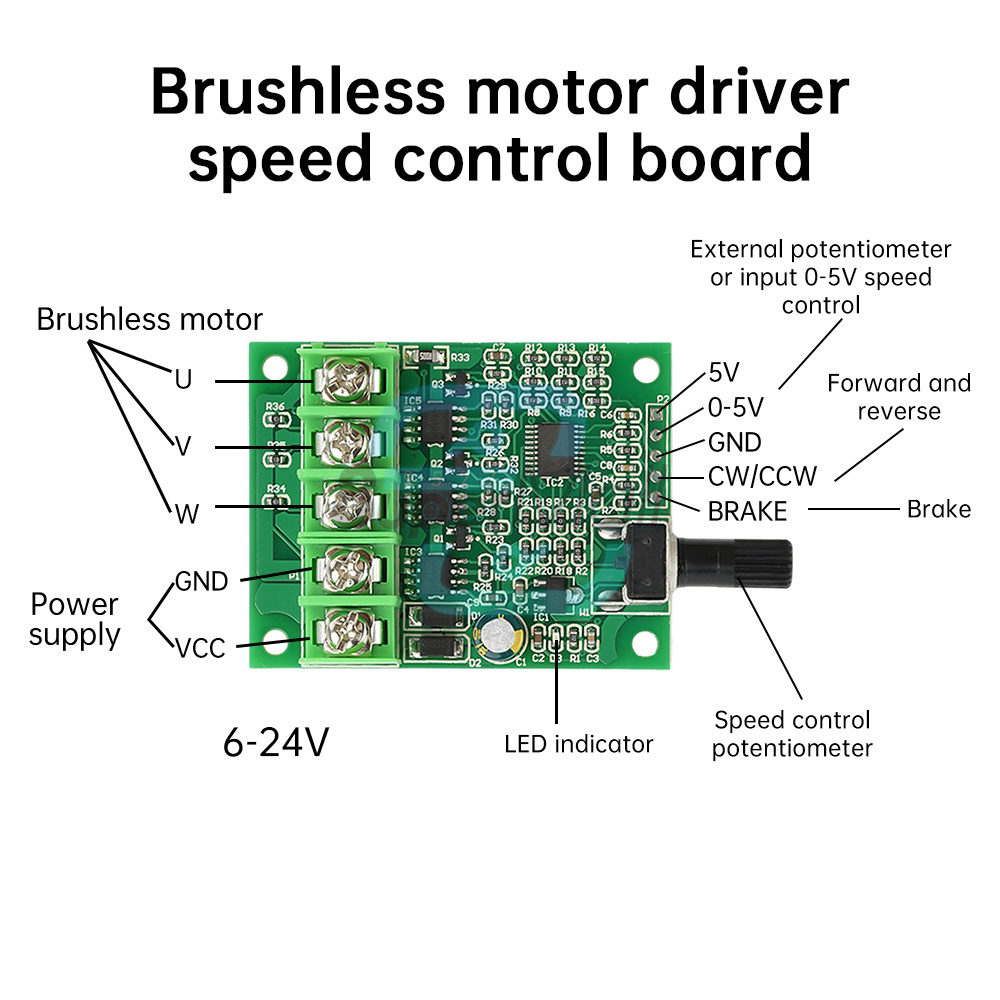

UVW： Connect 3 wires to the brushless motor
VCC： Positive pole of external DC power supply, voltage between 6-24V
GND： External DC power supply negative pole, voltage between 6-24V

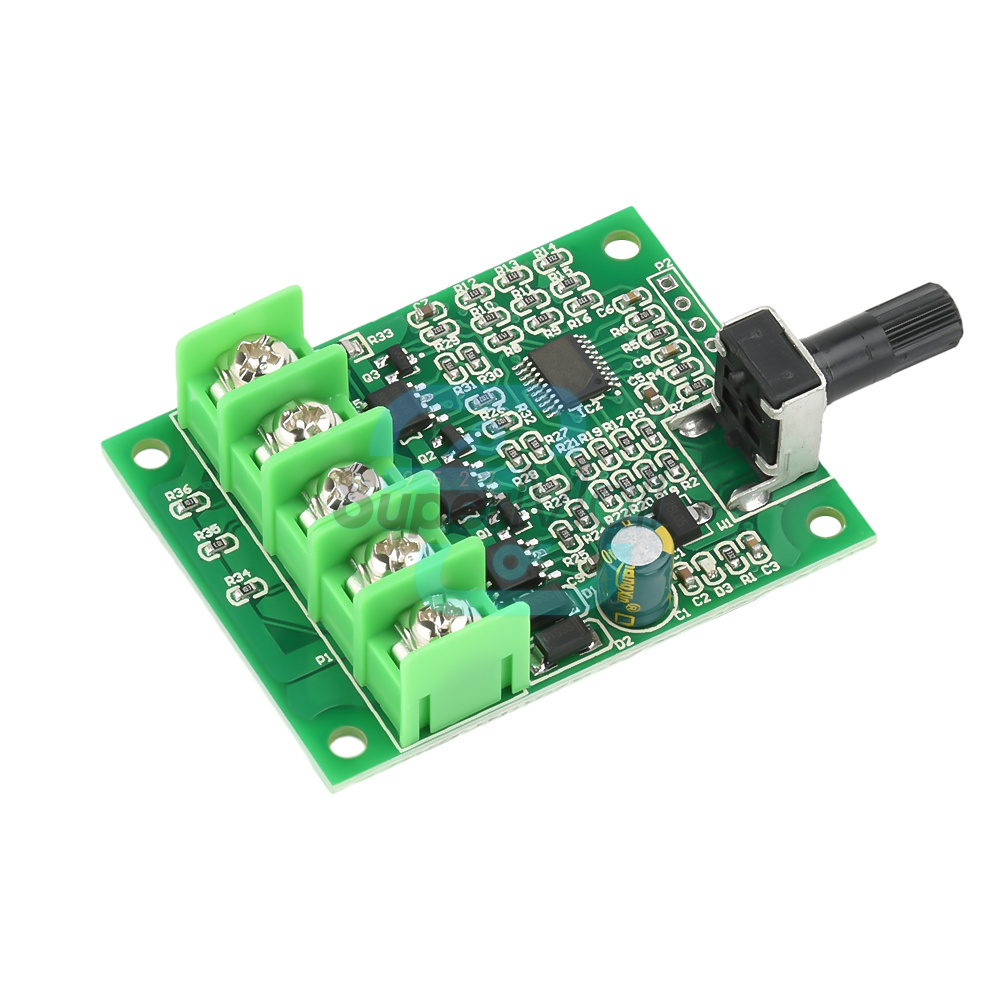

Product Introduction:

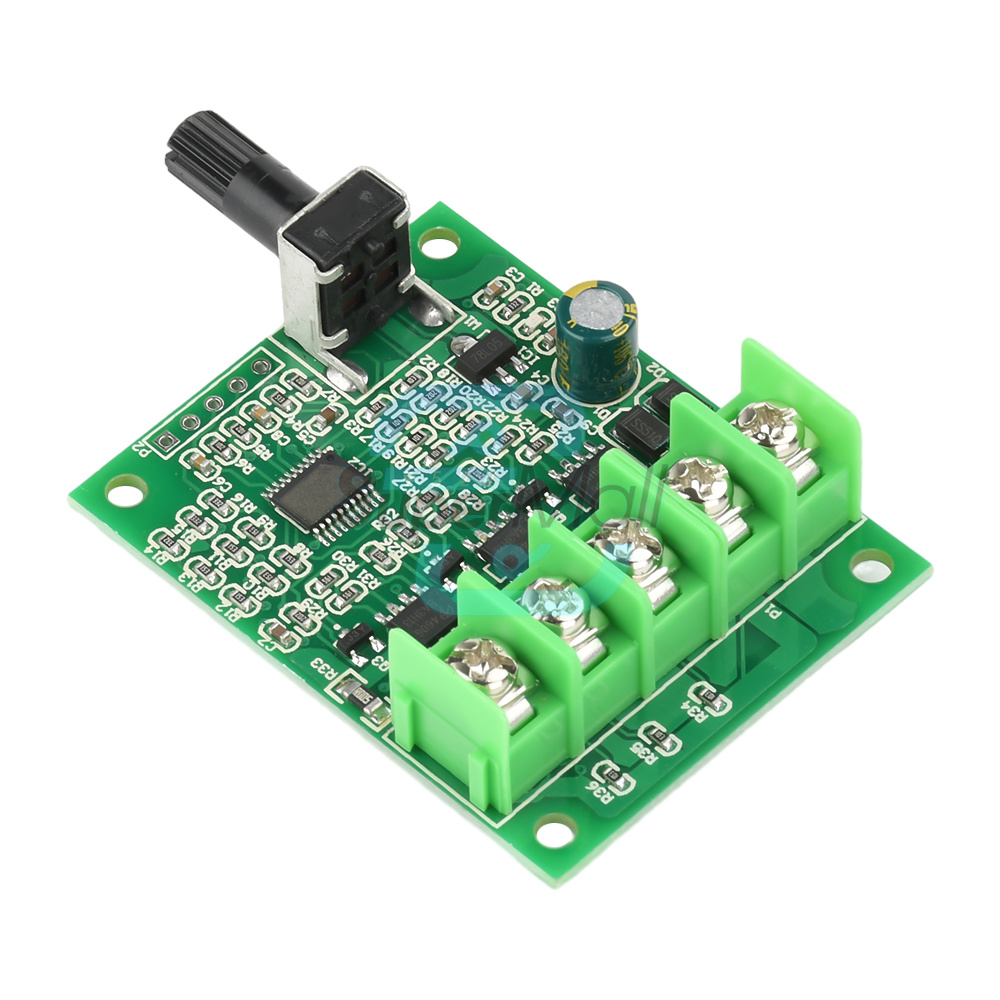

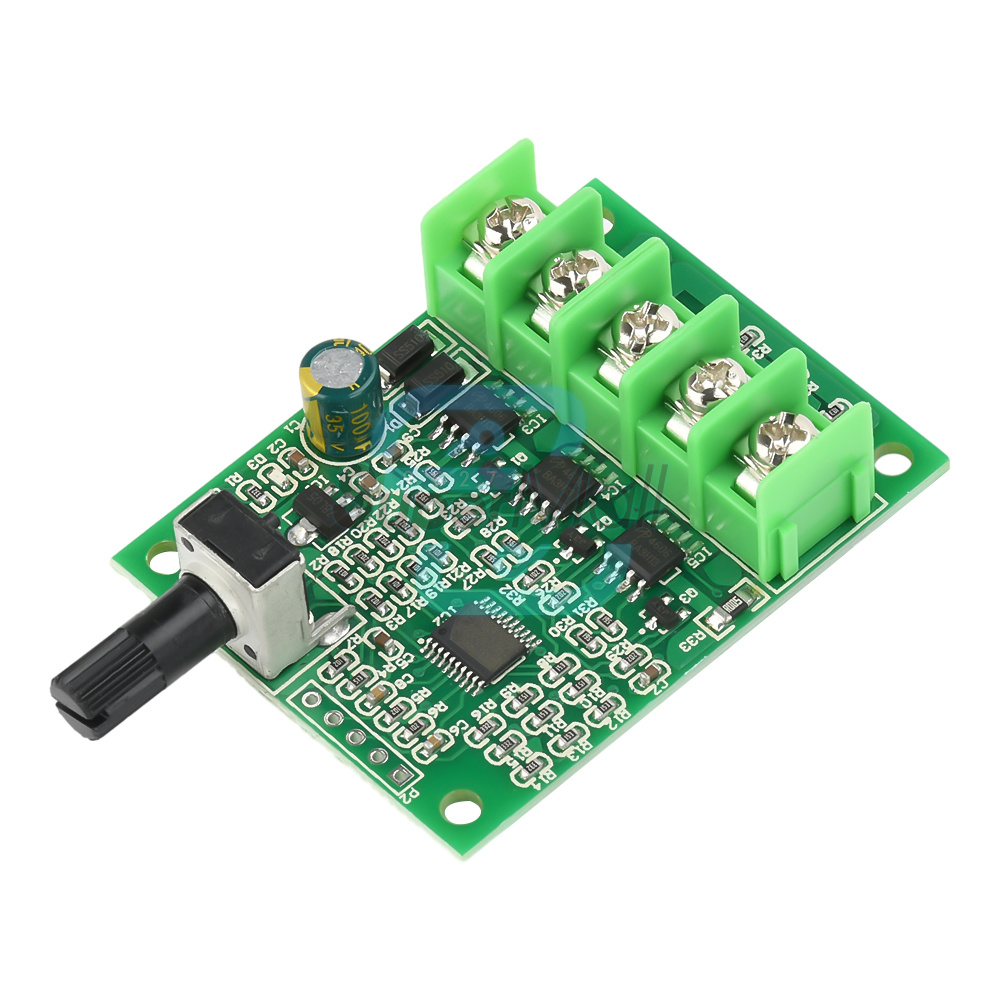

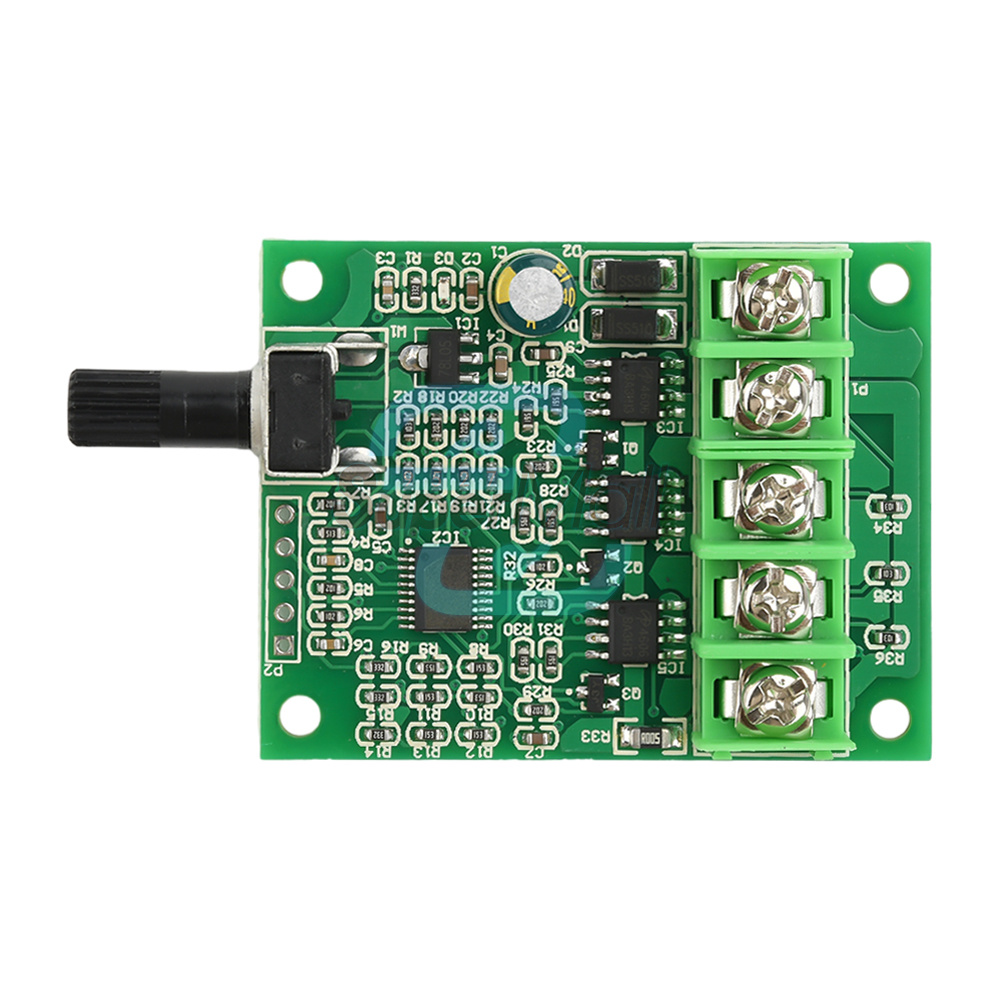

This driver is a DC three-phase brushless Hall control board that can directly drive and control hard disk motors or other low-power brushless motors. When driving a 4-wire hard drive motor, the common line does not need to be connected.
Control interface description:
1. CW/CCW is forward and reverse, BRAKE is brake low level effective (ground GND), which can be controlled by switches or high and low level control by microcontrollers or PLCs
2. If an external potentiometer is needed for speed regulation, connect three wires from the interface to the potentiometer. The three wires are 5V to 5V GND and are connected in sequence. The potentiometer resistance can be selected to be around 10K. The 0-5V and GND interfaces can also be connected to external microcontrollers or PLCs for 0-5V analog speed regulation
Motor drive control board * 1
