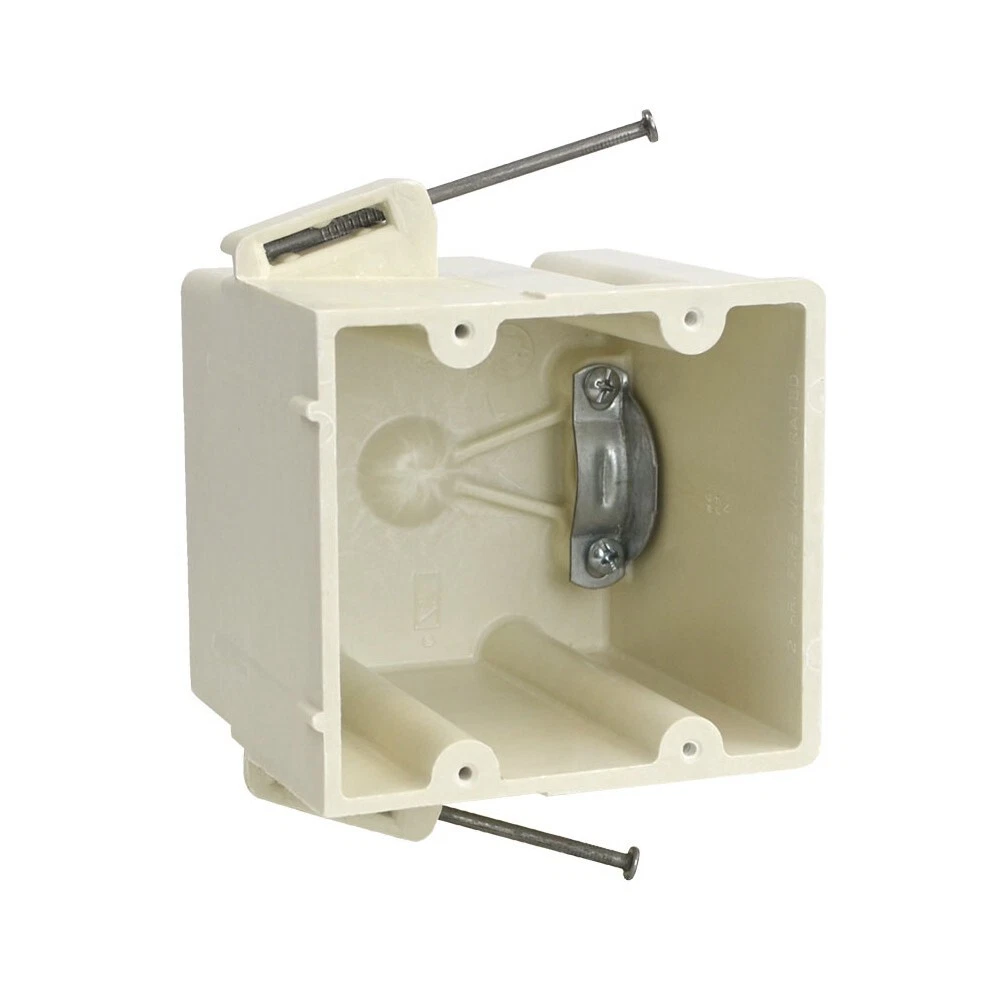

Allied RD-42 3-13/16'' Depth Range/Dryer/Car Charger Electrical Box
Click Thumbnails to Enlarge
DESCRIPTION
• Allied RD-42 Range/dryer/car charger electrical box for use with nonmetallic sheathed cable
APPLICATION
• New work residential construction 2 HR fire resistive walls
FEATURES
• Machine Tapped Holes For 2-Position Device
• Internal Metal Clamp for Easy Wire Adjustment
• Offset Gauge Marks
• Leveling Ribs
• Rigid Hard Box Construction
• ;No Distortion With High Temperatures
• Shatter Resistant With Low Temperatures
MATERIAL
• Fiberglass Reinforced Polyester
STANDARDS
• ANSI / UL 514C: File No. E30594
• UL Listed
FIRE CLASSIFICATION
• Fire Test of Building Construction Materials ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
• Fire Resistance Classification in Wall Assemblies 2-Hours or less. (Shall be separated by a horizontal distance of not less than 3 inches)
PRODUCT SPECIFICATIONS
| Part Number | RD-42 |
|---|---|
| Mounting Description | Nail-on with fetter ring nails |
| Box Type | Wall - Switch/Receptacle |
| Box Features | Nails |
| Installation Type | New Work |
| Height | 3-3/4 in |
| Width | 4 in |
| Depth | 3-13/16 in |
| Volume | 42 cu. in |
| Weight (lbs/each) | 0.92 |
