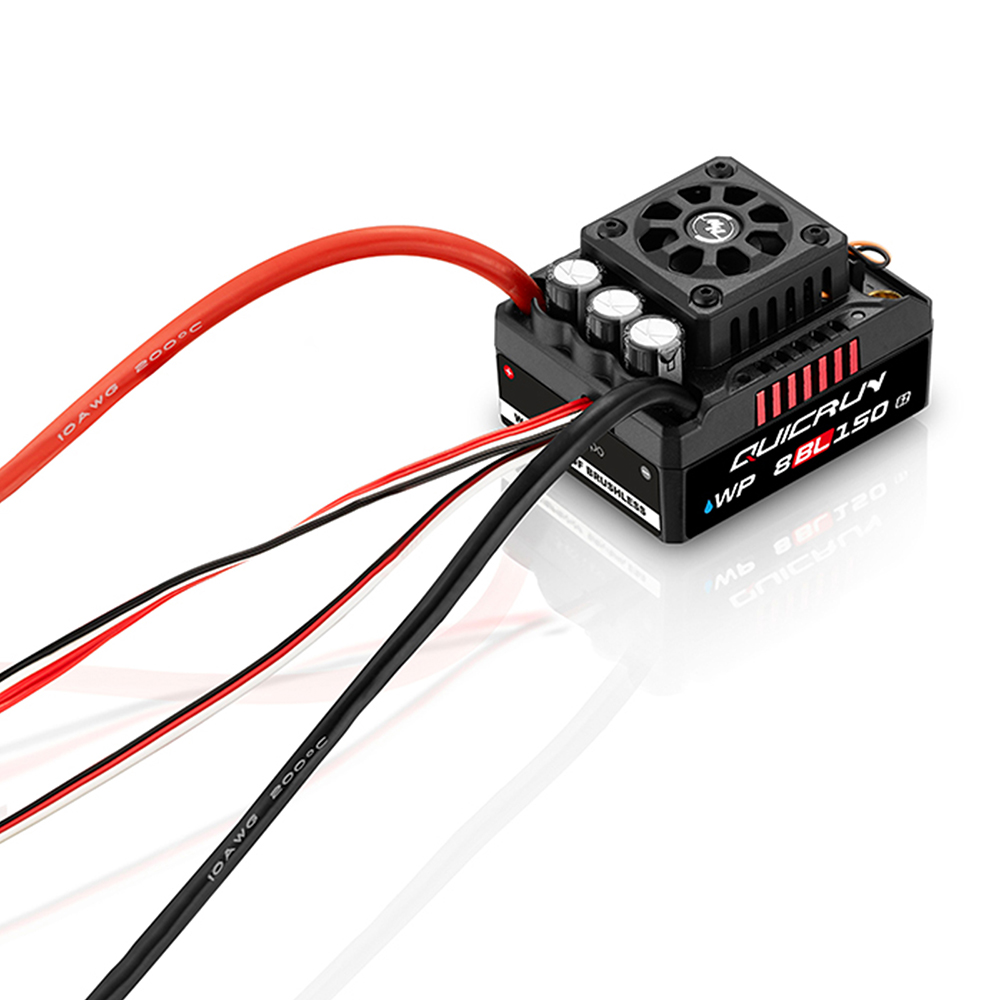

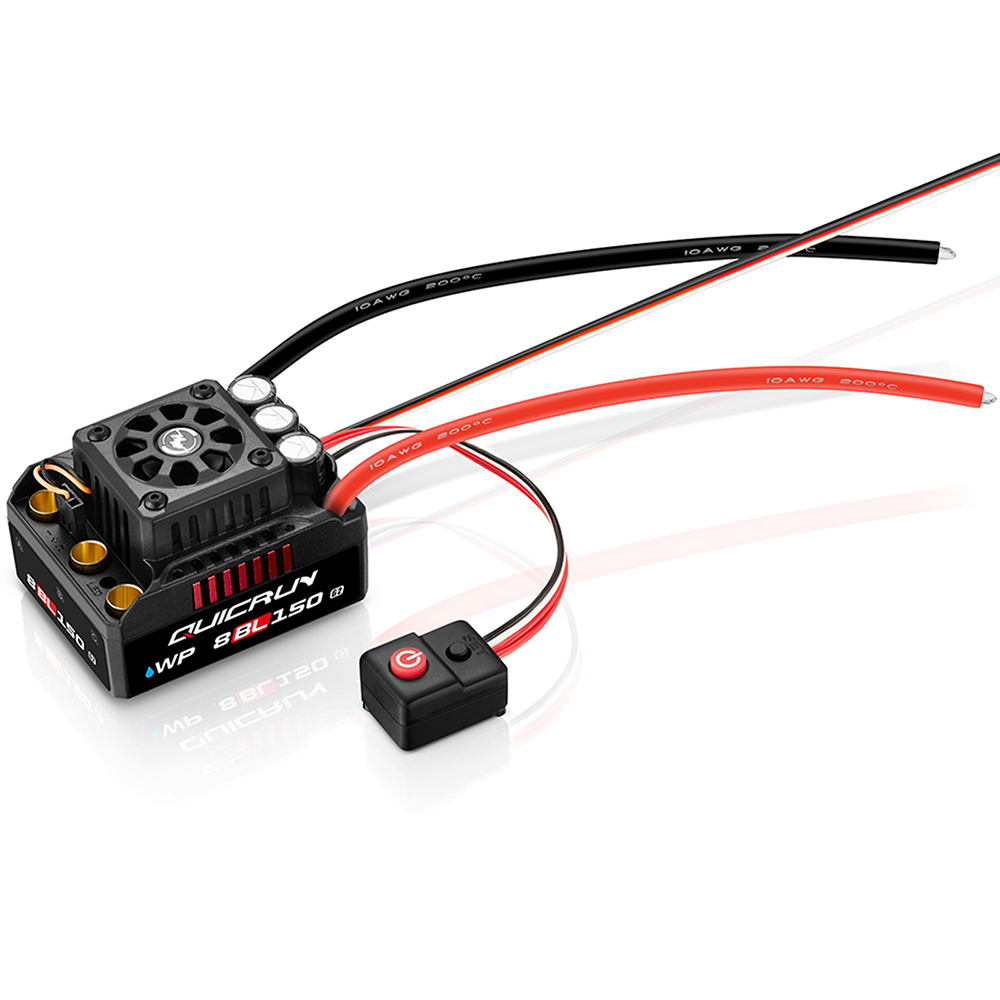

Hobbywing Quicrun 8BL150 G2 ESC 3-6S 150A lP67 Waterproof Built-in 2040uF Capacitor Brushless Sensorless For 1/8 Truck Monster Truck

Features:

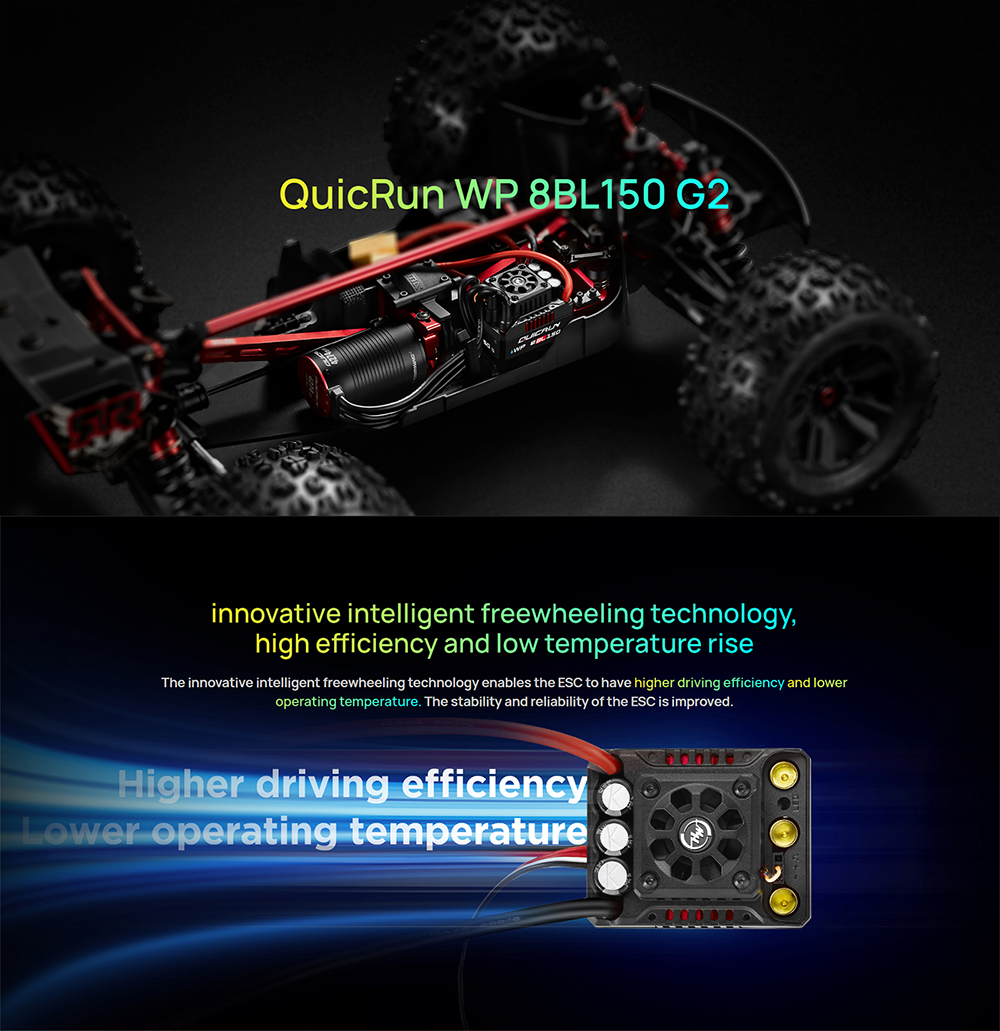

1. Higher driving efficiencyower operating temperature,The stability and reliability of the ESC is improved.

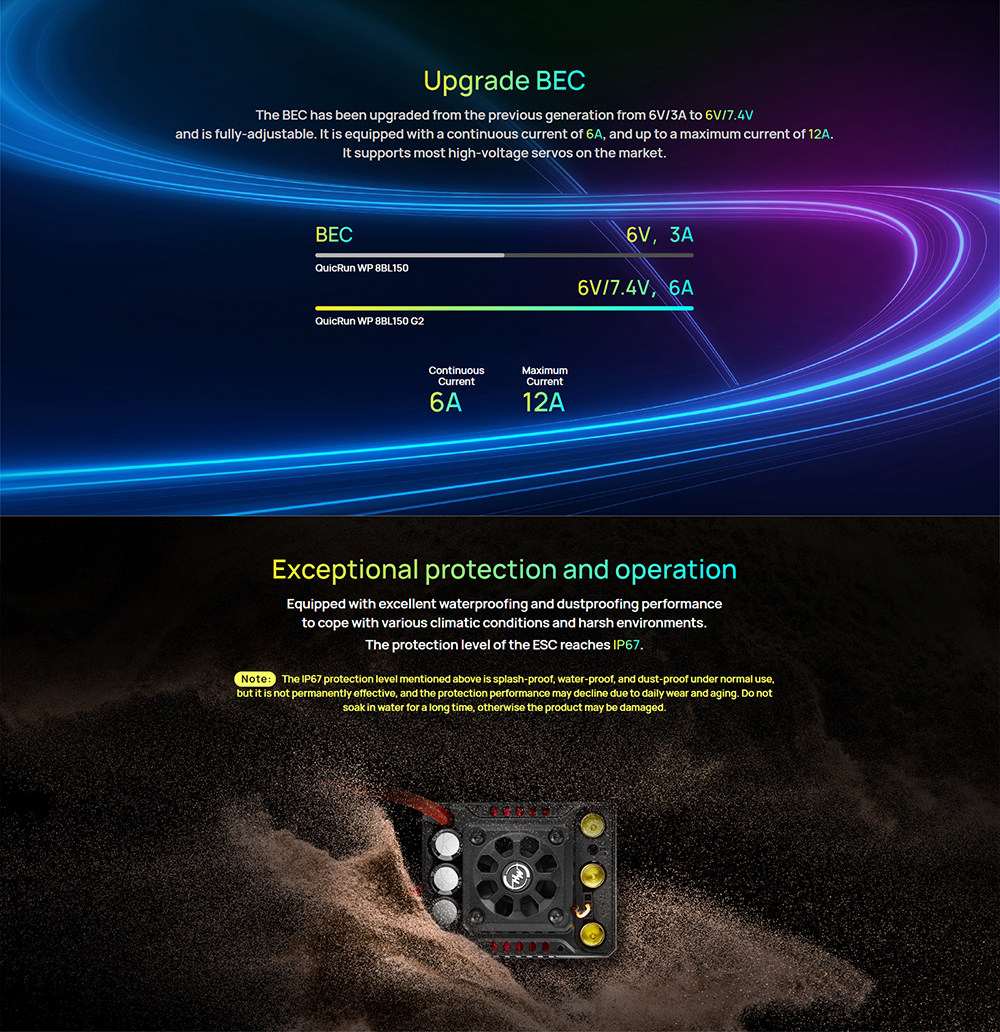

2. The BEC has been upgraded from the previous generation from 6V/3A to 6V17.4Vand is fully-adjustable.
3. Equipped with a continuous current of 6A, and up to a maximum current of 12A,It supports most high-voltage servos on the market.
4. lP67 protection level waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments.

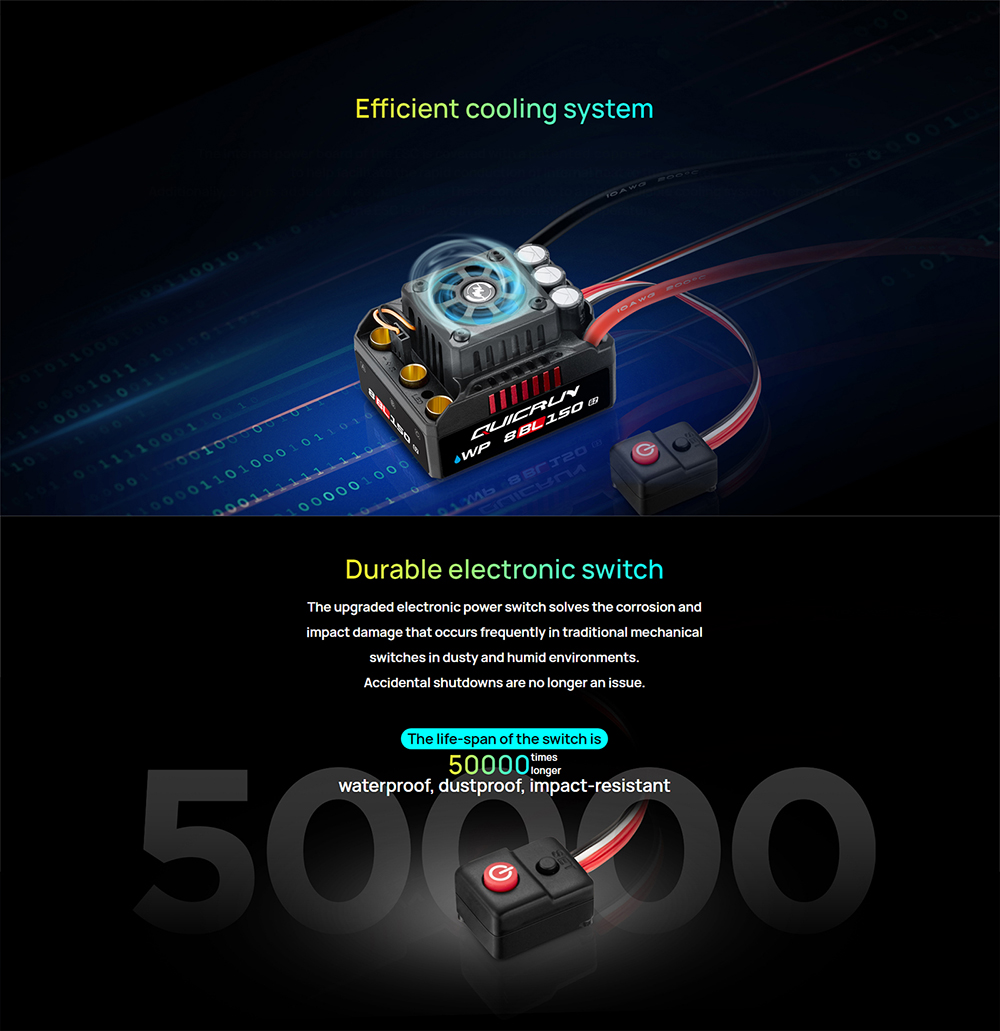

5. The internal power board of the Esc is covered with a patented copper heat conduction bus barto help facilitate the rapid conduction of internal heat to the radiator.Additionally, a fan is added to dissipate heat.

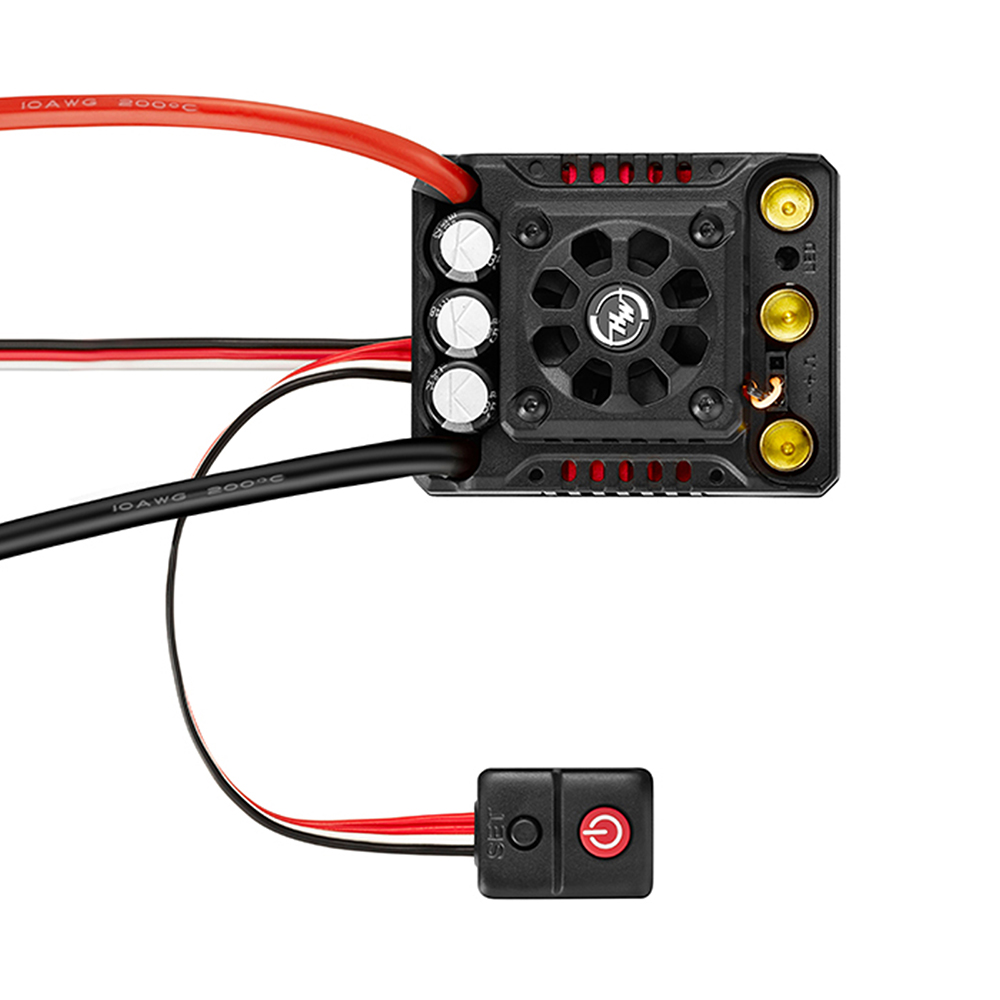

6. Durable electronic switch,The life-span of the switch is 50000 times longer waterproof, dustproof, impact-resistant.

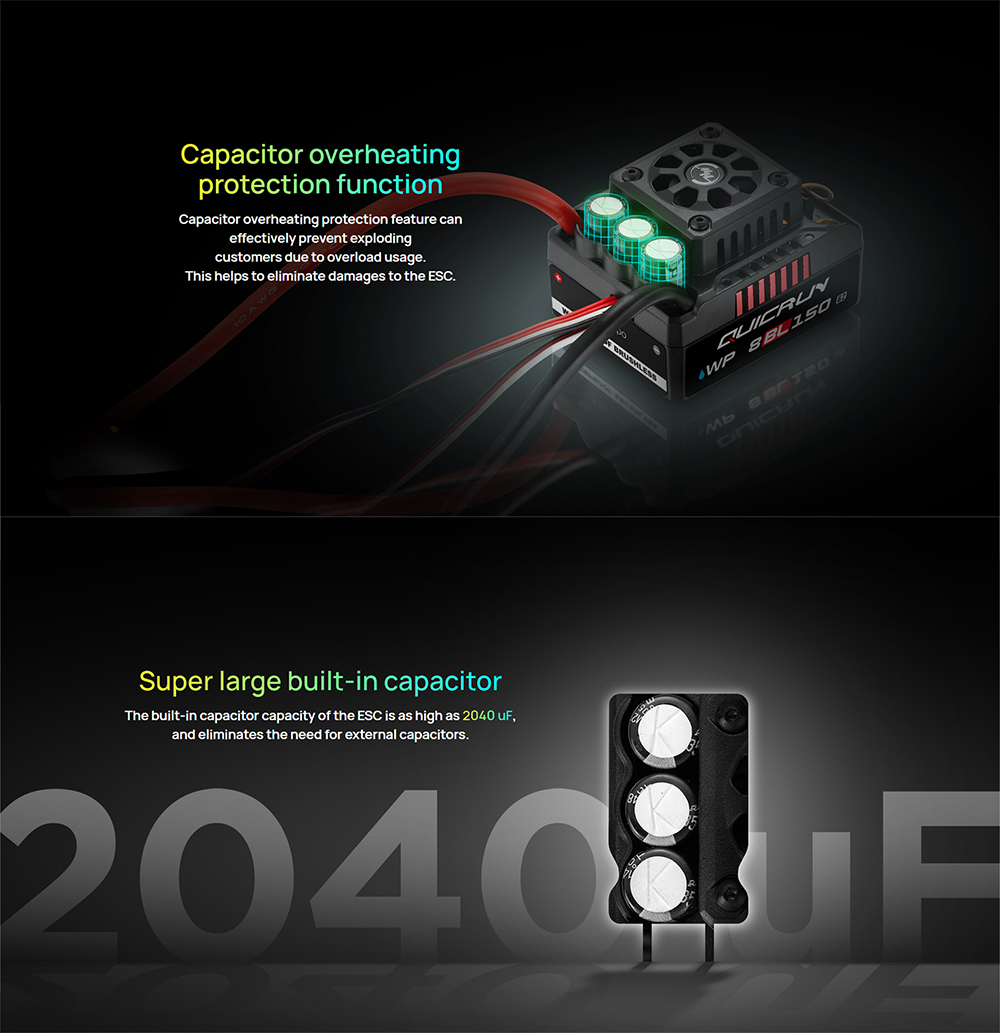

7. Built-in capacitor capacity of the ESC is as high as 2040uF and eliminates the need for external capacitors.
8. Capacitor overheating protection feature caneffectively prevent explodingcustomers due to overload usage.This helps to eliminate damages to the ESC.
9. Applicable motors:With 4S Lipo: KV ≤ 3000,With 6S Lipo: KV ≤ 2400 4274 size motor.

Description:
Hobbywing Quicrun 8BL150 G2 Brushless Sensorless,Built-in 2040uF eliminates the need for external capacitors,lP67 protection level waterproofing and dustproofing performance to cope with various climatic conditions and harsh environments.

Specifications:

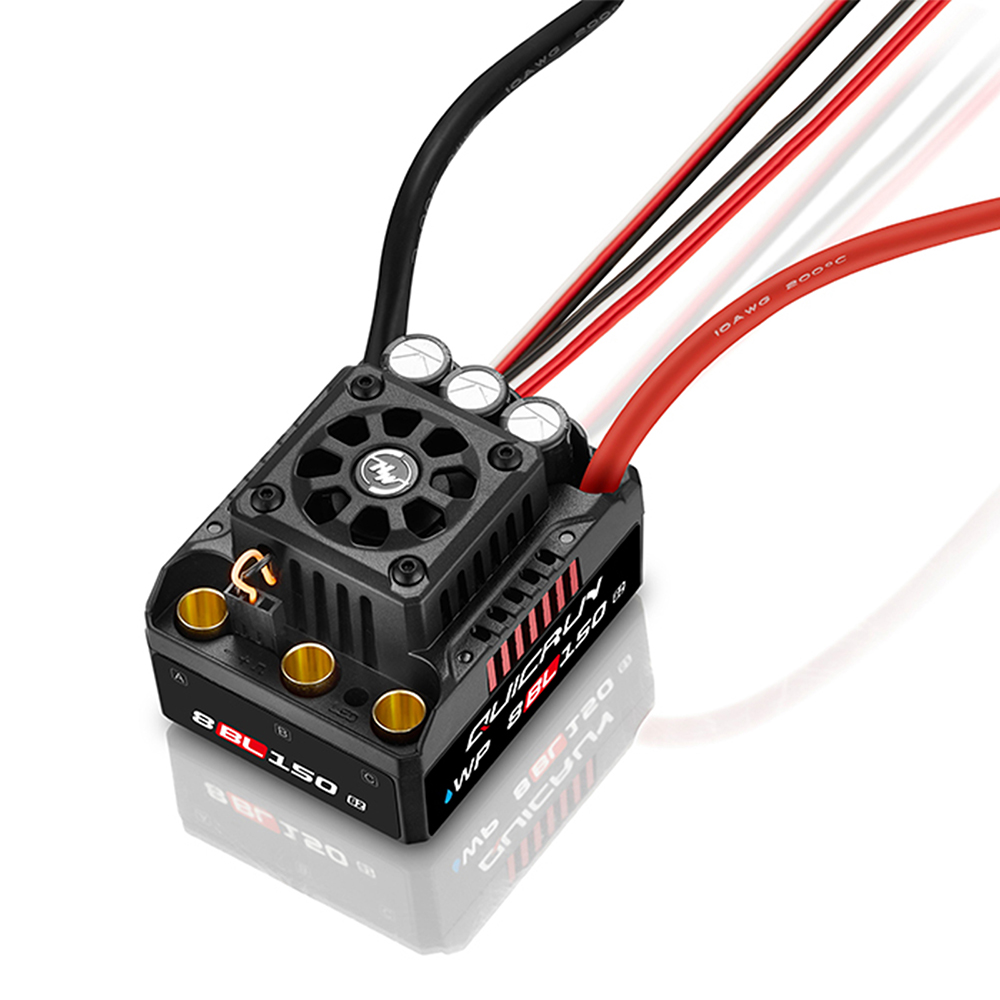

Item: Quicrun 8BL150 G2 ESC
Scale: 1/18th
Truck Monster truck
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Waterproof: Waterproof
Cont./Peak Current: 150A/950A
Input Voltage: 3-6S Lipo
BEC Output: Switch Mode 6V17.4V @6A
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
OTA Programmer: Not Supported
Program Port: Separate Program Port
Fan Size: 30.0x30.0x10.0mm
Fan Output Wires: 5-7.4V
Fan Input Connectors: Powered by BEC
Firmware Upgrade: Not Supported

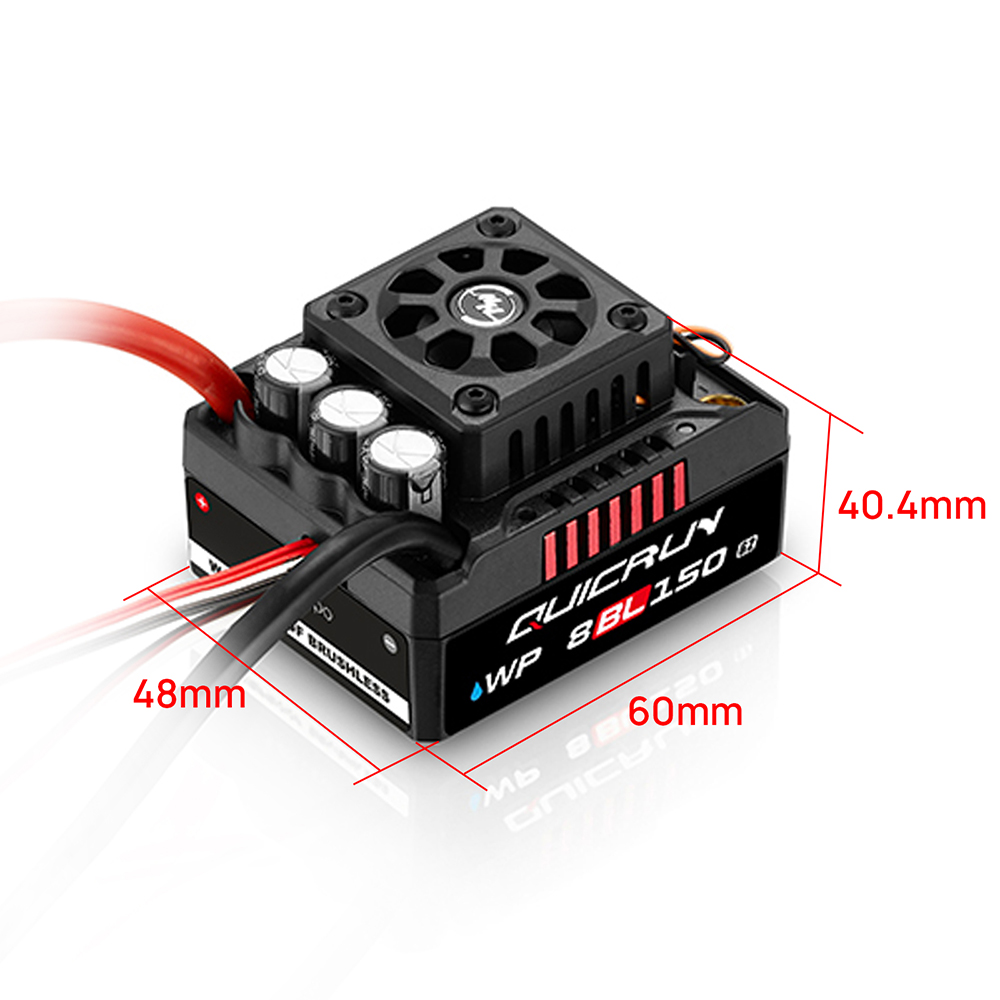

Size: 60*48*40.4mm
Weight: 261.4g(Included wires)
Input WiresOutput Connectors: Black-10AWG-150MM/Red-10AWG-150MM6.5mm Gold (female)

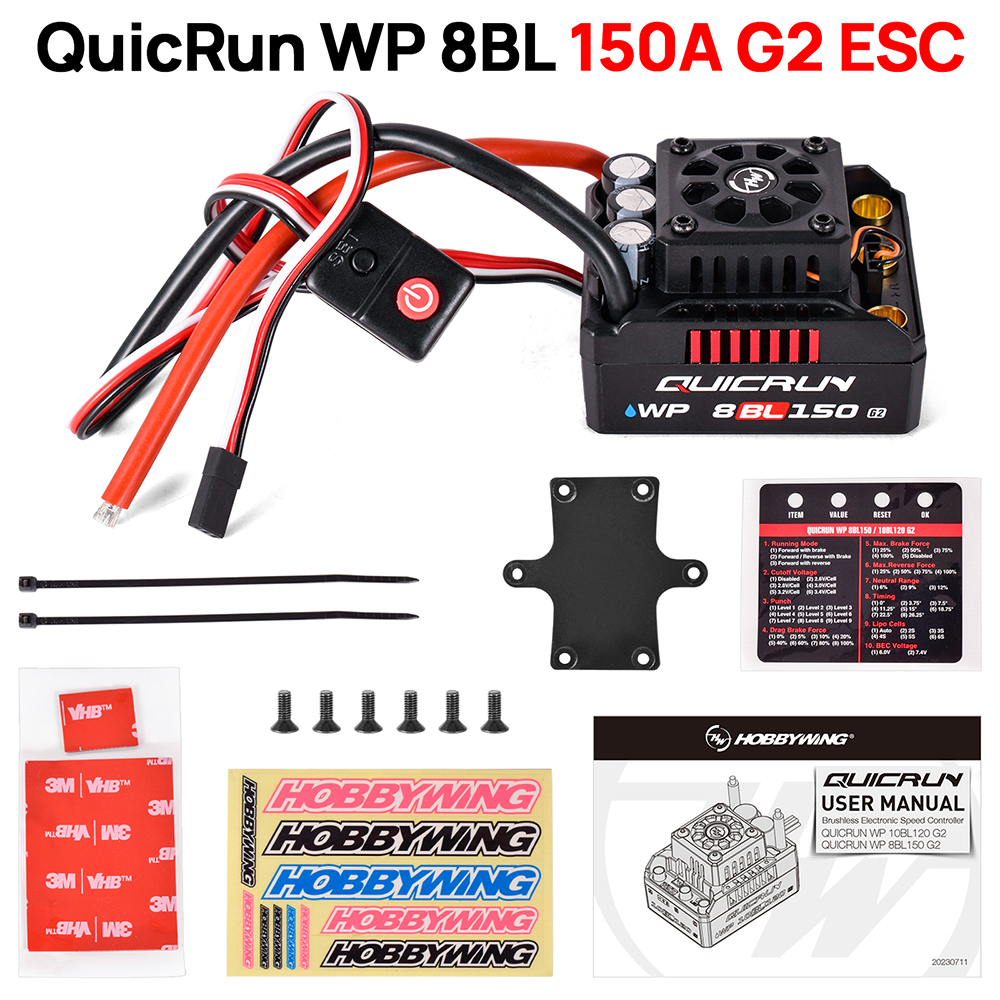

Package contents:
1* Quicrun 8BL150 G2 ESC
