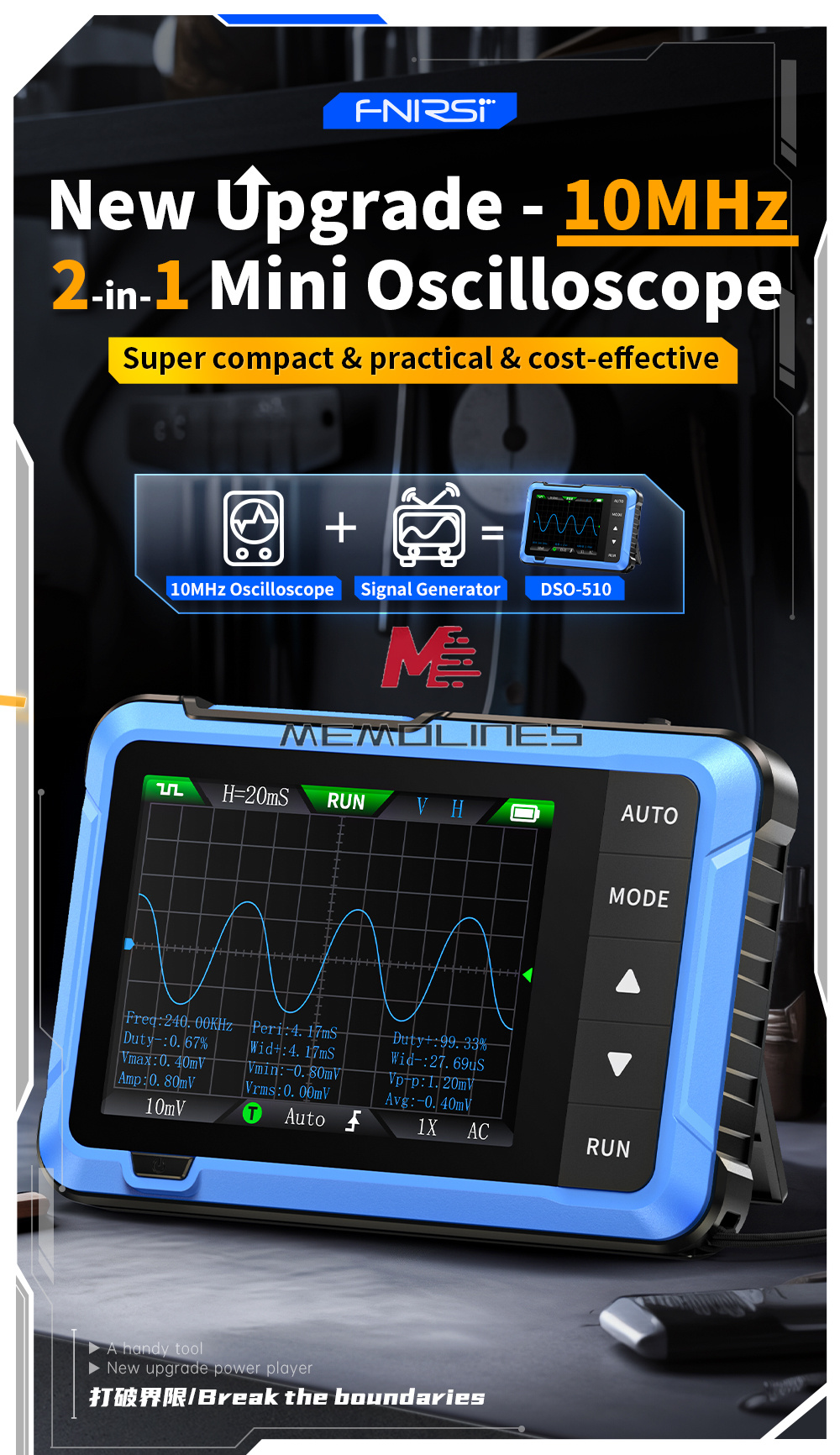

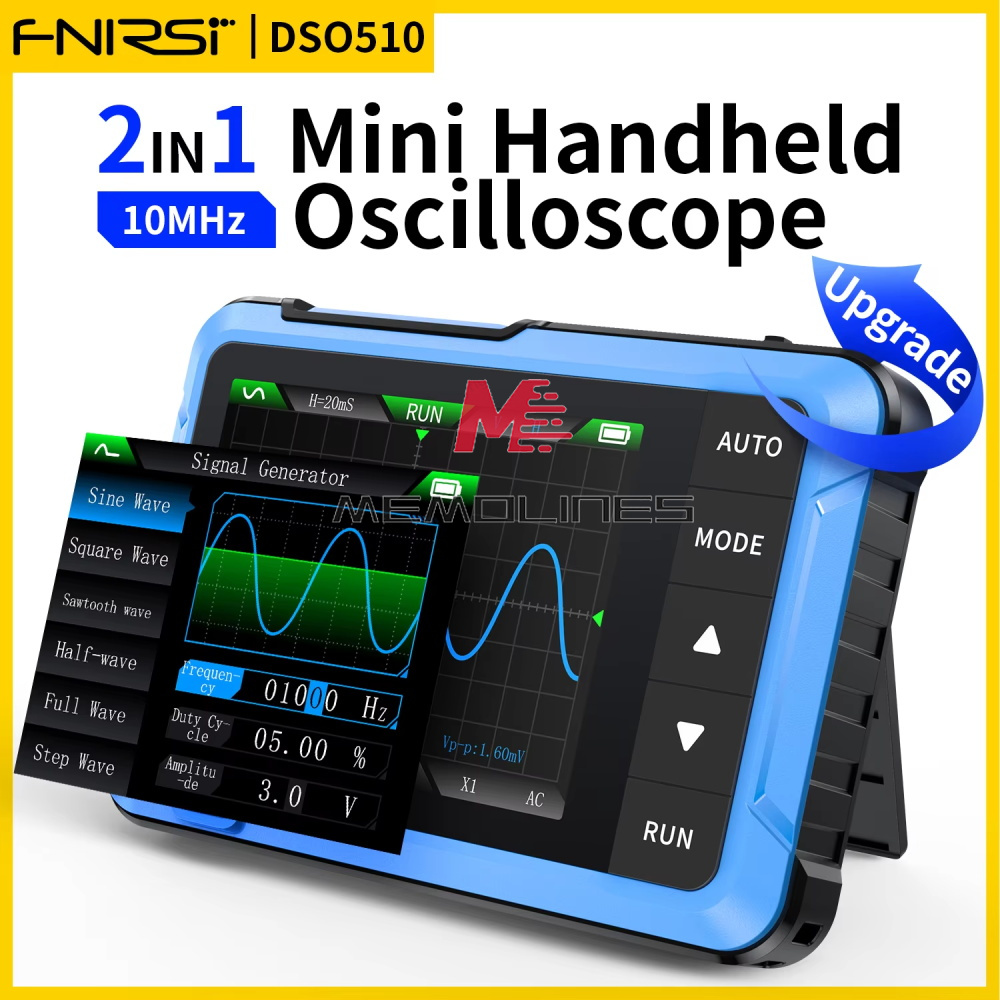

FNIRSI DSO510 2 IN 1 Handheld Digital Oscilloscope Signal Generator 48MS/s 10MHz
Item Description
Features

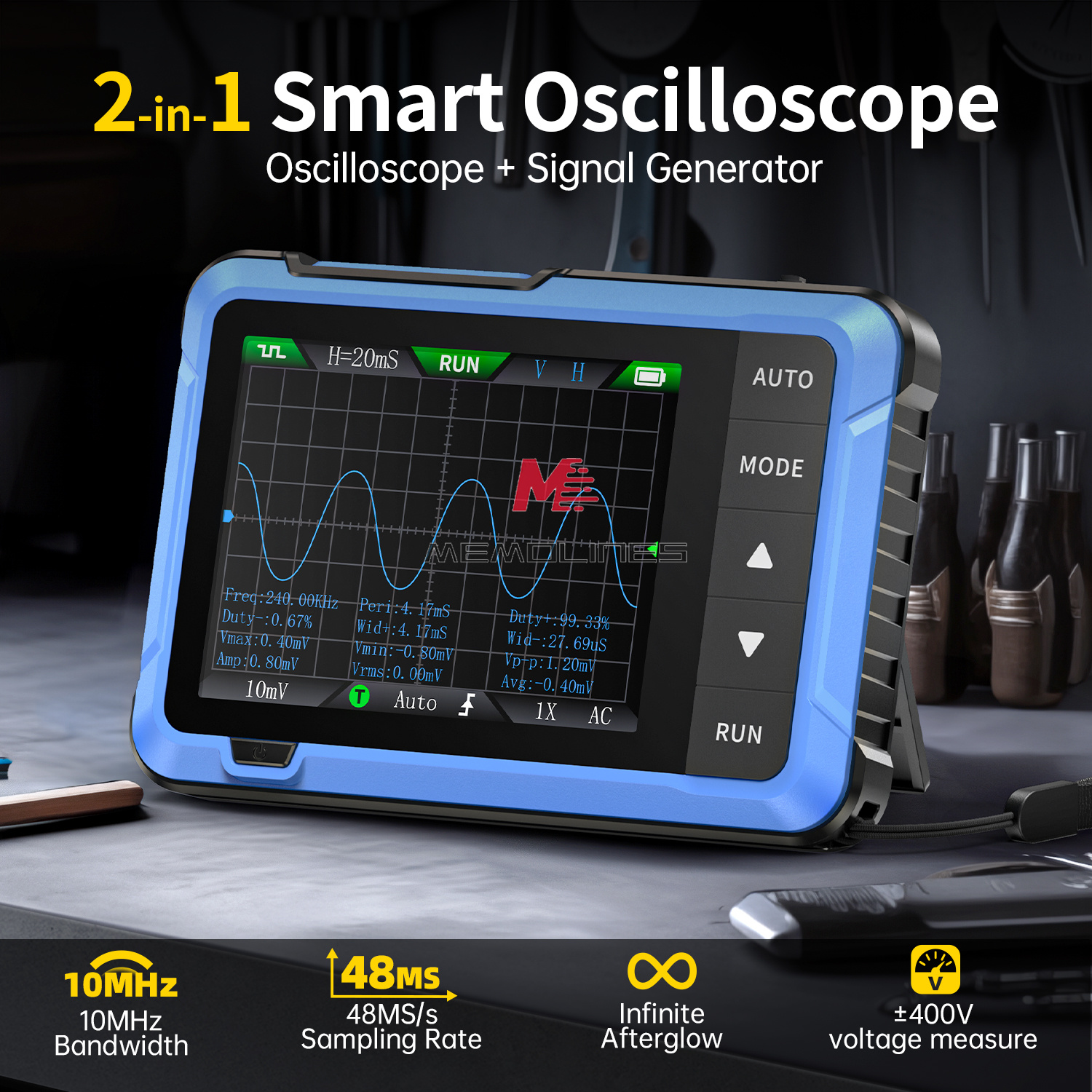

1. 2-in-1 function: the product built-in oscilloscope and signal generator function, the product is compact and cost-effective.
2.HD LCD screen: 2.8-inch high-definition display, resolution 320 × 240.
3. Long-lasting battery life: built-in 1000mAH rechargeable lithium battery, equipped with an automatic shutdown function, both to achieve long life, but also to extend battery life.
4. One-key automatic mode: waveforms can be displayed immediately without complex adjustments.
5. Wide range of applications: ideal for advanced maintenance, development and DIY learning.

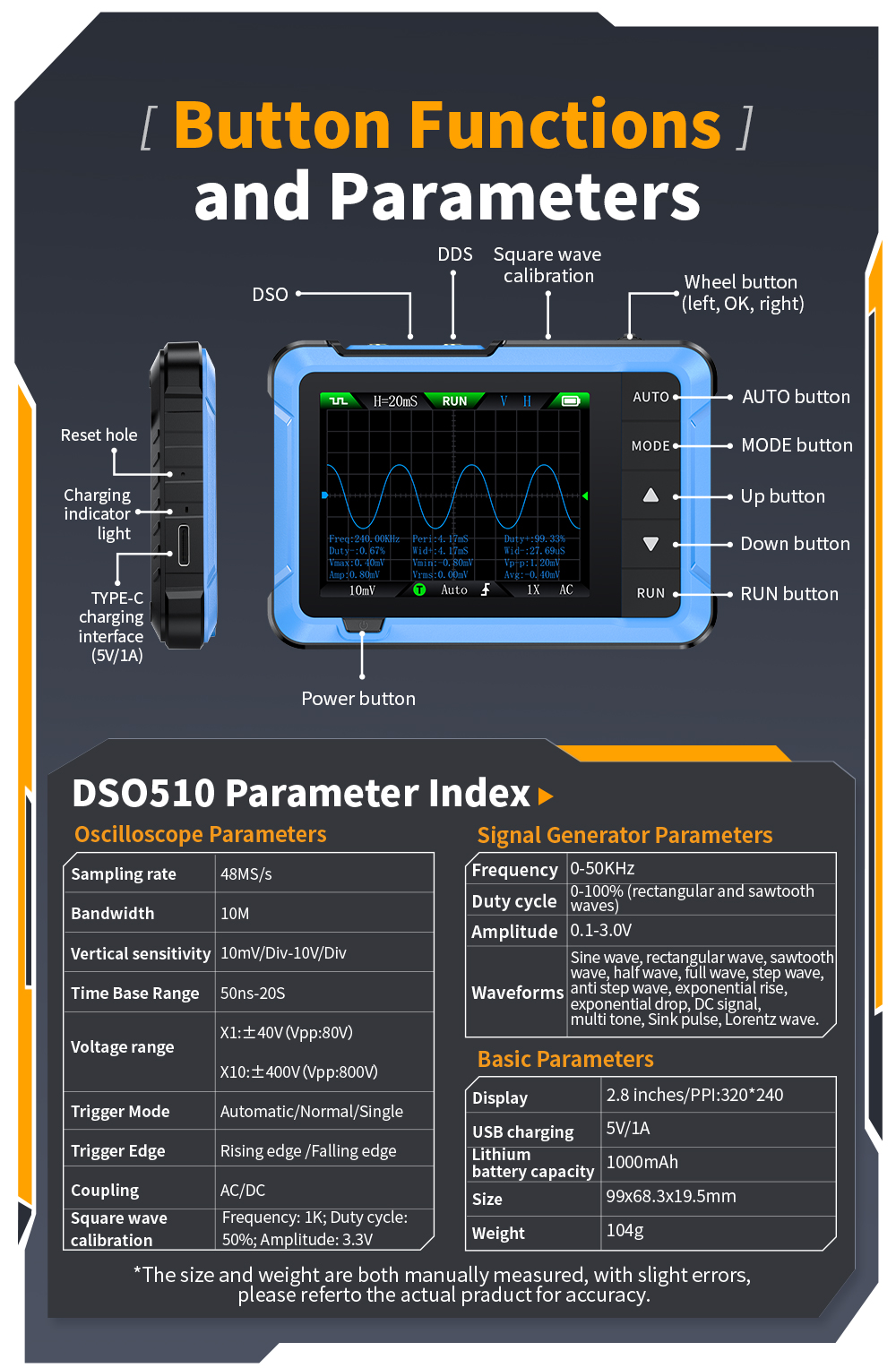

Basic Parameters
Display: 2.8 inches / PPI: 320 * 240
USB charging: Type-C interface 5V/1A
Li-ion battery capacity: 1000mAh

Oscilloscope Parameters
Real-time sampling rate: 48MS/s
Bandwidth: 10MHz
Vertical sensitivity: 10mV/Div-10V/Div
Time base range: 50ns-20S
Voltage range: X1:±40V (Vpp:80V), X10:±400V (Vpp :800V)
Trigger mode: automatic/regular/single
Trigger edge: Rising edge/Falling edge
Coupling method: AC/DC
Calibration Square Wave: Frequency:1K;Duty Cycle:50%;Amplitude:3.3V

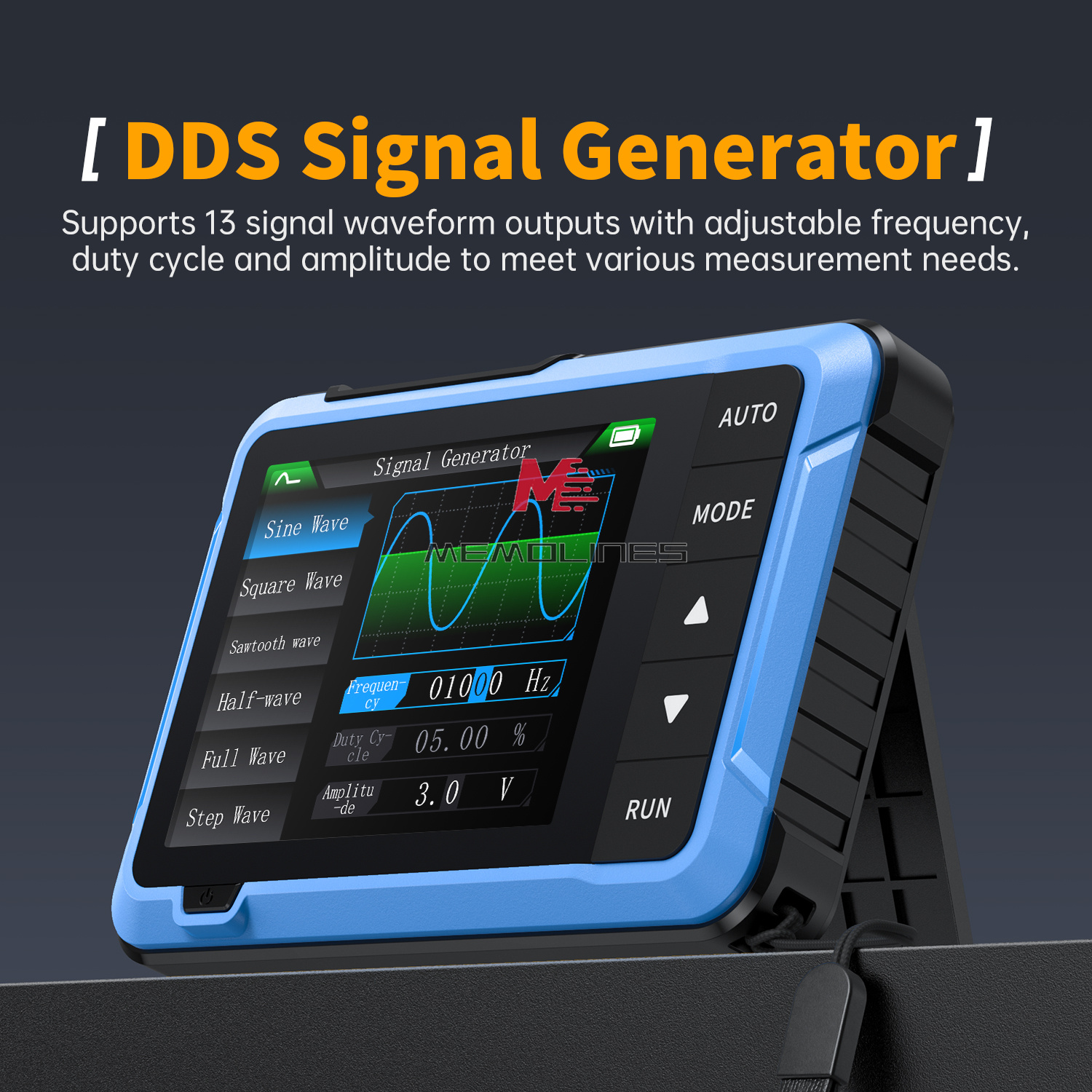

Signal generator parameters
Frequency: 0-50KHz
Duty Cycle: 0-100% (rectangular and sawtooth wave)
Amplitude: 0.1-3.0V
Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC signal multi-audio, Sink pulse, Lorentz wave

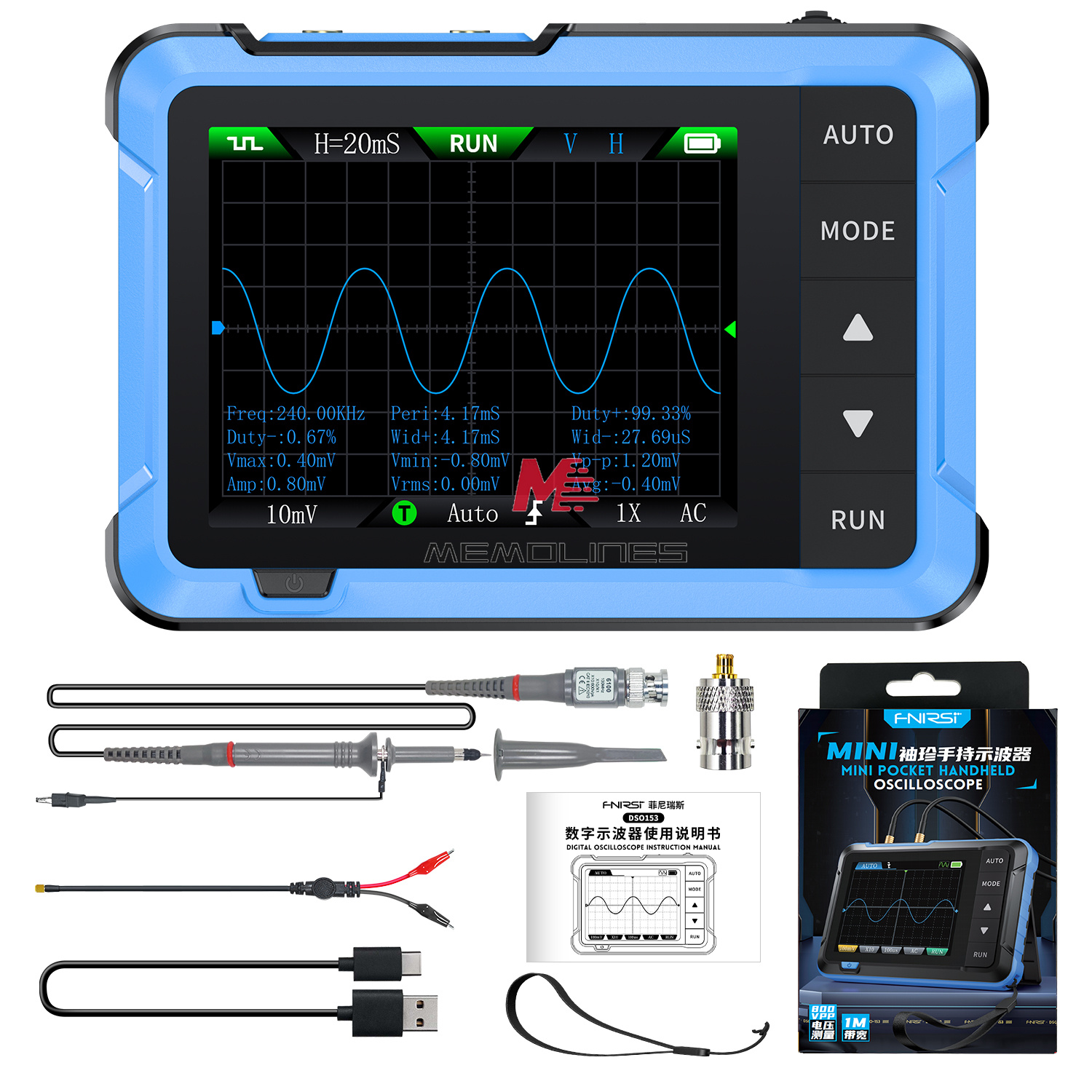

Package Includes
1 x Oscilloscope
1 x Instruction manual
1 x Lanyard
1 x Alligator Clip Probe
1 x Type-C charging cable
