SPECIFICATION

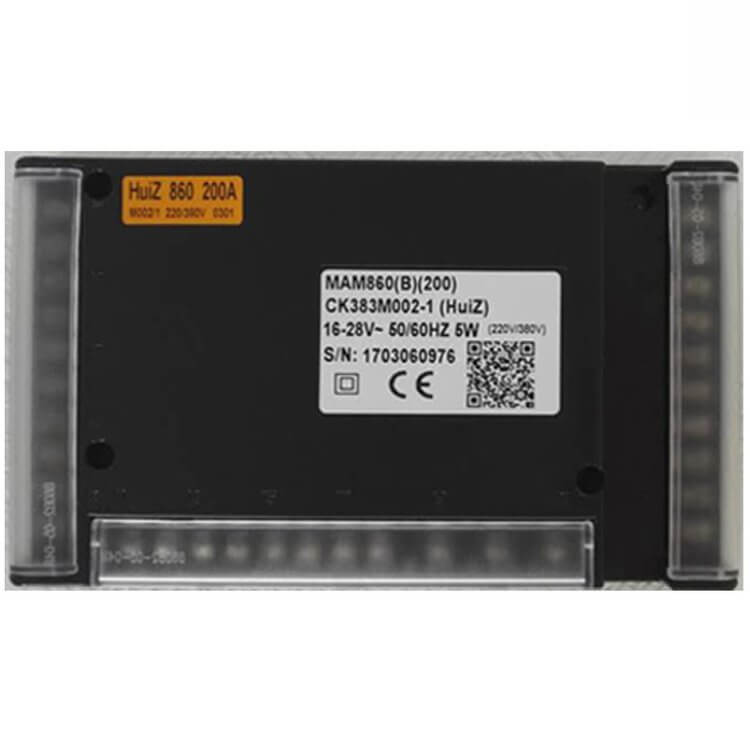

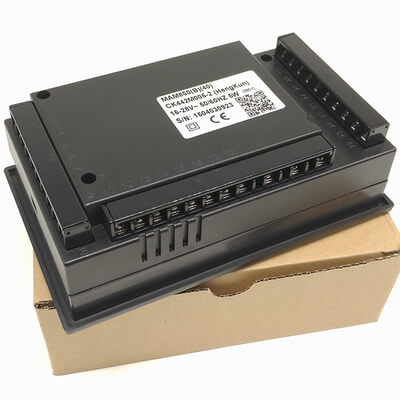

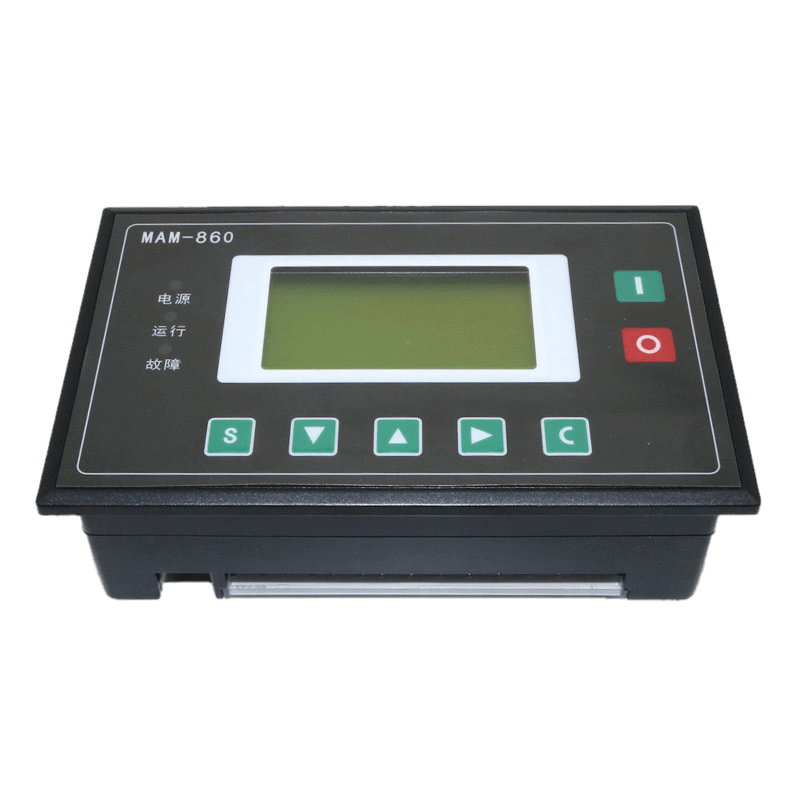

- Model: MAM-860
- Opening size: 156.8*93mm
- Material: Plastic
- Power supply: 16-28V/10W
- Switching volume: 3
- Relay output: 5
- Pressure 4-20mA Input: 1
- Temperature (PT100/PT1000): 1
- Current: 6
- Phase sequence: 1
- Plugging or screw terminals: Optional
- Inverter: Not supported
- Support RS485 communication: optional
- Pressure transmitter or pressure switch: optional
- Voltage detection: Optional
For more information about MAM-860, please check the following downloads:
- MAM-860 Instruction Manual, Please CLICK HERE to download.
- MAM-860 electrical diagram, Please CLICK HERE to download.
