CARME-112WG3
Sound Town CARME Series 12" 700W 2-Way Professional PA DJ Speaker, White with Titanium Driver, Birch Plywood for Installation, Live Sound, Karaoke, Bar, Church

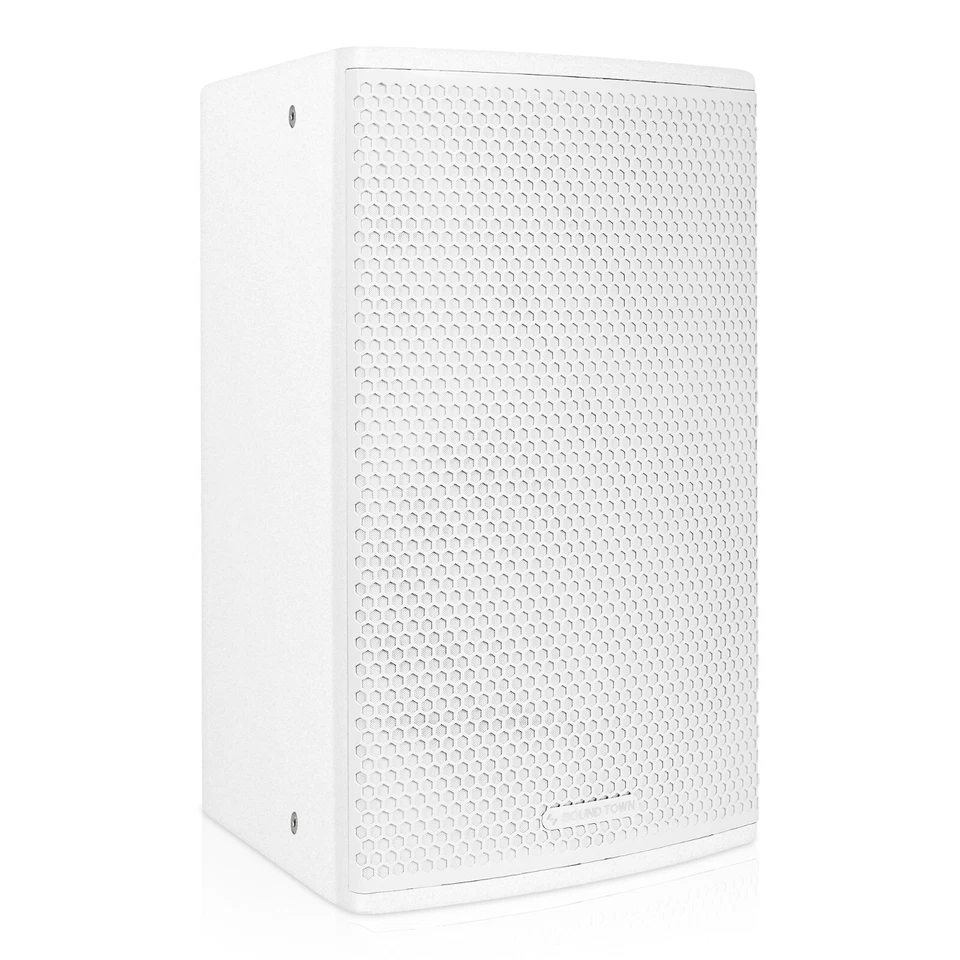

The Sound Town CARME-112WG3 is the ultimate combination of performance and portability, featuring a 12” woofer and 350W RMS, 700W program of power handling capability. Pairing a long-excursion 12” powerful woofer with 70oz magnet, and a 1.75” titanium compression driver, the Sound Town CARME-112WG3 passive PA speaker provides outstanding full-range sound at all volume levels. It is ideal as a PA speaker for small to mid-size venues and its trapezoidal design with angled sides allows you to position it as a monitor wedge as well. Features 90° x 60° rotatable horn and a variety of U-bracket options (vertical or horizontal) for rigging, allowing for flexible setup and speaker placement (CARME-112WUB-H or CARME-112WUB-V wall mount bracket, sold separately). The multipurpose mounting adaptor can either be used as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.

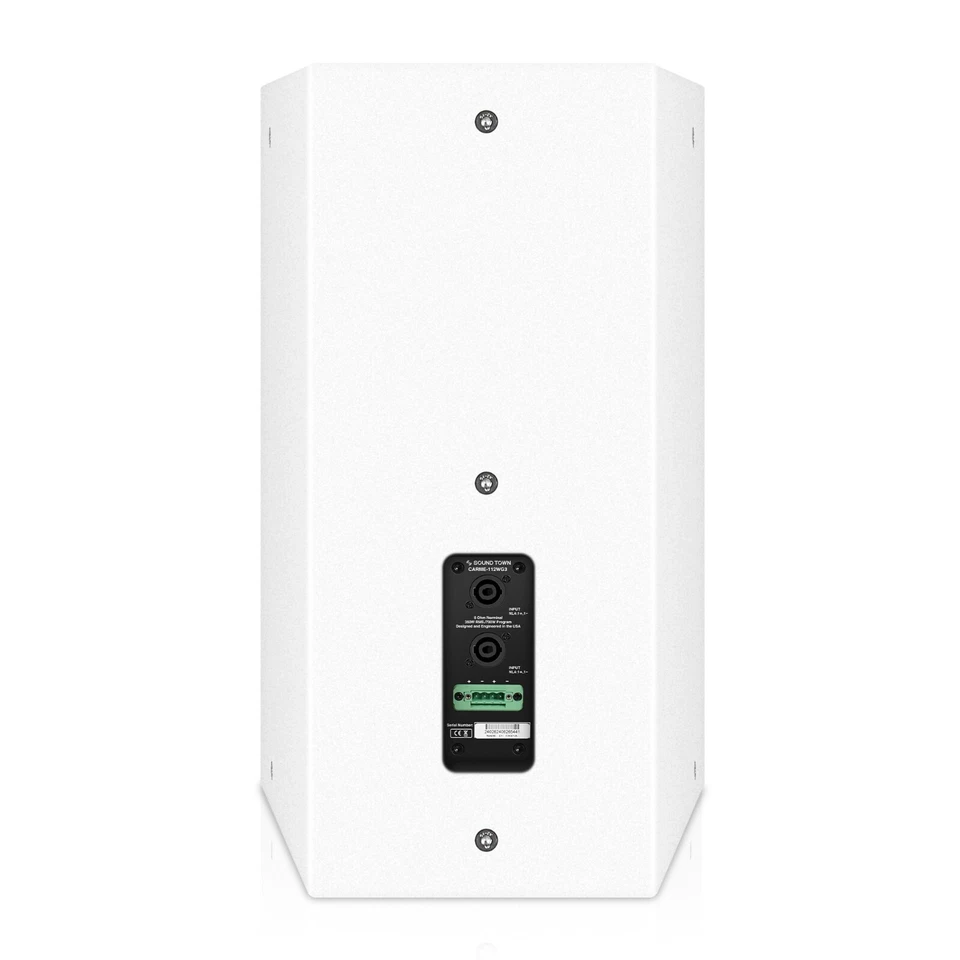

The CARME-112WG3 speaker is equipped with two speakon connectors and one barrier strip. With rugged birch plywood construction and white textured paint, the Sound Town CARME-112WG3 speaker provides stellar sound and performance without sacrificing durability. Whether you use it in courtyards, meeting rooms, schools, churches, or if you are in a band or running any music gigs, this speaker can be relied on for quality sound and consistent performance.




Features

  • A professional-grade full range 2-way loudspeaker for meeting rooms, courtyards, churches, restaurants, stages and any other small to medium venues. Perfect for either main sound reinforcement or monitoring applications.

  • The speaker features a 90° x 60° rotatable horn and a variety of U-bracket options (vertical or horizontal) for rigging, allowing for flexible setup and speaker placement (CARME-112WUB-H or CARME-112WUB-V wall mount bracket, sold separately).

  • Massive 350W RMS, 700W program power handling capability (8-Ohm); Long-excursion 12” powerful woofer with 70oz magnet for low-frequency punch in a compact enclosure and 1.75” titanium compression driver delivers stellar sound quality and performance; Two speakon (NL4) and one barrier strip input connectors makes it easy to connect with your PA system.

  • The multipurpose mounting adaptor can either be used as a universal 35mm socket for a speaker stand pole or for fixed installation with a wall mount bracket.

  • 5/8” textured and white painted birch plywood, with heavy-duty metal grille. The small form factor makes it easy to transport without sacrificing durability. With heavy-duty metal grille and sturdy construction, it holds up to touring applications.





Specifications
Model CARME-112WG3
Active / Passive Passive
Frequency Response 45 Hz - 20 kHz
Sensitivity 100 dB
SPL Max 129 dB
Dispersion 90º x 60º (H x V)
Configuration 12" passive multi-angle full-range loudspeaker
Transducer LF: 1 x 12" woofer HF: 1 x 1.75" diaphragm titanium compression driver
Voice Coil 3"
Magnet 70 oz
Impedance
Power Handling 350W RMS / 700W Program
Cabinet Construction High-grade 100% birch plywood
Flying/Mounting Frame Model# CARME-112WUB-H / CARME-112WUB-V wall mount bracket / 35mm mounting sockets on the bottom, sold separately
Finish White texture coating
Grill & Rigging Component Steel with anti-corrosion coat
Amplifier --
Input Speakon
Output Speakon
Voltage 100V-240V (50-60 Hz)


Dimensions & Weight

Product Width (in.) 25.4" Package Width (in.) 25.4"
Product Height (in.) 13.8" Package Height (in.) 17.3"
Product Depth (in.) 13.4" Package Depth (in.) 16.7"
Product Weight (lb.) 39.0 lbs Package Weight (lb.) 44.0 lbs


Warranty/Certifications

Manufacturer Warranty 1 Year
