Description

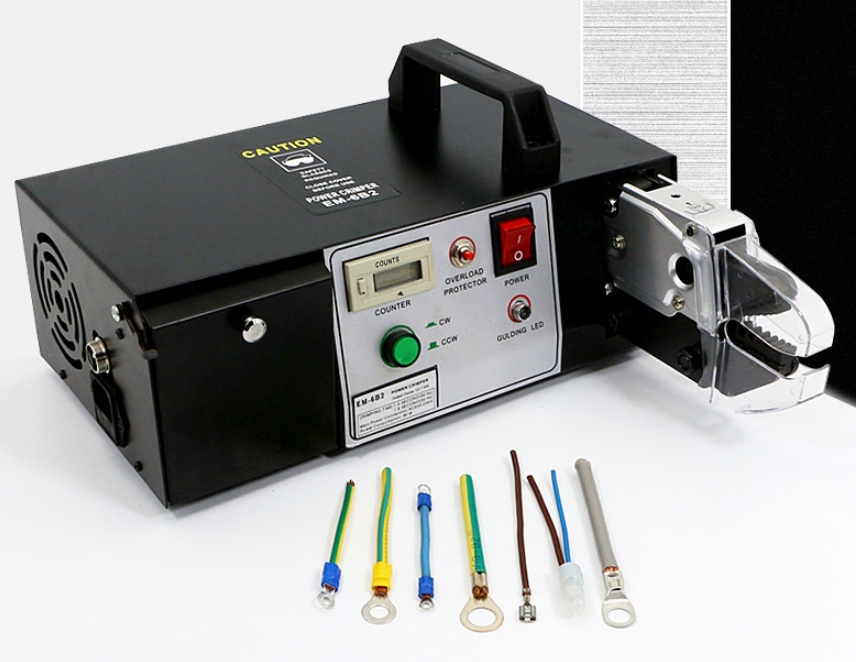

- Type EM-6B1 (110V) / EM-6B2 (220V) is an ideal crimper for connection in cabinet. It is applicable for pre-insulated terminal crimping from 0.25mm² to 10mm² and Cu/AI cutting in 7mm.
- Supplied with seven kinds of accurate and replaceable die sets. The crimper has high working efficiency and wide application.
- The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed.
- It is good for terminal crimping in large or medium quantity. If there are a lot of different kinks of terminals to be crimped, this crimper is the best choice.
Specification
Model: EM-6B1
Voltage: 110V (If you need 220V, pls contact us)
Power: 90W
Output: 12.7KN
Max. crimping force: Insulated terminal 5.5mm²
Crimping time: 1.5s (60Hz) 1.8s(50Hz)

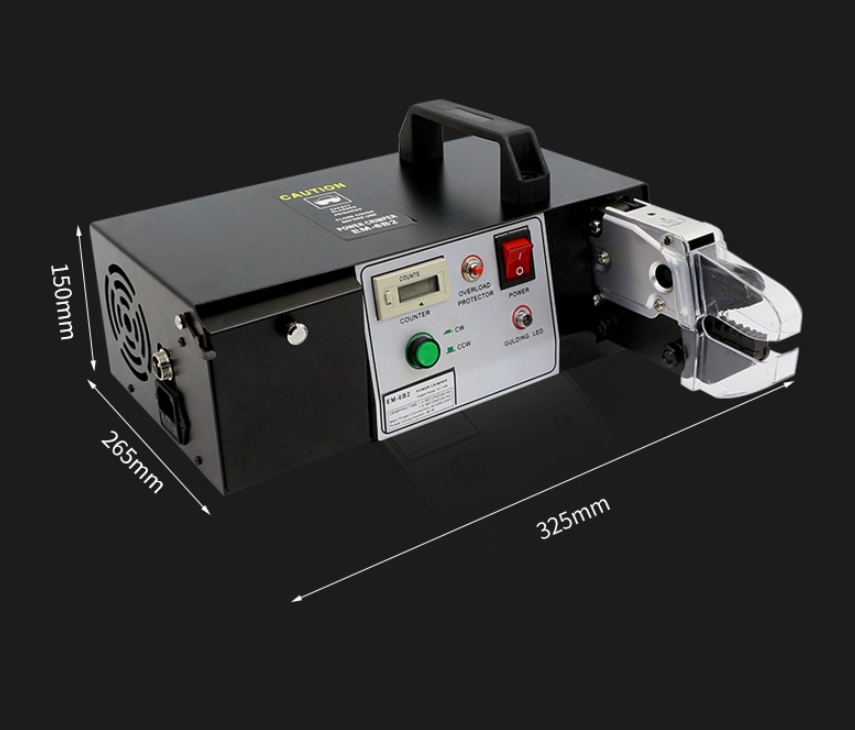

Dimension: 325 * 265 * 150mm
Net weight: 12kg
7 kinds of dies in the package
Model | Suitable for | Terminal type | |
AWG | DIN | ||
A03C | 20-10 | 0.5-6 | Pre-insulated |
A10 | 18-10 | 1.0-10 | Non-insulated |
A101 | 18-8 | 1.5-10 | Non-insulated |
A04WFL | 20-12 | 0.5-4 | Wire-end ferules |
A03B | 18-10 | 1.5-6 | Non-insulated tabs and eceptacles |
A103 | 0.5-6 | Cutting terminal | |
A02H | 1,1.1,6.4,8 | Coaxial cable | |
Package Includes:
1 x Terminal Crimping Machine
7 x Die sets
1 x Foot air valve
7 x Die sets
1 x Foot air valve
