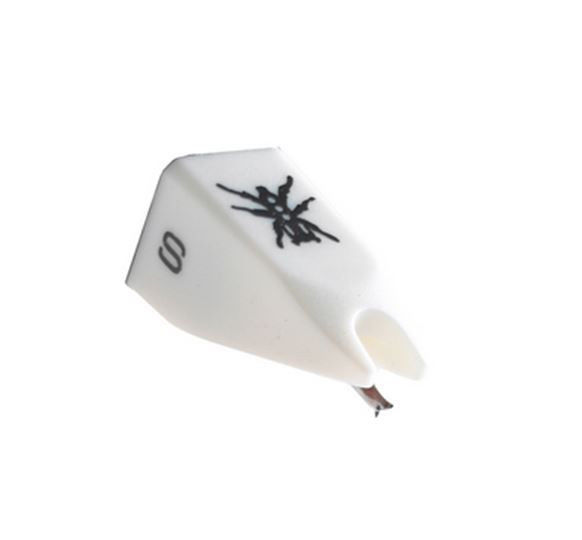

Ortofon Q.Bert Replacement Stylus Spare Needle Scratch For Turntable Cartridge
PRODUCT DESCRIPTION
Co-developed by one of the most legendary DJs of all time, the Ortofon Q.Bert provides unsurpassed handling, high output voltage, and low wear characteristics that literally put it in a class of its own.
Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Q.Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage.
The Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enomous output, it is perfect for scratch of all music with deep bass frequences.
Features & Specs:
Output voltage at 1000Hz, 5cm/sec.
11 mV
Channel balance at 1kHz
1.5 dB
Channel separation at 1kHz
22 dB
Channel separation at 15 kHz
-
Frequency range at -3dB
20-18.000 Hz
Frequency response
20-18.000 Hz -3dB
Tracking ability at 315 Hz at recommended tracking force
90 μm
Compliance, dynamic lateral
12 μm/m N
Stylus type
Spherical
Stylus tip radius
R 18 μm
Tracking force range
2,0-4,0 g (20-40 mN)
Tracking force recommended
3,0 g (30 mN)
Tracking angle
20°
Internal impedance, DC resistance
1680 Ohm
Internal inductance
920 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-400 pF
Compatible with Cartridges
Q.Bert
Package includes:
· Q.Bert Replacement Stylus
Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics. The Q.Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage.
The Q-Bert has a supreme ability to trace the grooves of your records and it is tailored specifically for scratch. Due to its enomous output, it is perfect for scratch of all music with deep bass frequences.
Features & Specs:
Output voltage at 1000Hz, 5cm/sec.
11 mV
Channel balance at 1kHz
1.5 dB
Channel separation at 1kHz
22 dB
Channel separation at 15 kHz
-
Frequency range at -3dB
20-18.000 Hz
Frequency response
20-18.000 Hz -3dB
Tracking ability at 315 Hz at recommended tracking force
90 μm
Compliance, dynamic lateral
12 μm/m N
Stylus type
Spherical
Stylus tip radius
R 18 μm
Tracking force range
2,0-4,0 g (20-40 mN)
Tracking force recommended
3,0 g (30 mN)
Tracking angle
20°
Internal impedance, DC resistance
1680 Ohm
Internal inductance
920 mH
Recommended load resistance
47 kOhm
Recommended load capacitance
200-400 pF
Compatible with Cartridges
Q.Bert
Package includes:
· Q.Bert Replacement Stylus
