PS-18SK8PW
Sound Town CARPO Series Powered Line Array Speaker System with One 18-inch Subwoofer, One High-Power Column Line Array Speaker w/DSP, Black |
|
   |
   |
   |
|
The CARPO Series PS-18SK8PW includes:
(1) CARME-18SPW 18" powered subwoofer
(1) CARPO-K8PW powered column line array speaker
(1) CARPO-LB-2PRS mounting bracket
Introducing the Sound Town PS-18SK8PW compact powered line array set, a robust audio solution that elevates live sound to new heights. This audio set includes the CARME-18SPW 18" powered subwoofer and the CARPO-K8PW powered column line array speaker, complemented by the CARPO-LB-2PRS mounting brackets for a seamless ground-stack setup. With the optional ZSCB-VX18S caster board, transportation becomes effortless.

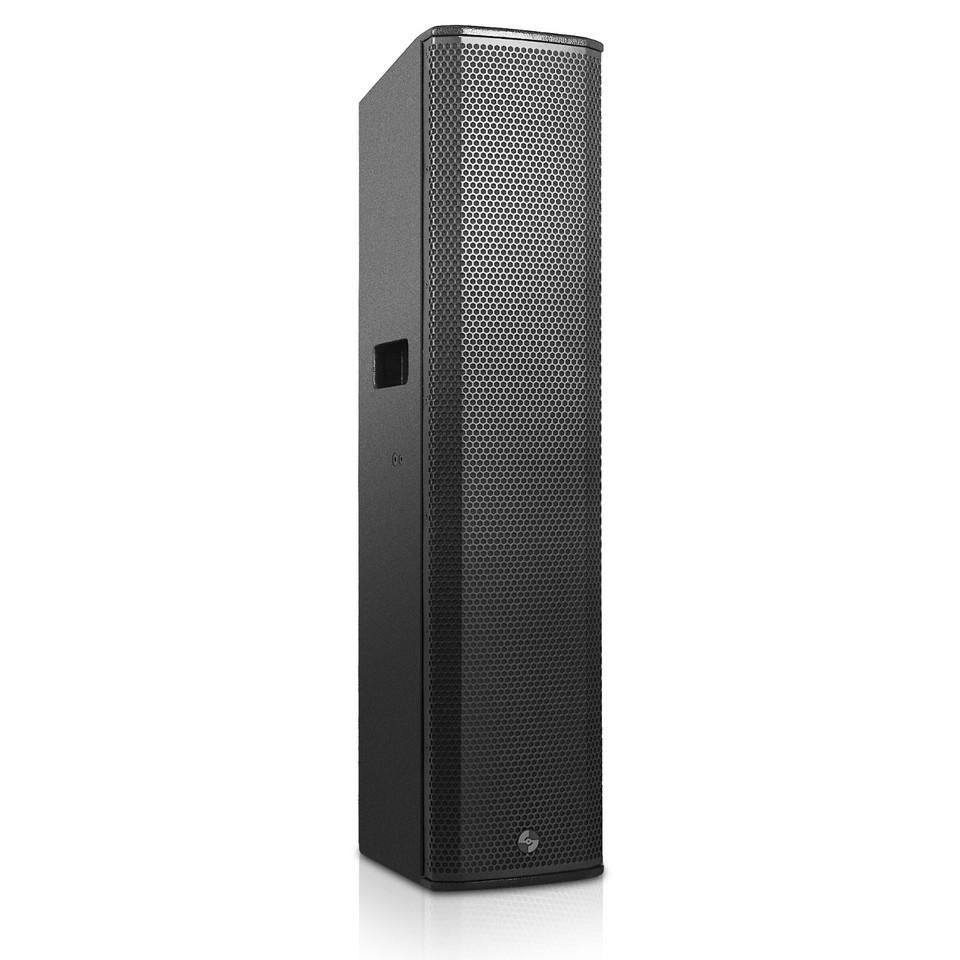

The CARPO-K8PW column speaker is equipped with four 6.5" woofers and two 3/4" compression drivers that utilize linear horns, ensuring crisp and detailed high-frequency reproduction. A built-in class-D amplifier provides impressive power, delivering 600W continuous and 1200W peak power output. Onboard digital signal processing (DSP) features four selectable modes and manual adjustments for 3-band EQ, bass boost, and delay, enabling precise audio tuning to accommodate any venue or event. TWS Bluetooth support flexible connection with your device.

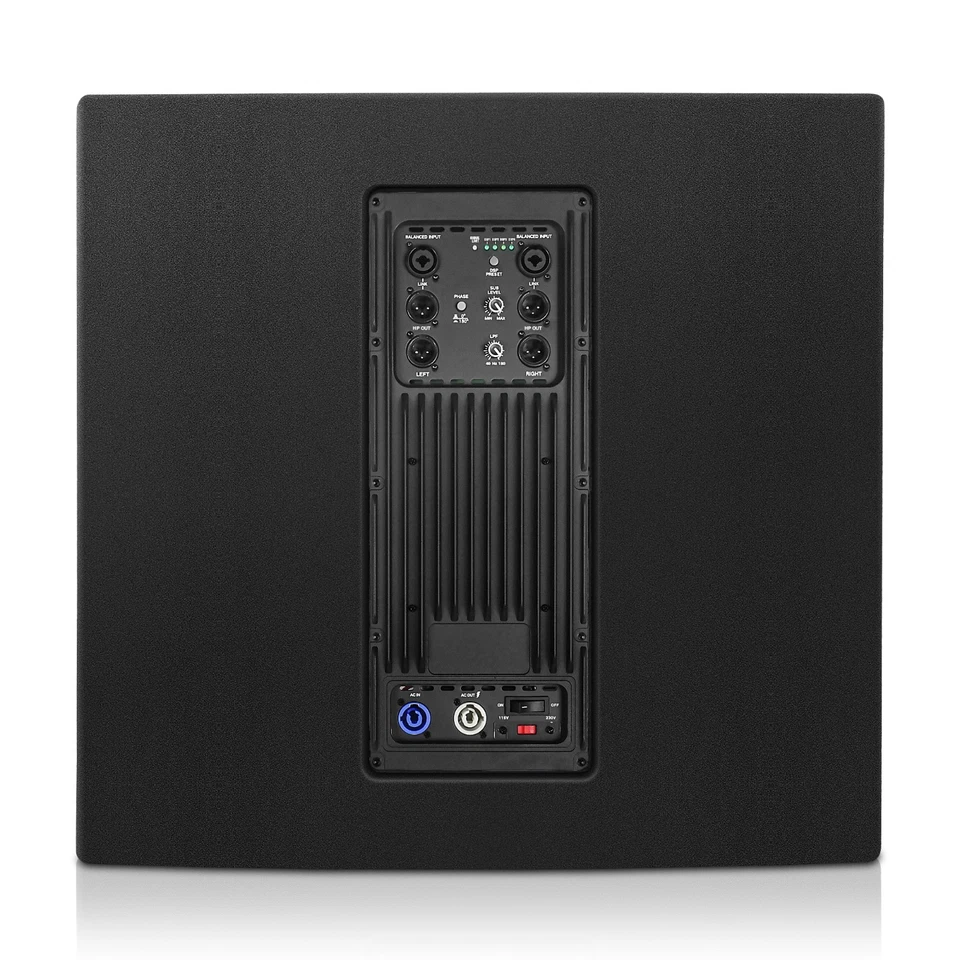

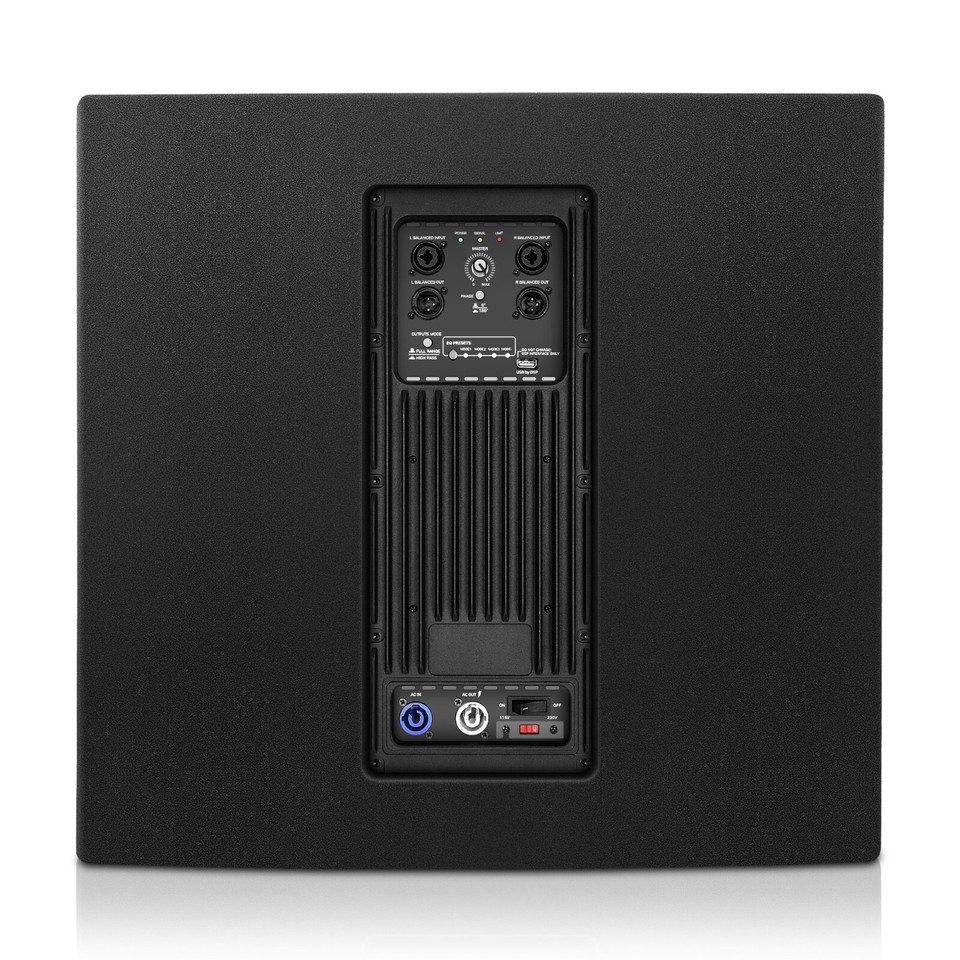

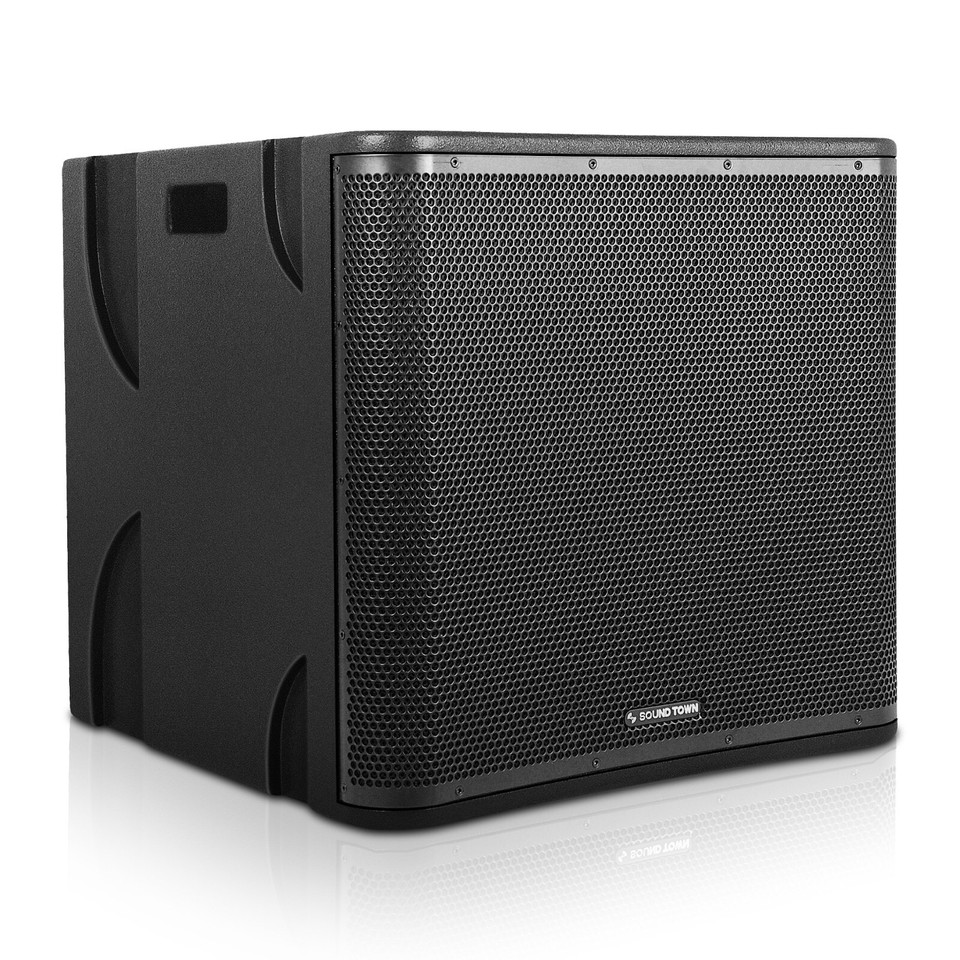

The CARME-18SPW 18" active subwoofer boasts a class-D amplifier that produces 800W continuous and 1600W peak output and extends the low-frequency response to 35Hz. The CARME-18SPW features a robust die-cast aluminum frame and a large 145 oz. magnet to create a powerful bass foundation that enhances the overall sound quality. The whole system with a frequency response ranging from 35Hz to 20kHz, ensures a wide range of sound reproduction.
Designed for durability, the PS-18SK8PW line array set features high-quality birch plywood construction, reinforced with a heavy-duty metal grille. This tour-level craftsmanship ensures minimal distortion even at high volumes, delivering clean, rich audio performance across a variety of settings including clubs, bars, churches, school auditoriums, and more. Whether for a live concert, a corporate event, or a bustling nightclub, the Sound Town PS-18SK8PW offers versatile and powerful sound coverage to meet all professional and enthusiasts audio needs! |
|
Features
- SOUND TOWN PS-18SK8PW POWERED LINE ARRAY SET: The Sound Town PS-18SK8PW powered line array set includes (1) CARME-18SPW 18" powered subwoofer, (1) CARPO-K8PW powered column line array speaker and (1) CARPO-LB-2PRS mounting bracket.

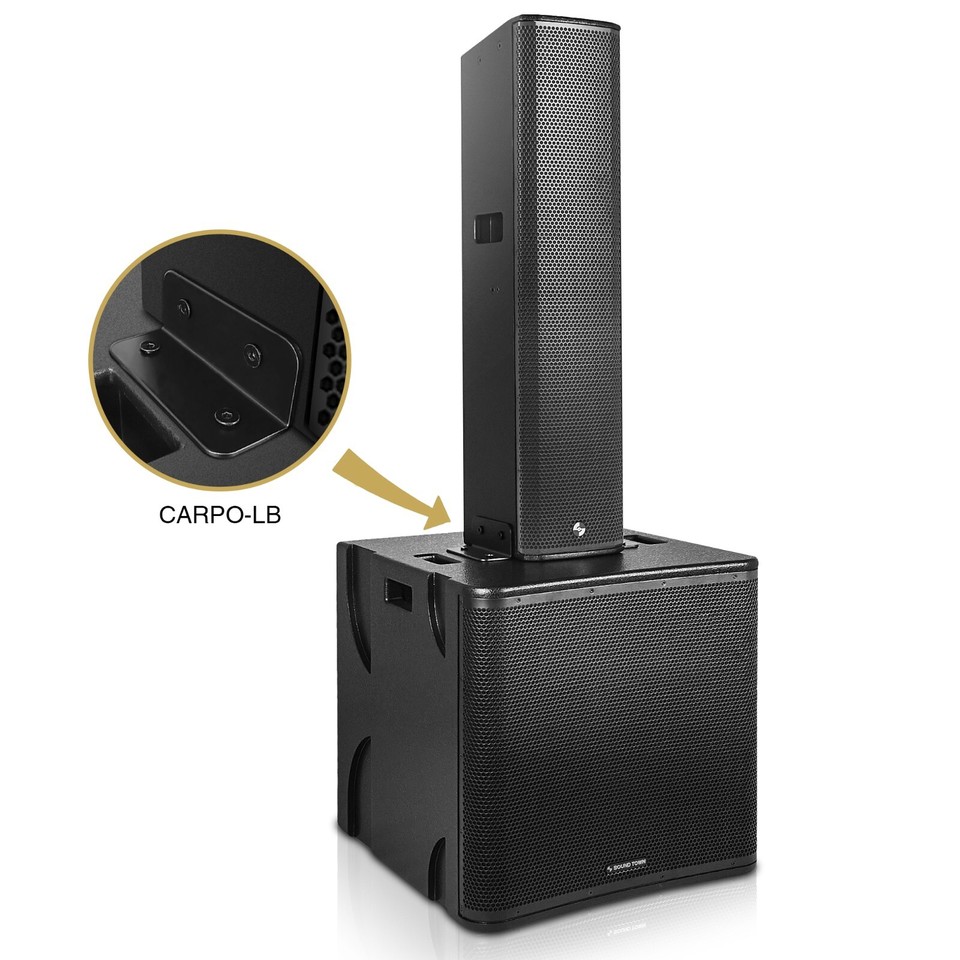

- GROUND-STACK SETUP: The CARPO-K8PW column speaker can be quickly and easily stacked onto the CARME-18SPW subwoofer using the CARPO-LB-2PRS mounting brackets. This setup is ideal for a variety of venues, including live sound environments, clubs, bars, restaurants, churches, school auditoriums, and much more, providing versatile and powerful sound coverage. With the optional ZSCB-VX18S caster board, transportation becomes effortless.
- CARPO SERIES CARPO-K8PW ACTIVE COLUMN SPEAKER: The CARPO-K8PW column speaker features 4 x 6.5" woofers and 2 x 3/4" compression drivers with linear horns for high-powered output. It boasts a built-in class-D amplifier capable of 600W continuous and 1200W peak power at 8Ω. Additionally, it includes onboard digital signal processing (DSP) with 4 selectable modes and manual adjustments for 3-band EQ, bass boost, and delay, allowing precise audio tuning. TWS Bluetooth support flexible connection with your device.
- CARME SERIES CARME-18SPW ACTIVE SUBWOOFER: Equipped with a 1600W class-D amplifier, the CARME-18SPW subwoofer delivers 800W continuous and 1600W peak output and extends low-frequency performance down to 35Hz. It features an 18" low-frequency driver with a die-cast aluminum frame, 4” voice coil, and a 145 oz. magnet for robust bass reinforcement. The whole system with a frequency response ranging from 35Hz to 20kHz, ensures a wide range of sound reproduction.
- TOUR-LEVEL CRAFTSMANSHIP: Constructed from high-quality birch plywood and reinforced with a heavy-duty metal grille, the PS-18SK8PW line array set is designed to minimize distortion at high volumes, delivering clean and rich audio performance you can expect from tour-quality craftsmanship.
|
|
Specifications
| Model |
CARME-18SPW (black), CARME-18SWPW (white) |
CARPO-K8PW |
| Active / Passive |
Active |
Active |
| Frequency Response |
35 Hz - 150 Hz |
85 Hz - 20 kHz |
| Sensitivity |
100 dB |
99 dB |
| SPL Max |
128 dB |
124 dB |
| Dispersion |
-- |
120º x 20º (H x V) |
| Configuration |
18" active high-power subwoofer |
High-Power Wall-Mount Column Line Array Speaker |
| Transducer |
LF: 1 x 18", HF: -- |
LF: 4 x 6.5" Woofer, HF: 2 x 0.75" Compression Drivers |
| Voice Coil |
4" |
1.5" |
| Magnet |
145 oz |
21 oz |
| Impedance |
8Ω |
8Ω |
| Power Handling |
800W Continuous, 1600W PEAK |
600W Continuous / 1200W Peak |
| Enclosure Material |
High-grade 100% birch plywood |
High-grade 100% birch plywood |
| Mounting Hardware |
M20 stand mount on top |
U bracket / Optional extension bracket (CARPO-EP) / Optional flying frame (CARPO-PFF) |
| Finish |
Texture coating |
Texture coating |
| Grill & Rigging Component |
Steel with anti-corrosion coat |
Steel with anti-corrosion coat |
| Amplifier |
STPAS-G2DSP Class-D amplifier w/ DSP |
STPA-G500DSP |
| Input |
2 x 1/4"&XLR combo |
2 x 1/4" & XLR combo (MIC/LINE) + 1 X 1/8" (AUX) / Bluetooth |
| Output |
2 x XLR |
XLR mixed out |
| Signal Processing |
DSP: Built-in ADI SigmaDSP28/56 Bit Audio Processor. With DYNAMIC BASS Enhancement and RMS Dynamic Processor, 2nd-order IIR Low Pass Filter.Polarity switch |
DSP with LCD; 2-channel input gain, rotary push-encoder DSP (MODE: EQ, BASS BOOST, DELAY, ETC.) |
| Control |
Volume, DSP, MODE selector |
-- |
| Indicator |
Power, signal, limit |
-- |
| Voltage |
100V-240V (50-60 Hz) |
100V-240V (50-60 Hz) |
| Low Frequency Woofer Parts# |
STLF-18AS |
-- |

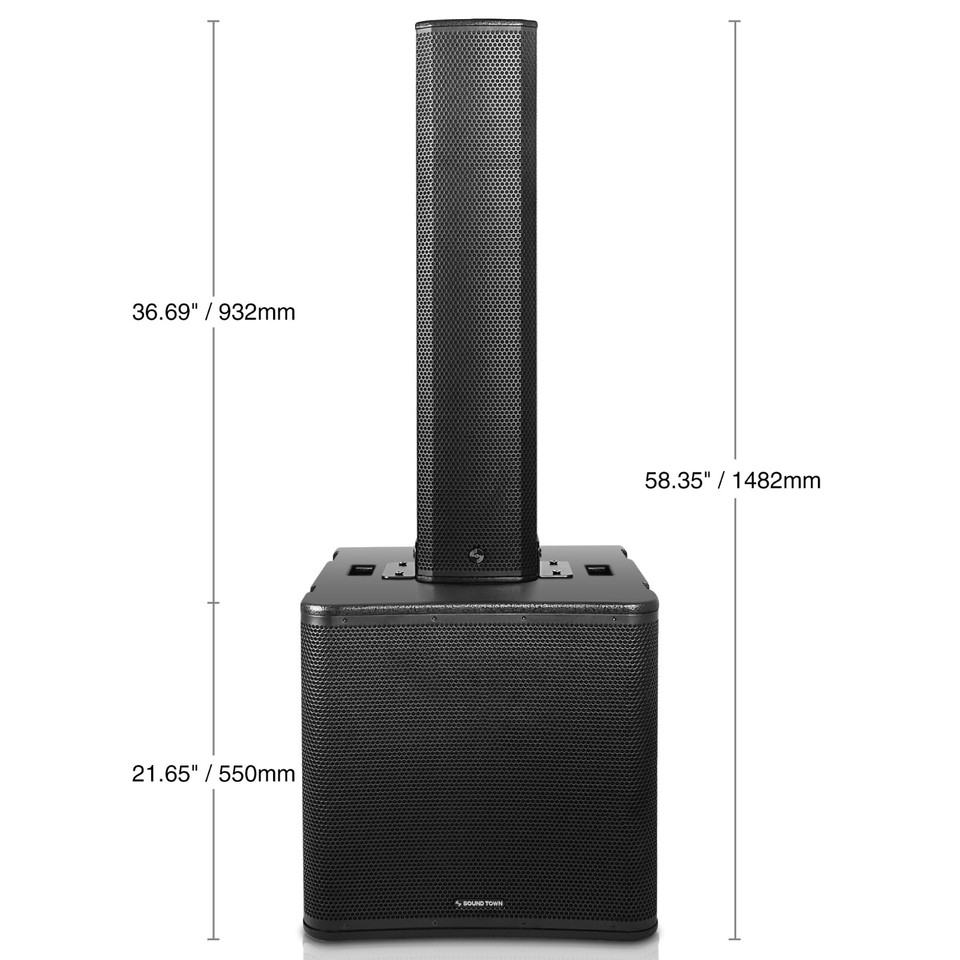

Dimensions & Weight
| Model |
CARME-18SPW (black) |
CARPO-K8PW |
CARPO-LB-2PRS |
| Product Width (in.) |
21.7" |
7.9" |
6.7" |
| Product Height (in.) |
20.9" |
36.7" |
3.9" |
| Product Depth (in.) |
23.6" |
10.2" |
3.9" |
| Product Weight (lb.) |
84.4 lbs |
44.5 lbs |
2.6 lbs |
| Package Width (in.) |
24.6" |
10.8" |
5.9" |
| Package Height (in.) |
23.6" |
40.0" |
2.4" |
| Package Depth (in.) |
26.8" |
13.2" |
2.4" |
| Package Weight (lb.) |
89.0 lbs |
47.5 lbs |
2.2 lbs |
Warranty/Certifications
| Manufacturer Warranty |
1 Year |
|
|
