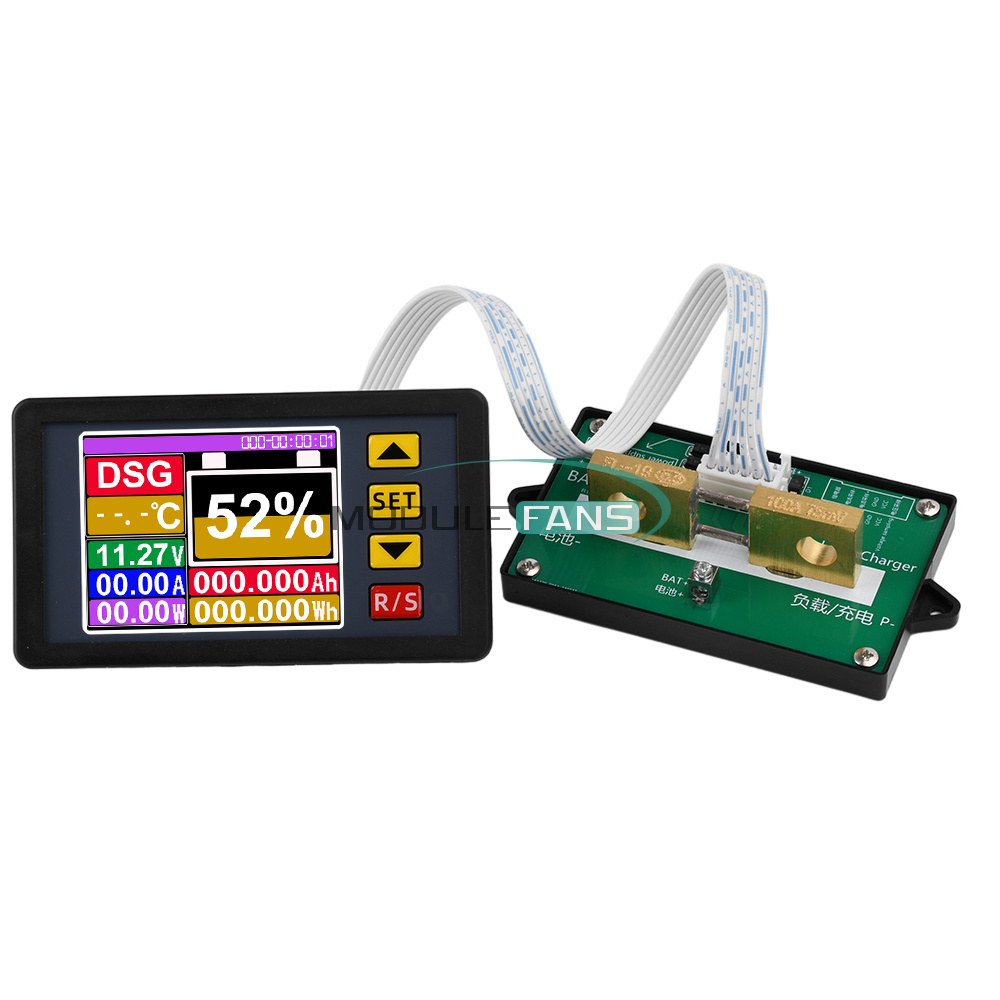

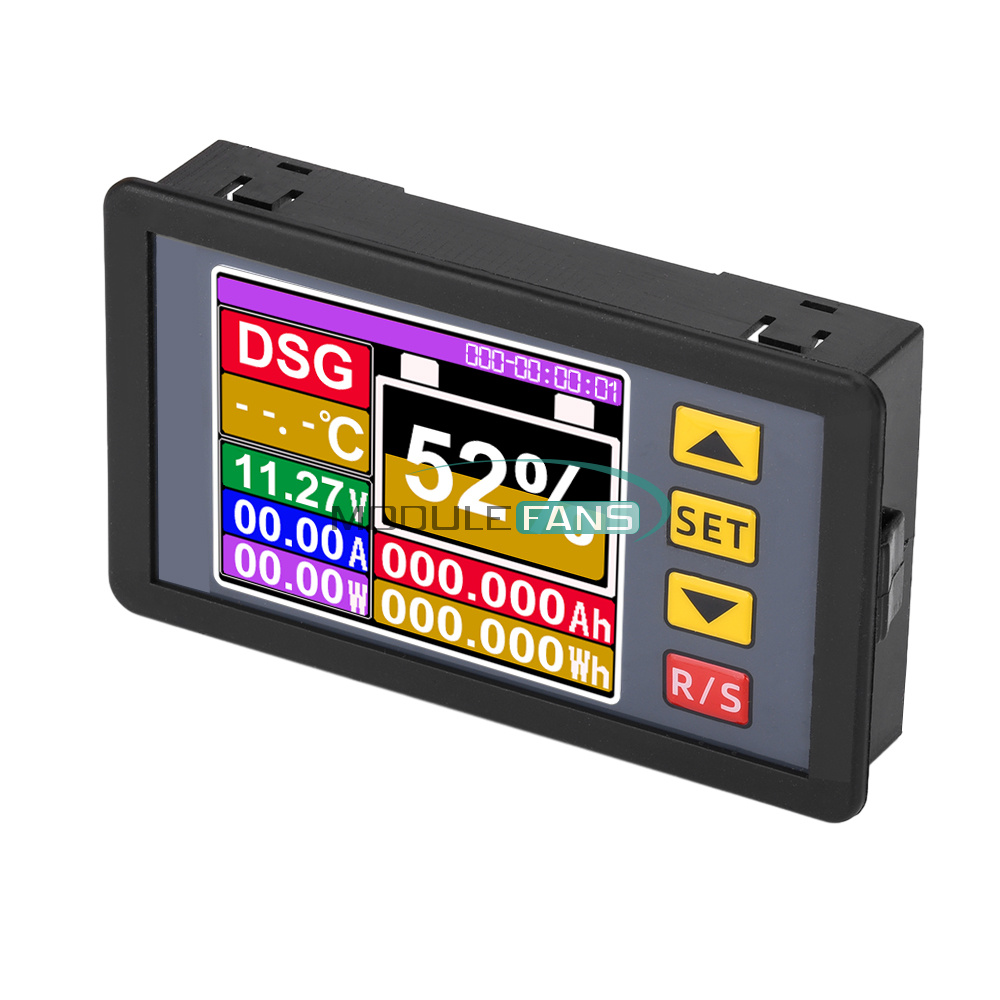

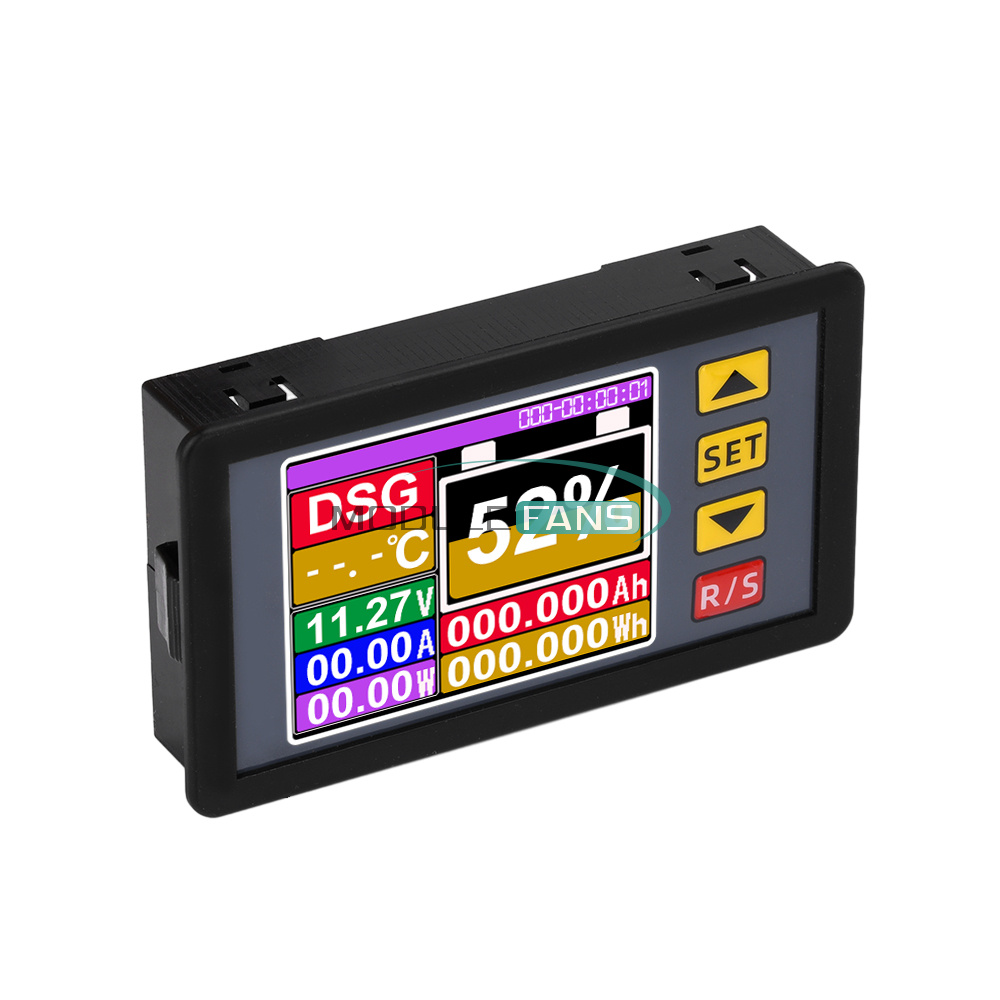

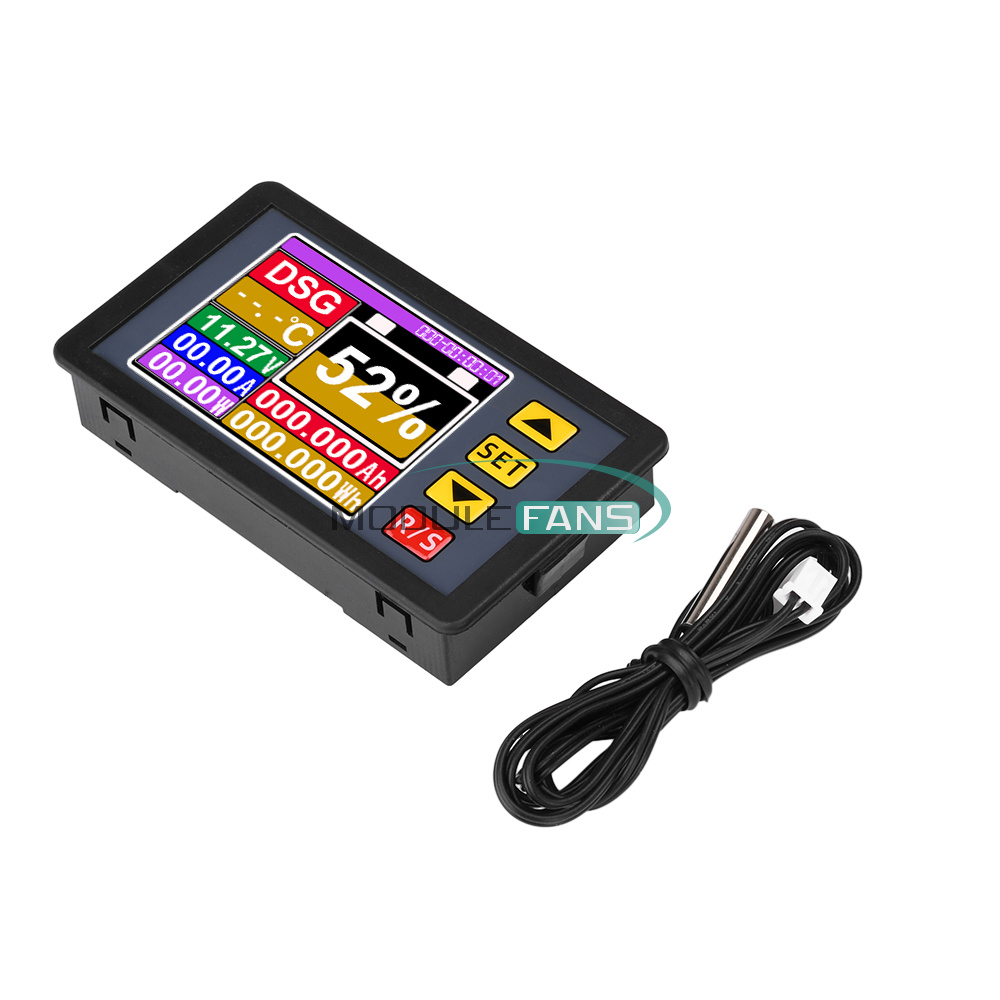

2.4" DC7~200V Voltage Current Power Capacity Meter Coulometer Temperature Tester
Features:
1. Can measure voltage, current, power, capacity, electricity, temperature and time at the same time.

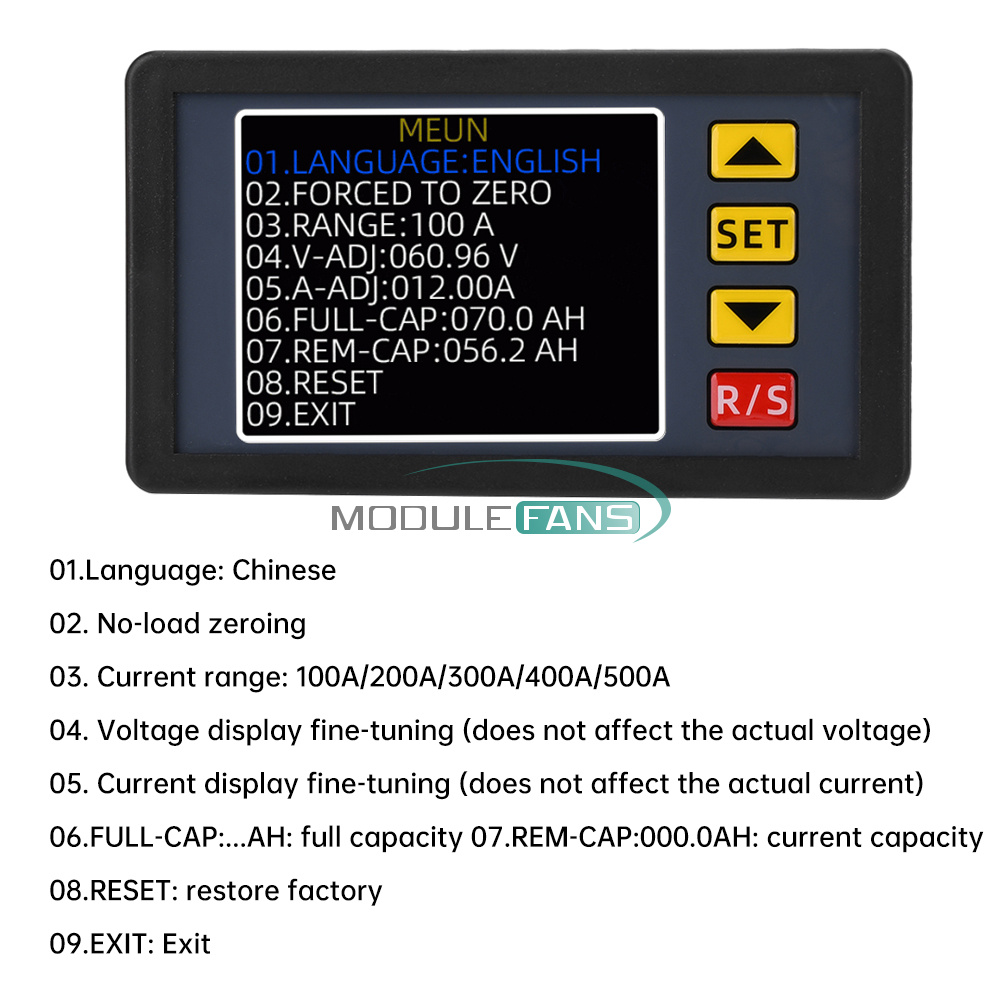

2. Support data clearing and no-load zeroing.
3. Support voltage display fine-tuning, current display fine-tuning.
4. Support bidirectional current indication, percentage power display (support percentage based on capacity setting [need to set full capacity manually]).

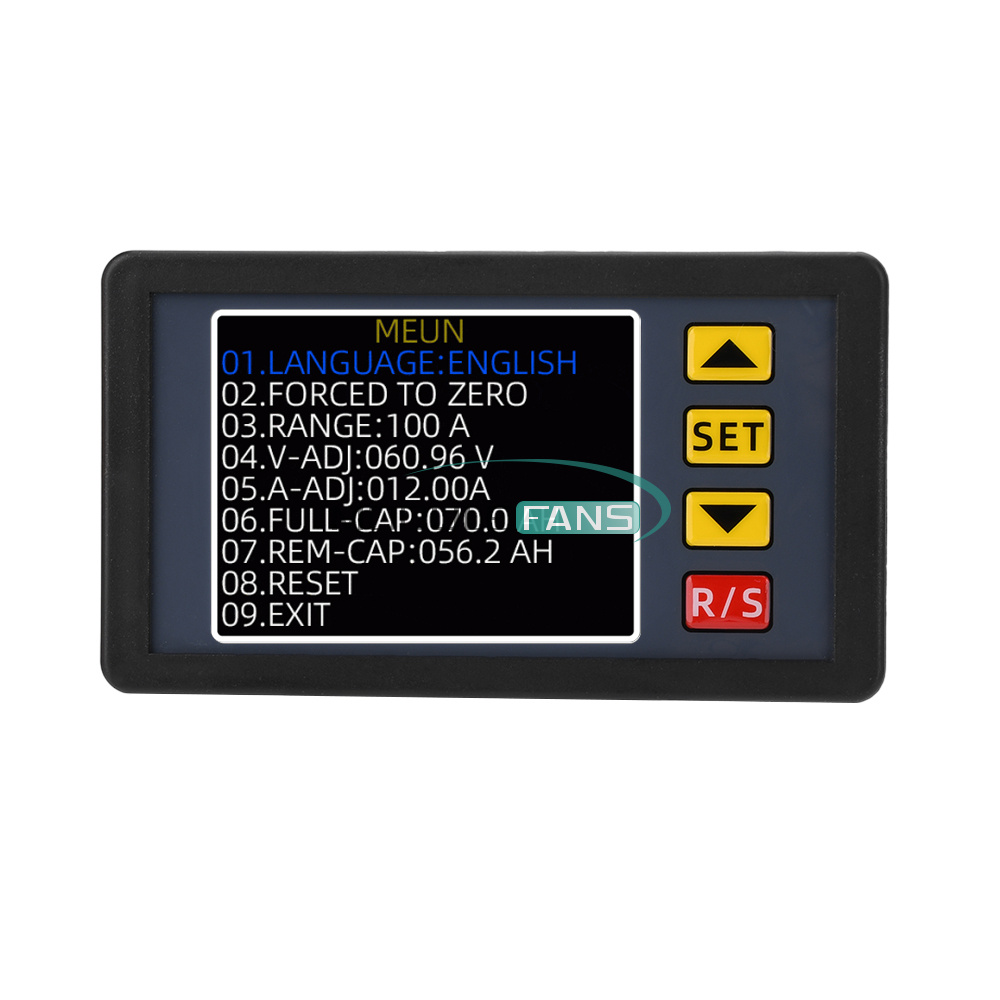

5. Bilingual interface: Chinese and English switch freely to meet the needs of global users, convenient and efficient operation.
6. Accurate temperature control: with NTC sensor, real-time temperature monitoring to ensure reliable test results and prevent temperature difference from being misdiagnosed.

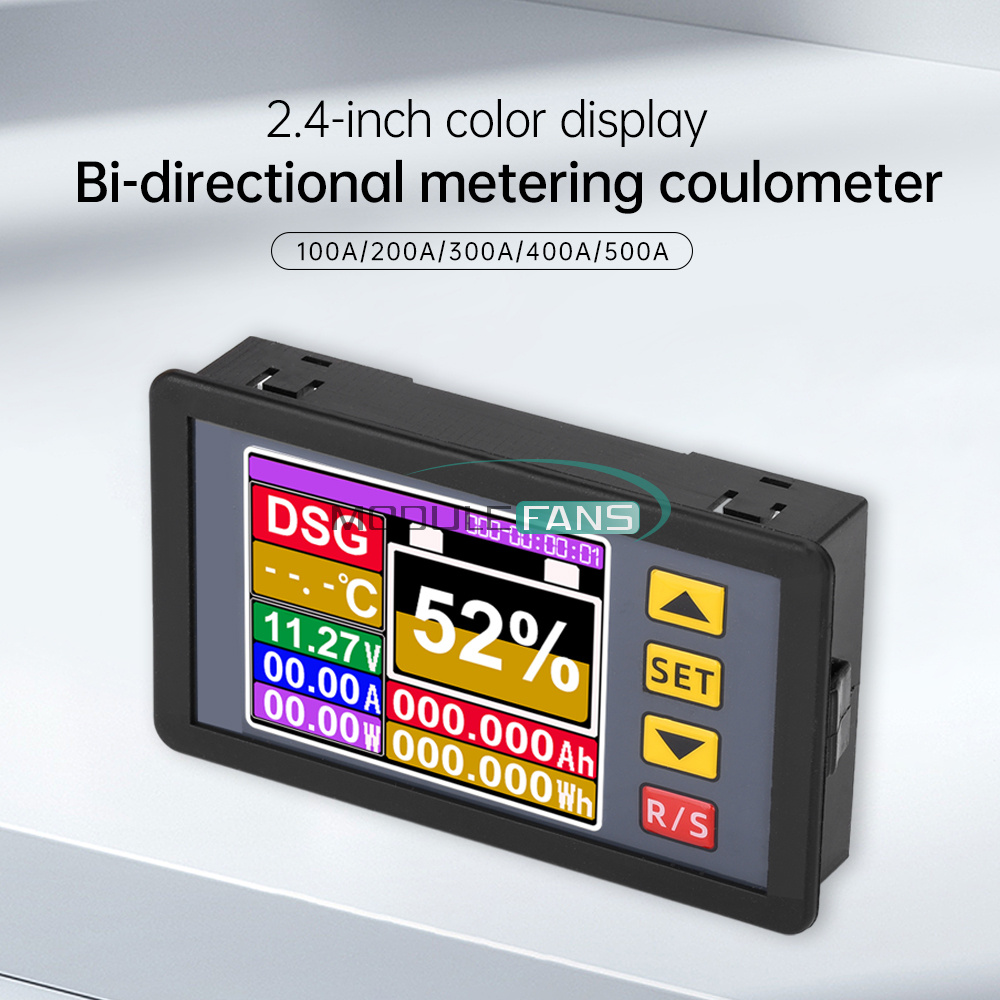

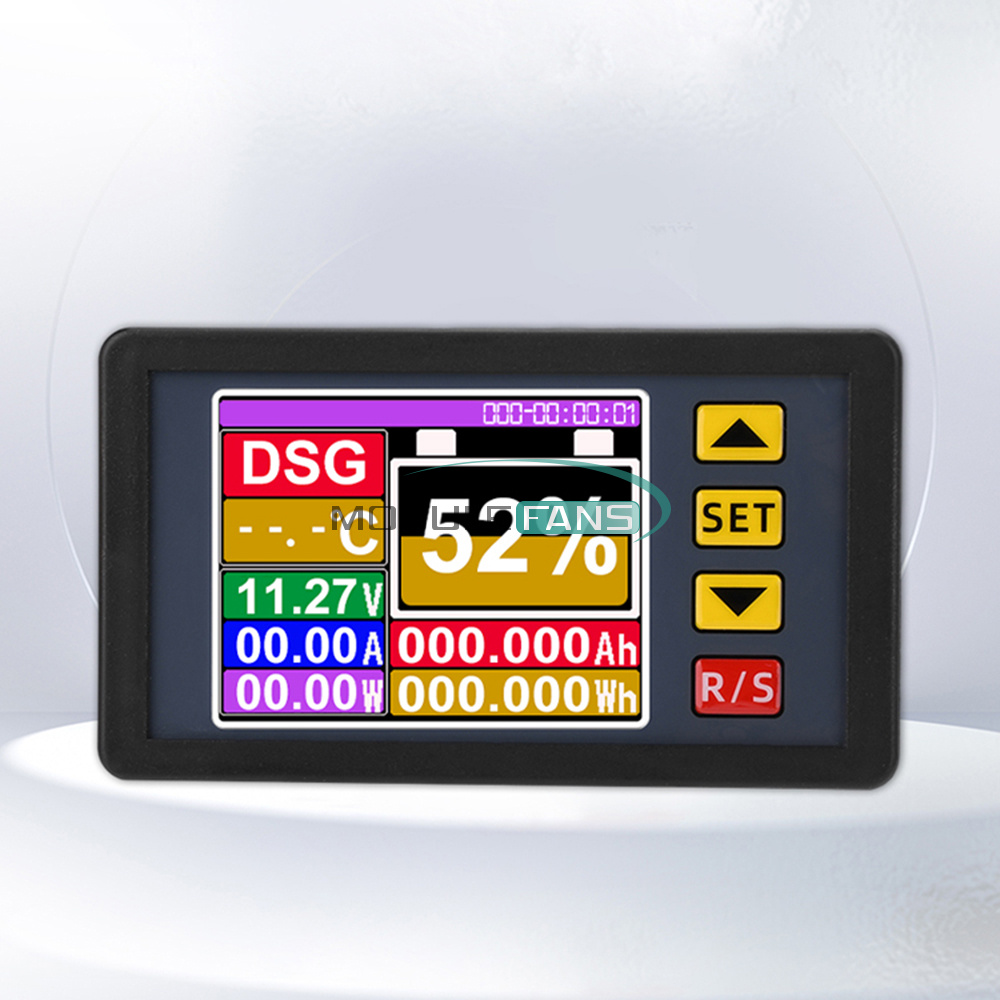

7.2.4-inch color screen, clear vision: 2.4-inch high-definition color screen, data display vivid and intuitive, clearly visible.
Parameter:
Input/output interface: 100A/200A/300A/400A/500A through the shunt adapter board wiring
Instrument working voltage: DC7~200V
Voltage measurement range: DC7~200V
Current measurement range: ①100.0A (need to connect the shunt adapter board)
② 200.0A (need to connect the shunt adapter plate)
③300.0A (need to connect the shunt adapter plate)
④400.0A(Shunt adapter plate required)
⑤500.0A (shunt adapter plate required)
Power measurement range: 00.00W~1.000KW~999.9KW
Capacity measurement range: 0~9999.9KAh
Electricity measurement range: 0~9999.9KWh
Temperature measurement range:0~99℃
Power measurement range: 00.00W~1.000KW~999.9KW
Capacity Measurement Range:0~9999.9KAh
Power measurement range: 0~9999.9KWh
Temperature measurement range: 0~99℃

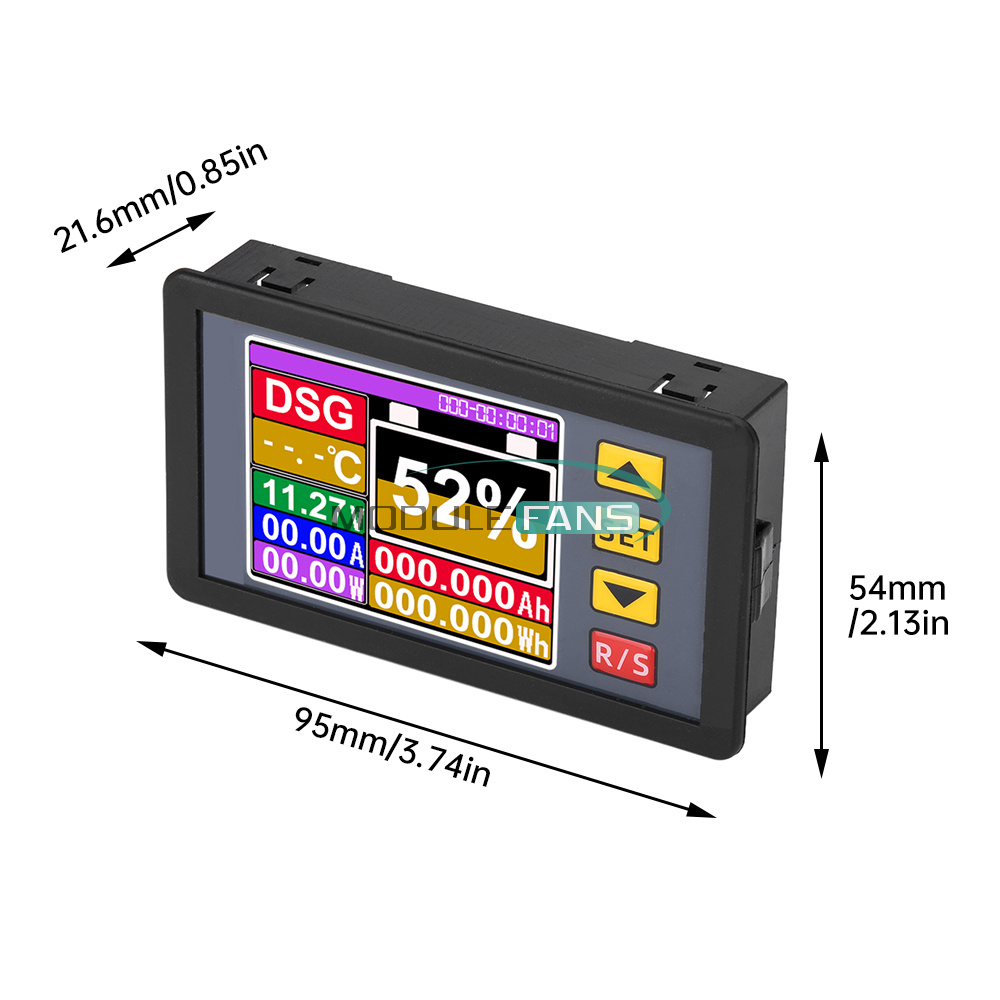

Display meter size: 95×54×21.6mm
Meter mounting aperture: 51×88mm

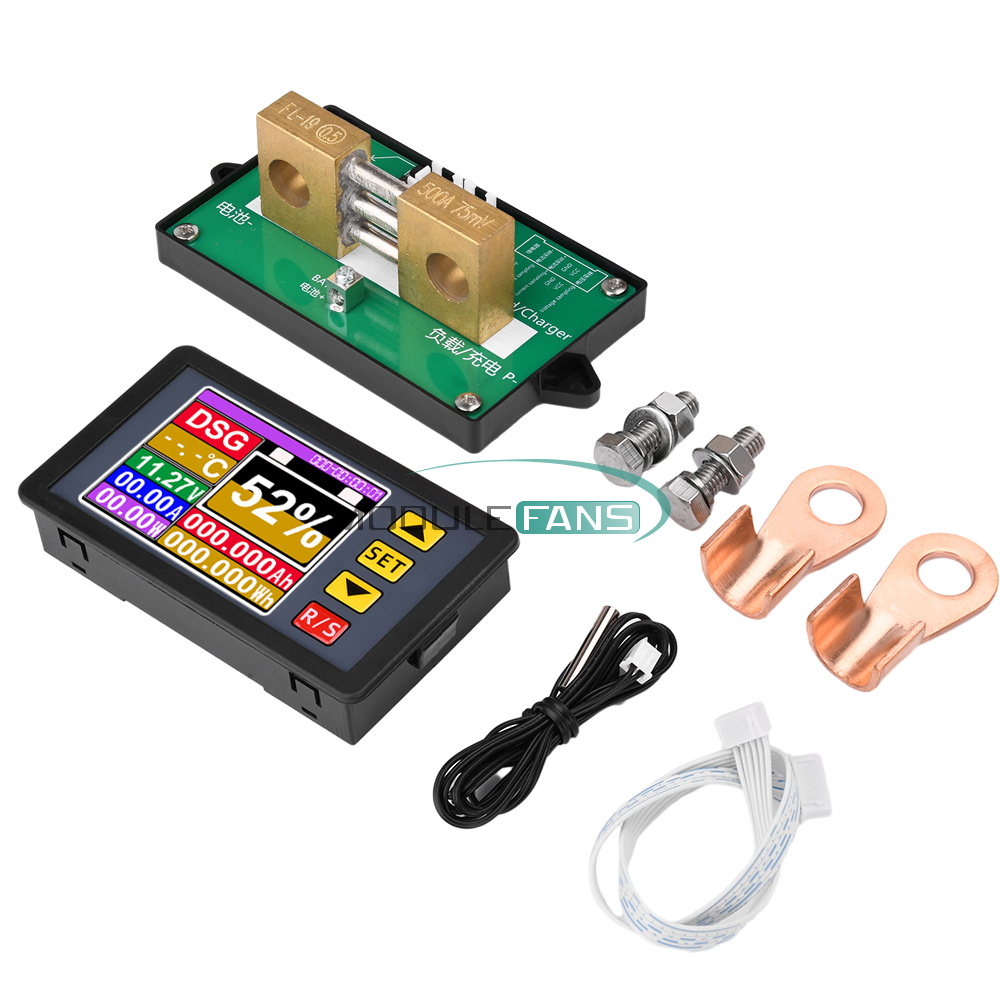

Package include:
Meter *1
XH2.54 Reverse 6P 300mm connection cable*1
XH2.54 2P red and black wire *1

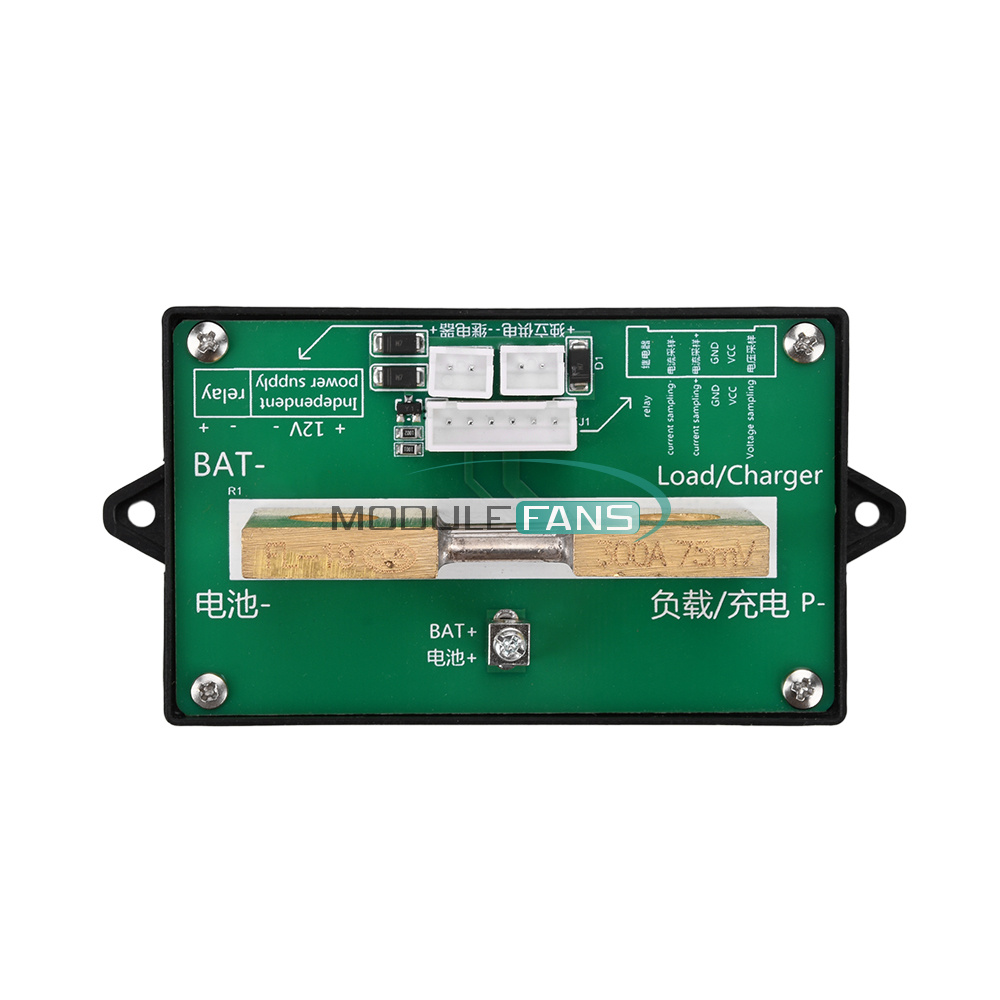

Splitter adapter plate (with splitter)*1
M8x25mm bolt*2
Wiring copper ring *2
NTC sensor *1
