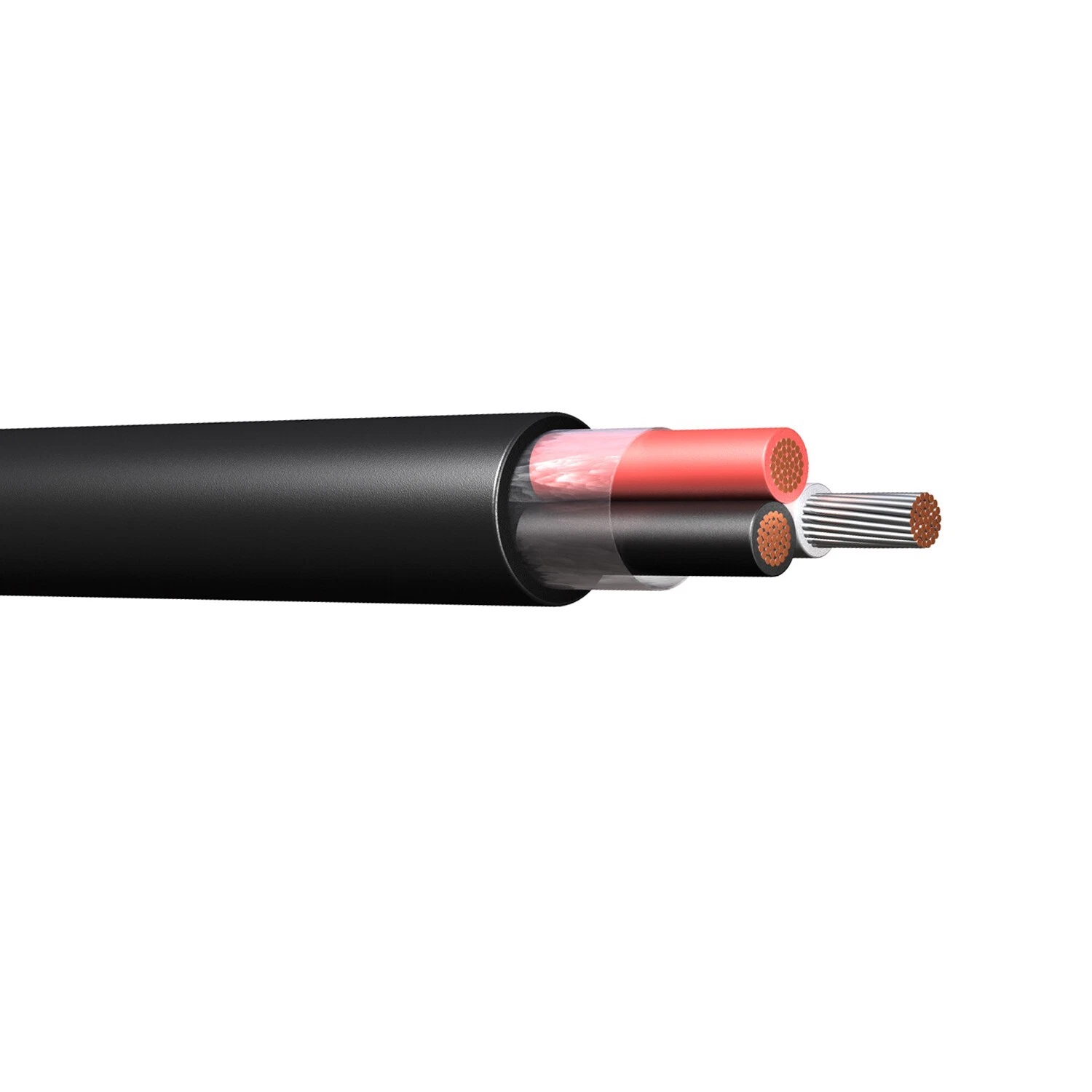

100' 12/3 Type P Unarmored Power Cable IEEE 1580 Black Jacket 600V/1000V
Click Thumbnails to Enlarge
DESCRIPTION
• 12/3 Type P Cable is Primarily designed for power, control, signal, and instrumentation applications for offshore land drilling rigs, marine vessels, and offshore production facilities.
CONDUCTOR
• Soft Annealed Flexible Stranded Tinned Copper per IEEE 1580
INSULATION
• Flame Retardant Cross-linked Polyolefin Insulation
JACKET
• Thermosetting Neoprene
STANDARDS
• ABS, DNV Approved
• ETL, UL Listed
• IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
• Type P Insulation: IEEE 1580, UL 1309 TYPE X110
• Type N Sheath: IEEE 1580, UL 1309
• Flame Retardant: IEEE 1202, IEC 60332‐3 CAT. A
• Fire Resistant: IEC 60331‐1/2/21 (OPTIONAL)
• Cold Bend/Impact: CSA 22.2 No. 03 (-40°C/-35°C)
• Oil, Abrasion, Moisture, Petrochemical & Sunlight Resistant
PRODUCT SPECIFICATIONS
| Size AWG | 12 |
|---|---|
| Number of Conductors | 3 |
| Overall Diameter (inches) | 0.441 |
| Ampacity at 100°C | 31 Amps |
| Weight (Lbs/1000ft) | 135 |
