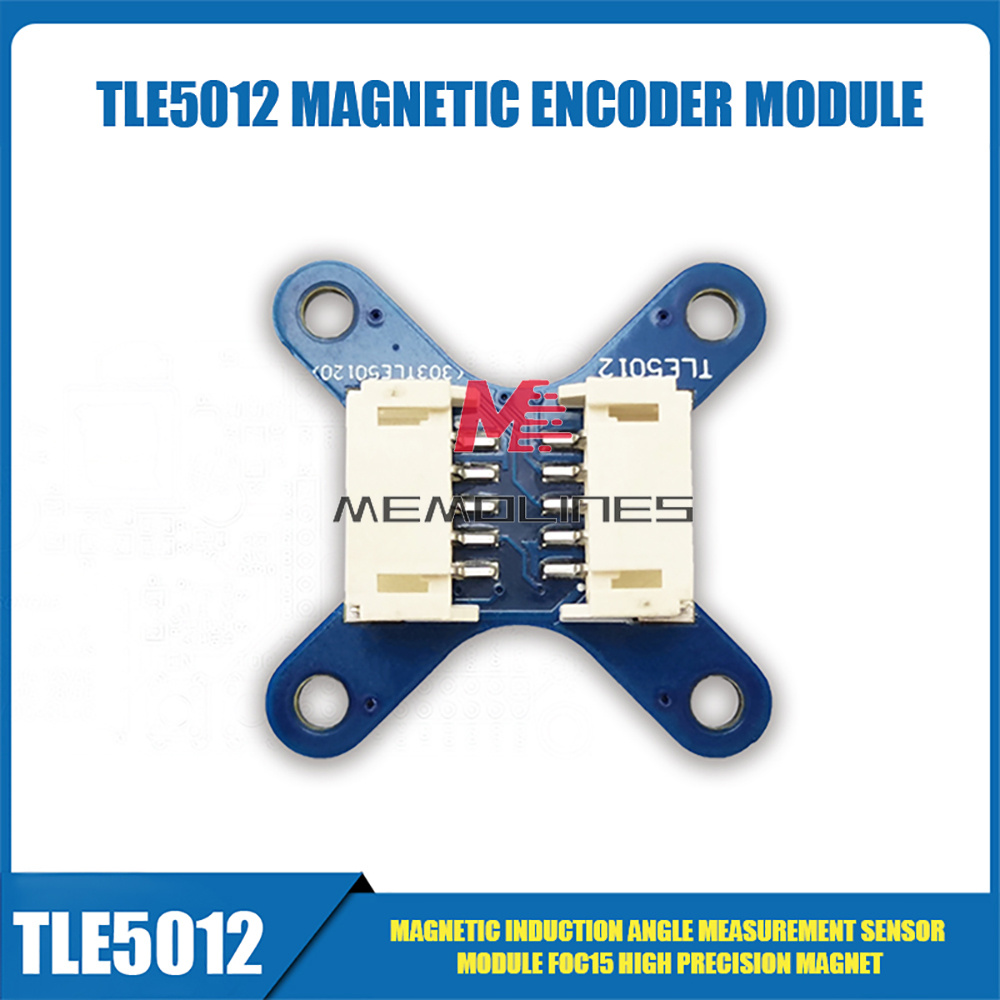

TLE5012/AS5600 Magnetic Encoder Module Magnetic Induction Angle Measuring Sensor
Item Description

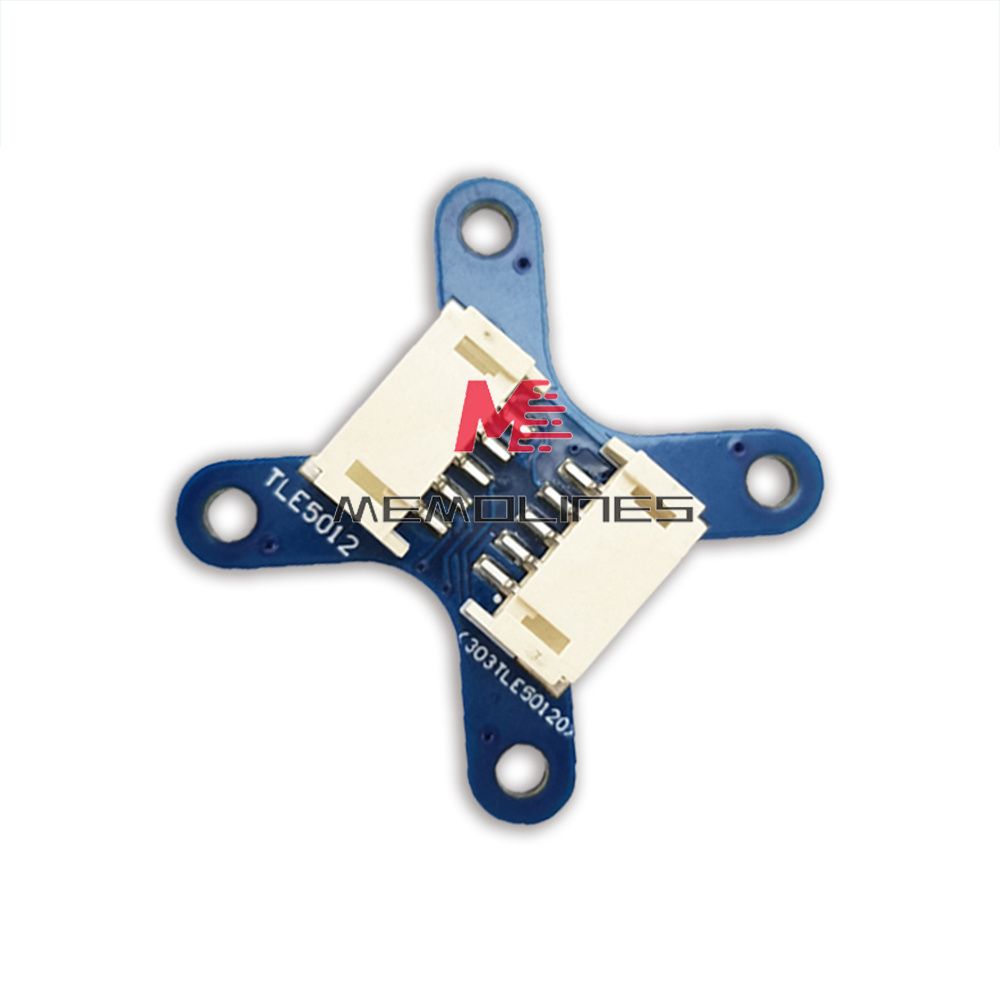

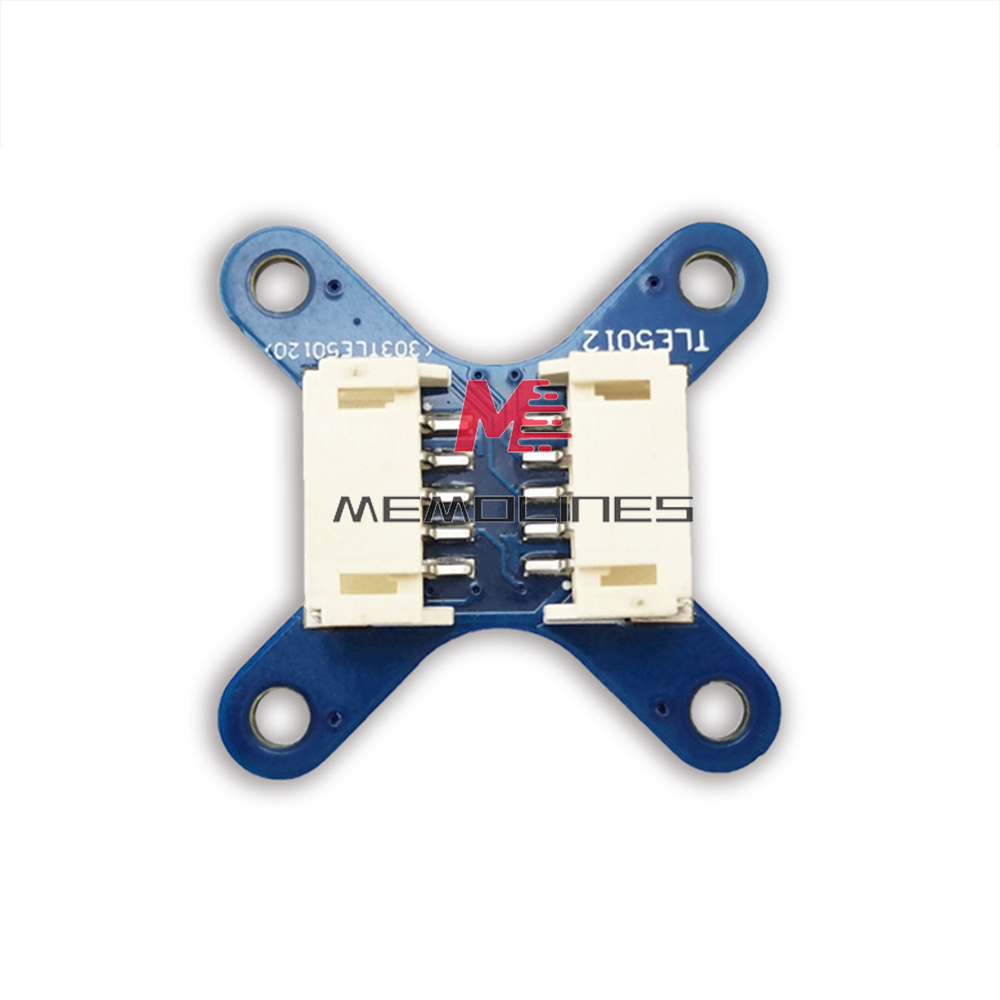

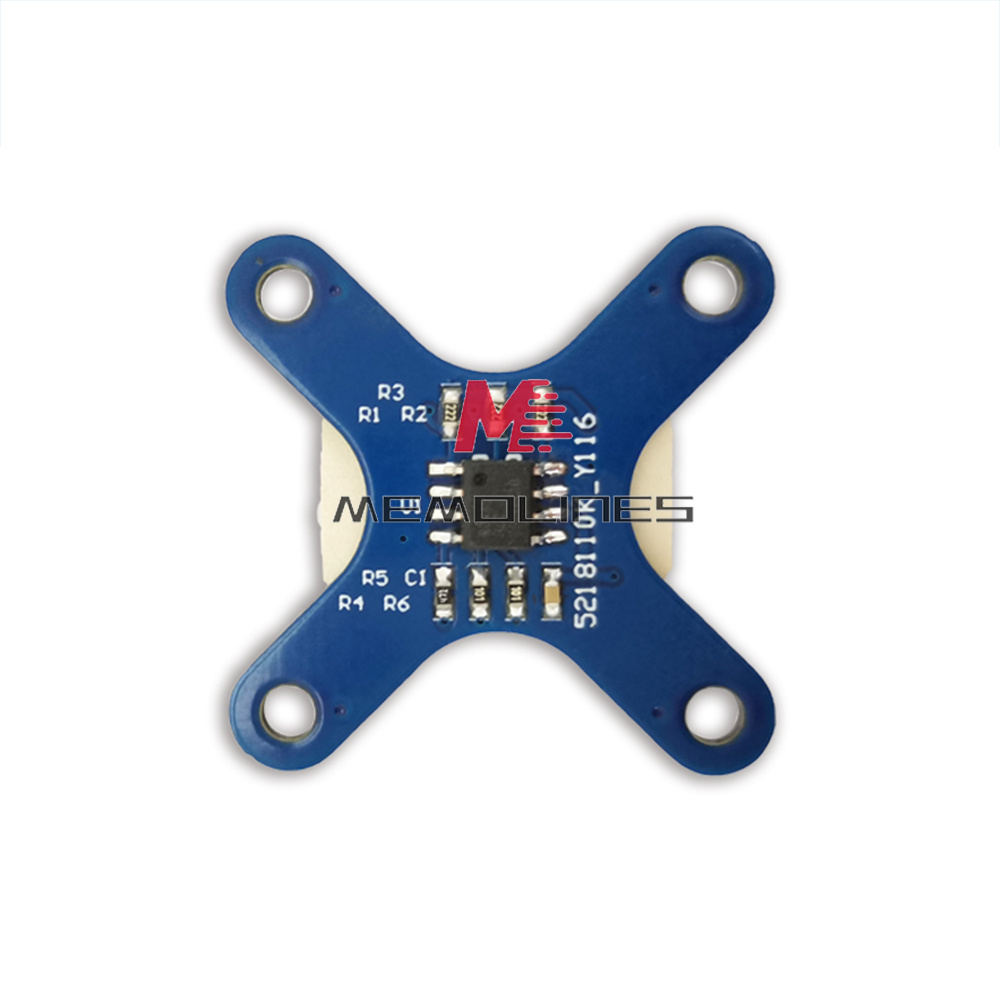

TLE5012 15 Bit
Product features:
1. Three wire SPI interface, communication rate up to 8Mbit/S
2. Multiple angle signal output modes: SPI, PWM, lIF, HSM, SPC.
3. Support 3.3V and 5V voltage and PH2.0 5pin interface
4. Compatible with 2212 motor cross bracket.
5. TLE5012 magnetic encoder module adopts a 15 bit high-precision magnetic induction angle sensor chip, which can output angle signals through SPI bus, PWM, 1IF, Hall and other methods.
Product parameters:
Voltage: 3.3V and 5V
Interface: PH2.0 5pin
Compatible with: 2212 motor cross bracket
Signal output mode: SPI, PWM, lIF, HSM, SPC
Size: 34mm diagonal, suitable for 2212 motor cross bracket.
instructions:

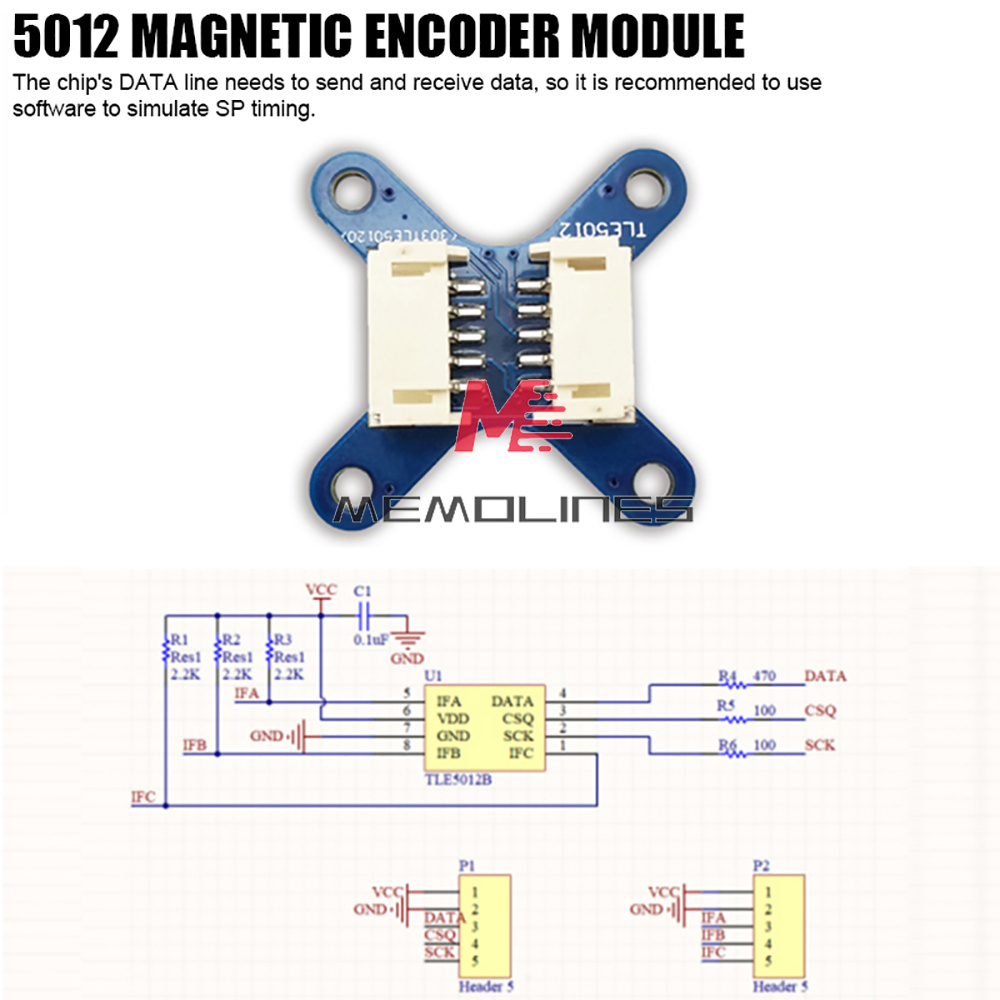

P1 is a three wire SPI bus
P2 refers to PWM, IIF and other signal outputs.
The chip's DATA line needs to send and receive data, so it is recommended to use software to simulate SPI timing.

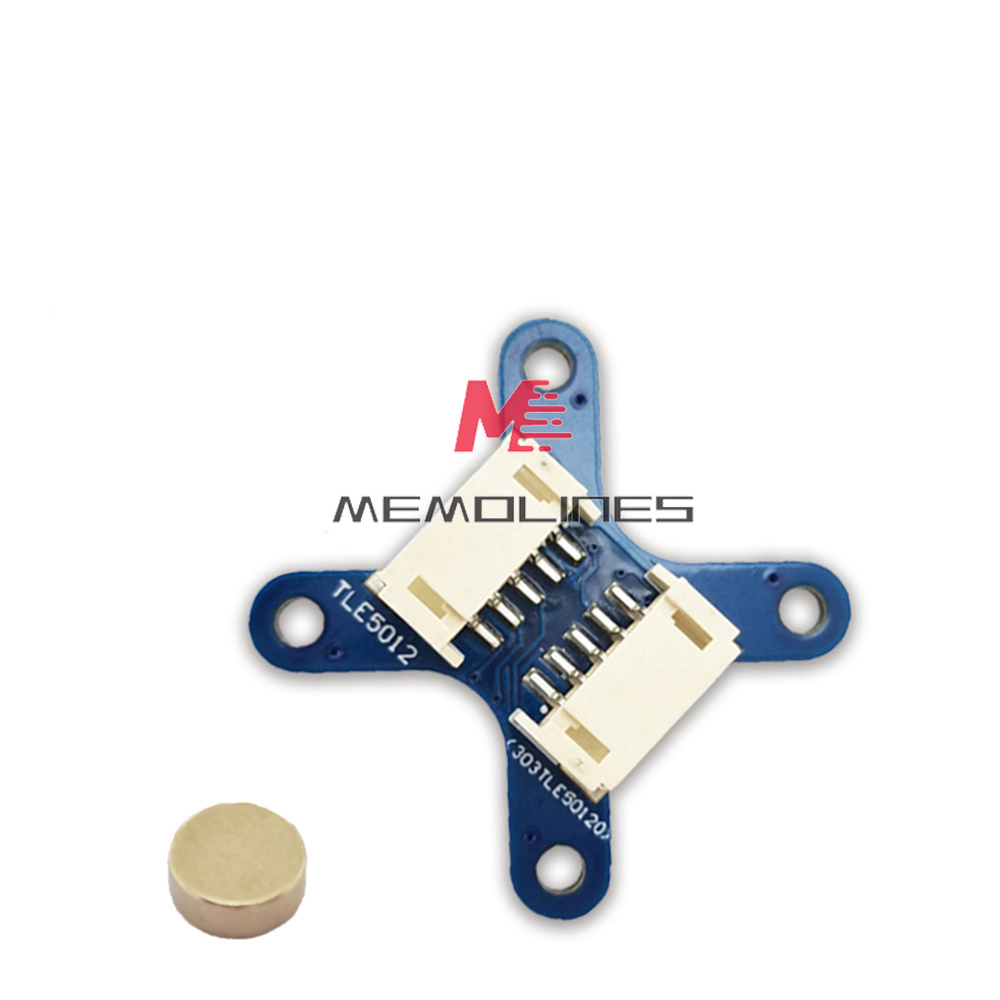

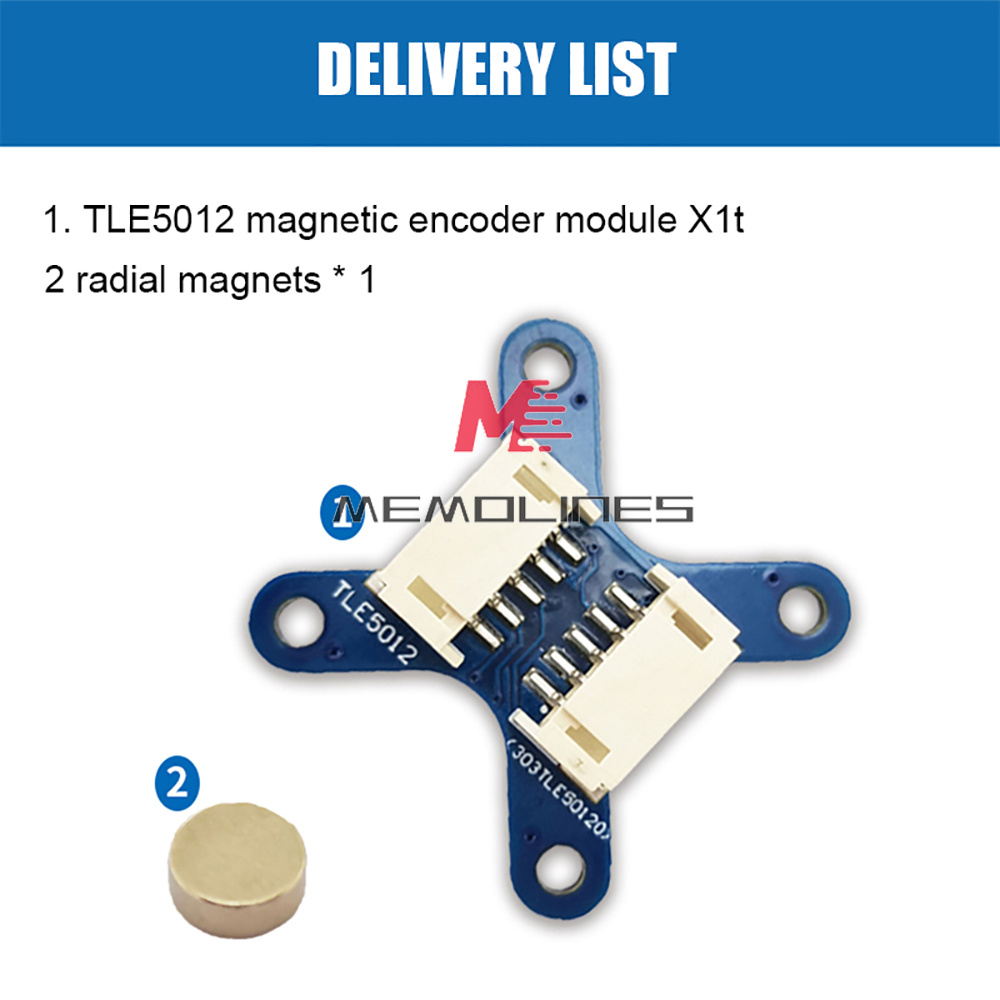

Product list:
TLE5012 magnetic encoder module X1
Radial magnet * 1

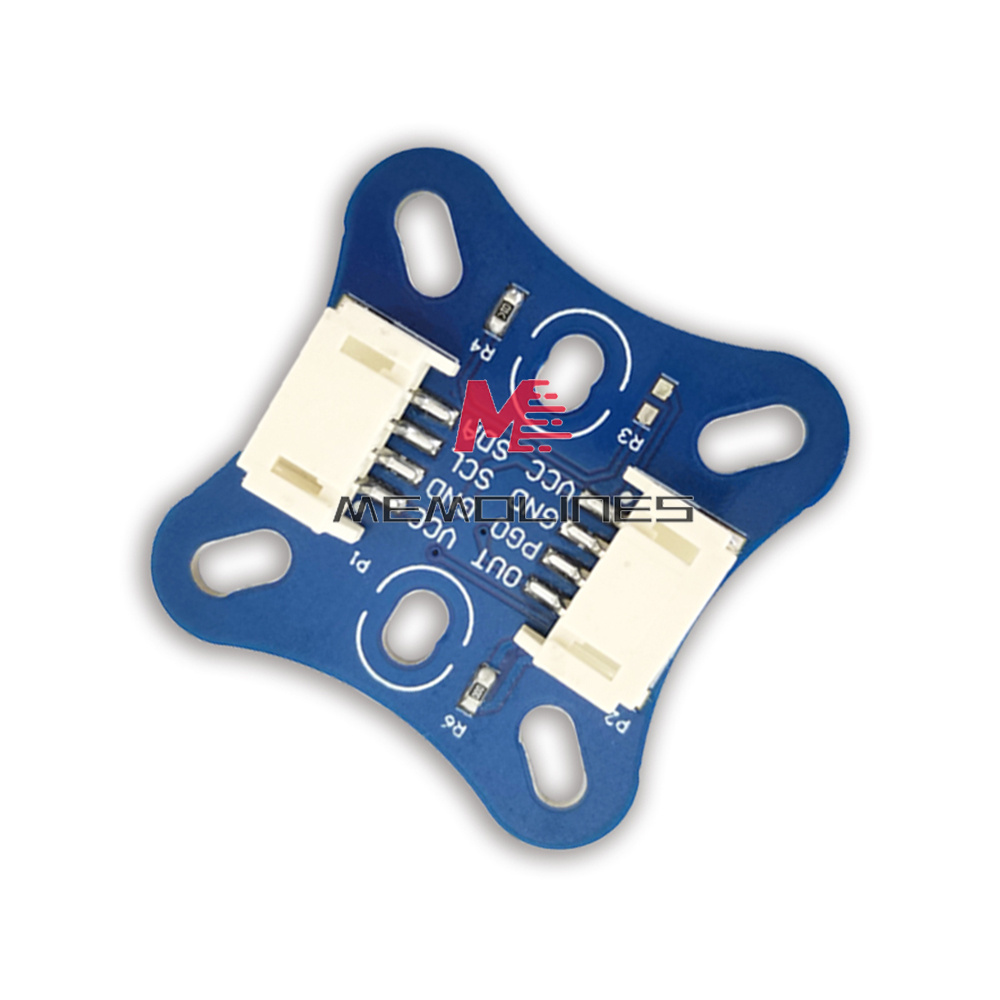

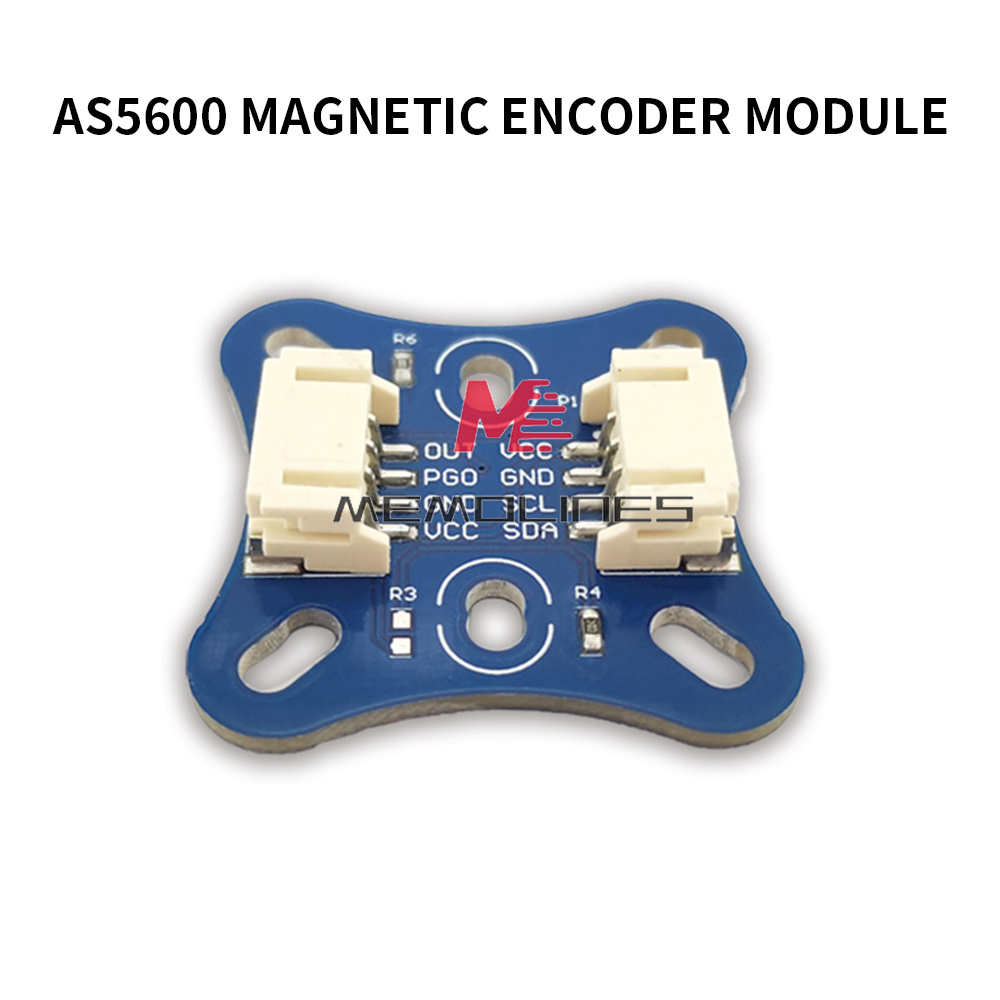

AS5600 12 Bit
Product features
The AS5600 magnetic encoder module uses a 12 bit high-precision angle sensor chip.
The angle signal can be output via lIC bus or PWM/analog.
Slotted design is adopted to support motor supports of various sizes.
Product parameters
1. Non contact magnetic induction angle measurement
2. Three signal output modes: IIC bus, PWM or analog output.
3. By default, 3.3V voltage is supported, and 5V voltage can be used when disconnecting R6 resistance.
4. IIC interface is used by default, and PWM/analog output is used for PGO pin grounding.
5. By default, the clockwise rotation value increases. If R4 is resistance welded to R3 pad, the counterclockwise rotation value increases.
6. Compatible with motor supports of various sizes.
7. Interface: PH2.0 4pin

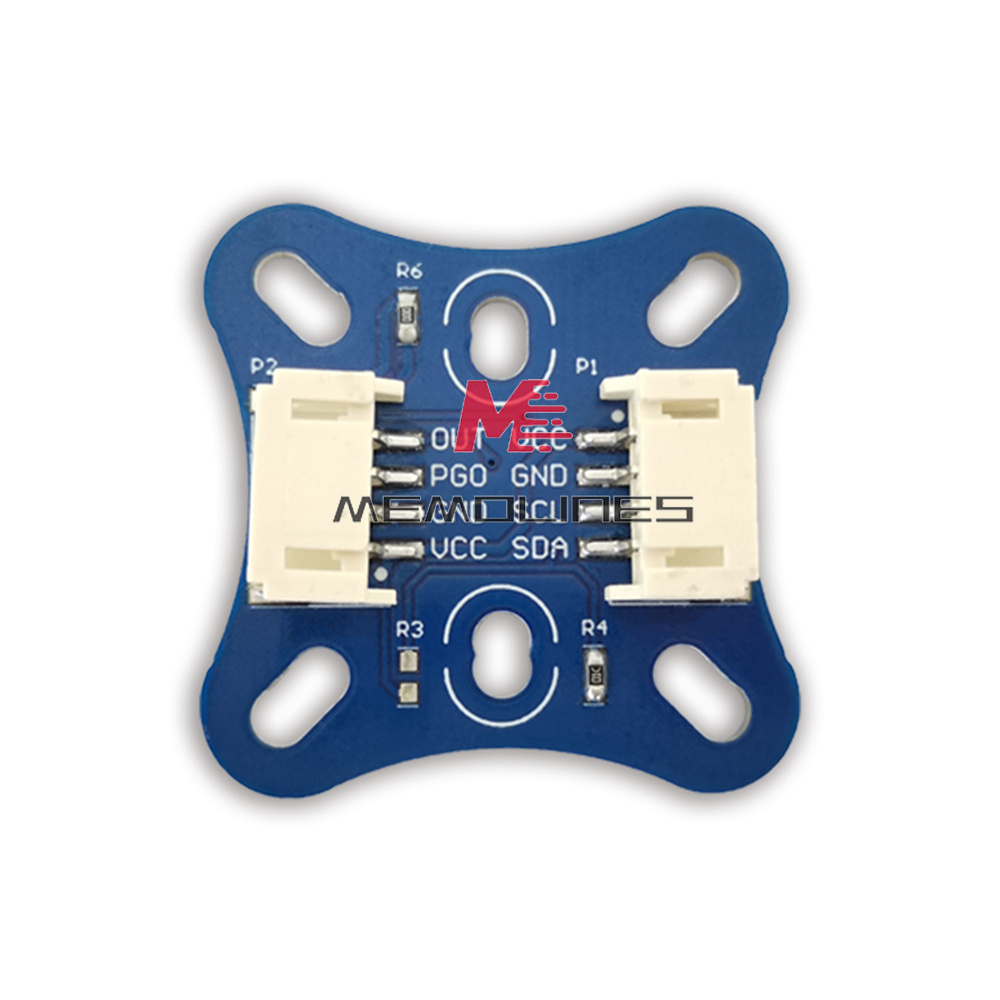

instructions:
P2 is PWM/analog signal output, P1 is IIC signal output. You can select one of the interfaces to use.
In order to save the IO port of the microcontroller, some configurations of the chip are configured through the pull-up and pull-down resistors on the board. If there is a need to change, you can modify the resistance position yourself.
1. By default, 3.3V voltage is supported, and 5V voltage can be used when disconnecting R6 resistance.
2. IIC interface is used by default, and PWM/analog output is used for PGO pin grounding. 3. The default clockwise rotation value increases, R4 resistance is welded to R3 pad, that is, the DIR pull-down resistance is changed to pull-up resistance, and the counterclockwise rotation value increases.
Specific query data manual and schematic diagram.

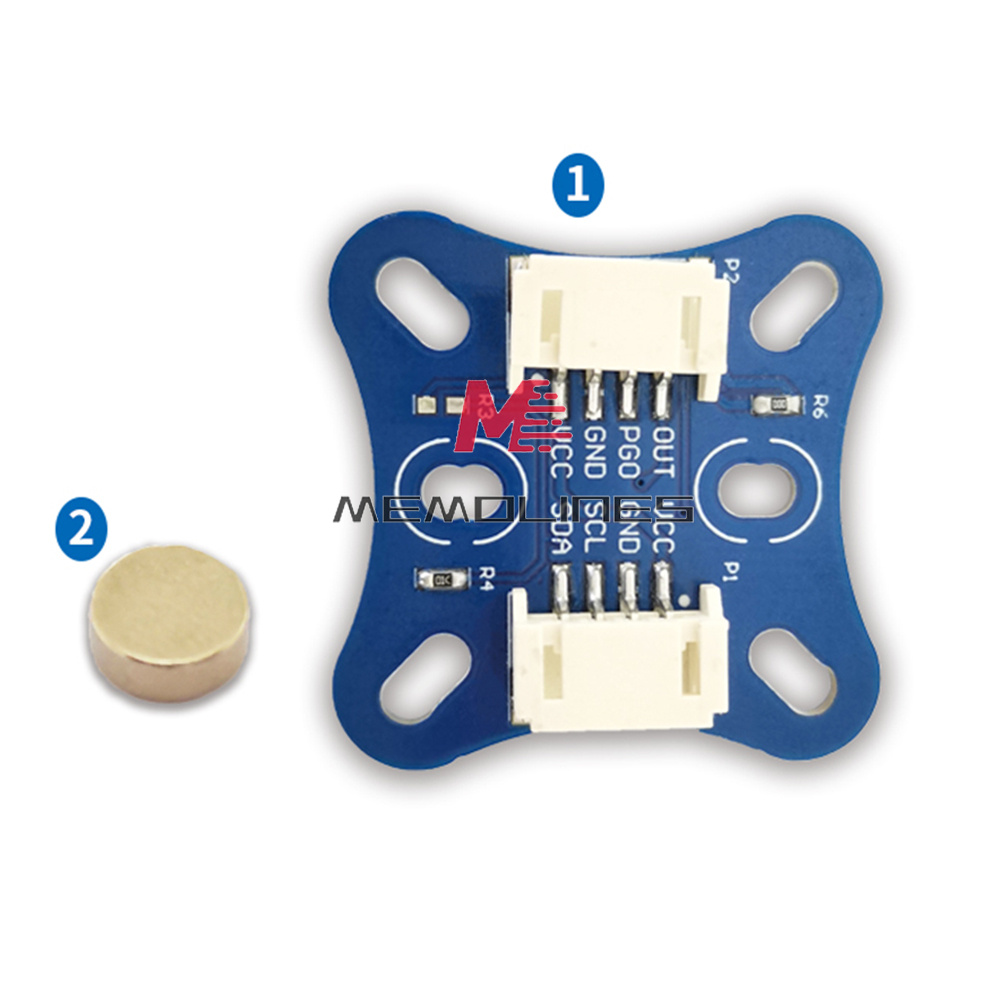

Product list:
AS5600 magnetic encoder module X1
Radial magnet * 1
