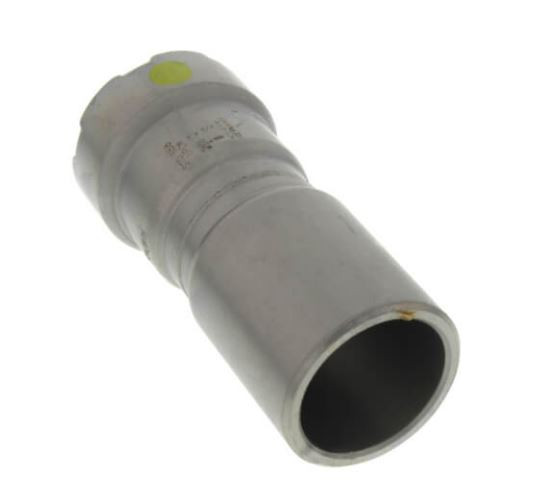

Street Reducer XL Carbon Steel Press -HNBR - Gas

Street Reducer Carbon Steel Press for Fuel/Oil Piping Systems

Features and Advantages:
■ For use with Sch. 5 to Sch. 40 Carbon Steel Pipe
■ Broad offering of 200+ fitting configurations
■ Products color coded for easy identification
Product Description:
Titanpress G Carbon Steel Press fittings designed for use in gas and fuel oil applications utilizing ASTM A53, Schedule
10 to Schedule 40 carbon steel pipe. Titanpress G Carbon Steel Press fittings are compatible with most common black
iron pipe pressing tools and jaws. Fittings are color coded with yellow dot and removable sticker to notate its HNBR
sealing element.
15 Year Limited Warranty for approved gas and fuel oil applications (non-industrial and non-marine applications)
■ Available in diameters 1/2" - 4"
■ QuadGrip™ Interlaced Grip Teeth Provide 360˚ stability
■ Smart Press LBP (Leak Before Press) system

Compatible Pipe:
• ASTM A53 Schedule 5 to Schedule 40 carbon steel pipe

Components:
• Carbon steel body with zinc/nickel
corrosion-resistant coating
• HNBR Sealing element
• 420 stainless steel grip ring
• 304 stainless steel separator ring (1/2" - 2")
• Graphite Support Ring (2-1/2" - 4")

Operating Performance:
• Operating Pressure: 125 psi max for fuel gas applications
200 PSI Max for other approved applications
• Test Pressure: 600 psi max
• Temperature Range: -40°F to 180°F for fuel gas applications

Approved Systems:
• Natural Gas (up to 125 PSI)
• Propane (up to 125 PSI)
• Mineral Oil (up to 200 PSI)
• Compressed Air (up to 200 PSI)
• Nitrogen (up to 200 PSI)
• Heating Fuel Oil (up to 125 PSI

Complies With:
• Uniform Mechanical Code (UMC)
• Uniform Plumbing Code (UPC)
• NFPA 54 and 58
• International Mechanical Code (IMC)
• International Plumbing Code (IPC)
• International Fuel Gas Code (IFGC)
• ASME B31: Code for Pressure Piping

Certificates and Listings:
• CSA: ANSI LC 4a/CSA 6.32a
• IAPMO: ANSI LC 4a/CSA 6.32a
