K30 LASER TREE 30W Optical Power Laser Head Cutting Module for Engrave Machine

Product Description

Laser Tree K30 is a real 30W output laser module designed for powerful cutting.It uses beam compression technology, built-in 6pcs 5.5W laser diodes.

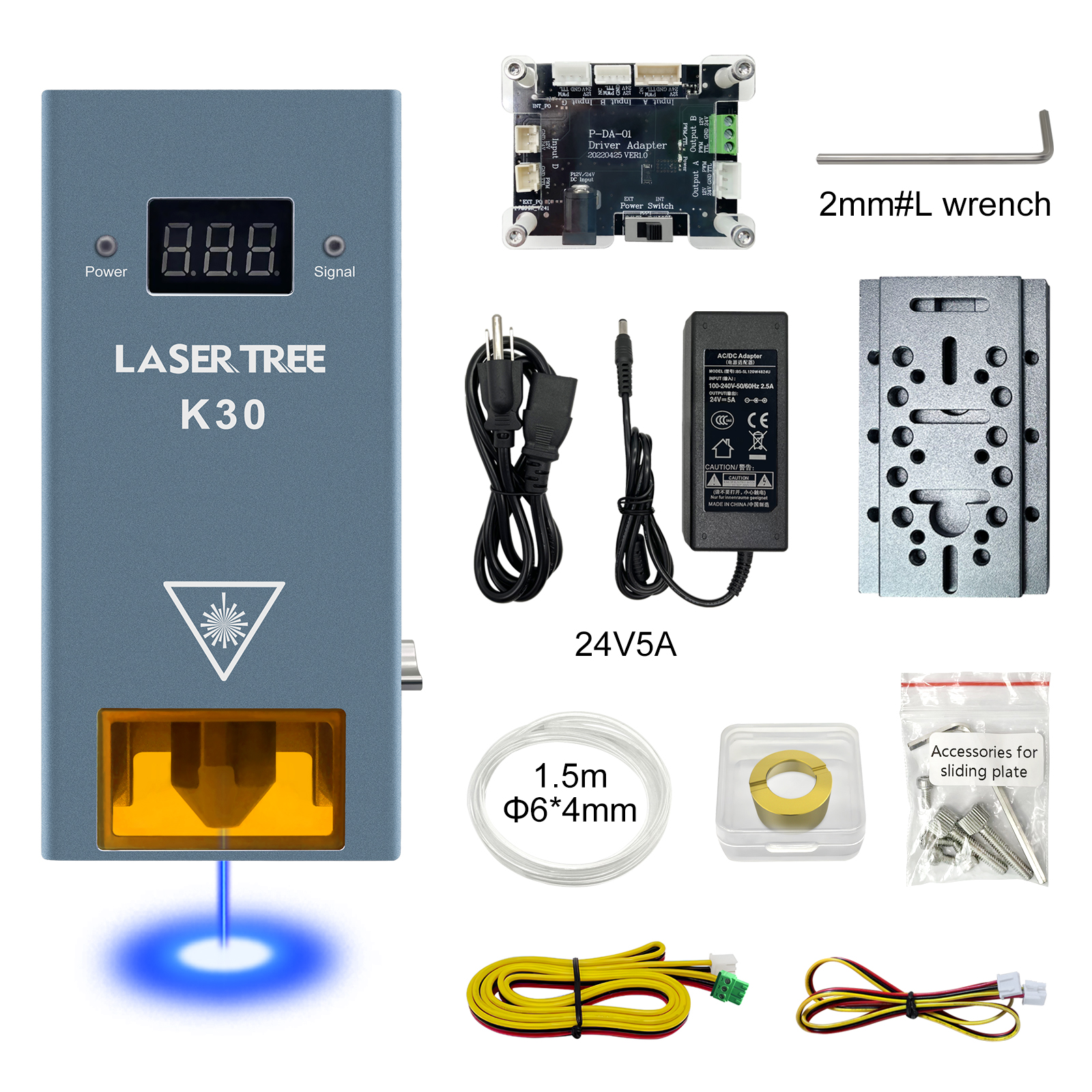

The comprehensive product configuration realizes compatibility with various laser engraving machines.
The adapter board is used for electrical compatibility (suitable for Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines).
The sliding plate has multiple holes for installation compatibility.
Built-in air assist improves cutting performance, and excellent heat dissipation improves product stability and service life.
If you need to cut a lot of thick materials and speed up production, the powerful Laser Tree K30 is a good choice.


Ultrahigh Power Laser Module

K30 is a high power 30W optical power laser module, built-in 6pcs 5.5W beam compressed laser diodes
Cut 15mm bass plywood: 180mm/min, 100% power, by one pass
Cut 15mm black acrylic: 35mm/min, 100% power, by one pass
Cut 30mm pine wood: 120mm/min, 100% power, by one pass


Built-in Air Assist & Dual-Fans Cooling Systerm
a. Built-in air assist to get clean-cut edges, improve cutting performance
b. Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life



Temperature Display & Alarm Function & Red Cross-positioning Light Design
a. Use in high working temperature will affect the life of the laser module.
b. The buzzer will sound an alarm when the temperature of the laser head is higher than 55℃ ( Suggested working temperature <35℃.)
c. Red cross-positioning light design, It helps laser engraving or cutting precise positioning


Easy to Set Focus & Fireproof and Anti-blue Light Design
a. 40mm fixed focus laser module, with fixed focus lever, focusing is more convenient
b. Glass eye protection window, It can effectively prevent blue light and fire resistance

Copper core protection lens, easy to clean and replace when the lens is contaminated or dusty.

Applicable Materials
Plywood, Pine board, wood, solid wood, black acrylic, MDF, stone, bamboo, coated glass, Mirror stainless steel, Brushed stainless steel, plastic, leather, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening Utility knife.
Note: Unable to engrave blue/purple/white/transparent material and aluminum without oxide layer .

Tax and customs
Taxes may apply to imported goods/services and are subject to national laws.
Buyers pay for the tax and customs/duties. We do not cover any tax and customs/duties in the price and shipping fee. Please contact your local customs office for details and information if you would like to know about taxes and duties.
If you need any help, just contact us.
Shipping and tracking
We will arrange the shipment within 3 days after confirming the payment and your receiving information (including your Full name, phone number, address, postal code etc.) is confirmed.

The  package is shipped from China Mainland. We will send you the tracking number for all orders and you can track the package via the website.

    Economy shipping: Speedpak---About 7-20 working days per different countries.
    Expedited shipping DHL, UPS, Fedex,  or others---About 3-10 working days per different countries.

Tips:

We accept returns & replacements within 30 days from the day the customer receive the products, please make first contact within 30 days from receiving the order. Products should be returned in original condition. （If the customer does not cooperate in verifying whether the product has a malfunction and still requests a return, we will not provide a return label or shipping cost.）

As a benefit to our customers, we also provide repair within 3 Months from the day when this item is shipped out, after repair is done, we will send you the item, but the customer should pay both shipping ways.
Feedback:
1) Your Feedback is really important to us, please take a few seconds to leave great feedback if you are satisfied with our product or service, thank you so much!
2)We always offer the lowest price for best goods and service to you.
3) Please contact us before leaving neutral (3 stars) or negative (1-2 stars) feedback. We will try our best to solve the problem and leave you a happy shopping mood here. Thank you!
  • Tip:
    Cutting Material Types：
    all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board.

    Engraving Material Types：
    all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel(non-specular surface), ceramics, dark stone.

    Additional Notes：
    1. Materials that are not easily oxidized/decomposed/melted at high temperatures cannot be engraved/cut;
    2. All transparent materials cannot be engraved/cut, and white/blue/purple materials cannot be directly carved/cut except for materials such as wood, cloth, paper, and leather;
    3. Unoxidized aluminum, silver color alumina, copper, silver and gold cannot be engraved;
    4. The electroplating material needs to determine the coating composition first;
    5. All metals cannot be cut.
