Product Description
LS236 Portable Coating Thickness Gauge Dual Screen Car Paint Checker Galvanized Car Tester Paint Film Coating Thickness Gauge
Descriptions：
Descriptions：

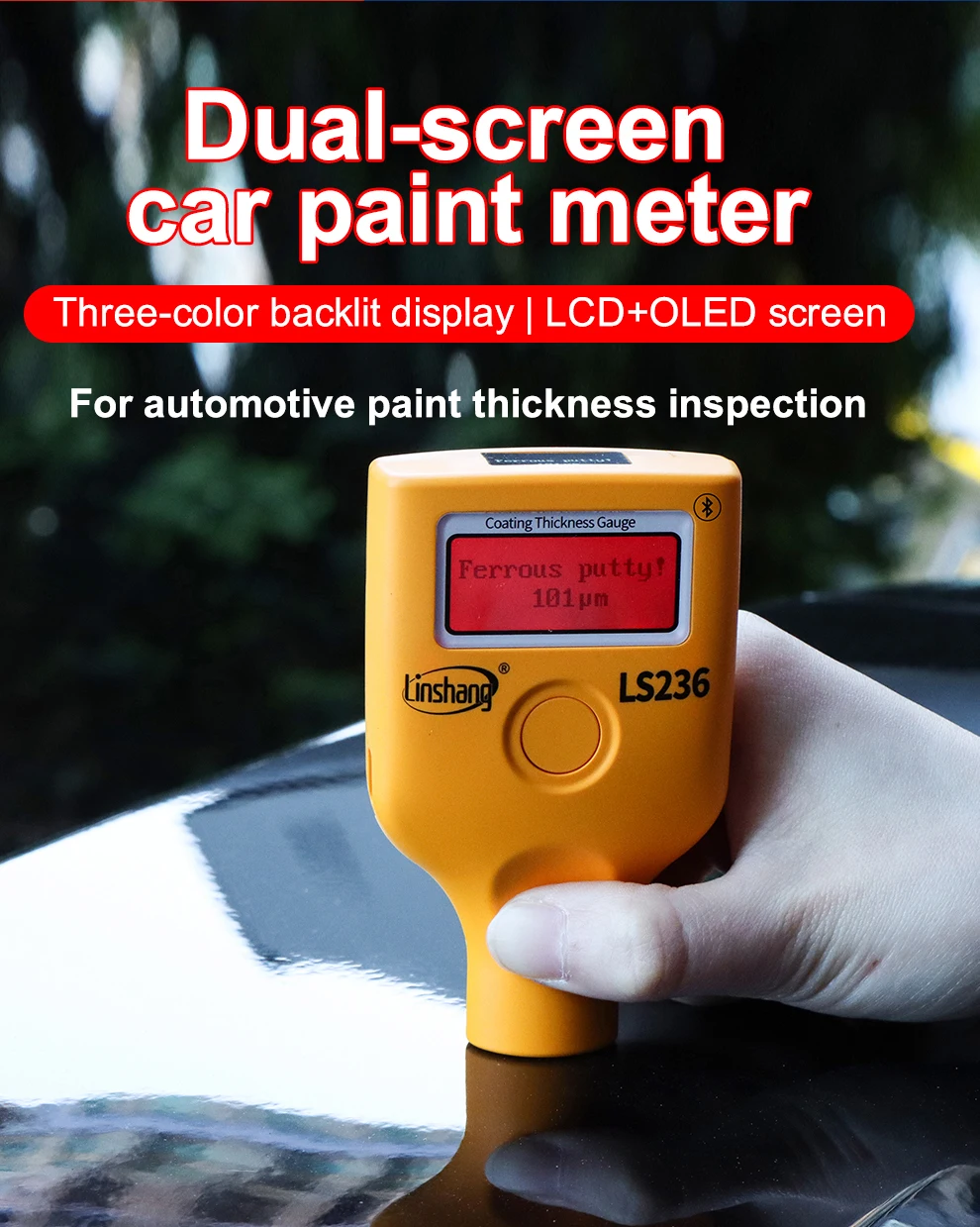

The LS236 coating thickness gauge is specialized in automotive paint thickness testing. The car paint tester is equipped with LCD and OLED low temperature resistant screen, which can be used normally in bright light and -40℃ ultra-low temperature environments. The dual screen design ensures that the user can take quick readings when measuring the car at any angle. LS236 portable coating thickness gauge can intelligently recognize accidental cars that have been refinished using ferrous putty. The galvanized coating thickness meter can also quickly detect iron galvanized, iron, aluminum and non-metallic bodies. Three-color backlit display depending on the thickness to be measured. The film coating thickness gauge has Bluetooth function to operate with cell phone APP.
Features：
Features：
1. The paint coating thickness gauge is equipped with LCD and OLED screens for normal use in bright light and ultra-low temperatures of -40°C.
2. The dual screen design ensures that users read when measuring the car at any angle.
3. Measurement range up to 3500 μm, even for ultra-thick car paints.
4. LS236 paint thickness tester can recognize accidental cars that have been refinished using ferrous putty.
5. The portable coating thickness gauge can also quickly detect iron galvanized, iron, aluminum and non-metallic bodies.
6. Three-color backlit display depending on the thickness to be measured.
7. Equip with Bluetooth function to operate with APP.
8. The portable coating thickness gauge has the fast response time and takes only 0.5 seconds to complete a measurement.
9. LS236 coating thickness meter utilizes an advanced digital probe for excellent repeatability in the measurement process.
Specifications
2. The dual screen design ensures that users read when measuring the car at any angle.
3. Measurement range up to 3500 μm, even for ultra-thick car paints.
4. LS236 paint thickness tester can recognize accidental cars that have been refinished using ferrous putty.
5. The portable coating thickness gauge can also quickly detect iron galvanized, iron, aluminum and non-metallic bodies.
6. Three-color backlit display depending on the thickness to be measured.
7. Equip with Bluetooth function to operate with APP.
8. The portable coating thickness gauge has the fast response time and takes only 0.5 seconds to complete a measurement.
9. LS236 coating thickness meter utilizes an advanced digital probe for excellent repeatability in the measurement process.
Specifications
|
Parameter
|
Value
|
|
Probe tip
|
Ruby
|
|
Measuring principle
|
Fe: Hall Effect / Al: Eddy current
|
|
Probe type
|
Built-in integrated probe
|
|
Measuring range
|
0.0-3500μm
|
|
Resolution
|
0.1μm: (0μm-99.9μm)1μm: (100μm-3500μm)
|
|
Accuracy
|
≤±(3%H+2μm), H is the standard value
|
|
Unit
|
μm / mil
|
|
Measuring interval
|
0.5s
|
|
Minimum measuring area
|
Ø = 25mm
|
|
Minimum curvature
|
Convex:5mm / Concave:25mm
|
|
Minimum substrate thickness
|
Fe:0.2mm / Al:0.05mm
|
|
Language
|
中文、English、Русский、Türkçe
|
|
Display
|
Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED
|
|
Power supply
|
2 pcs of 1.5V AAA alkaline battery
|
|
Operation temperature range
|
-40℃-50℃
|
|
Storage temperature range
|
-50℃-60℃
|
|
Gauge size
|
100*60*24 mm
|
|
Weight(with battery)
|
80g
|

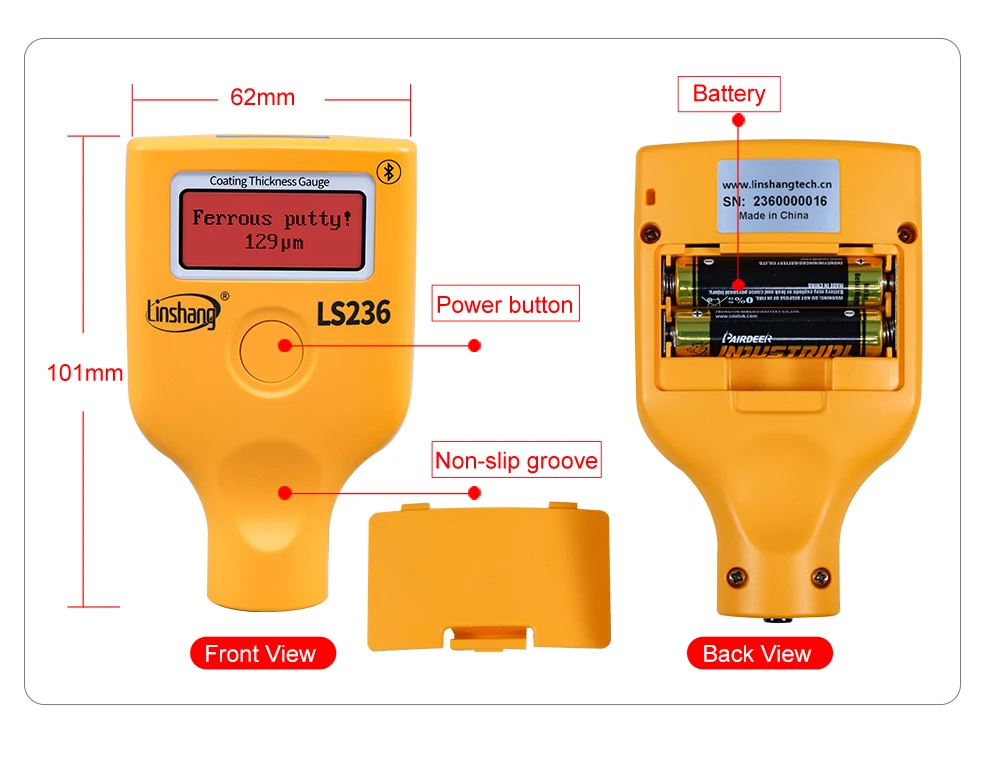

Structure & Packing

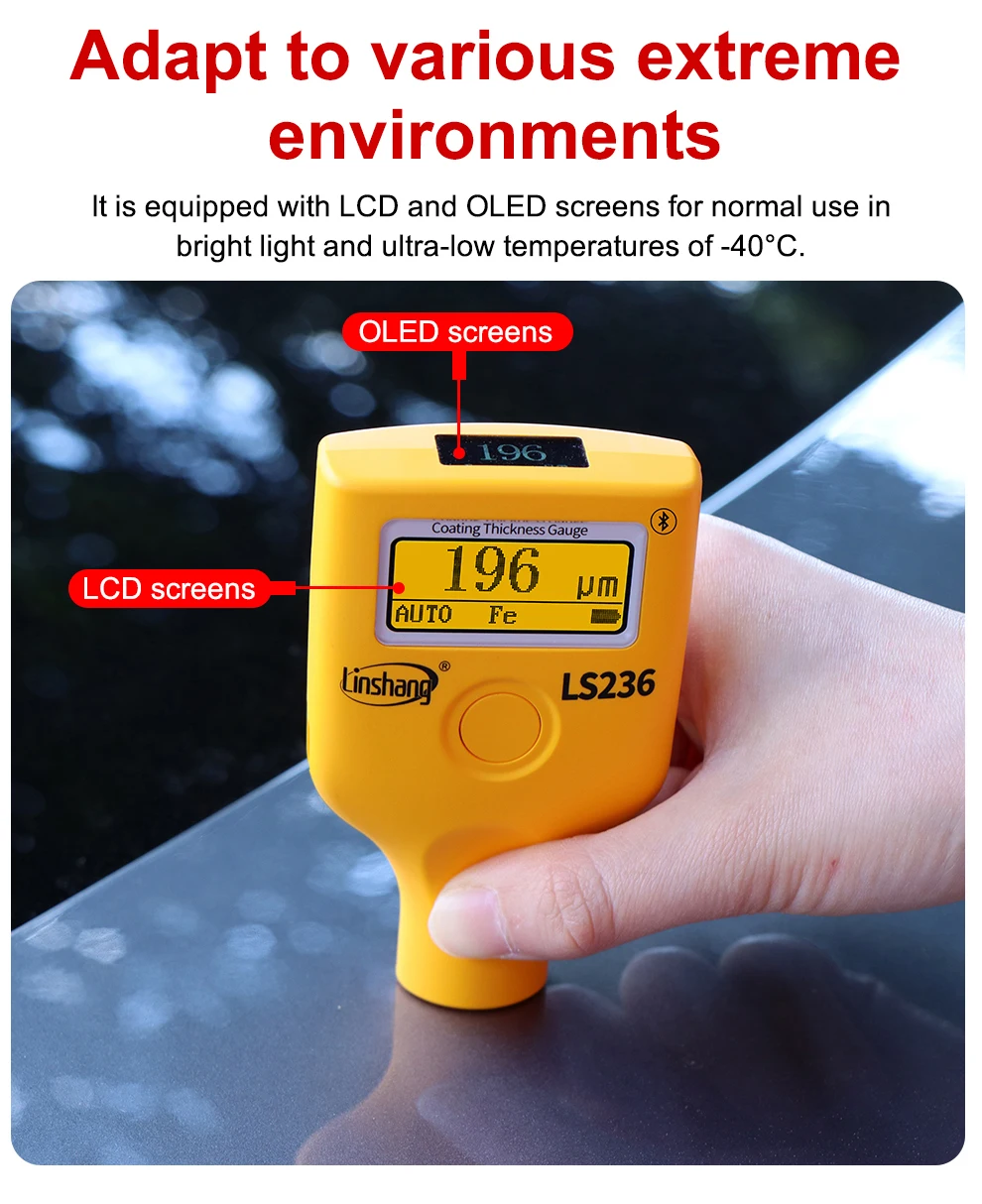

Equipped with LCD and OLED screens
The car paint checker is equipped with LCD and OLED screens for normal use in bright light and ultra-low temperatures of -40°C.

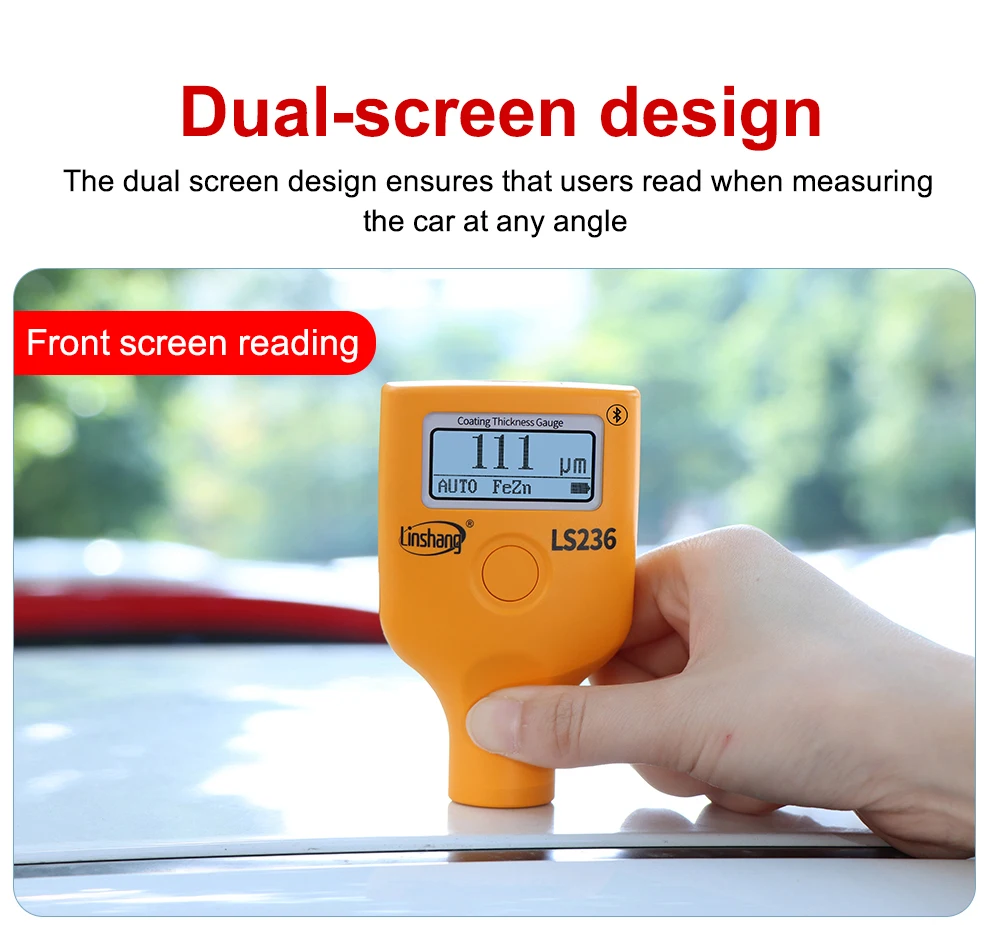

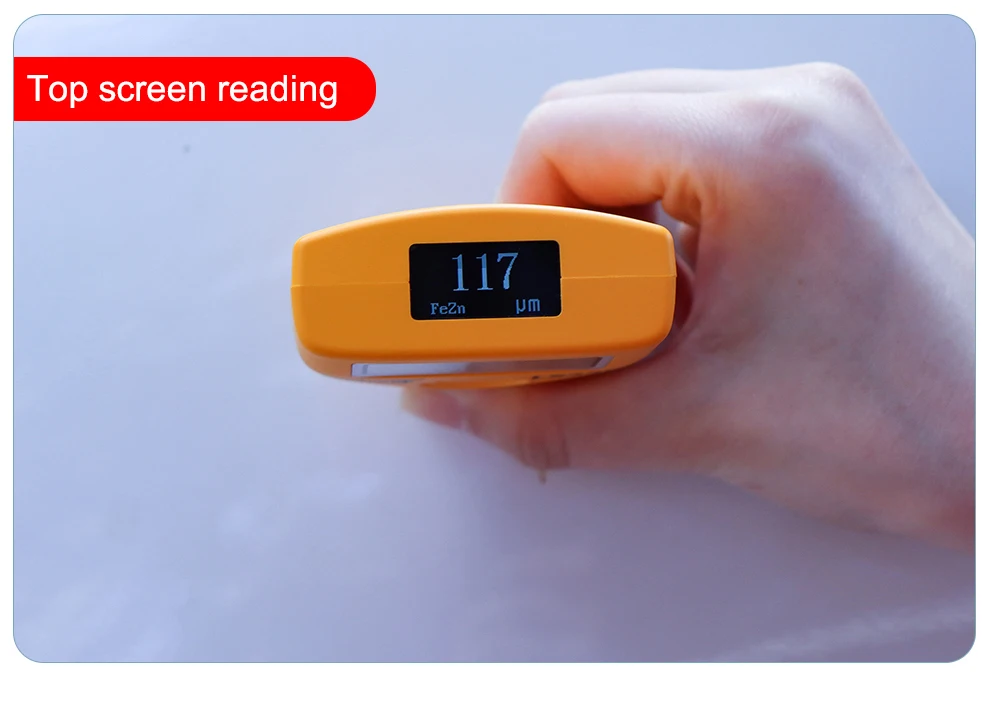

Dual-screen design
The coating thickness meter dual screen design ensures that users read when measuring the car at any angle.

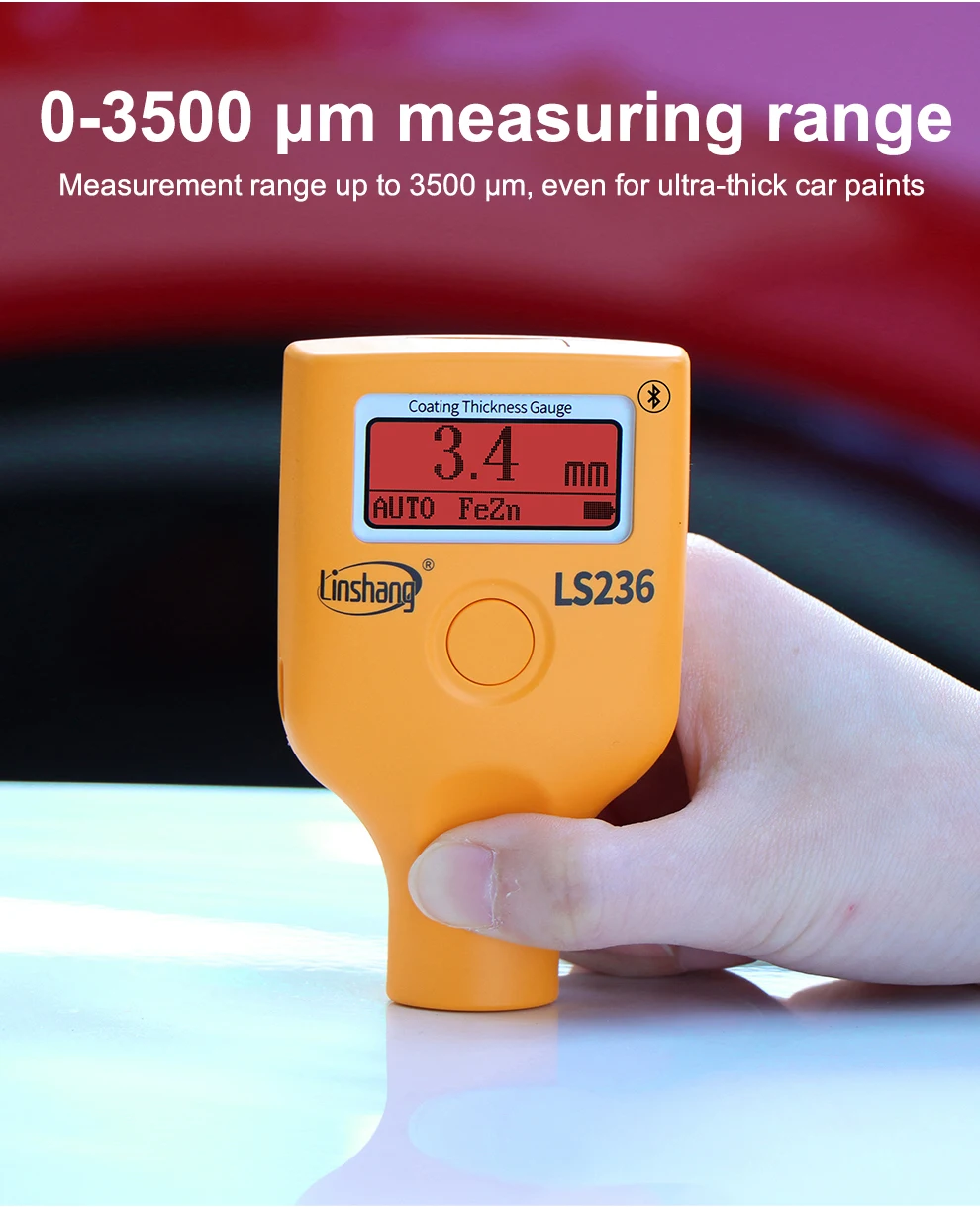

0-3500 μm measuring range
Measurement range up to 3500 μm, even for ultra-thick car paints.

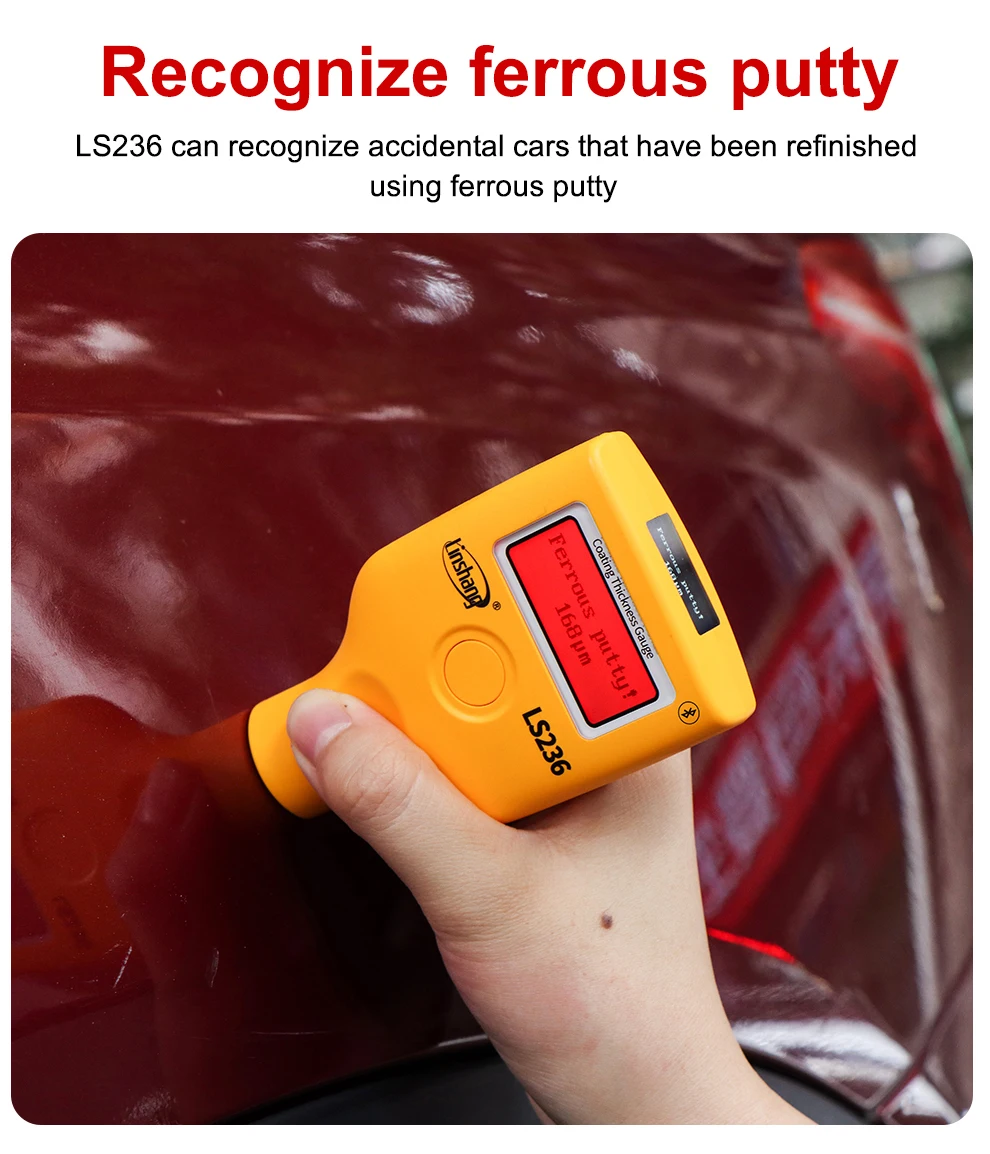

Recognize ferrous putty
LS236 paint thickness tester can recognize accidental cars that have been refinished using ferrous putty.

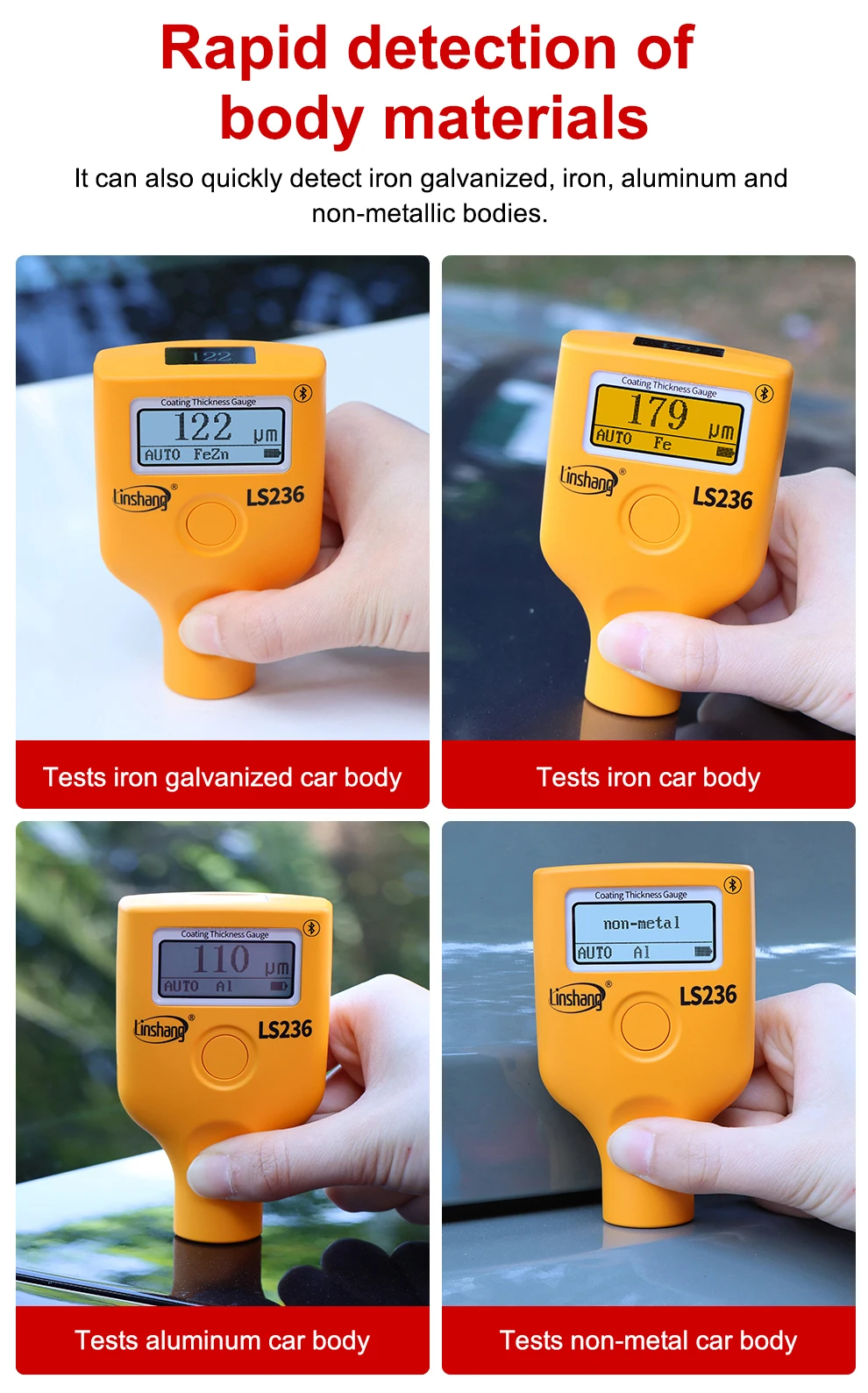

Rapid detection of body materials
The film coating thickness gauge can also quickly detect iron galvanized, iron, aluminum and non-metallic bodies.

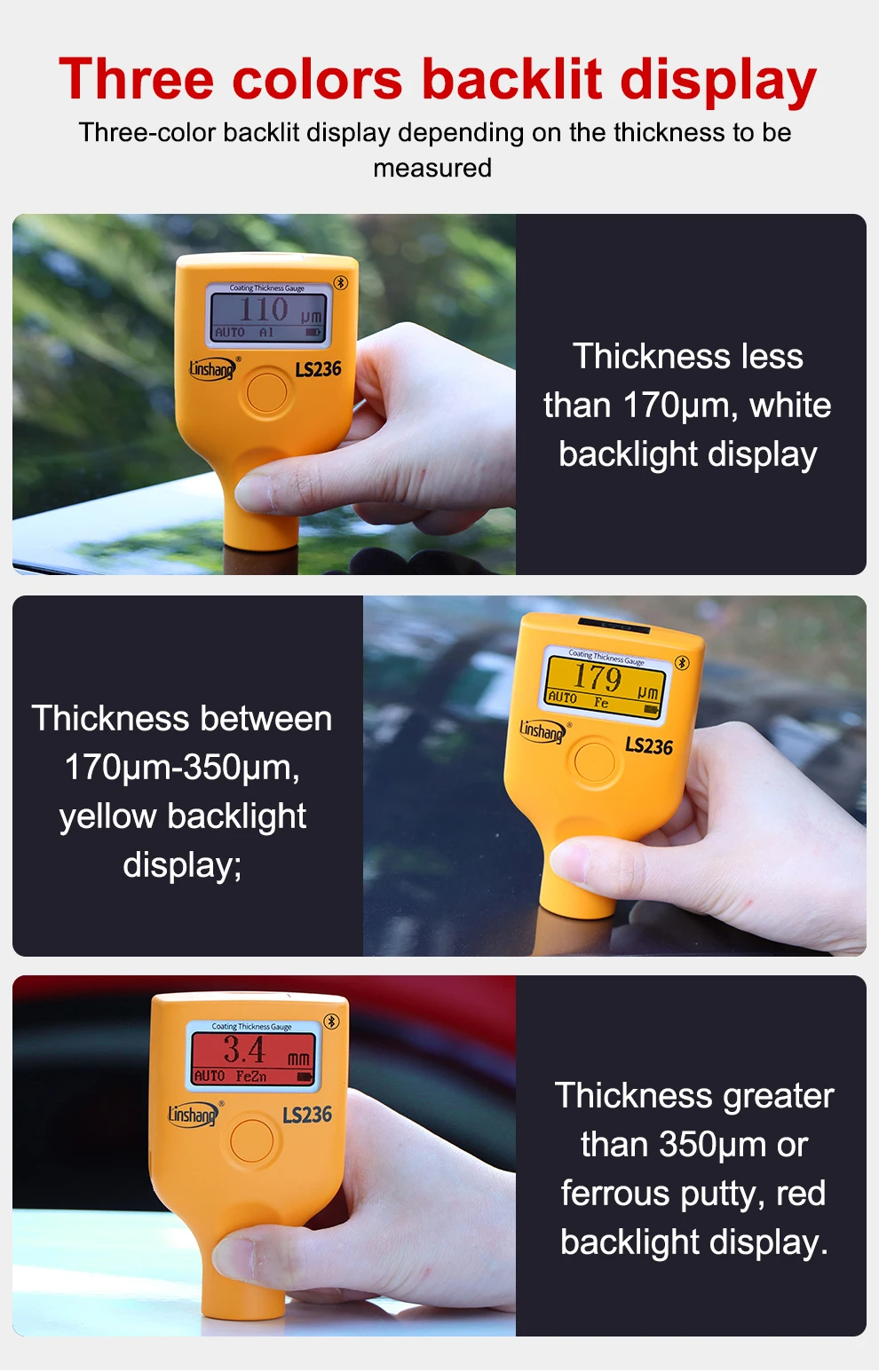

Three colors backlit display
Three-color backlit display depending on the thickness to be measured.

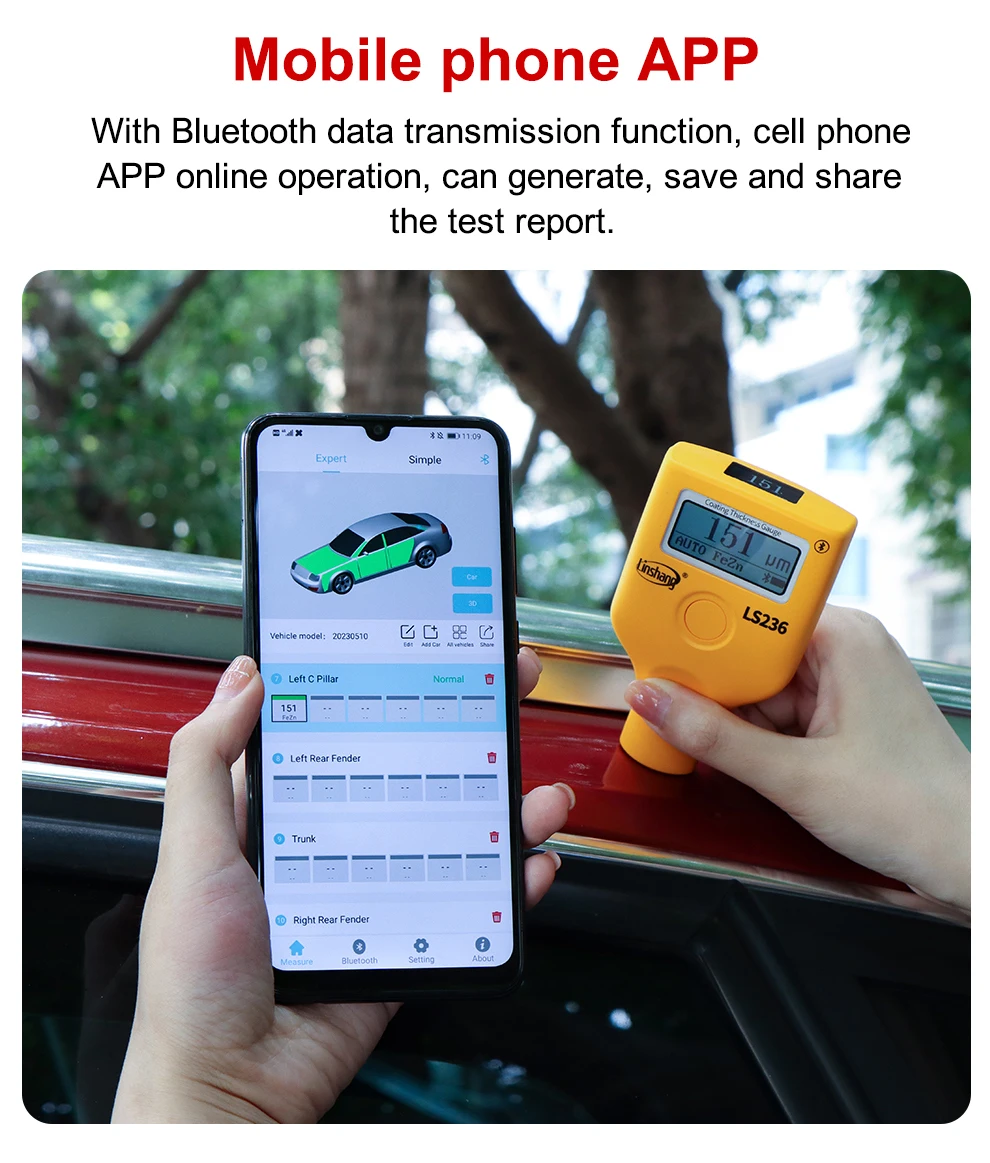

Equip with APP
With Bluetooth data transmission function, cell phone APP online operation, can generate, save and share the test report.

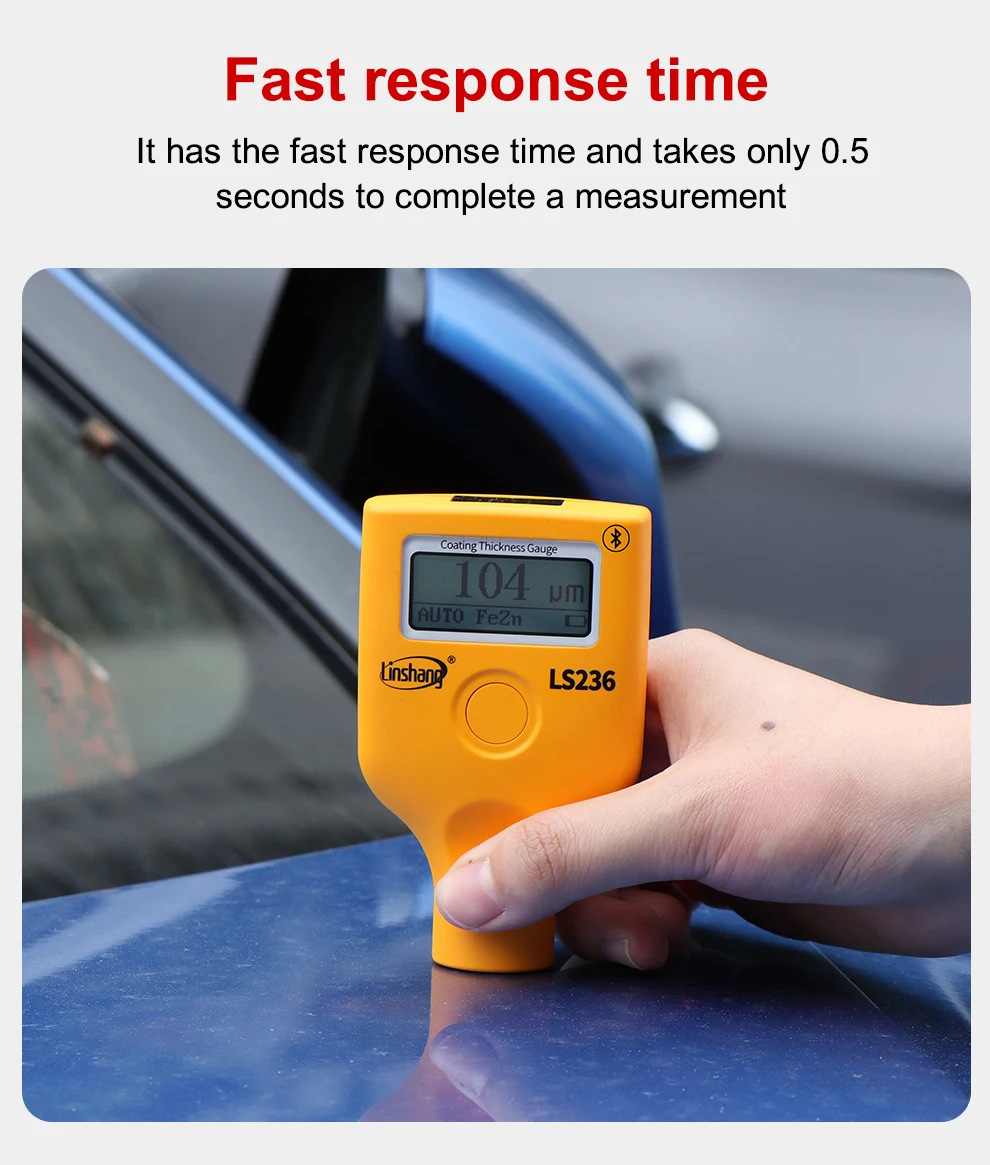

Fast response time
The car paint thickness tester has the fast response time and takes only 0.5 seconds to complete a measurement.

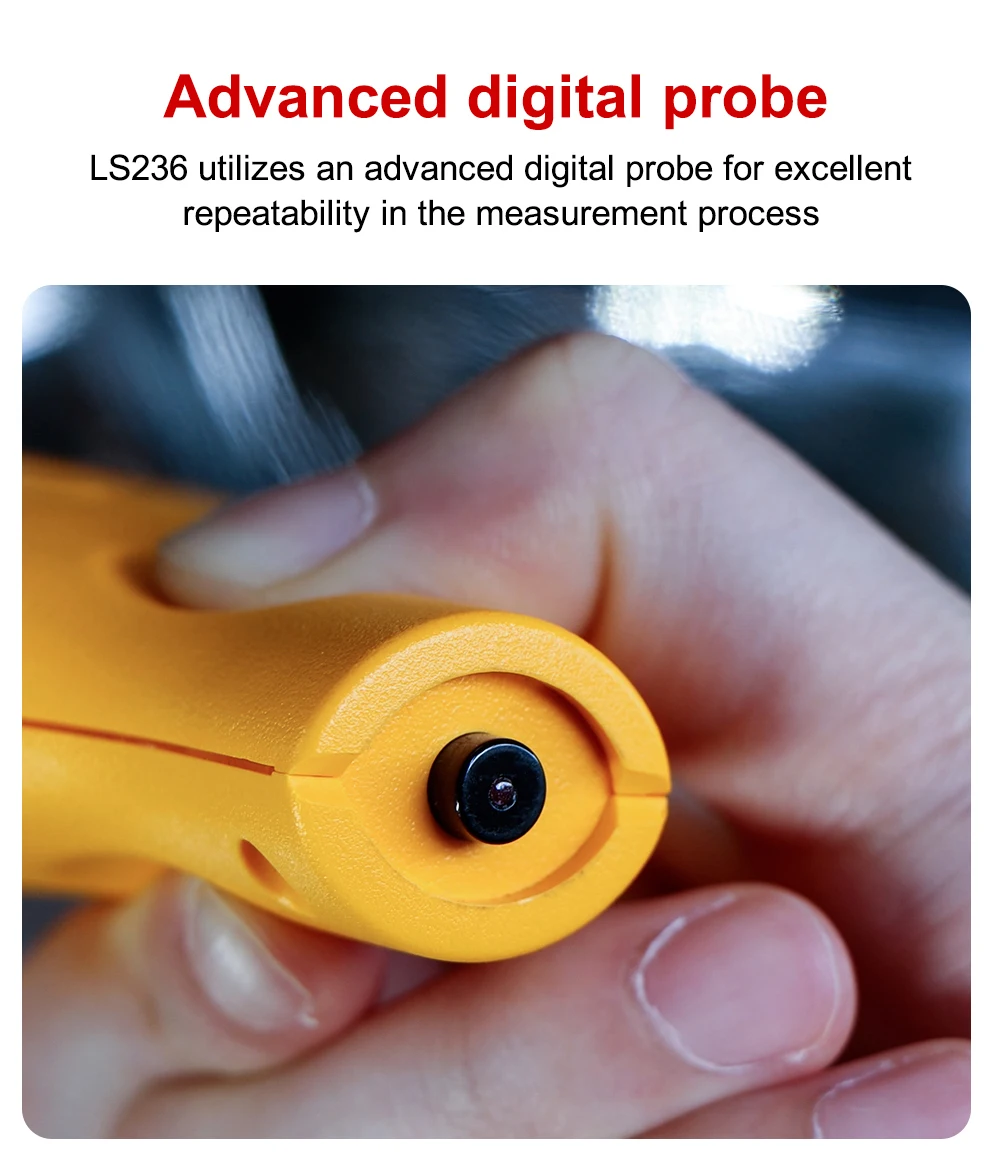

Advanced digital probe
LS236 paint thickness meter utilizes an advanced digital probe for excellent repeatability in the measurement process.
