Model: TDGC2-3000VA

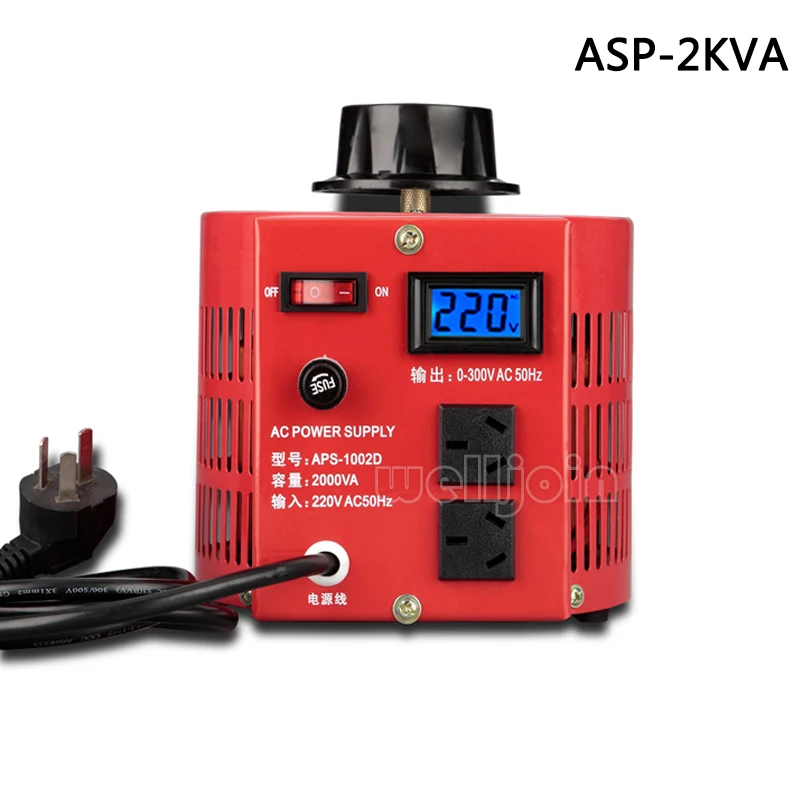

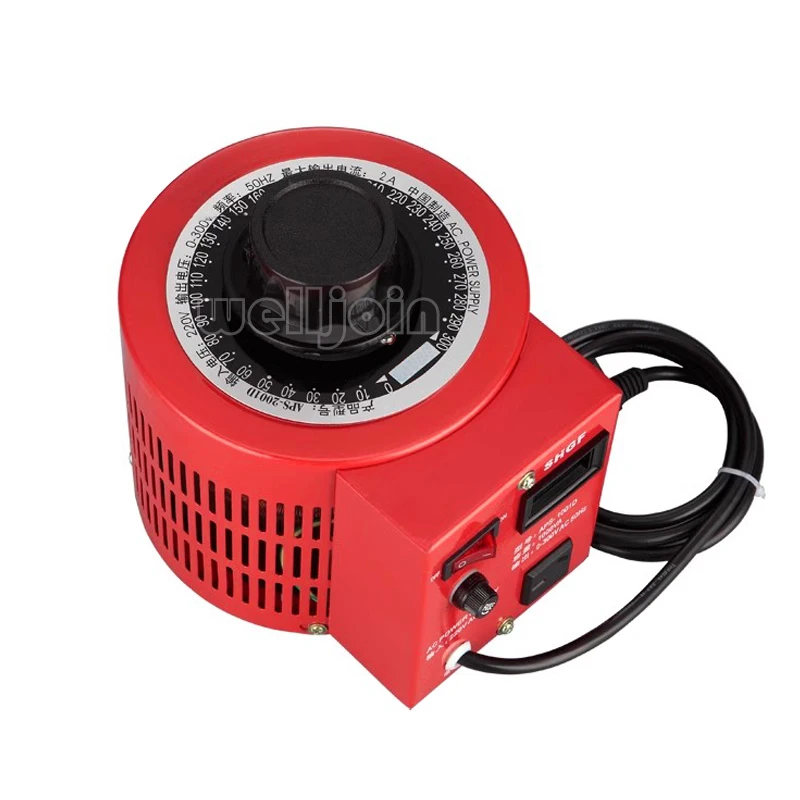

Name: Single phase digital voltage regulator
Input voltage: 220V
Frequency: 50/60Hz
Adjustable voltage: 0-300V (customizable)
Upper limit current: 8A
Machine temperature: ≤ 60 ℃
Weight: 9.7KG
Load power characteristics of voltage regulator: TDGC2-3000W (0-300V)
Output voltage 200V, load power ≤ 400W
Output voltage 150V, load power ≤ 300W
Output voltage 100V, load power ≤ 200W
Output voltage 50V, load power ≤ 100W
Output voltage 10V, load power ≤ 20W
The formula for calculating the maximum power that can be loaded with the corresponding voltage value is:
Output loadable power (W)=output voltage (V) "maximum current (A)
Note: The lower the output voltage regulation, the smaller the output power, and the smaller the load power
