Dear friends, The product is delivered by default, please make sure that the battery size and the connector used for the battery are the same before ordering.

If you need a customized battery or battery connector, please contact me. Thank you!

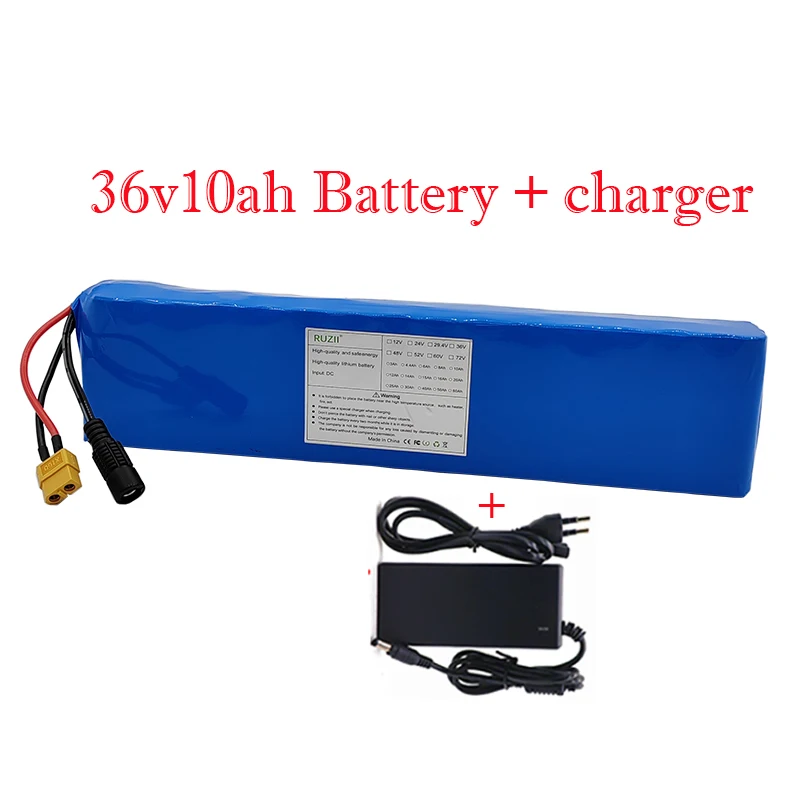

Shipping list:

1. 36V 10ah Battery  Built in 15a BMS.

2. 42V 2a Charger Battery

Battery Parameters:

Model: 36 V 10 ah

Rated capacity (ah):10 ah

Rated voltage (V): 36V

Resistance of the source of cells (MOmega): about 20 PTO)

Technical description: 3.7V 3.2ah / Battery Cell（Panasonic NCR-18650 BD ）

Cell combination: 3-parallel 10-series

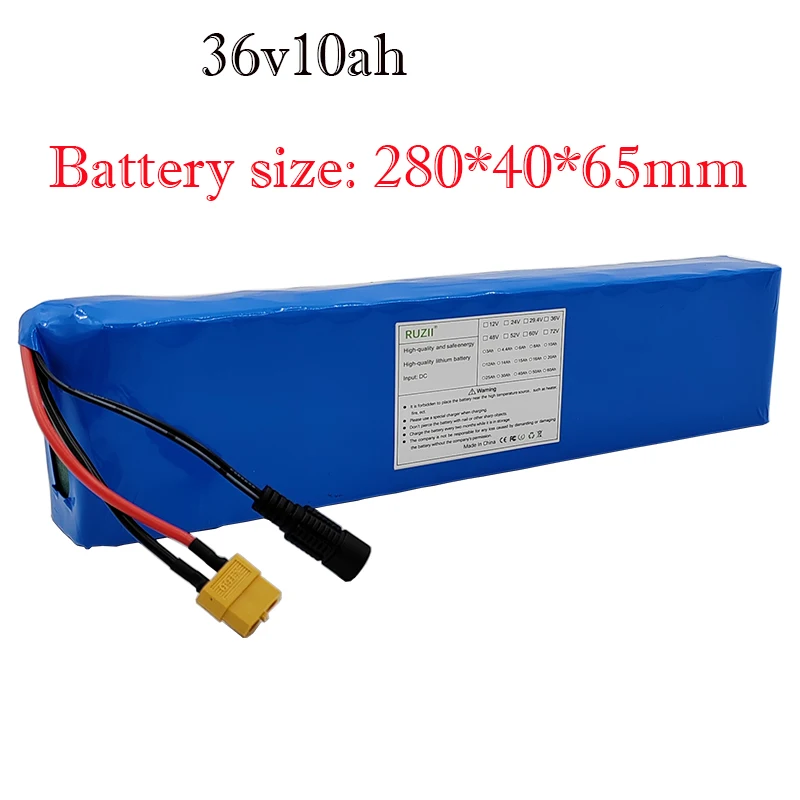

Battery size: 280*65*40mm

Number of cells (parallel * series): 30 pcs.

Discharge voltage (V): 30 +/- 1 V

Charge voltage (V):42 V

Rated discharge current (a):15

аInstantaneous maximum discharge current (a):30

AMaximum Continuous Discharge Current (A):15a

Charge mode: CC / CVStandard charge current (A):2A

Charging time under Standard charge current:4 h

Maximum Continuous Current Charge (A): 5A

Charging time with fast current charging: 2 h

Charge temperature range: 0-45 deg c

Range of discharge temperature: -20-60 deg c

Battery weight about: 1.6kg

The life cycle:More than 800 times, capacity and performance will decrease as the number of cycles increases.

Battery Application:

ebike, Electric bike, Scooter, Motor, Electric Bicycle Rear Wheel Kit, e bike conversion kit, Electric Bicycle front Rear Wheel, Hub Motor Kit, Controller Kit, Solar/Wind Devices, High Drain Devices, Low Drain Devices, Brushless motors, Electric golf cart, E-ebike conversion kit

And the battery can not be used in parallel.

Please check the volt and size of battery you need before order to avoid unnecessary return. Thank you!
