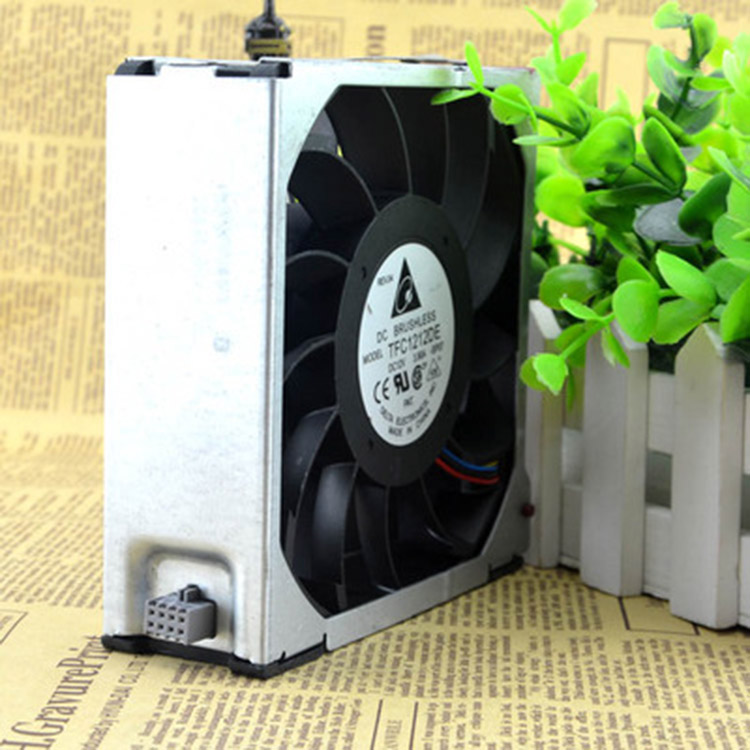

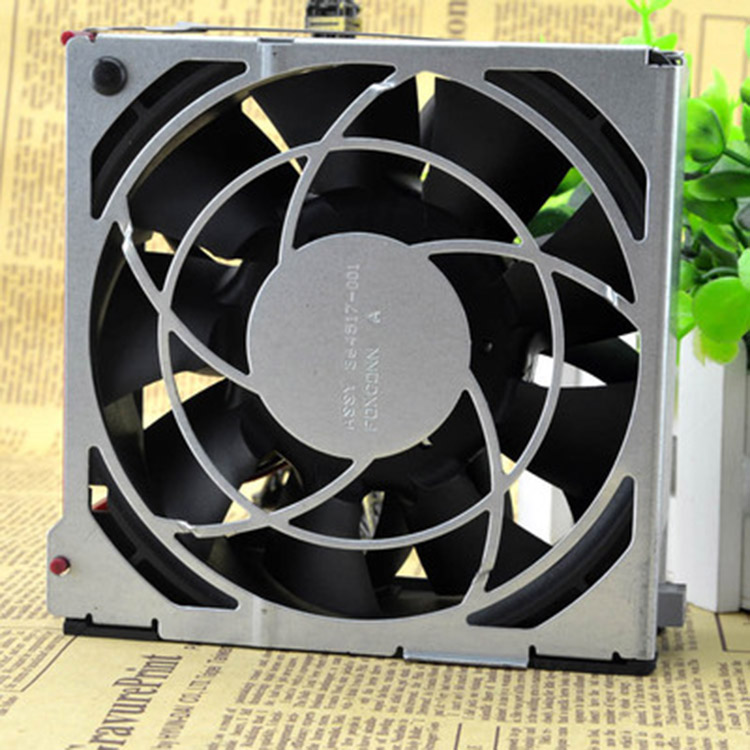

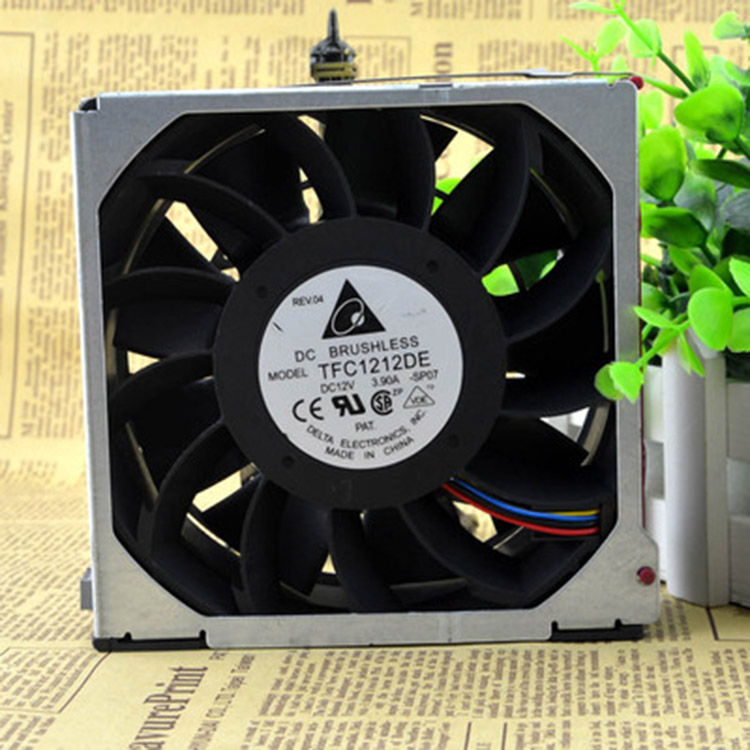

Features:
l Made of high quality material, durable and practical
l Replacement cooling fan for the original damaged, old and non-working one
l Improve the cooling performance of the device which can extend its service life
l Can draw heat away from your device, improve heat dissipation
Specification:
l Fan Frame/Blade Material: PBT + 30% Glass Fiber + VO Grade Flame Retardant
l Size: 120×120×38mm
l Voltage: DC12V
l Air Volume: 252.85CFM (7.16m3/min)
l Wind Pressure: 1.412 in H2O (351.7 Pa)
l Weight: 0.351kg
l Noise: 66.5 dB(A)
l Power: 57.6W
l Speed Regulation: Support Motherboard PWM Speed Regulation
l Interface: Motherboard 4p + Power Supply Large 4d Dual Power Supply Interface
l Line Length: 35cm
l Number of Revolutions: 5500 RPM
l Bearing: High Precision Ball Bearing
Package:
l 1x Cooling Fan
Notice:
l The fan is very violent, please pay attention to safety when testing
l In the case of motherboard PWM speed regulation, the speed is adjusted to 1050 rpm below 10%, and the fan increases by 405 rpm for each level of adjustment from 10% to 100%. Due to the current limit of the motherboard, it cannot reach 5500 rpm.
l Directly connected to the power supply 12V positive and negative 2-pole power supply, can reach the maximum speed
