FILA-10.1X4
Sound Town Mode Audio Series 10-Inch 1400 Watts Line Array Speaker System, with Four 10-inch Passive Line Array Loudspeakers, Italian-Made Neodymium Drivers, Baltic Birch Plywood, Black

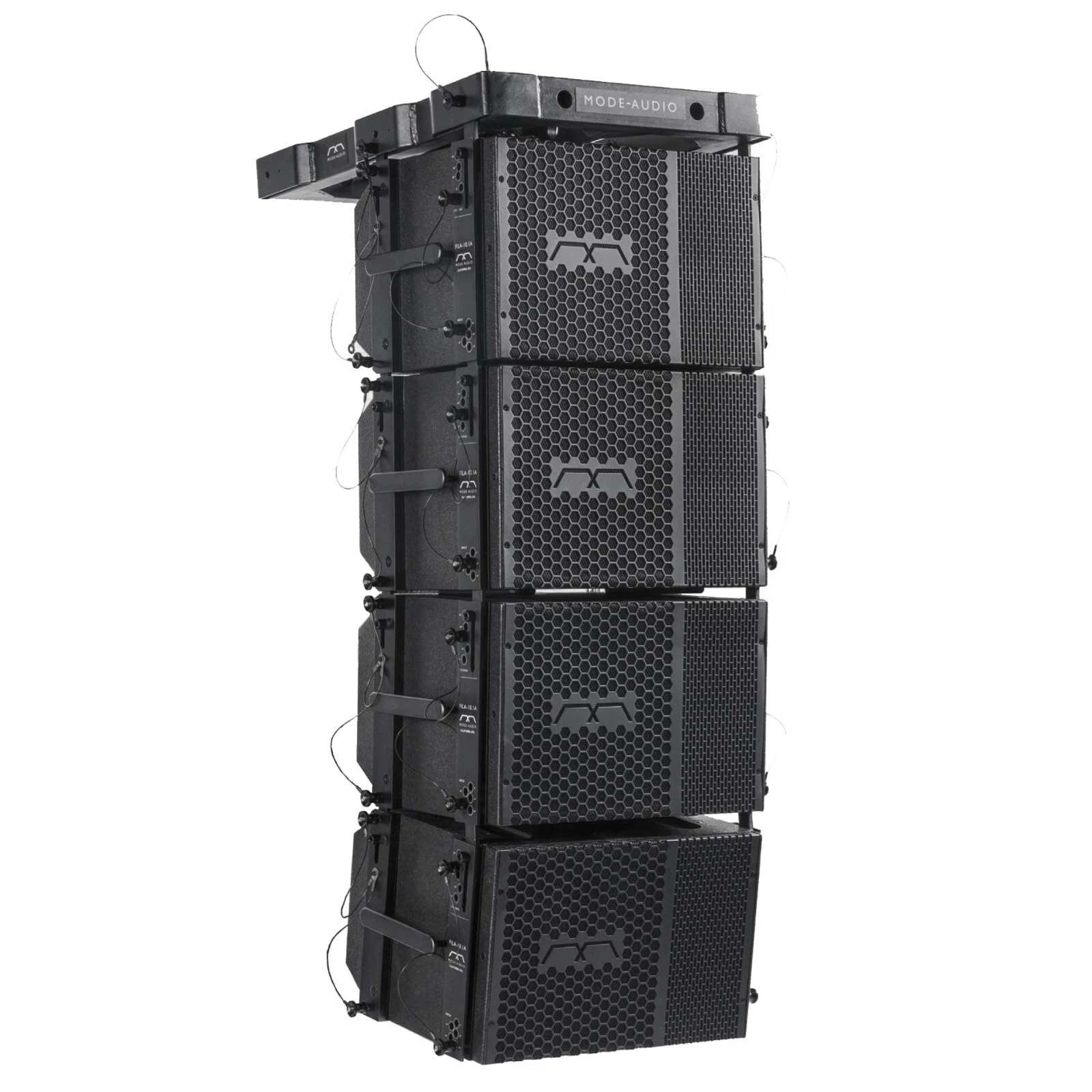

The Sound Town Mode Audio Series FILA-10.1X4 Loudspeakers System includes:

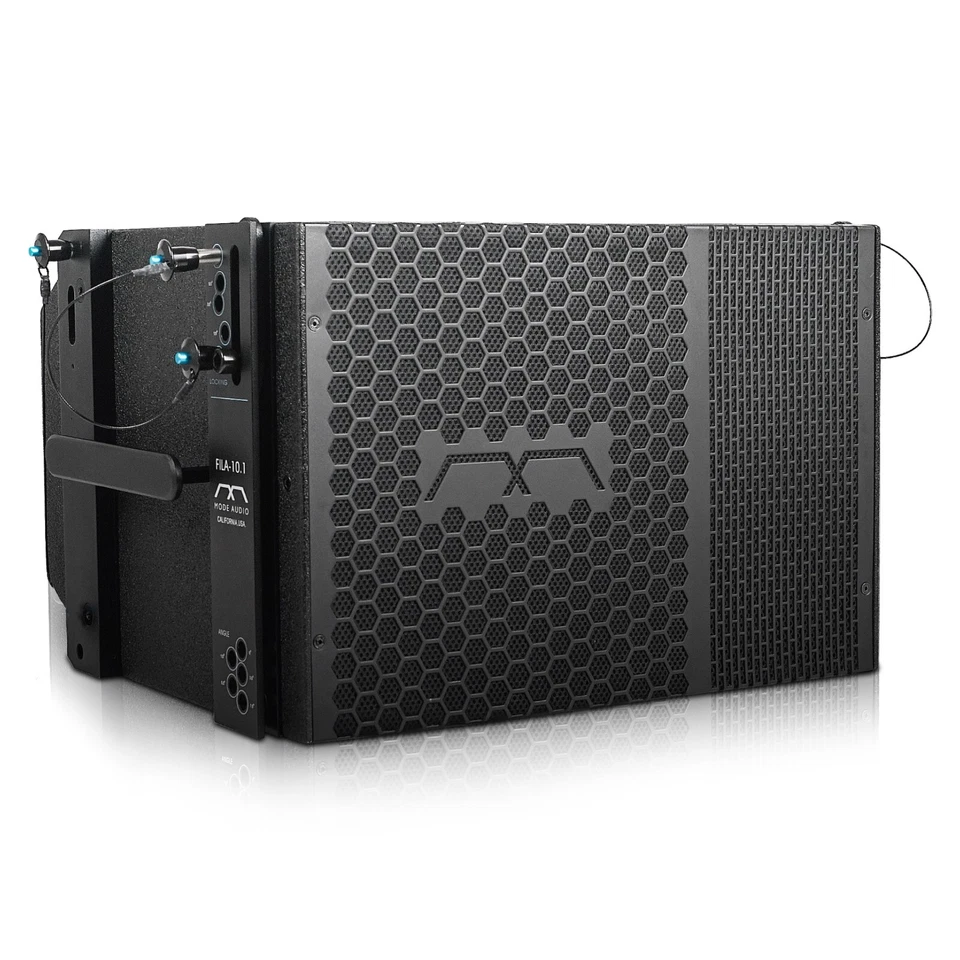

  • (4) FILA-10.1 10-Inch Passive Line Array Loudspeakers
  • (1) FILA-10.1FF Flying Frame for Suspension Setup


    Experience the power and audio clarity of the Mode Audio FILA series FILA-10.1X4 vertical passive line array set, designed for a wide range of venues and applications. The FILA-10.1X4 line array set includes (4) FILA-10.1 passive line array loudspeakers and (1) FILA-10.1FF flying frame for suspension setup. Each speaker boasts a 700W RMS and 1400 program power at 8Ω, ensuring a robust and clear audio output.

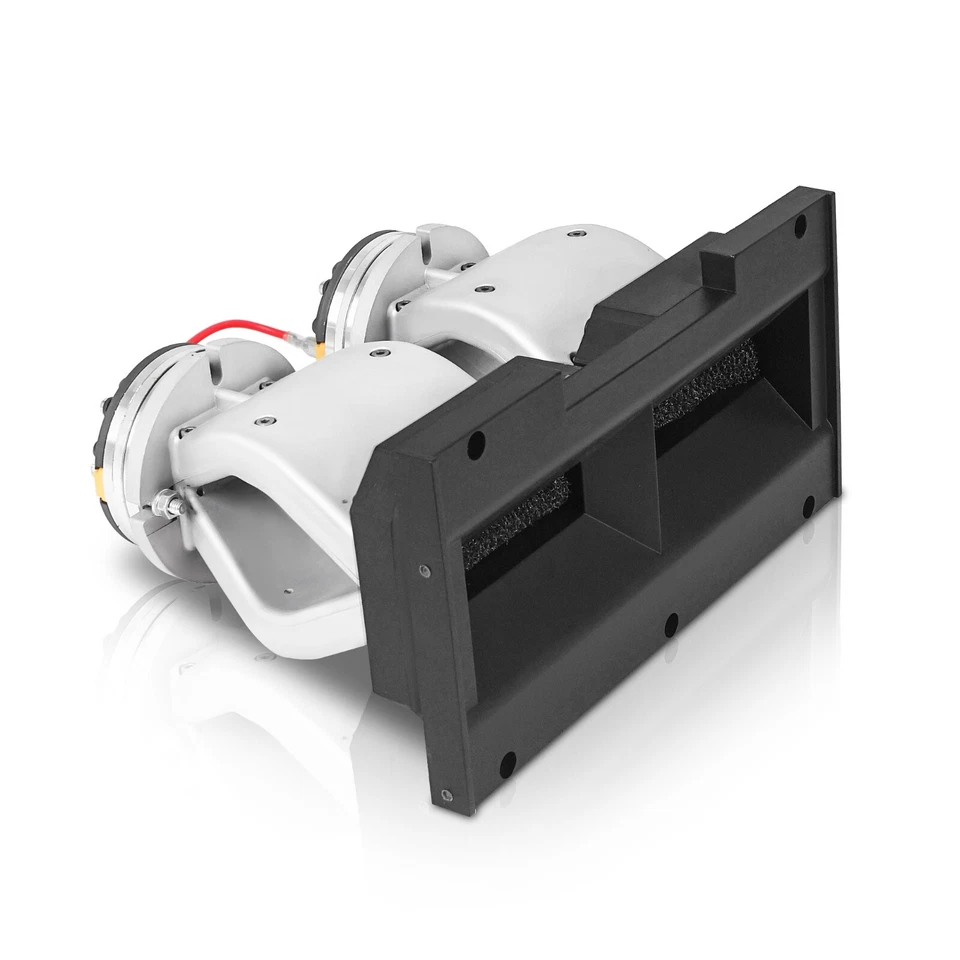

    Built with Italian FaitalPRO high-performance components, each Mode Audio FILA-10.1 line array speaker features 2 high output neodymium compression drivers housed in our LSM® HF chamber line source wave guide that delivers over 110dB (1W/1M), generating a coherent 15° vertical wave front. Boasting a high output 10“ neodymium woofer provides optimal low and mid-range frequencies. When paired with FILA-215SB line array subwoofer (sold separately), the low-frequency can be extended down to 30Hz.

    The build quality of the FILA-10.1 speaker is tour-grade, featuring a high-quality Baltic birch plywood enclosure which helps to minimize distortion, even at high outputs, delivering pure sound. The integrated aluminum handle and rigging hardware help enhance portability and provide reliable protection during transport and setup. The included FILA-10.1FF flying frame for suspension setup is engineered with both permanent installations and mobile setups in mind. Built to tour-quality standards, safely and reliably add up to 16 FILA-10.1 line array speakers (additional speakers sold separately), customizable to fit any venue, such as clubs, bars, theaters, restaurants, auditoriums, churches and more.



    • Features

    • MODE AUDIO FILA SERIES FILA-10.1X4 LINE ARRAY SET: The Mode Audio FILA-10.1X4 passive line array set includes (4) FILA-10.1 vertical line array speakers and (1) FILA-10.1FF flying frame for suspension setup. Each FILA-10.1 speaker is capable of 700W RMS and 1400W program power at 8Ω.

    • ITALIAN FAITALPRO HIGH-PERFORMANCE ITALIAN COMPONENTS:Each FILA-10.1 line array loudspeaker features 2 high output neodymium compression drivers housed in our LSM® HF chamber line source wave guide that delivers over 110dB (1W/1M), generating a coherent 15° vertical wave front. Boasting a high output 10“ neodymium woofer provides optimal low and mid-range frequencies. When paired with FILA-215SB line array subwoofer (sold separately), the low-frequency can be extended down to 30Hz.

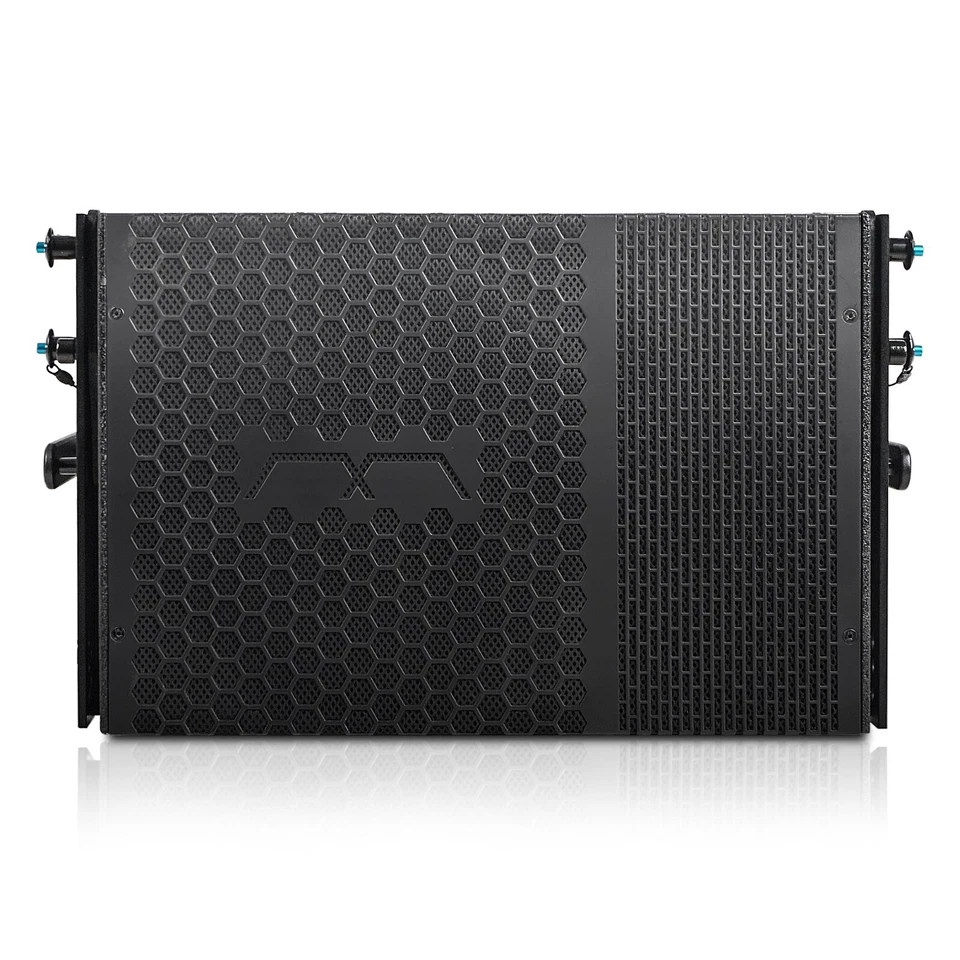

    • TOUR-LEVEL CRAFTSMANSHIP: Built with Baltic birch plywood and a textured polyurea finish, the FILA-10.2 minimizes distortion and vibrations. Designed with an integrated aluminum handle and rigging hardware, providing durable and reliable protection during transport and set up. The rugged, perforated steel grille protects the speaker during transport and ensures consistent sound quality in any environment, from touring events to permanent installations.

    • SUSPENSION SETUP AND CUSTOMIZATION: Easily suspend and fly your Mode Audio FILA-10.1X4 line array set with the included FILA-10.1FF flying frame. Seamlessly and safely expand your setup with up to 16 FILA-10.1 line array speakers (additional speakers sold separately) per frame.

    • OPTIMAL PERFORMANCE WITH TTM AMPLIFIERS: For the best performance, we recommend pairing the FILA-10.1 with the MODE Audio TTM series amplifiers, which are manufactured in Italy. The TTM amplifiers share the Armonia Plus software platform, support Dante/AES, and are specifically tailored to maximize the FILA-10.1’s capabilities. Additionally, free downloadable GLL files (compatible with AFMG EASE) are available to assist in your sound system design.



    Specifications
    Model FILA-10.1
    Active / Passive Passive
    Frequency Response 55 Hz - 18k Hz
    Sensitivity 110 dB
    SPL Max 141 dB
    Dispersion 90 Degrees Horizontal
    Configuration 10" passive full-range line array loudspeaker
    Transducer LF: 10” Italian-neodymium woofer, HF: 2x1.4" Italian Neodymium compression driver
    Voice Coil 3.0"
    Magnet -- oz
    Impedance 8 ohm Bi-amp: LF: 8 ohm, HF: 16 ohm
    Power Handling 720W RMS, 1440W PROGRAM, 2880 PEAK
    Cabinet Construction High-grade 100% birch plywood
    Flying/Mounting Frame Model# Compact line array aluminum hardware
    Finish Texture coating
    Grill & Rigging Component Steel with anti-corrosion coat

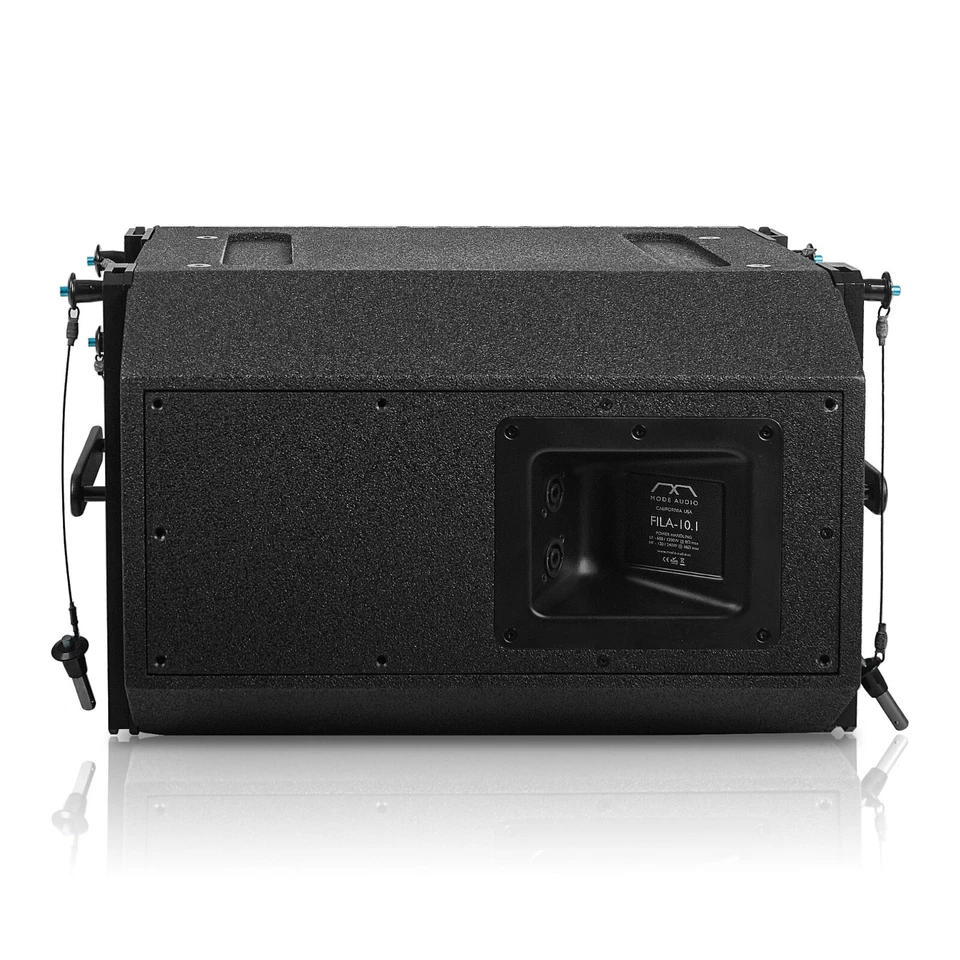

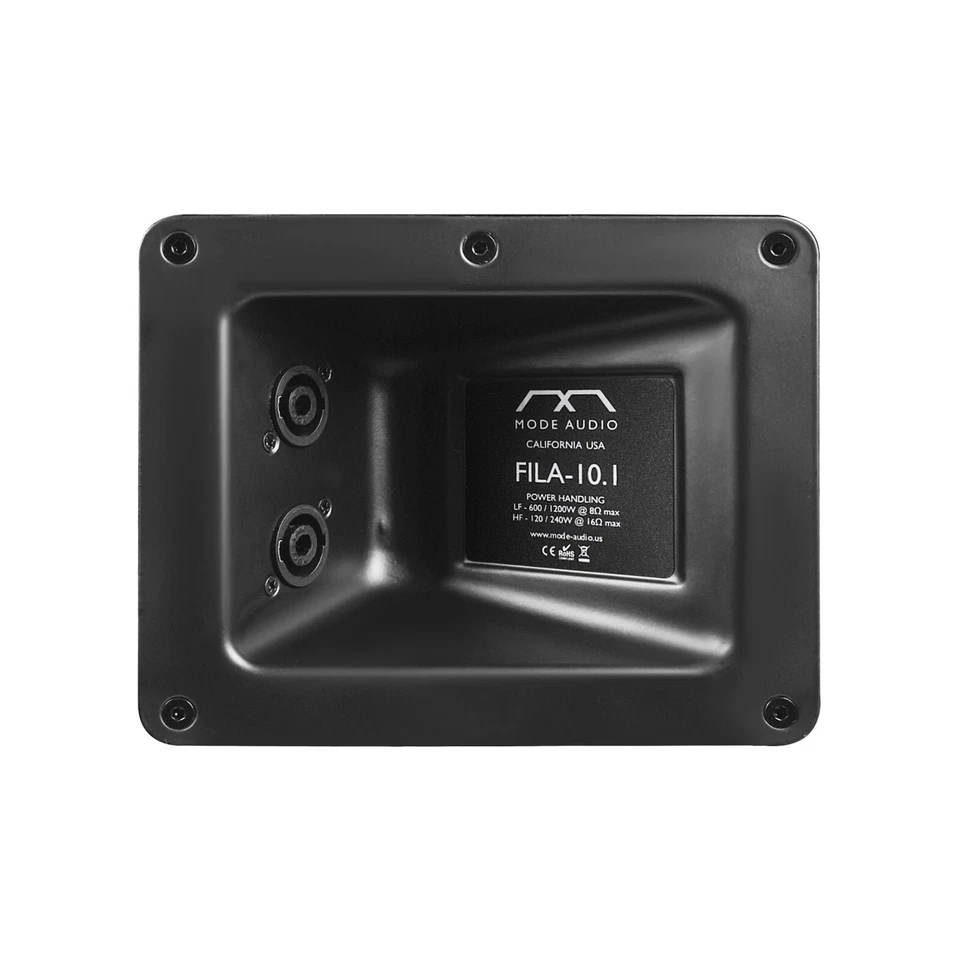

    Input 4 Pin SPEAKON
    Output 4 Pin SPEAKON
    Voltage 100V-240V (50-60 Hz)


    Dimensions & Weight

    Model FILA-10.1 FILA-10.1FF
    Product Width (in.) 17.3" 25.1"
    Product Height (in.) 11.5" 2.4"
    Product Depth (in.) 14.0" 18.6"
    Product Weight (lb.) 50.0 lbs 38.5 lbs
    Package Width (in.) 21.5" 26.7"
    Package Height (in.) 15.0" 4.5"
    Package Depth (in.) 17.8" 20.2"
    Package Weight (lb.) 54.3 lbs 41.5 lbs


    Warranty/Certifications

    Manufacturer Warranty 1 Year
