Mini Two-way Brushed ESC 1A x 2 1-2S 3.3-8V Electronic Speed Controller ESC for RC Car Tank Modification Part

Description:

l High quality two-way brush BEC 1A x 2 1-2S 3.3-8V speed controller replacement parts

l High precision manufacturing ensures stable performance and excellent function

l The central position of the remote controller is fixed at PWM 1500us (+50 -50), and the minimum run length is 900-1100 and the maximum 1900-2100 is automatically adapted, and the excess is ignored.

l Start with neutral point (throttle channel 1500, you will hear the motor "beep" and the ESC starts)

l With out-of-control protection (loss of signal (in the accident, the signal wire is broken), for safety, motor protection, you need to return the throttle to the center and unlock it again.

l The ESC has a certain degree of overheating protection (the motor terminal is suddenly short-circuited, the overheating protection may burn before it takes effect) (mainly to maintain the battery voltage, the ESC is still available at 2.9v, but the receiver may no longer be used)

Specification:

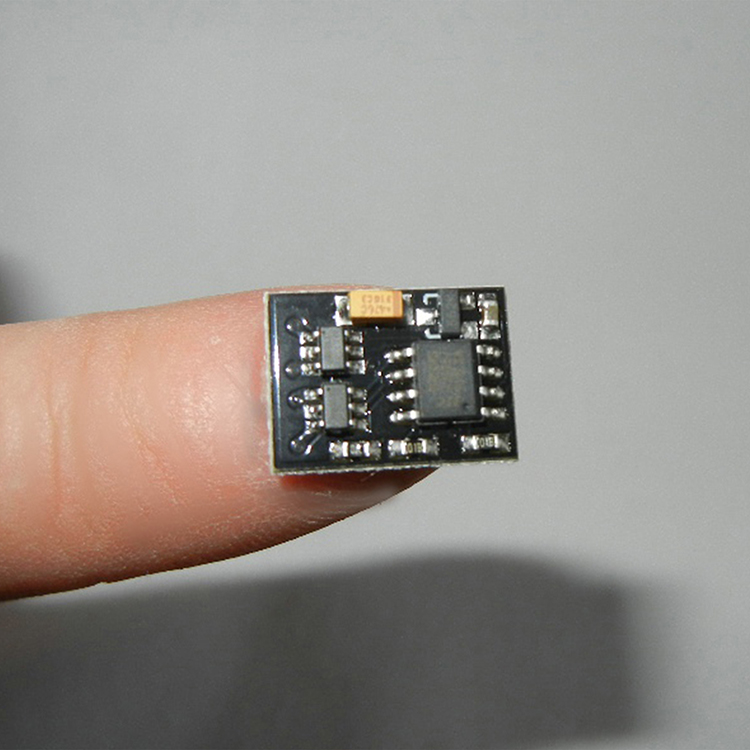

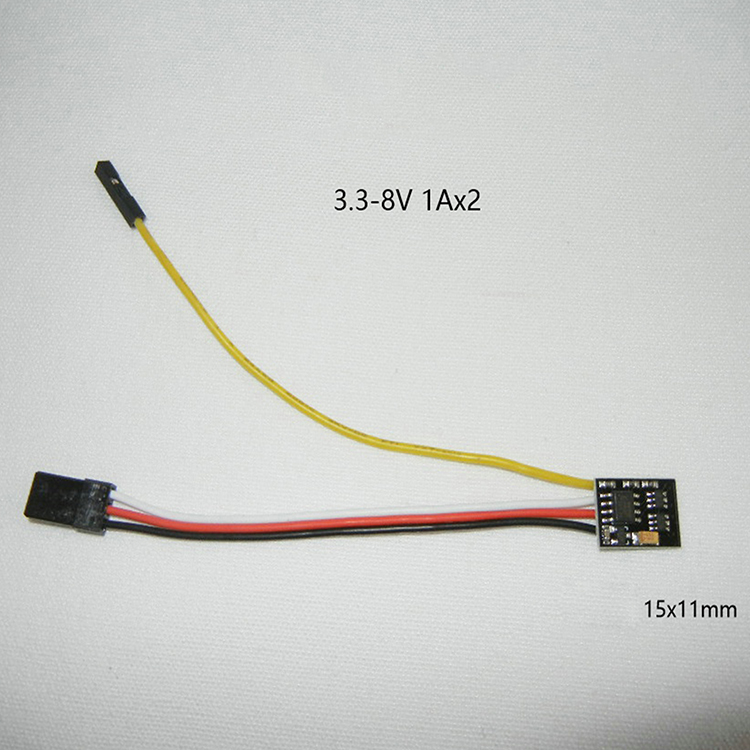

l Size: 15x11mm without wire: 0.5g, with wire 2g

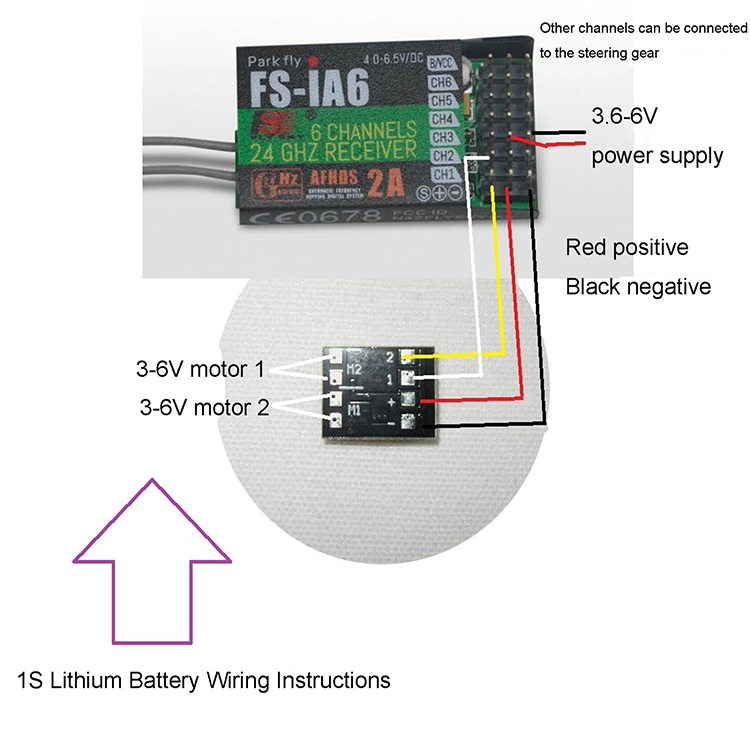

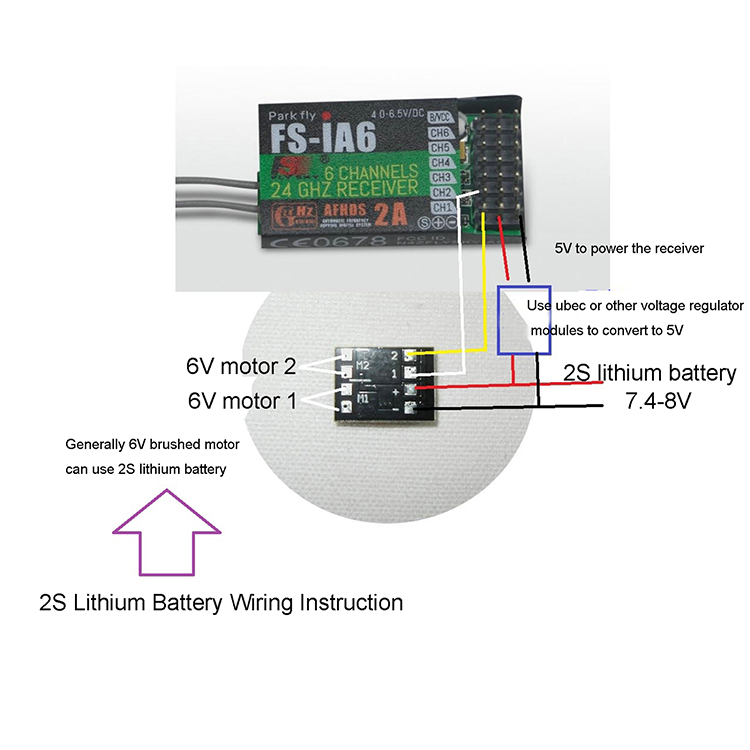

l Voltage: 3.3-8V (If using 2S power supply, consider the servo/receiver)

l Single channel: 1A peak 1.5A (TT motors are all at 0.3A, single channel can be connected to 2 TT motors)

Modes:

l Mixed control mode (default) (both: throttle/steering mode): 2 or 3 channels (recommended 2 channels, because 2 channels automatically return to center) control the throttle, 1 channel (or 4 channels) control the speed difference steering, the throttle ratio is 100%, the steering ratio is 100%, and the steering has priority. Suitable for: tanks (in this mode, gun control can play tanks), 4 drive vehicles (apm can be installed)

l Two-way synchronization: Do not insert a single yellow wire, so that the output of the two-way motor is the same.

Key points of mixing control debugging:

l Make sure that the forward and backward motors are in the same direction. (If a motor turns in the wrong direction, please exchange the +-level wires on the back of the motor)

l Then adjust the direction. If it is inconsistent with the expectation, the remote control may be reversed. Set it back.

Package:

l 1x Mini Two-way Brushed ESC
