Showtec Stage Blinder FLEX Blaze Set of 8x 100 W LED Blinders + Controller

Product Description

Description:

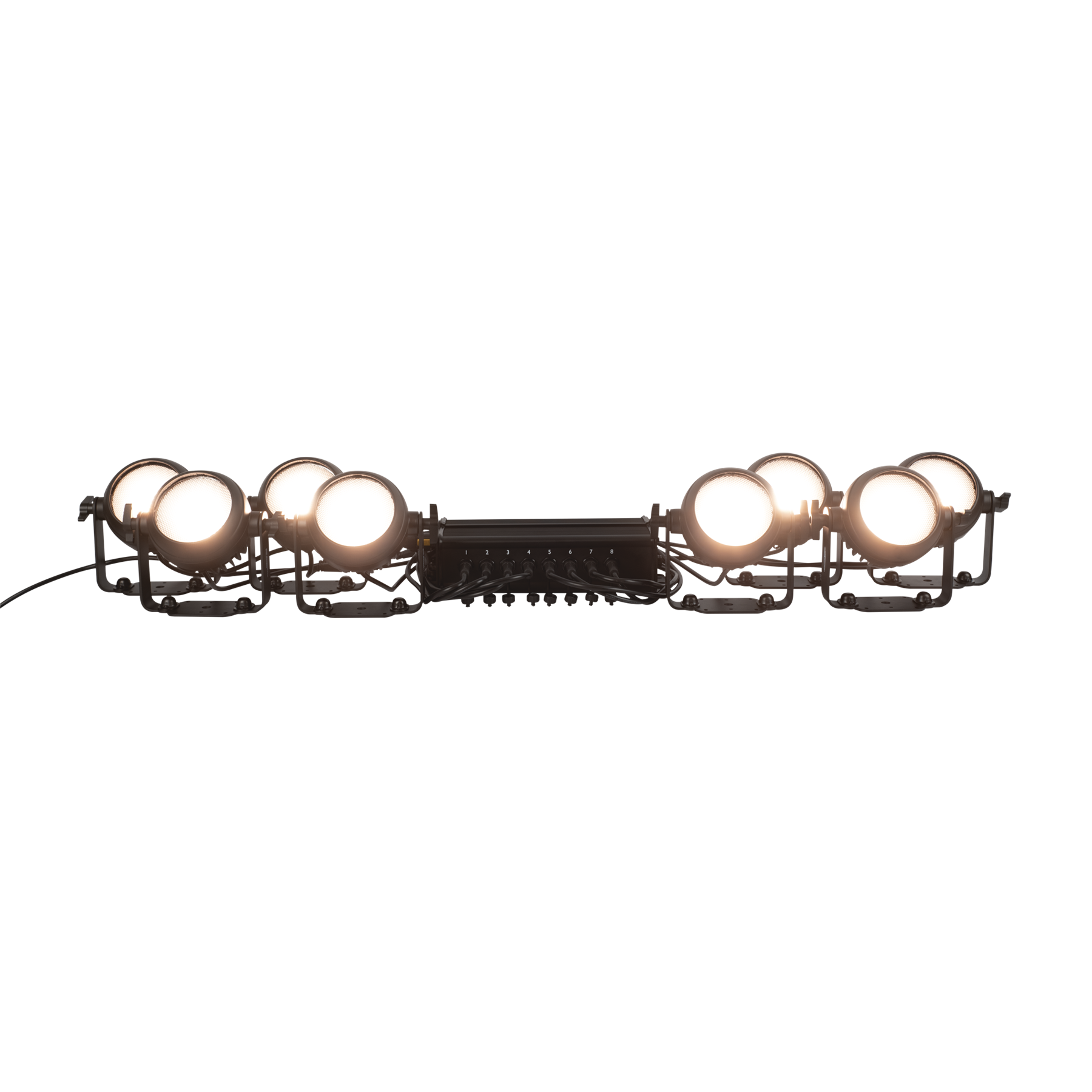

The Showtec Stage Blinder FLEX Blaze is a set of 8 high-power LED audience blinders of 100 W each and a dedicated controller. Each individual pod has a powerful warm white COB LED of 3000 K with integrated amber LEDs to perfectly mimic the tungsten dimming of traditional blinders. Integrated RGB LEDs light sources allow you to create unique full-colour blaze effects. The powerful LED light source combined with a strobe functionality allows you to use the Stage Blinder FLEX Blaze as a strobe light with interesting colour effects. The light effect can be controlled via DMX/RDM, Master/Slave, but can also run in stand-alone mode with several built-in programs.
The blinder pods have a special mounting bracket with 4 holes at a 45-degree angle, so you don’t have to detach the pod from it to drill through the holes to mount it. The bracket also has a 12.5 mm hole, while the controller has two 12.5 mm holes and an M10 threaded insert for attaching a clamp. You can also attach a quick lock bracket to the controller and pods. The blinders and controller have a robust IP65-rated aluminium enclosure and are ready for outdoor shows. Dedicated 4x 2.5 m and 4x 5 m cables with control signals and power are included. Additional dedicated cables of various lengths are available separately (maximum length allowed: 30 m).

Specifications:

Source
Light Source Type LED
Light Source Quantity 8
Light Source Power 100 W
LED Colour Type A, WW, RGB
Luminous Flux (Total) 5229 lm
CRI 92
Optical
Beam Angle (Horizontal) 45 °
Beam Angle (Vertical) 45 °
Control and Programming
Control Mode Built-in Program, DMX, Master Slave, Stand Alone, Static Dimmer
DMX Channels 4, 5, 8, 32, 33, 40
Protocols DMX, RDM
Zone Control (Sections) 8
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 700 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Mechanical Specifications
Length (mm) 216 mm
Width (mm) 115 mm
Height (mm) 195 mm
Controller Length 372 mm
Controller Width 171 mm
Controller Height 103 mm
Weight 1.47 kg
Controller Weight 3.65 kg
IP Rating IP65
Material Aluminium, Metal
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Forced Convection
Rigging
Mounting Options
Clamp, Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 45 °C
Minimum Operating Temperature -20 °C
Included Items
Included Cables Dedicated IP65 Dataconnection, Power Pro True Cable
Included Accessories Controller
Included Rigging 1x Quick-Lock Bracket
